Model # D2EG150N20058 Official York single-package gas/electric unit

Here are the diagrams and repair parts for Official York D2EG150N20058 single-package gas/electric unit, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 170 parts  |
Igniter 025-29010-000
#49

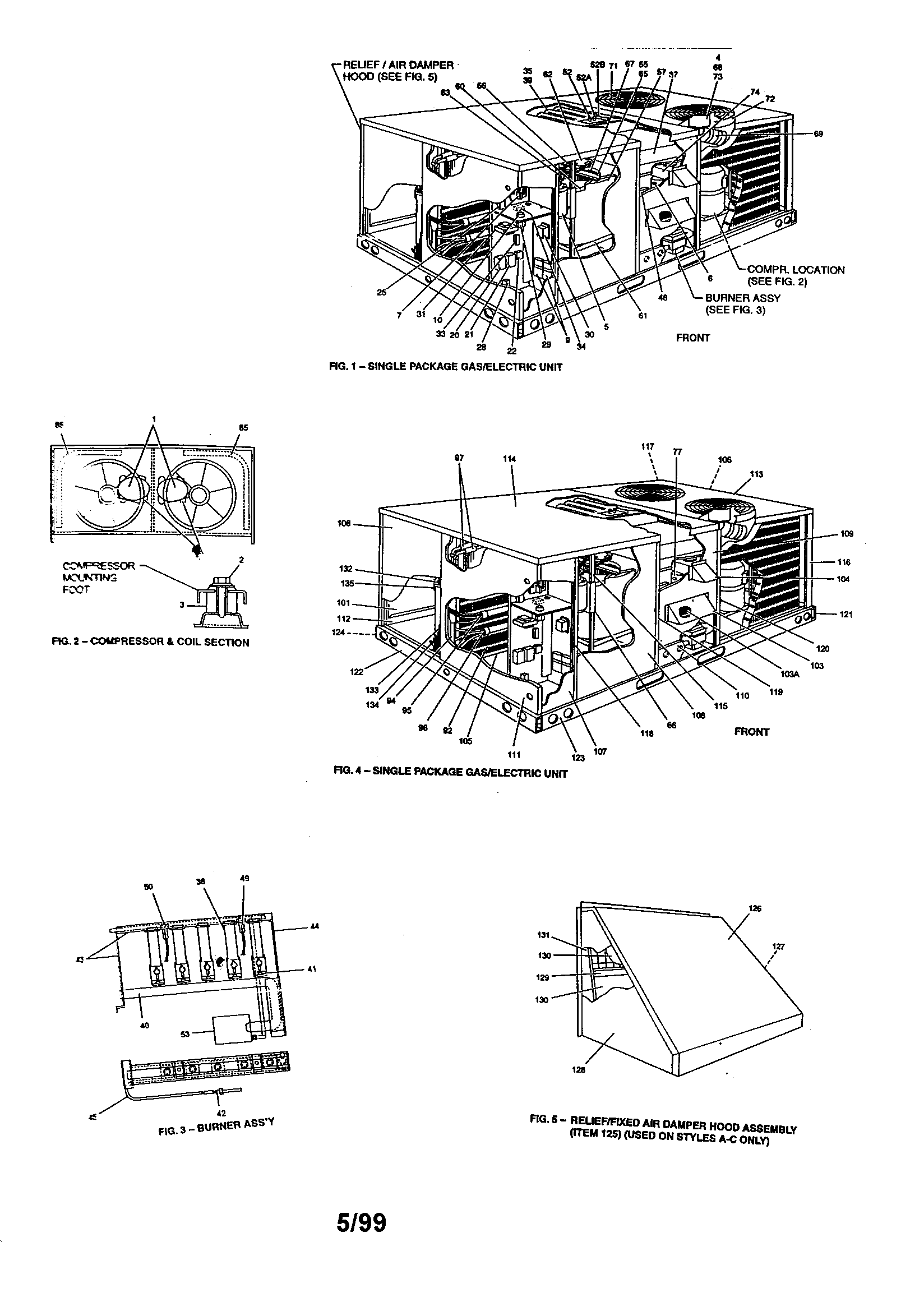

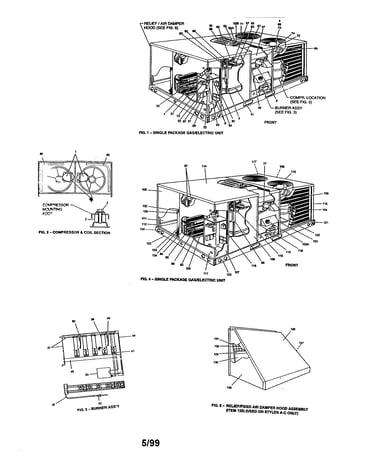

Unit parts diagram

Igniter

Part #025-29010-000

The manufacturer no longer makes this part, and there's no substitute part

Elec Cntrllr 025-20963-000
#13

Unit parts diagram

Elec cntrllr

Part #025-20963-000

$19.63
In Stock
Relay, Cnt'l (heat Seq.) (unit Style C,d) 024-26088-001
#29A

Unit parts diagram

Relay, cnt'l (heat seq.) (unit style c,d)

Part #024-26088-001

The manufacturer no longer makes this part, and there's no substitute part

Motor, Blower 5-hp (alternate) 024-24137-702
#5A

Unit parts diagram

Motor, blower 5-hp (alternate)

Part #024-24137-702

The manufacturer no longer makes this part, and there's no substitute part

Grommet Pvc Red (1-1/8 Id. Use 2-1/8 Hole) 028-04791-000
#138

Unit parts diagram

Grommet pvc red (1-1/8 id. use 2-1/8 hole)

Part #028-04791-000

The manufacturer no longer makes this part, and there's no substitute part

Varisotr (ventor Motor Protector) 025-30145-000
#79

Unit parts diagram

Varisotr (ventor motor protector)

Part #025-30145-000

The manufacturer no longer makes this part, and there's no substitute part

Wire Cloth (1x2 Mesh) 026-31400-000
#131

Unit parts diagram

Wire cloth (1x2 mesh)

Part #026-31400-000

The manufacturer no longer makes this part, and there's no substitute part

Contactor (2-req'd) 024-25955-00
#21

Unit parts diagram

Contactor (2-req'd)

Part #024-25955-00

The manufacturer no longer makes this part, and there's no substitute part

Control, Relay (note: Style "b" Models Are The Same As Style "a" Except For The Following Parts:) 024-25910-700
#30

Unit parts diagram

Control, relay (note: style "b" models are the same as style "a" except for the following parts:)

Part #024-25910-700

The manufacturer no longer makes this part, and there's no substitute part

Bracket, Rollout Switch 073-03120-000
#51A

Unit parts diagram

Bracket, rollout switch

Part #073-03120-000

The manufacturer no longer makes this part, and there's no substitute part
