Model # BDP-S770 Official Sony dvd player

Here are the diagrams and repair parts for Official Sony BDP-S770 dvd player, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 34 parts  |
Ant-007sm A1759421A
#9

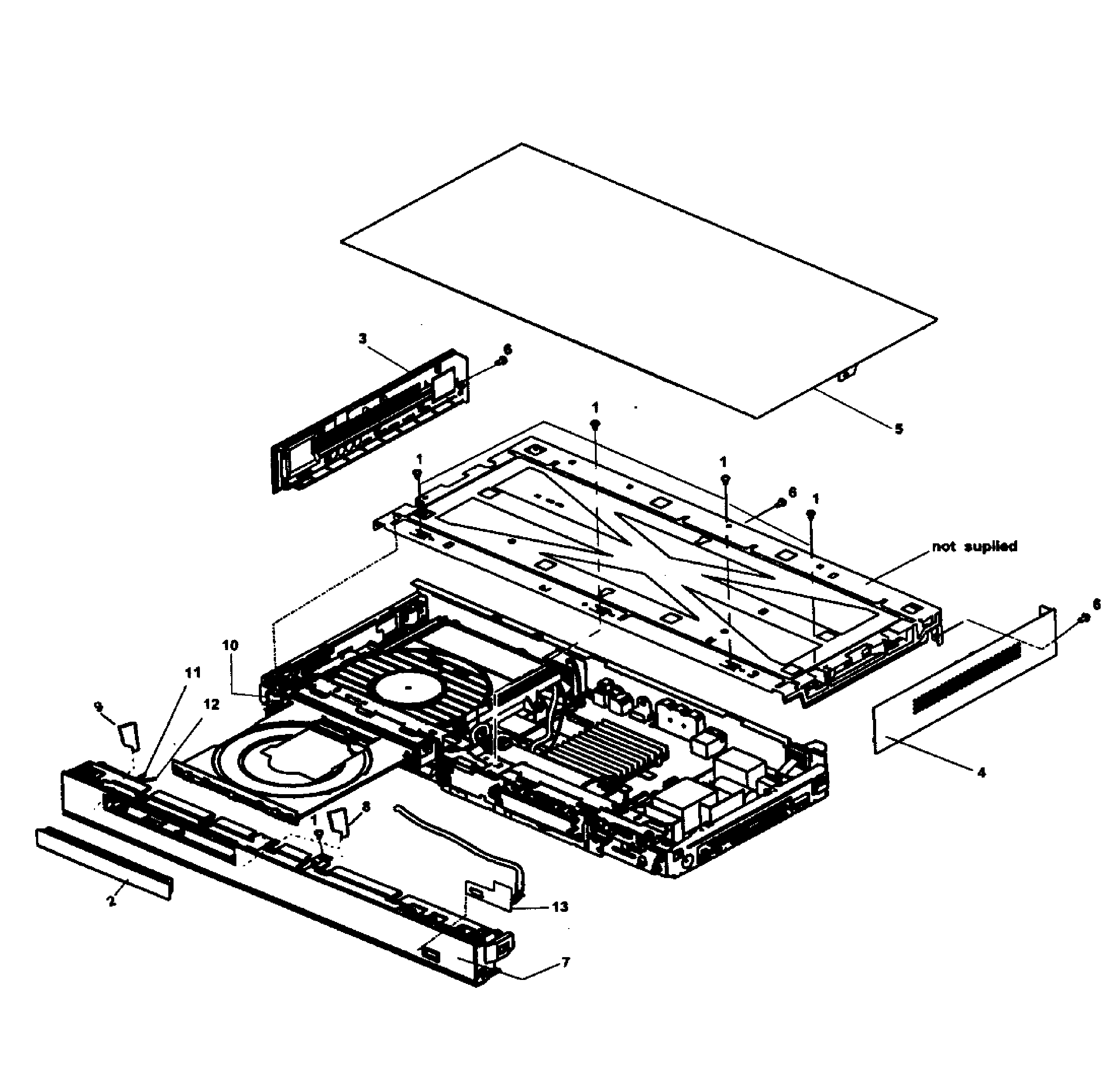

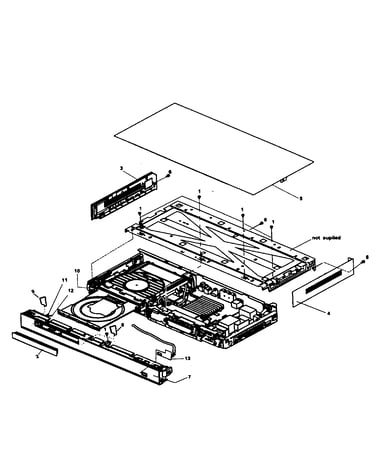

Cabinet parts diagram

Ant-007sm

Part #A1759421A

The manufacturer no longer makes this part, and there's no substitute part

Holder 416732101
#152

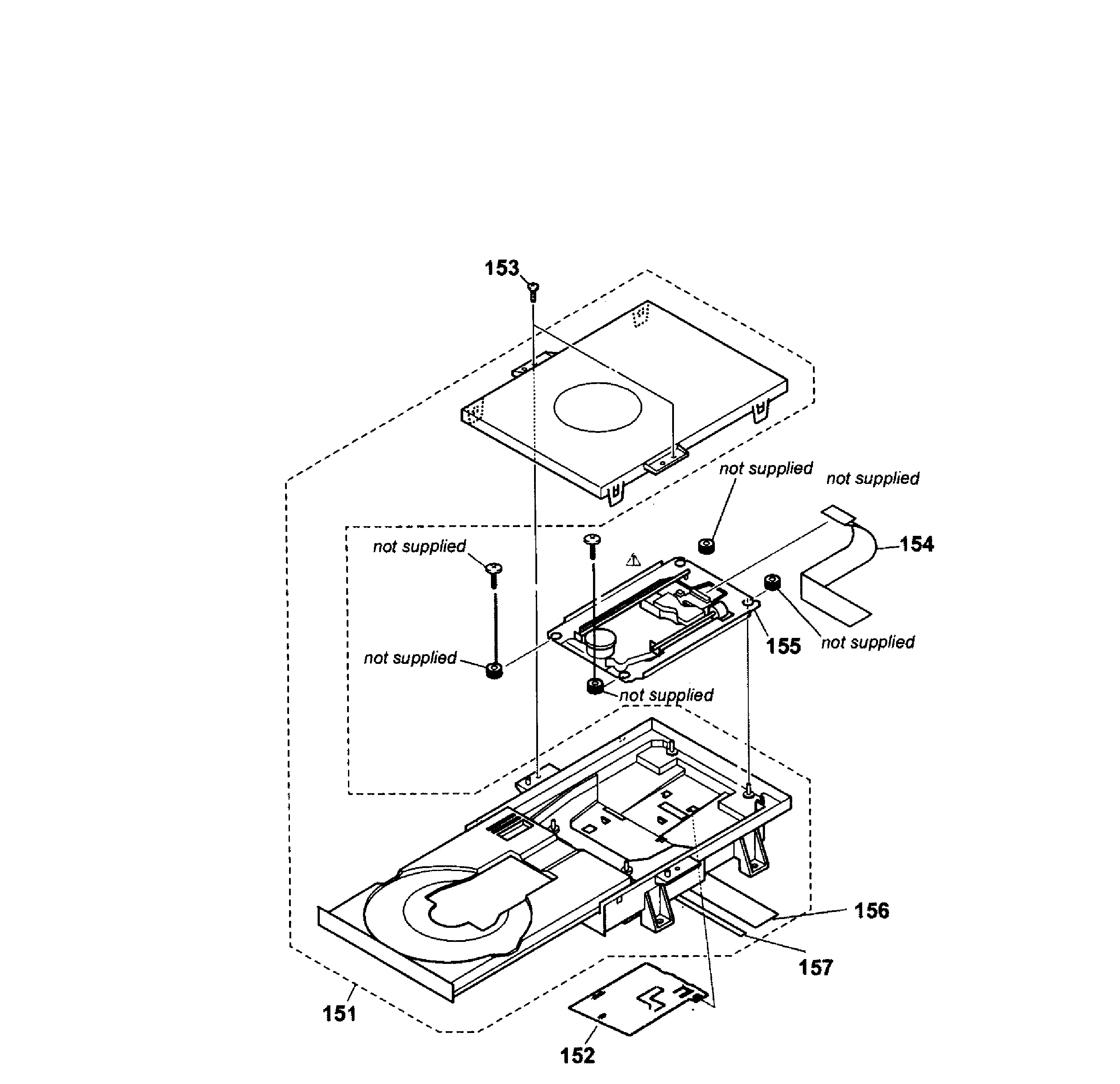

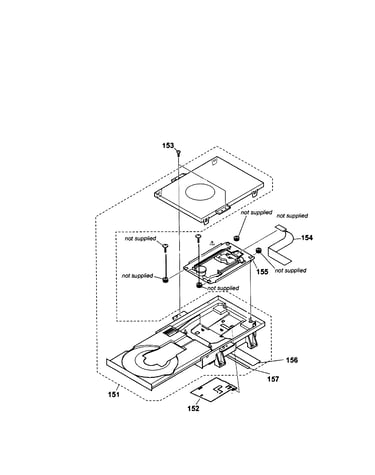

Bd section diagram

Holder

Part #416732101

The manufacturer no longer makes this part, and there's no substitute part

Fr Service A1787900A
#52

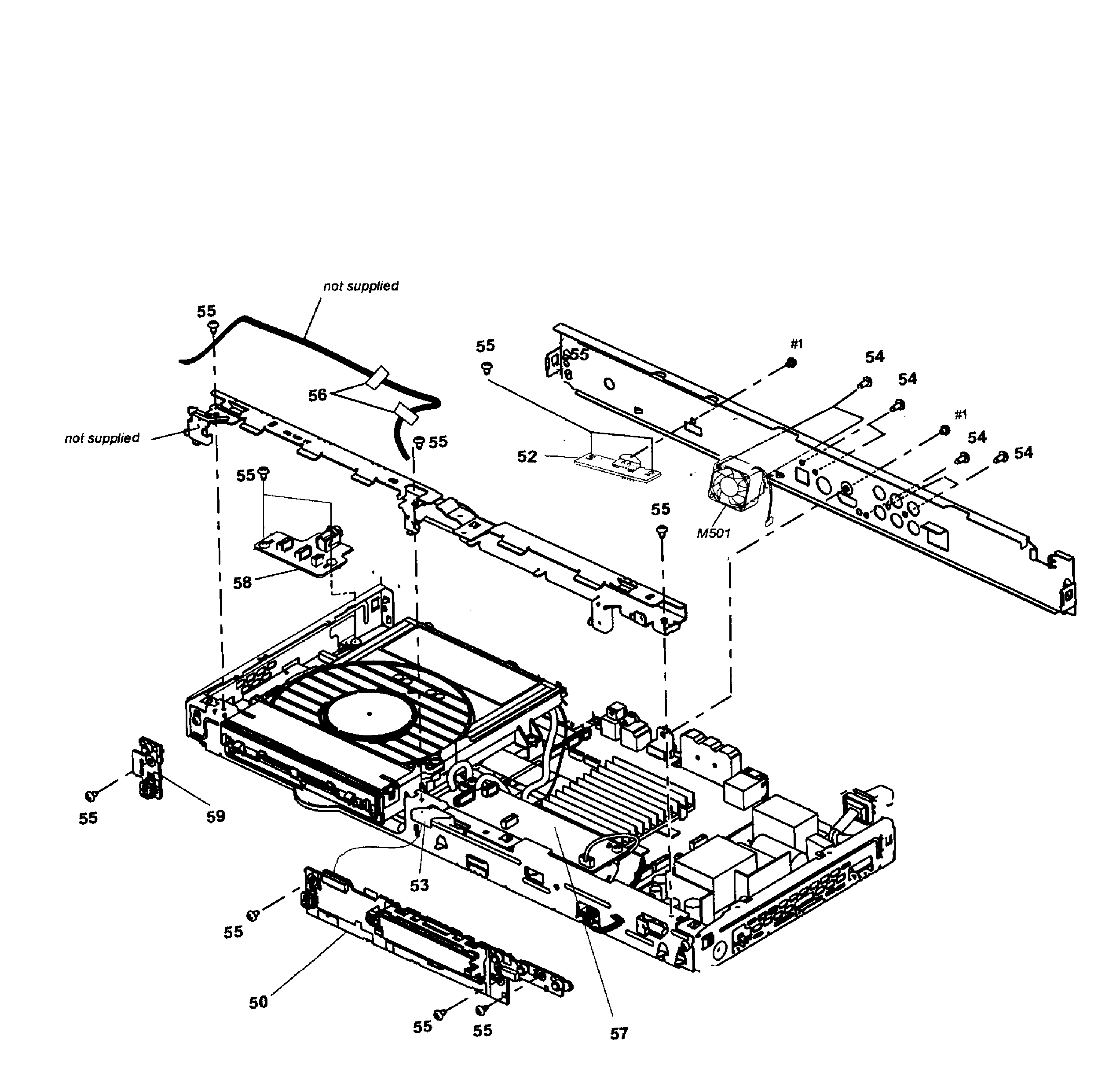

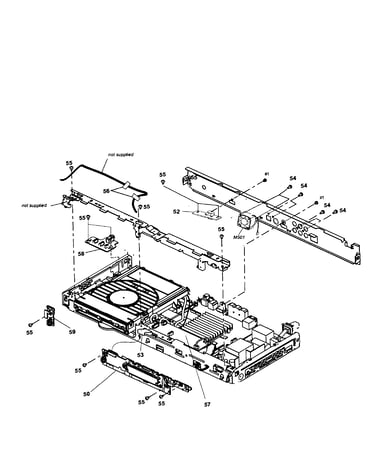

Chassis assy diagram

Fr service

Part #A1787900A

The manufacturer no longer makes this part, and there's no substitute part

Device,opt 882043002
#155

Bd section diagram

Device,opt

Part #882043002

The manufacturer no longer makes this part, and there's no substitute part

Em Service A1779305A
#103

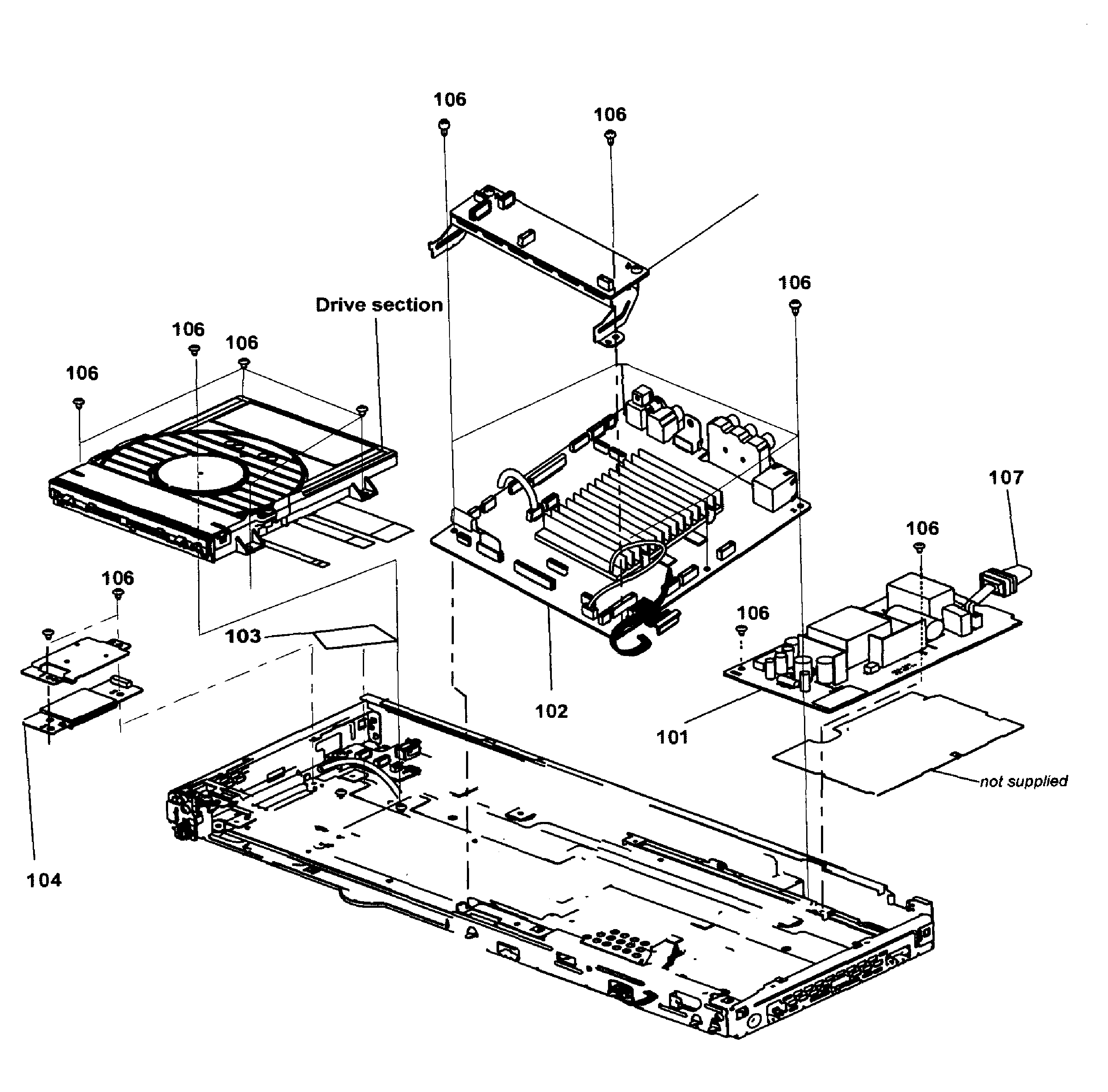

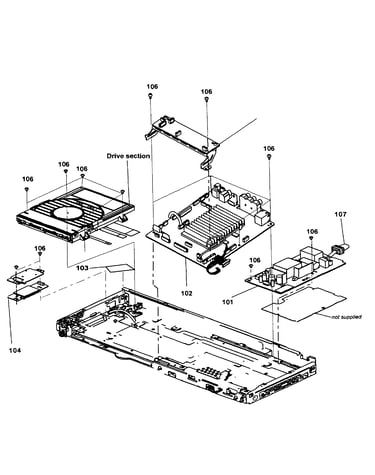

Main assy diagram

Em service

Part #A1779305A

The manufacturer no longer makes this part, and there's no substitute part

Remote Control 148768311
#NI

Cabinet parts diagram

Remote control

Part #148768311

The manufacturer no longer makes this part, and there's no substitute part

Panel 418418701
#5

Cabinet parts diagram

Panel

Part #418418701

The manufacturer no longer makes this part, and there's no substitute part

Audio Video Cord 175127171
#NI

Cabinet parts diagram

Audio video cord

Part #175127171

The manufacturer no longer makes this part, and there's no substitute part

Usb-026 Mo A1782359A
#13

Cabinet parts diagram

Usb-026 mo

Part #A1782359A

The manufacturer no longer makes this part, and there's no substitute part

Cable 183749511
#156

Bd section diagram

Cable

Part #183749511

The manufacturer no longer makes this part, and there's no substitute part
