Samsung
LCD Television

Model # UN65MU8500FXZA-AA01 Official Samsung lcd television

Here are the diagrams and repair parts for Official Samsung UN65MU8500FXZA-AA01 lcd television, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 79 parts  |
Pcb Ocm BN94-11965A
#2

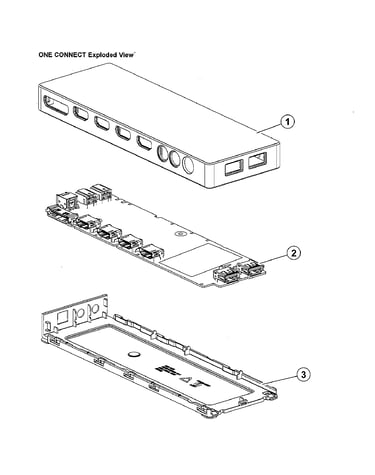

One connect diagram

Pcb ocm

Part #BN94-11965A

The manufacturer no longer makes this part, and there's no substitute part

Tuner-air Cable BN40-00329B
#NI

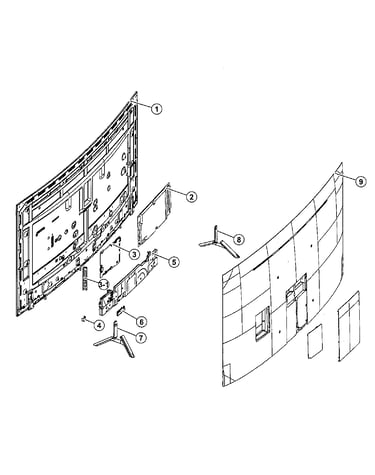

Main asy diagram

Tuner-air cable

Part #BN40-00329B

The manufacturer no longer makes this part, and there's no substitute part

Ic Dr/rec 1006-001576
#NI

Main asy diagram

Ic dr/rec

Part #1006-001576

The manufacturer no longer makes this part, and there's no substitute part

Stand, Lower Left BN96-42370A
#7

Main asy diagram

Stand, lower left

Part #BN96-42370A

The manufacturer no longer makes this part, and there's no substitute part

Cover-clean Back Terminal BN96-42464A
#NI

Main asy diagram

Cover-clean back terminal

Part #BN96-42464A

The manufacturer no longer makes this part, and there's no substitute part

Header-boa 3711-008488
#NI

Main asy diagram

Header-boa

Part #3711-008488

The manufacturer no longer makes this part, and there's no substitute part

Ic-repeate 1205-005537
#NI

Main asy diagram

Ic-repeate

Part #1205-005537

The manufacturer no longer makes this part, and there's no substitute part

Cable 96p/ BN96-39821B
#NI

Main asy diagram

Cable 96p/

Part #BN96-39821B

The manufacturer no longer makes this part, and there's no substitute part

Cover-terminal Side BN63-16640A
#3-1

Main asy diagram

Cover-terminal side

Part #BN63-16640A

The manufacturer no longer makes this part, and there's no substitute part

Varistor 1405-001381
#NI

Main asy diagram

Varistor

Part #1405-001381

The manufacturer no longer makes this part, and there's no substitute part
