Kenmore
Dehumidifier

Model # 106644190 Official Kenmore dehumidifier

Here are the diagrams and repair parts for Official Kenmore 106644190 dehumidifier, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 34 parts  |
Drier 43465
#34

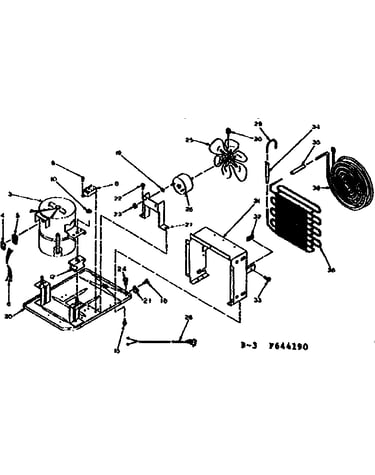

Unit parts diagram

Drier

Part #43465

Replaced by #W10843121

?
Manufacturer substitution
This part replaces 43465. Substitute parts can look different from the original.
BEST SELLER
$31.58 |
16% OFF Phone Price : $37.58
In Stock
Screw 487895
#33

Unit parts diagram

Screw

Part #487895

Replaced by #WP488729

?
Manufacturer substitution
This part replaces 487895. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$4.39 |
19% OFF Phone Price : $5.39
In Stock
Screw 488258
#24

Unit parts diagram

Screw

Part #488258

The manufacturer no longer makes this part, and there's no substitute part

Compressor 463369
#3

Unit parts diagram

Compressor

Part #463369

The manufacturer no longer makes this part, and there's no substitute part

Cord 472798
#28

Unit parts diagram

Cord

Part #472798

The manufacturer no longer makes this part, and there's no substitute part

Evaporator 479125
#36

Unit parts diagram

Evaporator

Part #479125

The manufacturer no longer makes this part, and there's no substitute part

Nut 486529
#23

Unit parts diagram

Nut

Part #486529

The manufacturer no longer makes this part, and there's no substitute part

Dampener 43993
#35

Unit parts diagram

Dampener

Part #43993

The manufacturer no longer makes this part, and there's no substitute part

Mtg Kit 978307
#3A

Unit parts diagram

Mtg kit

Part #978307

The manufacturer no longer makes this part, and there's no substitute part

Cabinet 472878
#2

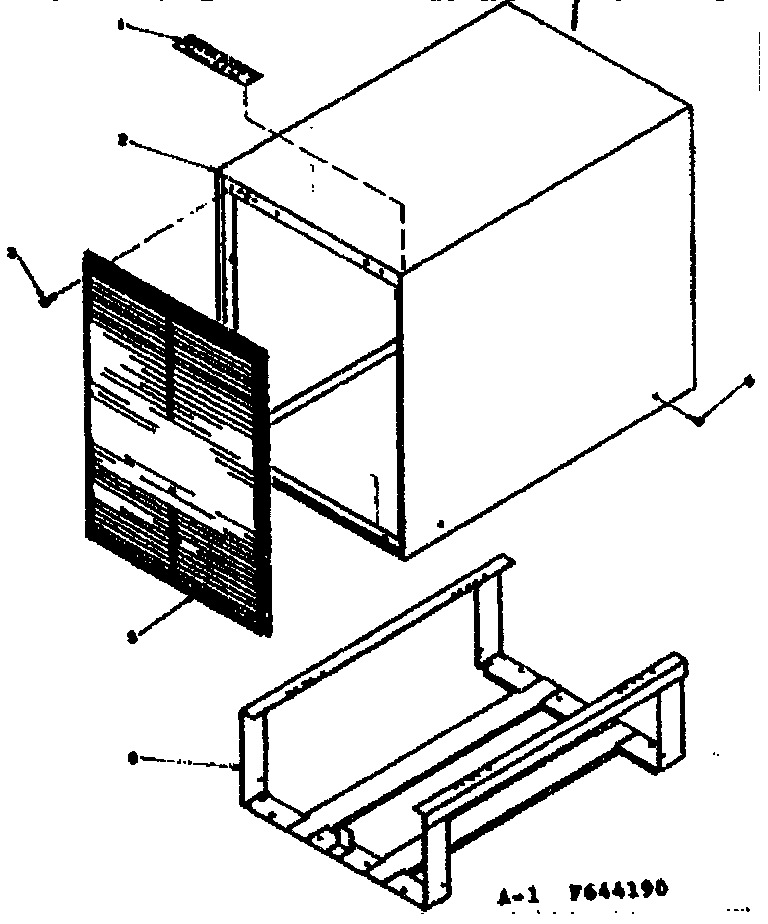

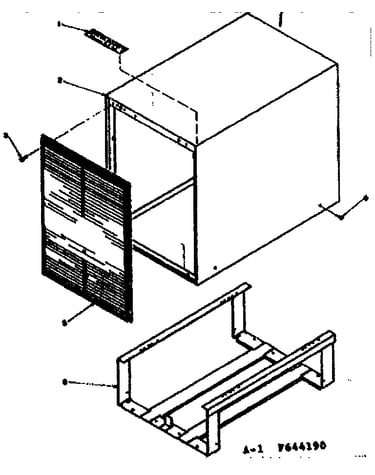

Cabinet parts diagram

Cabinet

Part #472878

The manufacturer no longer makes this part, and there's no substitute part
