Model # WDP3D Official LG laundry pedestal

Here are the diagrams and repair parts for Official LG WDP3D laundry pedestal, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

Click a diagram to see the parts shown on that diagram.
In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

ALL PARTS

Showing 10 of 19 parts |

Laundry Appliance Pedestal Drawer Slide Rail 4276ER0002A

#A120

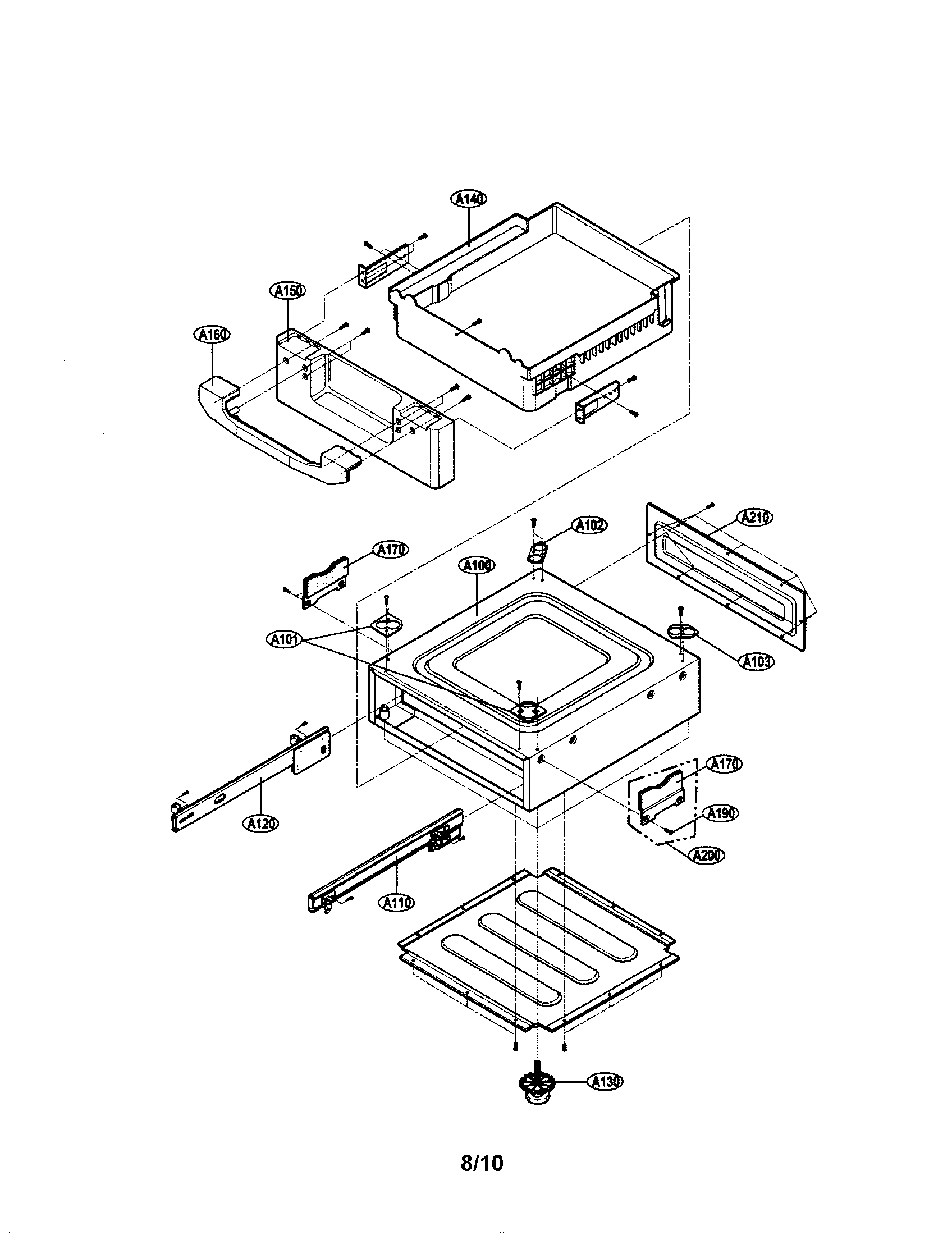

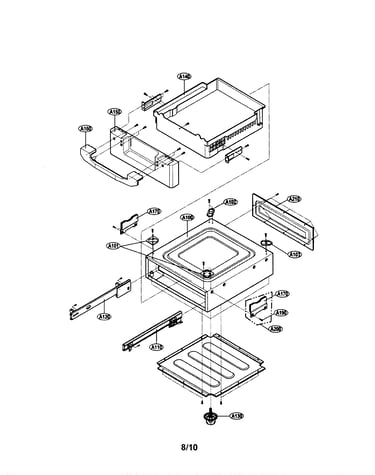

Pedestal diagram

Laundry appliance pedestal drawer slide rail

Part #4276ER0002A

$87.98 |

6% OFF Phone Price : $93.98

In Stock

Qty

Laundry Appliance Pedestal Drawer Slide Rail 4276ER0001A

#A110

Pedestal diagram

Laundry appliance pedestal drawer slide rail

Part #4276ER0001A

$87.98 |

6% OFF Phone Price : $93.98

In Stock

Qty

#A145

Pedestal diagram

Divider

Part #4975ER0001A

$67.91

In Stock

Qty

#*003

Pedestal diagram

Spanner

Part #3W20018B

$10.42 |

16% OFF Phone Price : $12.42

In Stock

Qty

Laundry Appliance Pedestal Drawer 4870ER0004A

#A140

Pedestal diagram

Laundry appliance pedestal drawer

Part #4870ER0004A

$114.94 |

9% OFF Phone Price : $126.94

In Stock

Qty

Laundry Appliance Pedestal Cabinet Back Panel 3550ER0035A

#A210

Pedestal diagram

Laundry appliance pedestal cabinet back panel

Part #3550ER0035A

$51.96

In Stock

Qty

#A130

Pedestal diagram

Washer leveling leg

Part #4779ER3002A

Replaced by #AFC72755401

$15.60 |

11% OFF Phone Price : $17.60

In Stock

Qty

#A160

Pedestal diagram

Handle assembly

Part #3651ER0002M

The manufacturer no longer makes this part, and there's no substitute part

#A102

Pedestal diagram

Supporter

Part #4980ER4005C

The manufacturer no longer makes this part, and there's no substitute part

#A100

Pedestal diagram

Frame assembly

Part #3071ER0007N

The manufacturer no longer makes this part, and there's no substitute part
