Model # JGBP30GEV1WH Official GE gas range

Here are the diagrams and repair parts for Official GE JGBP30GEV1WH gas range, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 218 parts  |
Kenmore Range Oven Burner Igniter (replaces Wb02x9154, Wb13k10027, Wb13k3) WB2X9154
Kenmore range oven burner igniter (replaces wb02x9154, wb13k10027, wb13k3)

Part #WB2X9154

BEST SELLER
$84.11 |
7% OFF Phone Price : $90.11
In Stock
Appliance Light Bulb, 40-watt 40A15
#257

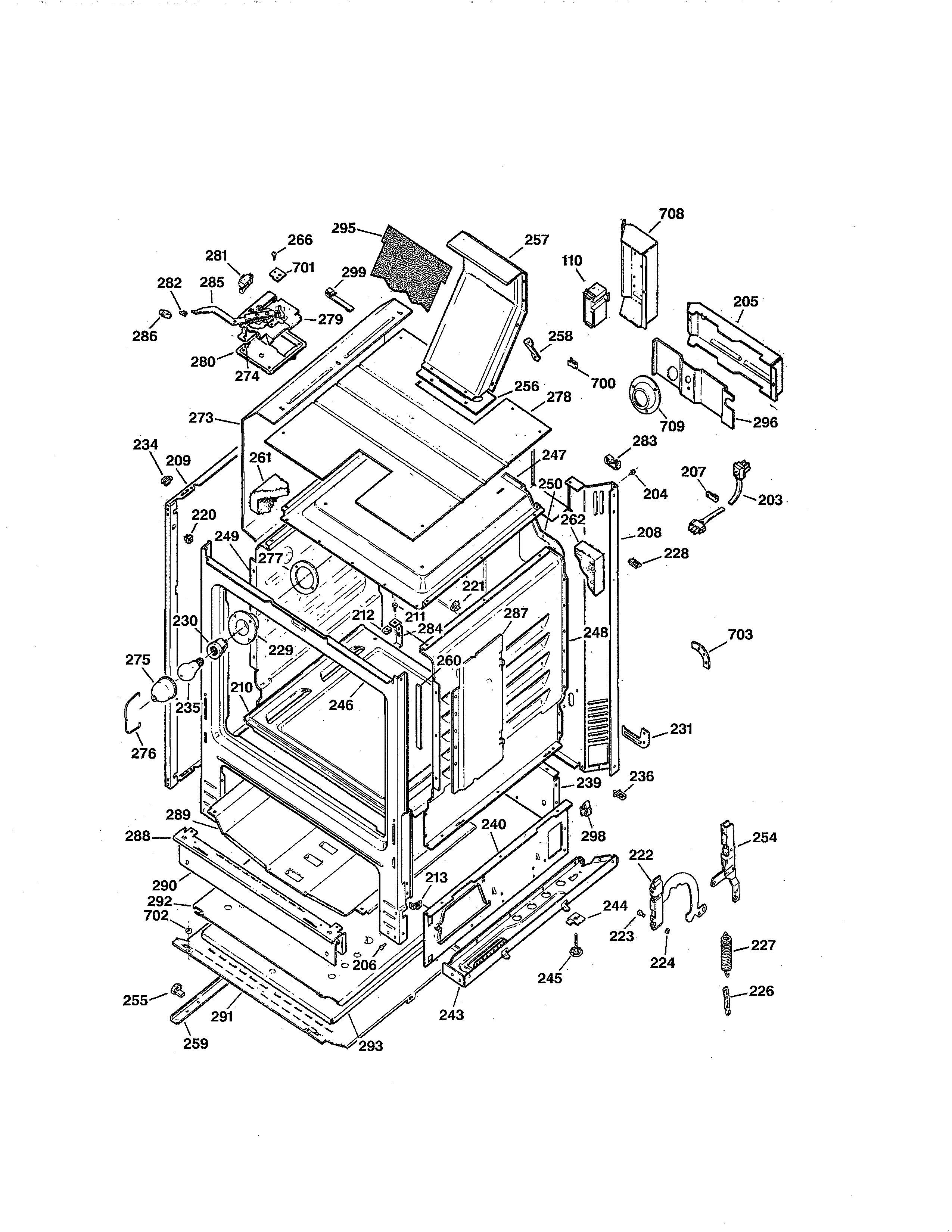

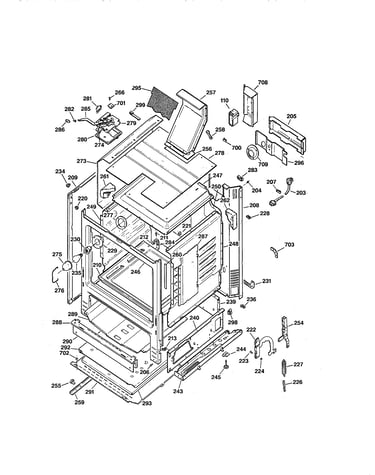

Body diagram

Appliance light bulb, 40-watt

Part #40A15

Replaced by #40A15

?
Manufacturer substitution
This part replaces 40A15. Substitute parts can look different from the original.
BEST SELLER
$15.16 |
12% OFF Phone Price : $17.16
In Stock
Range Surface Burner Igniter (replaces Wb13k0018) WB13K18
#154

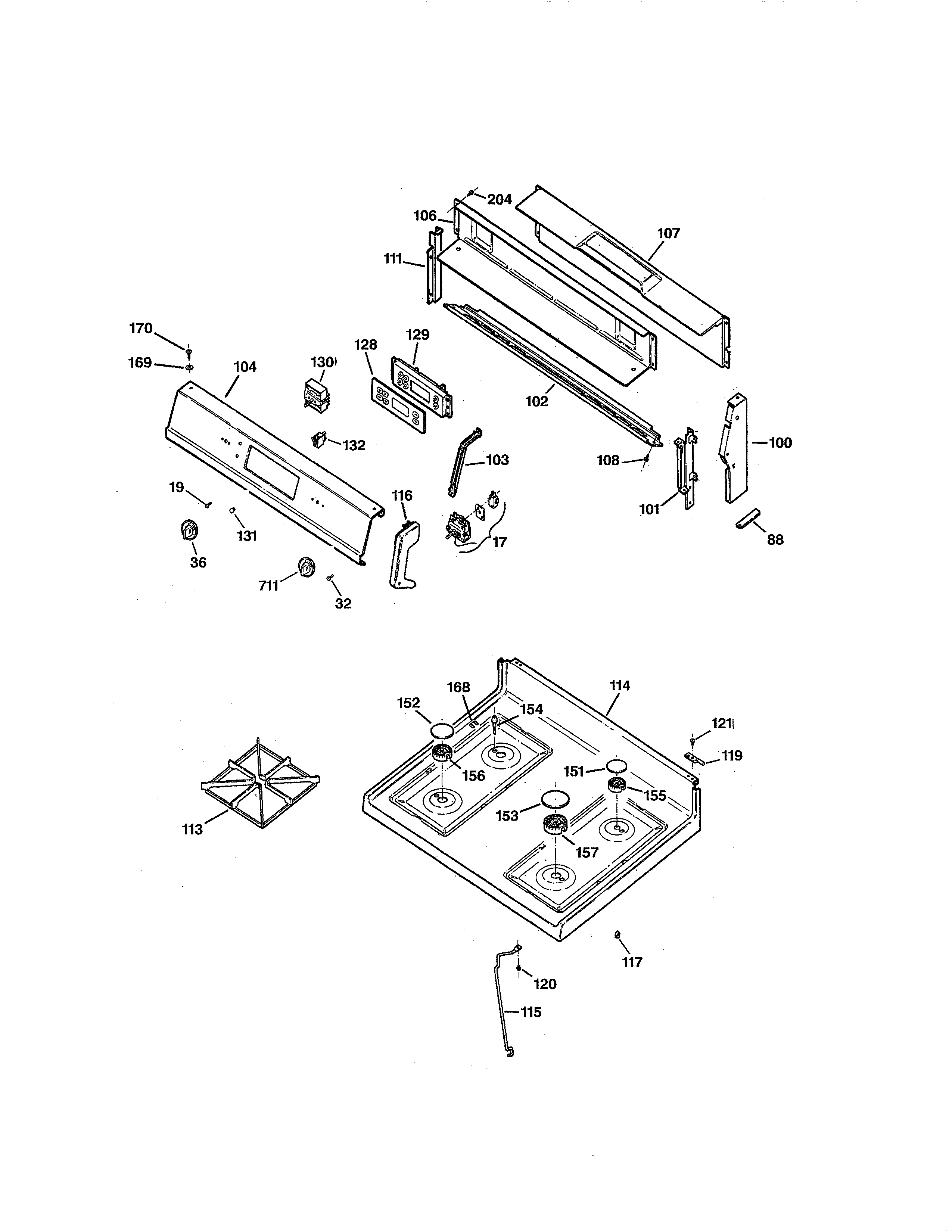

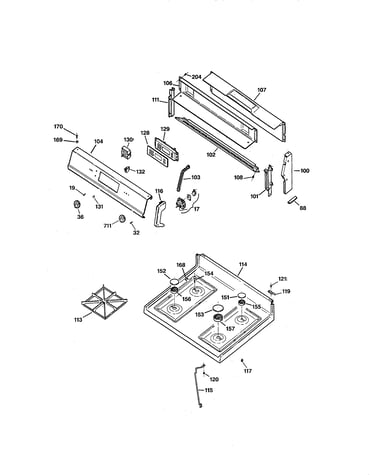

Control panel diagram

Range surface burner igniter (replaces wb13k0018)

Part #WB13K18

$31.68 |
16% OFF Phone Price : $37.68
In Stock
Range Light Socket WB08T10004
#230

Body diagram

Range light socket

Part #WB08T10004

Replaced by #WB08T10026

?
Manufacturer substitution
This part replaces WB08T10004. Substitute parts can look different from the original.
This item is not returnable
$7.88 |
11% OFF Phone Price : $8.88
In Stock
Range Screw (replaces Wb01x1293, Wb1k50) WB1X1293
#28A

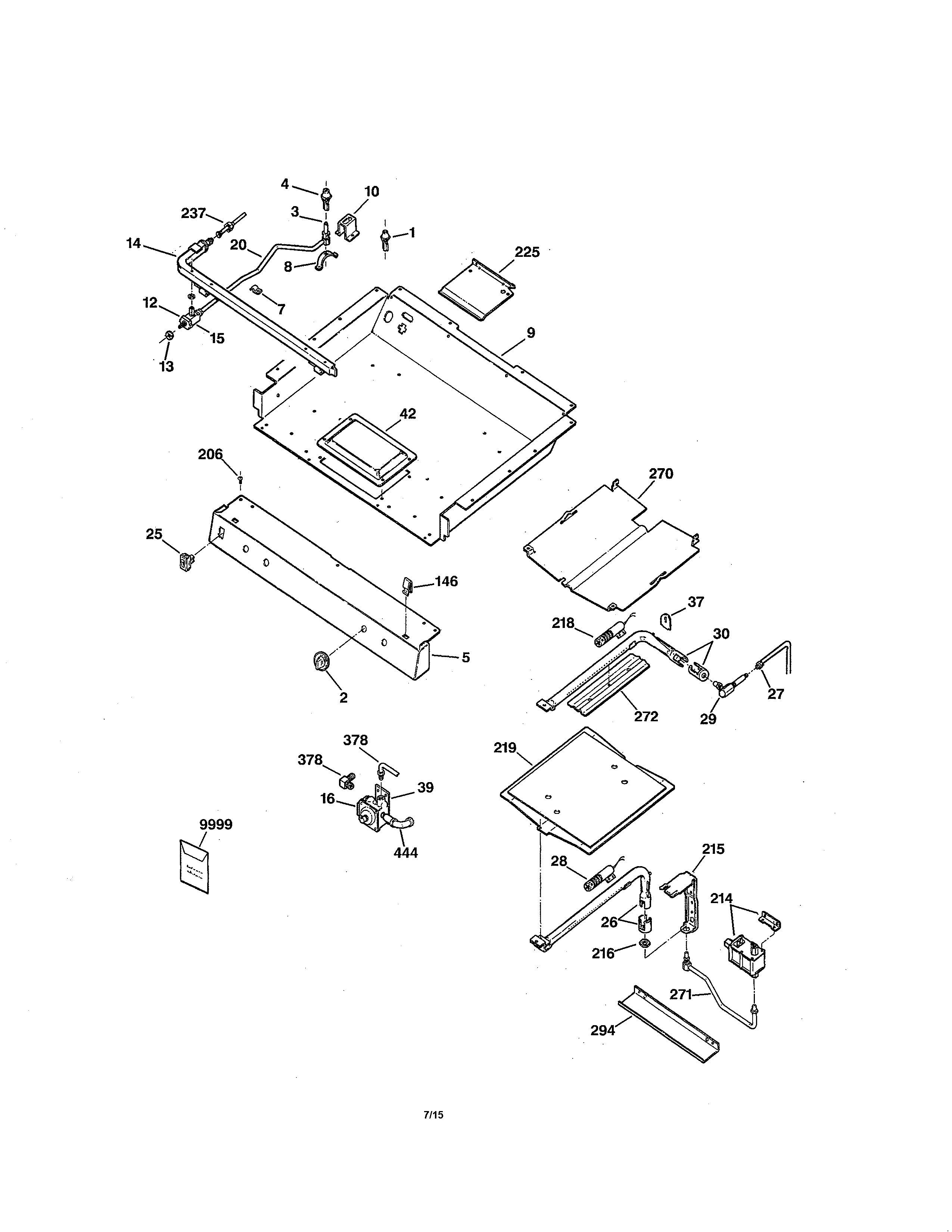

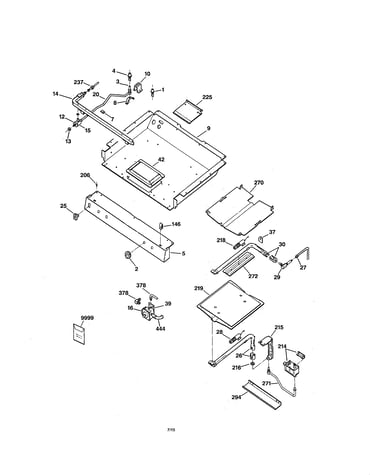

Burner parts diagram

Range screw (replaces wb01x1293, wb1k50)

Part #WB1X1293

This item is not returnable
$7.88 |
11% OFF Phone Price : $8.88
In Stock
Range Oven Light Lens (replaces Wb2x6211, Wb36x0192, Wb36x279, Wb36x299, Wb36x389, Wb8k5) WB36X192
#275

Body diagram

Range oven light lens (replaces wb2x6211, wb36x0192, wb36x279, wb36x299, wb36x389, wb8k5)

Part #WB36X192

This item is not returnable
$9.54 |
9% OFF Phone Price : $10.54
In Stock
Range Oven Door Gasket (replaces Wb04k0001) WB4K1
#318

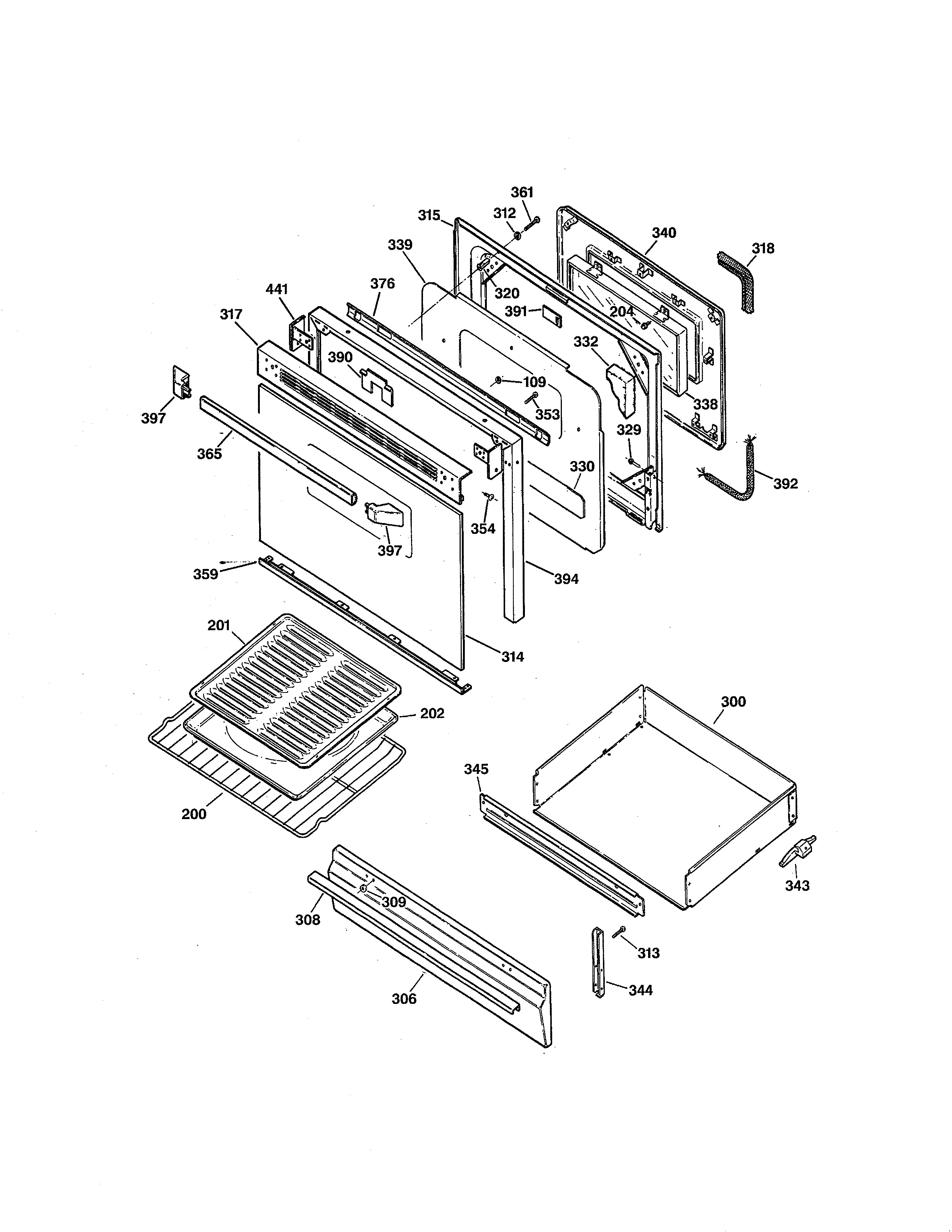

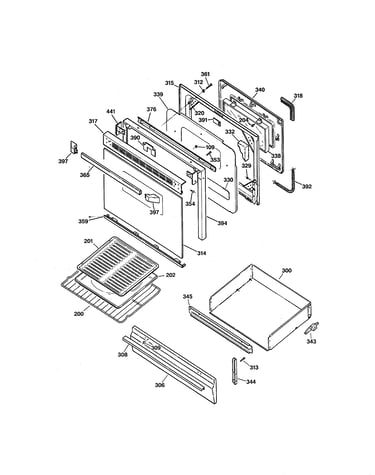

Door & drawer diagram

Range oven door gasket (replaces wb04k0001)

Part #WB4K1

$44.26 |
12% OFF Phone Price : $50.26
In Stock
Range Oven Door Handle End Cap, Right (replaces Wb07x7183, Wb15k5069, Wb7x7321) WB7X7183
#397

Door & drawer diagram

Range oven door handle end cap, right (replaces wb07x7183, wb15k5069, wb7x7321)

Part #WB7X7183

$15.82 |
11% OFF Phone Price : $17.82
In Stock
Hotpoint Range Indicator Light Lens (red) (replaces Wb25k2) WB25T10041
#131

Control panel diagram

Hotpoint range indicator light lens (red) (replaces wb25k2)

Part #WB25T10041

This item is not returnable
$7.88 |
11% OFF Phone Price : $8.88
In Stock
Range Surface Burner Igniter Switch WB24K14
#12

Burner parts diagram

Range surface burner igniter switch

Part #WB24K14

$33.59 |
15% OFF Phone Price : $39.59
In Stock
