Model # 58031260 Official Craftsman generator

Here are the diagrams and repair parts for Official Craftsman 58031260 generator, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 94 parts  |

Cap Screw 22142
#12

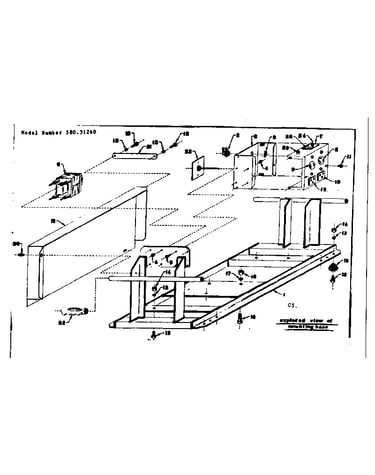

Mounting base diagram

Cap screw

Part #22142

The manufacturer no longer makes this part, and there's no substitute part

Lock Washer 22129
Lock washer

Part #22129

The manufacturer no longer makes this part, and there's no substitute part

Lock Set 23366
#13

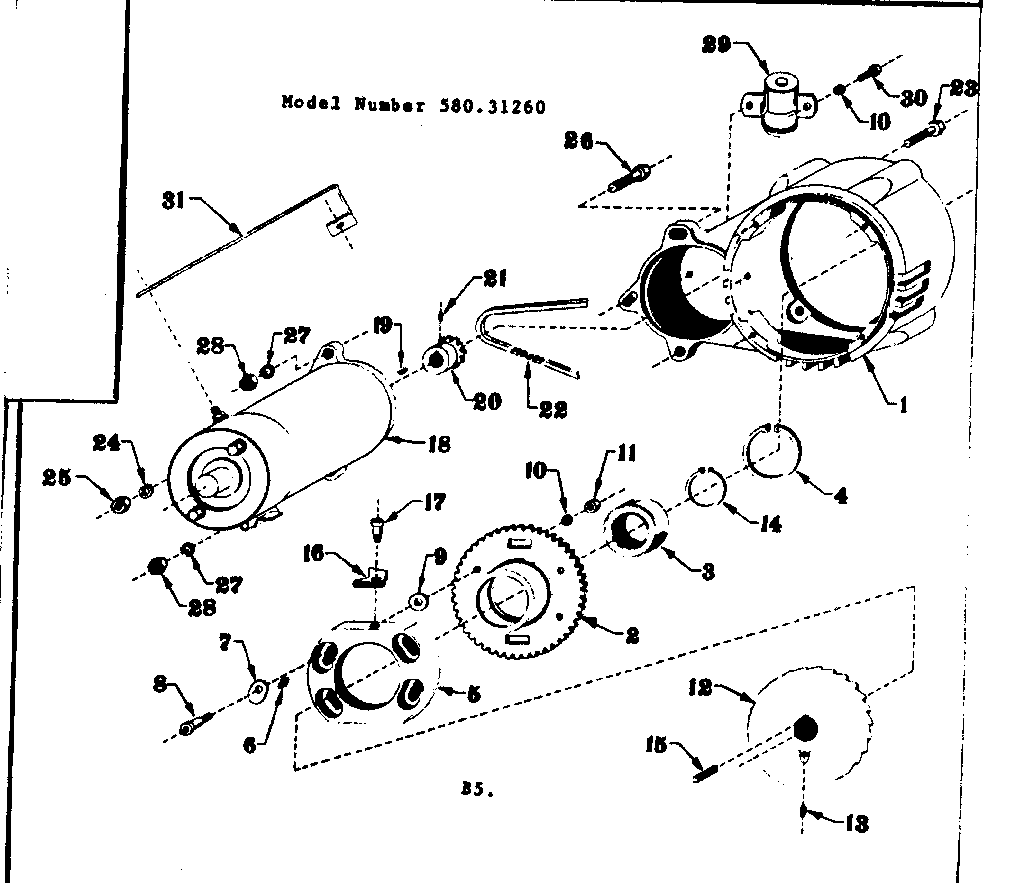

Starter diagram

Lock set

Part #23366

Replaced by #23366

?
Manufacturer substitution
This part replaces 23366. Substitute parts can look different from the original.
This item is not returnable
In Stock
Washer 22131
#26

Alternator diagram

Washer

Part #22131

The manufacturer no longer makes this part, and there's no substitute part

Nut 25422
#4

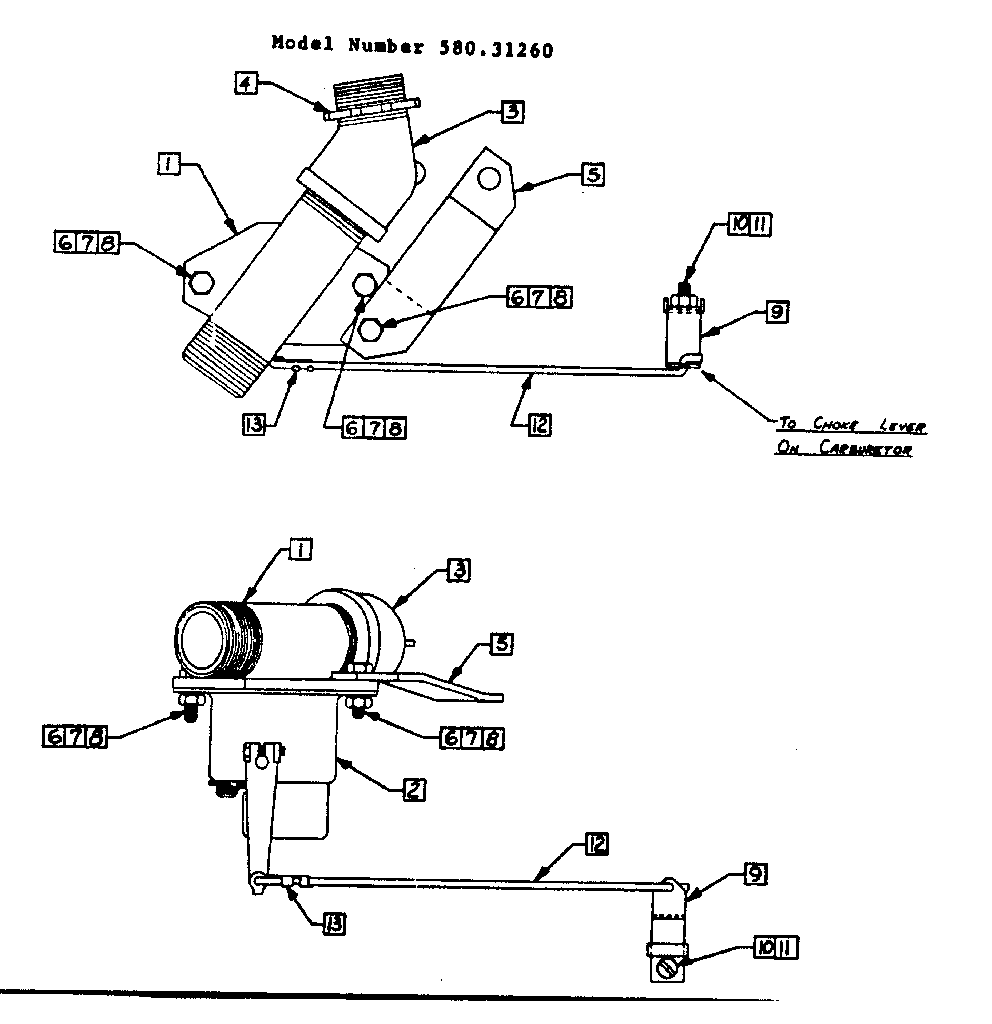

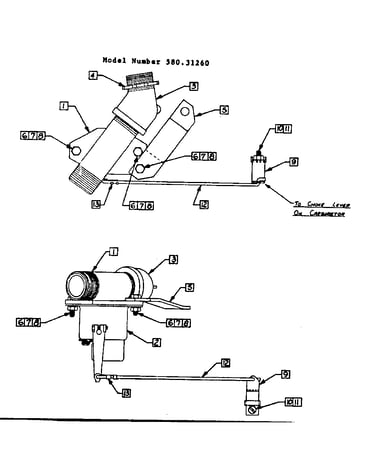

Choke assembly diagram

Nut

Part #25422

Replaced by #691808

?
Manufacturer substitution
This part replaces 25422. Substitute parts can look different from the original.
This item is not returnable
In Stock
Housing 22694
#15

Alternator diagram

Housing

Part #22694

Replaced by #22694GS

?
Manufacturer substitution
This part replaces 22694. Substitute parts can look different from the original.
$9.99
9% OFF Phone Price : $10.99
In Stock
Cap Screw 22287
#34

Alternator diagram

Cap screw

Part #22287

The manufacturer no longer makes this part, and there's no substitute part

Fan Cover 24487
#29

Alternator diagram

Fan cover

Part #24487

The manufacturer no longer makes this part, and there's no substitute part

Sprocket 25344
#20

Starter diagram

Sprocket

Part #25344

The manufacturer no longer makes this part, and there's no substitute part

Fan 24880
#25

Alternator diagram

Fan

Part #24880

The manufacturer no longer makes this part, and there's no substitute part
