Model # SB-PM41P Official Panasonic speaker system

Here are the diagrams and repair parts for Official Panasonic SB-PM41P speaker system, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 13 parts  |
Base Stand RGKV0113-S
#13

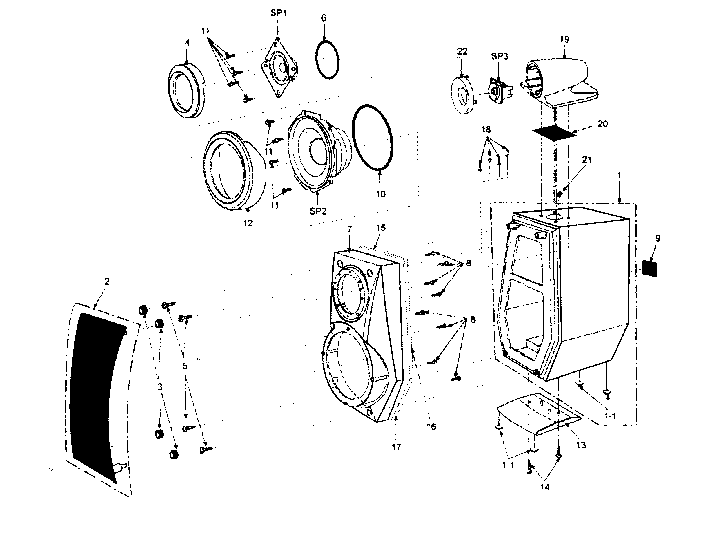

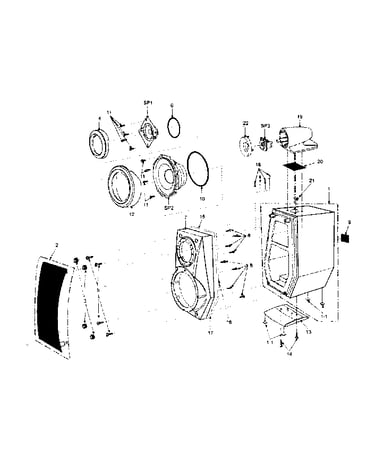

Cabinet parts diagram

Base stand

Part #RGKV0113-S

The manufacturer no longer makes this part, and there's no substitute part

Woofer EAST10P606C
#SP2

Cabinet parts diagram

Woofer

Part #EAST10P606C

The manufacturer no longer makes this part, and there's no substitute part

Tweeter EAST3FP02A6
#SP3

Cabinet parts diagram

Tweeter

Part #EAST3FP02A6

The manufacturer no longer makes this part, and there's no substitute part

Tw Cabinet RGP1269-S
#19

Cabinet parts diagram

Tw cabinet

Part #RGP1269-S

The manufacturer no longer makes this part, and there's no substitute part

4.7 50v Np ECEA1HAY4R7S
#NI

Cabinet parts diagram

4.7 50v np

Part #ECEA1HAY4R7S

The manufacturer no longer makes this part, and there's no substitute part

Owner's Manual RQT8038-P
#NI

Cabinet parts diagram

Owner's manual

Part #RQT8038-P

The manufacturer no longer makes this part, and there's no substitute part

Service Manual MD0501006C1A6
#NI

Cabinet parts diagram

Service manual

Part #MD0501006C1A6

The manufacturer no longer makes this part, and there's no substitute part

Cabinet RFKHBPM41P-S
#1

Cabinet parts diagram

Cabinet

Part #RFKHBPM41P-S

The manufacturer no longer makes this part, and there's no substitute part

Ornament RGK1779-S
#22

Cabinet parts diagram

Ornament

Part #RGK1779-S

The manufacturer no longer makes this part, and there's no substitute part

Net Frame RYBV0026-H
#2

Cabinet parts diagram

Net frame

Part #RYBV0026-H

The manufacturer no longer makes this part, and there's no substitute part
