Model # G7CG3064XB00 Official Whirlpool 30" gas cooktop

Here are the diagrams and repair parts for Official Whirlpool G7CG3064XB00 30" gas cooktop, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Installation guide
Owner’s manual
Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 63 parts  |
Range Surface Burner Base W10256028
#8B

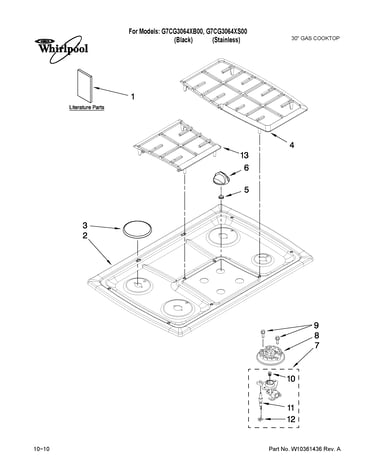

Cooktop, burner and grate parts diagram

Range surface burner base

Part #W10256028

Replaced by #WPW10256028

?
Manufacturer substitution
This part replaces W10256028. Substitute parts can look different from the original.
BEST SELLER
$93.76 |
6% OFF Phone Price : $99.76
In Stock
Range Burner Head W10256025
#8A

Cooktop, burner and grate parts diagram

Range burner head

Part #W10256025

Replaced by #WPW10256025

?
Manufacturer substitution
This part replaces W10256025. Substitute parts can look different from the original.
$46.00 |
12% OFF Phone Price : $52.00
In Stock
Cooktop Burner Knob W10284885
#6A

Cooktop, burner and grate parts diagram

Cooktop burner knob

Part #W10284885

Replaced by #WPW10284885

?
Manufacturer substitution
This part replaces W10284885. Substitute parts can look different from the original.
This item is not returnable
$18.43
In Stock
Cooktop Burner Control Knob W10284883
#6

Cooktop, burner and grate parts diagram

Cooktop burner control knob

Part #W10284883

Replaced by #WPW10284883

?
Manufacturer substitution
This part replaces W10284883. Substitute parts can look different from the original.
This item is not returnable
$18.89 |
10% OFF Phone Price : $20.89
In Stock
Screw W10345316
#9

Cooktop, burner and grate parts diagram

Screw

Part #W10345316

Replaced by #WPW10373929

?
Manufacturer substitution
This part replaces W10345316. Substitute parts can look different from the original.
$24.76
In Stock
Cooktop Holder Orifice W10256119
#7

Cooktop, burner and grate parts diagram

Cooktop holder orifice

Part #W10256119

Replaced by #WPW10256119

?
Manufacturer substitution
This part replaces W10256119. Substitute parts can look different from the original.
$36.62 |
14% OFF Phone Price : $42.62
In Stock
Kenmore Cooktop Burner Igniter Spring W10256046
#12

Cooktop, burner and grate parts diagram

Kenmore cooktop burner igniter spring

Part #W10256046

$8.49
In Stock
Cooktop Burner Manifold And Valve Assembly W10284355
#7

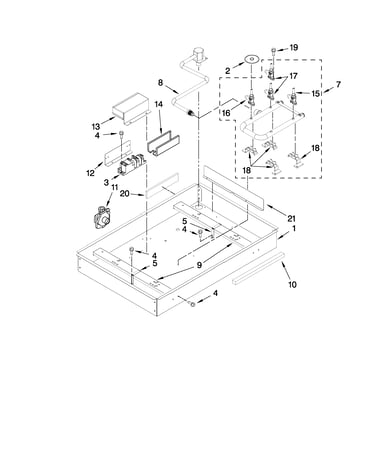

Burner box, gas valves, and switches diagram

Cooktop burner manifold and valve assembly

Part #W10284355

$184.16
In Stock
Cooktop Wire Harness W10286646
#(NI)

Optional parts (not included) diagram

Cooktop wire harness

Part #W10286646

Replaced by #WPW10286646

?
Manufacturer substitution
This part replaces W10286646. Substitute parts can look different from the original.
$82.36 |
7% OFF Phone Price : $88.36
In Stock
Cooktop Burner Valve W10256087
#15

Burner box, gas valves, and switches diagram

Cooktop burner valve

Part #W10256087

Replaced by #W10441650

?
Manufacturer substitution
This part replaces W10256087. Substitute parts can look different from the original.
$133.25 |
8% OFF Phone Price : $145.25
In Stock
