Model # 3638974 Official Kenmore refrigerator glass panel kit (black)

Here are the diagrams and repair parts for Official Kenmore 3638974 refrigerator glass panel kit (black), as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 14 parts  |
Refrigerator Installation Instructions SR1096
#1

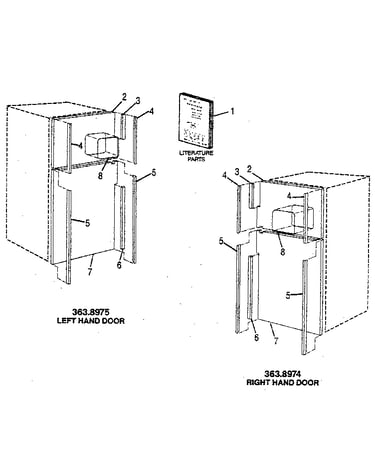

Panel and trim parts diagram

Refrigerator installation instructions

Part #SR1096

This item is not returnable
$2.29
In Stock
Refrigerator Installation Instructions SR1097
#1A

Panel and trim parts diagram

Refrigerator installation instructions

Part #SR1097

This item is not returnable
$2.29
In Stock
Bar Bk Ff Rh WR99X0104
#6

Panel and trim parts diagram

Bar bk ff rh

Part #WR99X0104

The manufacturer no longer makes this part, and there's no substitute part

Trim Dr Ff WR99X0020
#5

Panel and trim parts diagram

Trim dr ff

Part #WR99X0020

The manufacturer no longer makes this part, and there's no substitute part

Pn Blk Ff Lh WR99X0101
#7A

Panel and trim parts diagram

Pn blk ff lh

Part #WR99X0101

The manufacturer no longer makes this part, and there's no substitute part

Pn Blk Ff Rh WR99X0100
#7

Panel and trim parts diagram

Pn blk ff rh

Part #WR99X0100

The manufacturer no longer makes this part, and there's no substitute part

Bar Bk Ff Lh WR99X0105
#6A

Panel and trim parts diagram

Bar bk ff lh

Part #WR99X0105

The manufacturer no longer makes this part, and there's no substitute part

Pn Blk Fz Rh WR99X0098
#2

Panel and trim parts diagram

Pn blk fz rh

Part #WR99X0098

The manufacturer no longer makes this part, and there's no substitute part

Bar Bk Fz Rh WR99X0102
#3

Panel and trim parts diagram

Bar bk fz rh

Part #WR99X0102

The manufacturer no longer makes this part, and there's no substitute part

Collar Dispenser WR99X0092
#8

Panel and trim parts diagram

Collar dispenser

Part #WR99X0092

The manufacturer no longer makes this part, and there's no substitute part
