Model # F8MTL1102122A1 Official ICP gas furnace

Here are the diagrams and repair parts for Official ICP F8MTL1102122A1 gas furnace, as well as links to manuals and error code tables, if available.

By Schematic
SELECT DIAGRAM
?

This is the number corresponding to the part on the diagram / schematic

Browse Parts for
F8MTL1102122A1 Gas Furnace
Furnace Temperature Limit Switch 1177033
#16

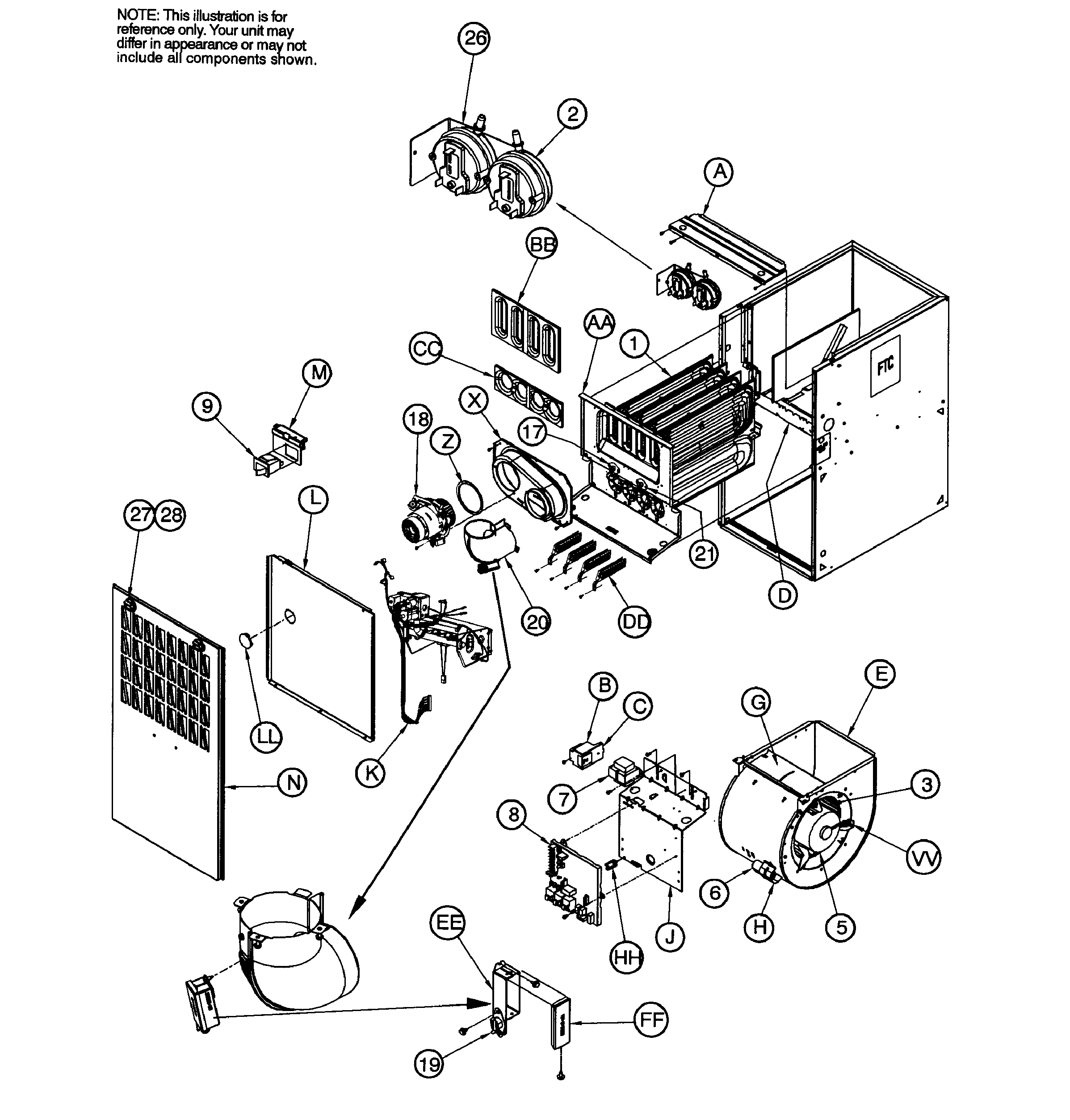

Furnace 2 diagram

Furnace temperature limit switch

Part #1177033

This item is not returnable
$15.89
In Stock
Fan Induce 1183442
#22

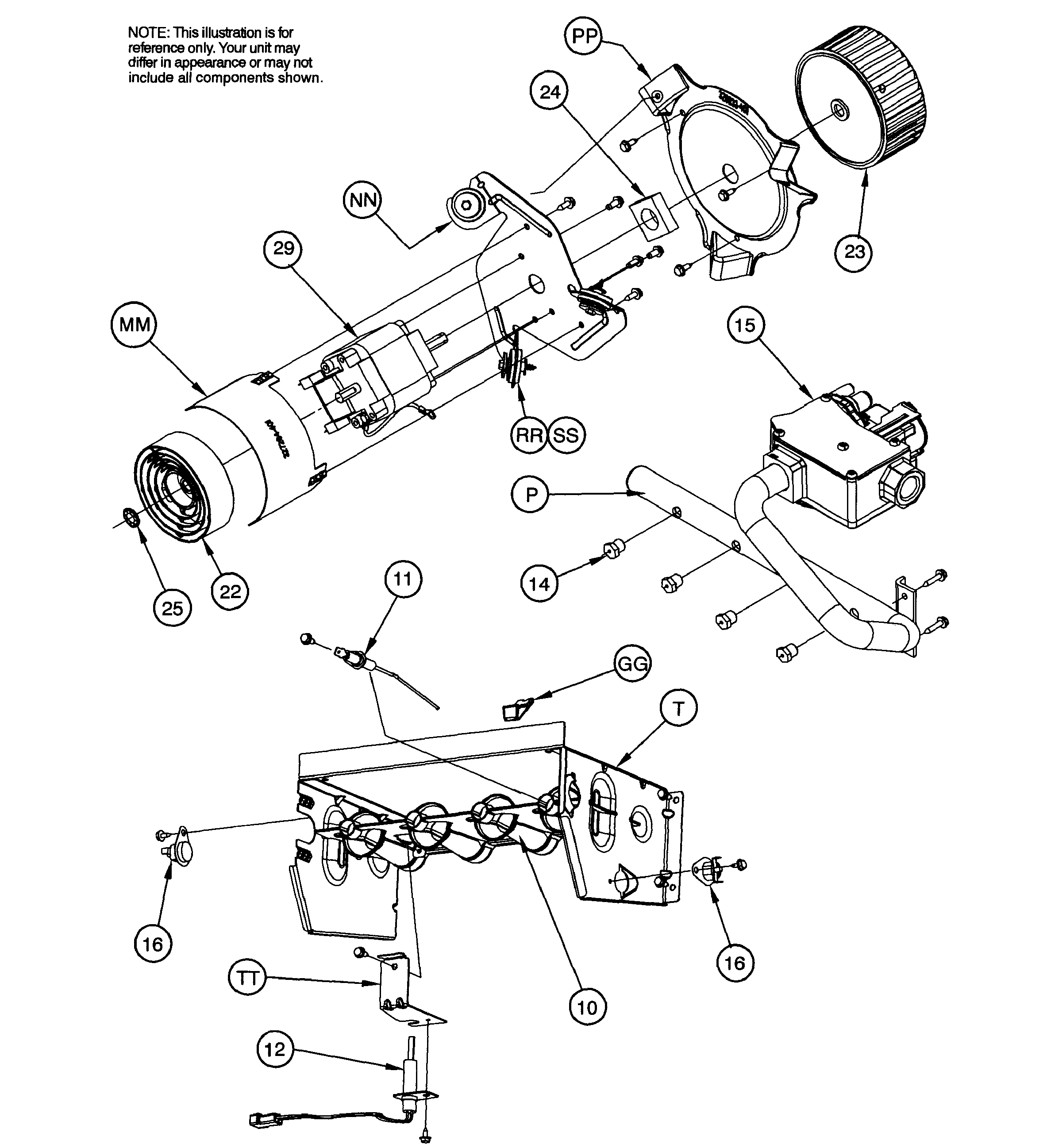

Furnace 2 diagram

Fan induce

Part #1183442

$59.06
In Stock
Wheel Indu 1183454
#23

Furnace 2 diagram

Wheel indu

Part #1183454

$47.84
In Stock
Wheel Blow 1176937
#3

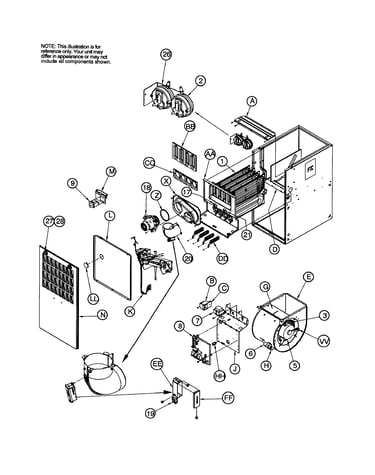

Furnace 1 diagram

Wheel blow

Part #1176937

$232.58
In Stock
Clip,harne 1176922
#GG

Furnace 2 diagram

Clip,harne

Part #1176922

This item is not returnable
$2.16
In Stock
Gasket,ind 1176913
#Z

Furnace 1 diagram

Gasket,ind

Part #1176913

$11.37
In Stock
Furnace Access Door Latch 1183487
#27

Furnace 1 diagram

Furnace access door latch

Part #1183487

This item is not returnable
$25.11
In Stock
Furnace Burner Igniter 1176919
#12

Furnace 2 diagram

Furnace burner igniter

Part #1176919

$110.20
In Stock
Furnace Gas Valve 1183456
#15

Furnace 2 diagram

Furnace gas valve

Part #1183456

The manufacturer no longer makes this part, and there's no substitute part

Furnace Access Door Latch Knob 1183488
#28

Furnace 1 diagram

Furnace access door latch knob

Part #1183488

This item is not returnable
$24.80
In Stock
