Model # UN22D5010NFXZA Official Samsung lcd television

Here are the diagrams and repair parts for Official Samsung UN22D5010NFXZA lcd television, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 12 parts  |
Lcd Panel BN07-00937A
#2

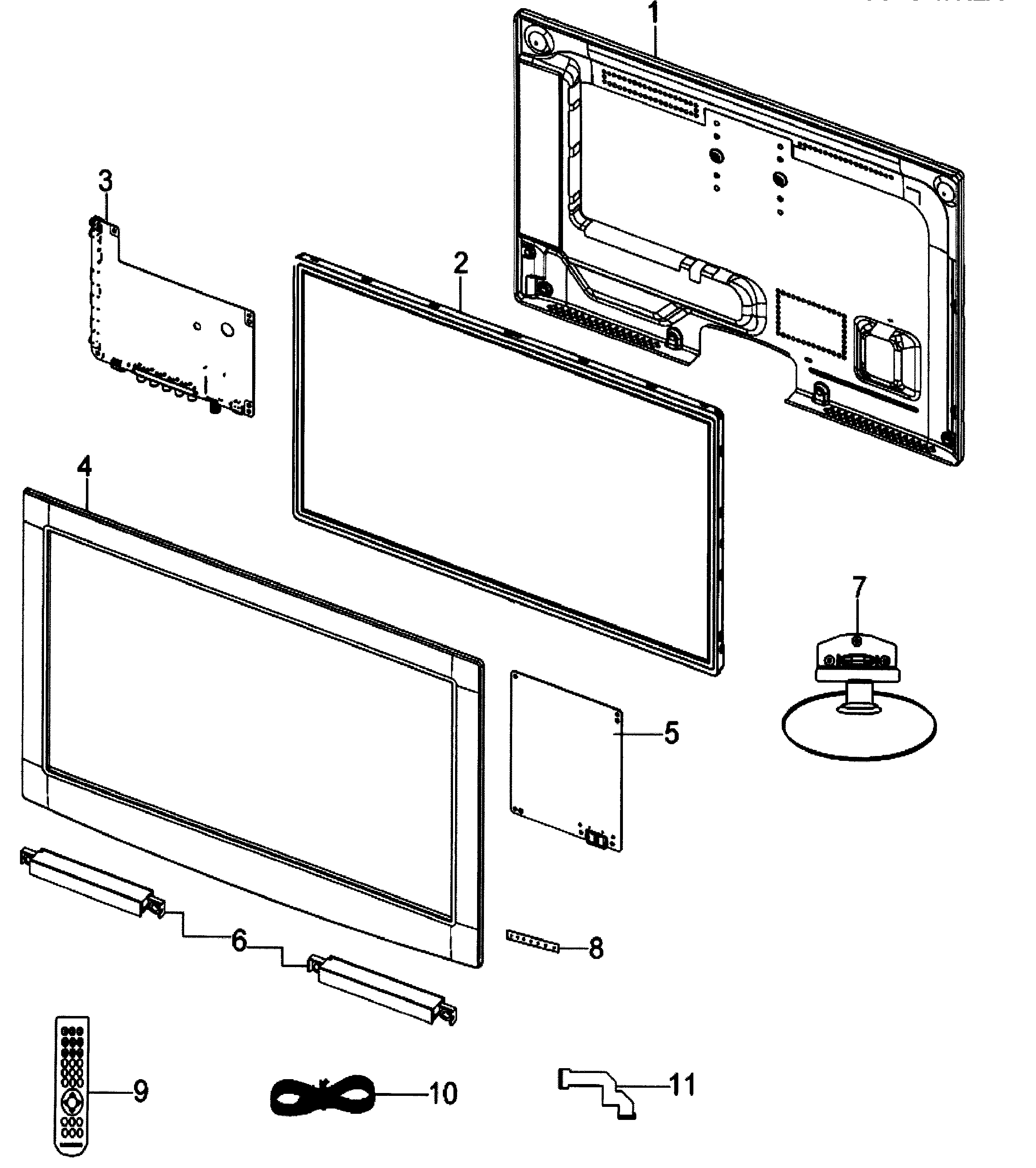

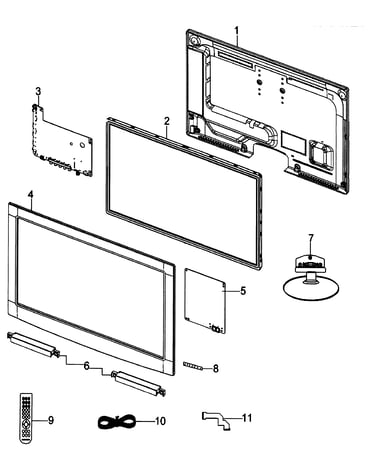

Cabinet parts diagram

Lcd panel

Part #BN07-00937A

The manufacturer no longer makes this part, and there's no substitute part

Cabinet Front BN96-18228A
#4

Cabinet parts diagram

Cabinet front

Part #BN96-18228A

The manufacturer no longer makes this part, and there's no substitute part

Television Power Cord 3903-000598
#10

Cabinet parts diagram

Television power cord

Part #3903-000598

The manufacturer no longer makes this part, and there's no substitute part

Power Pcb BN44-00448B
#5

Cabinet parts diagram

Power pcb

Part #BN44-00448B

The manufacturer no longer makes this part, and there's no substitute part

Cover BN96-18243A
#1

Cabinet parts diagram

Cover

Part #BN96-18243A

The manufacturer no longer makes this part, and there's no substitute part

Remote Control AA59-00505A
#9

Cabinet parts diagram

Remote control

Part #AA59-00505A

The manufacturer no longer makes this part, and there's no substitute part

Television Screw 6003-001239
#NI

Cabinet parts diagram

Television screw

Part #6003-001239

The manufacturer no longer makes this part, and there's no substitute part

Main Pcb BN94-04511M
#3

Cabinet parts diagram

Main pcb

Part #BN94-04511M

The manufacturer no longer makes this part, and there's no substitute part

Base Stand BN96-18708B
#7

Cabinet parts diagram

Base stand

Part #BN96-18708B

The manufacturer no longer makes this part, and there's no substitute part

Cable Ffc, BN96-13722M
#11

Cabinet parts diagram

Cable ffc,

Part #BN96-13722M

The manufacturer no longer makes this part, and there's no substitute part
