Kenmore
Canister Vacuum

Model # 1162491290 Official Kenmore vacuum cleaner

Here are the diagrams and repair parts for Official Kenmore 1162491290 vacuum cleaner, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 72 parts  |
Vacuum Bag, 2-pack 50557
#31A

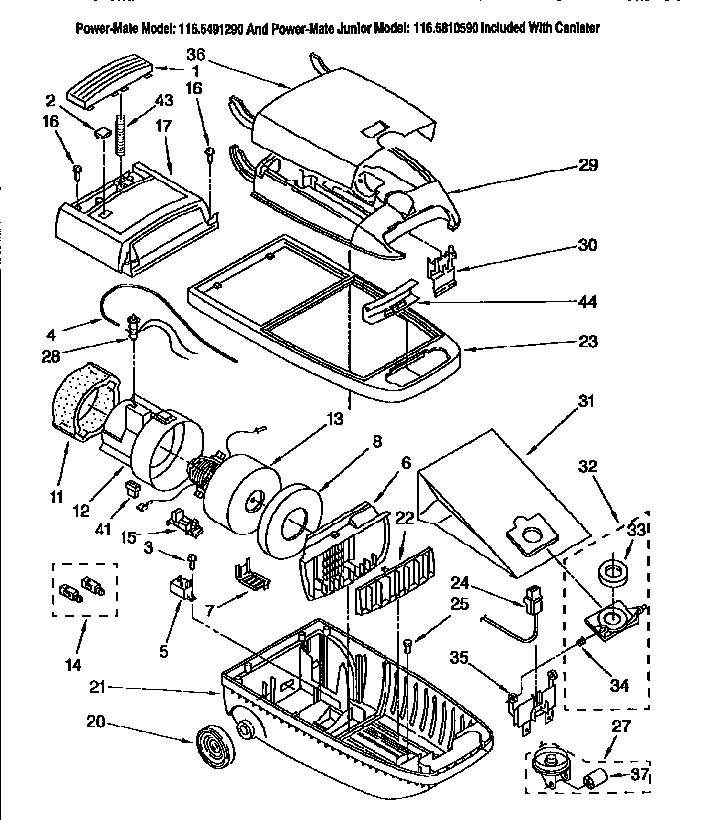

Vacuum cleaner diagram

Vacuum bag, 2-pack

Part #50557

The manufacturer no longer makes this part, and there's no substitute part

Vacuum Hose 4369467
#1

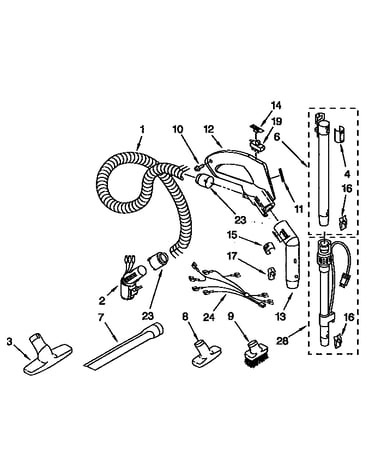

Hose and attachment diagram

Vacuum hose

Part #4369467

Replaced by #4369467

?
Manufacturer substitution
This part replaces 4369467. Substitute parts can look different from the original.
$34.76 |
15% OFF Phone Price : $40.76
In Stock
Vacuum Grip Handle 4155620
#44

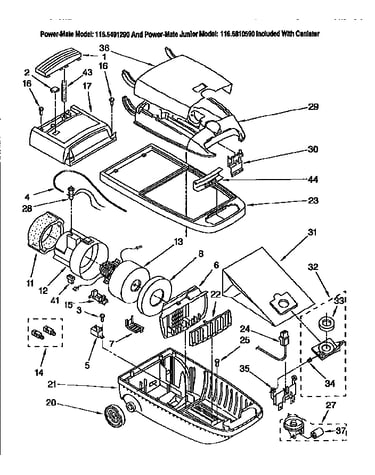

Vacuum cleaner diagram

Vacuum grip handle

Part #4155620

The manufacturer no longer makes this part, and there's no substitute part

Side Switch 4369108
#19

Hose and attachment diagram

Side switch

Part #4369108

The manufacturer no longer makes this part, and there's no substitute part

Main Body 4152226
#2

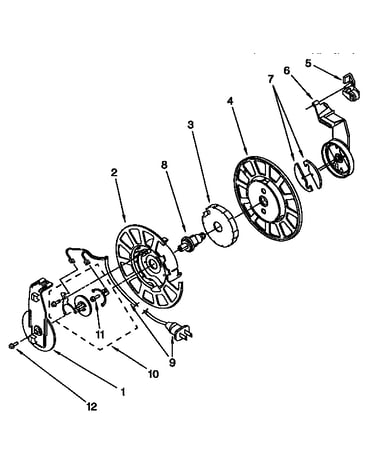

Power cord reel diagram

Main body

Part #4152226

The manufacturer no longer makes this part, and there's no substitute part

Lower Wand 4369309
#28

Hose and attachment diagram

Lower wand

Part #4369309

The manufacturer no longer makes this part, and there's no substitute part

Vacuum Screw 780343
#12

Power cord reel diagram

Vacuum screw

Part #780343

The manufacturer no longer makes this part, and there's no substitute part

Spring 4149917
#3

Power cord reel diagram

Spring

Part #4149917

The manufacturer no longer makes this part, and there's no substitute part

Vacuum Beater Bar 747151
#3

Hose and attachment diagram

Vacuum beater bar

Part #747151

The manufacturer no longer makes this part, and there's no substitute part

Vacuum Power Cord 4369465
#9

Power cord reel diagram

Vacuum power cord

Part #4369465

The manufacturer no longer makes this part, and there's no substitute part
