Model # SBSC137H5DG Official GE laundry pedestal

Here are the diagrams and repair parts for Official GE SBSC137H5DG laundry pedestal, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 13 parts  |
Screw WH02X1217
#276

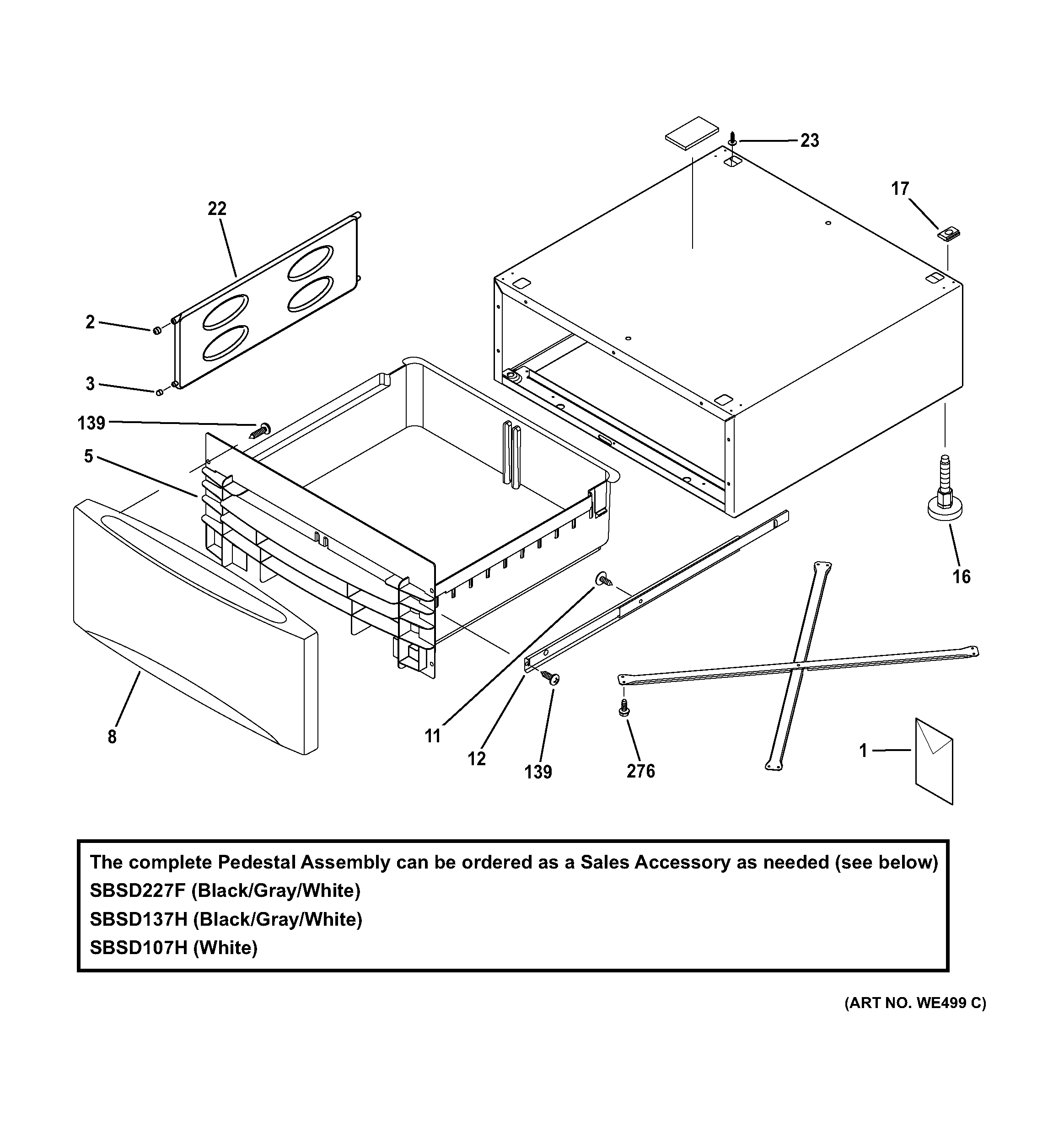

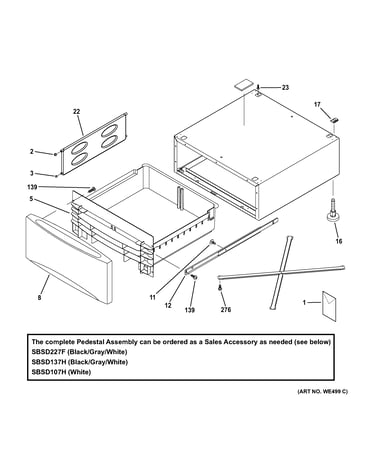

Pedestal diagram

Screw

Part #WH02X1217

Replaced by #WH2X1217

?
Manufacturer substitution
This part replaces WH02X1217. Substitute parts can look different from the original.
$7.09 |
12% OFF Phone Price : $8.09
In Stock
Laundry Appliance Pedestal Drawer Slide Rail WH16X10099
#12

Pedestal diagram

Laundry appliance pedestal drawer slide rail

Part #WH16X10099

$18.49
In Stock
Pad WH08X10061
#17

Pedestal diagram

Pad

Part #WH08X10061

$8.11
In Stock
Laundry Appliance Screw WH02X10232
#23

Pedestal diagram

Laundry appliance screw

Part #WH02X10232

$7.71
In Stock
Scr 6-20 B T WH01X10423
#11

Pedestal diagram

Scr 6-20 b t

Part #WH01X10423

$8.11
In Stock
Ge Panel WH46X22577
#8

Pedestal diagram

Ge panel

Part #WH46X22577

$109.58
In Stock
Divider Pedestal WH16X10120
#22

Pedestal diagram

Divider pedestal

Part #WH16X10120

$24.02
In Stock
Leg Assembly WH01X10585
#16

Pedestal diagram

Leg assembly

Part #WH01X10585

This item is not returnable
$8.32 |
11% OFF Phone Price : $9.32
In Stock
Scr 8-18 Hi/ WR01X10196
#139

Pedestal diagram

Scr 8-18 hi/

Part #WR01X10196

This item is not returnable
$7.88 |
11% OFF Phone Price : $8.88
In Stock
Laundry Appliance Pedestal Drawer WH44X10188
#5

Pedestal diagram

Laundry appliance pedestal drawer

Part #WH44X10188

$106.79 |
10% OFF Phone Price : $118.79
In Stock
