Model # 890R Official Ryobi trimmer

Here are the diagrams and repair parts for Official Ryobi 890R trimmer, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

Click a diagram to see the parts shown on that diagram.
In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual

Model diagram and schematic

SEARCH WITHIN THIS MODEL

ALL PARTS

Showing 10 of 142 parts |

#24

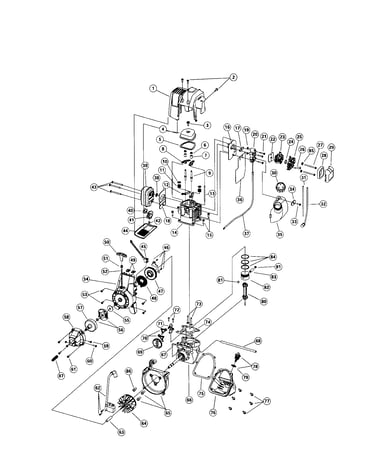

Engine parts diagram

O-ring

Part #791-181751

The manufacturer no longer makes this part, and there's no substitute part

#66

Engine parts diagram

Crankcase

Part #791-182376

The manufacturer no longer makes this part, and there's no substitute part

Screw

Part #791-181020

The manufacturer no longer makes this part, and there's no substitute part

#37

Engine parts diagram

Cable assembly

Part #791-182357

The manufacturer no longer makes this part, and there's no substitute part

#38

Engine parts diagram

Gasket

Part #791-181048

The manufacturer no longer makes this part, and there's no substitute part

#23

Engine parts diagram

Carb/pri

Part #753-1225

The manufacturer no longer makes this part, and there's no substitute part

#27

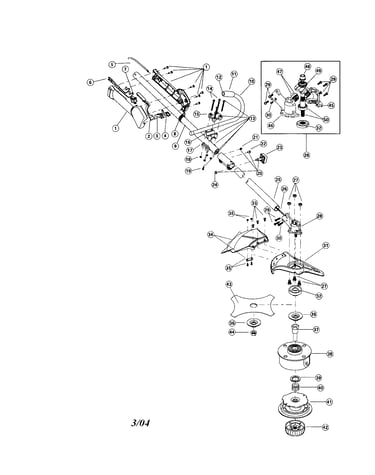

Boom and trimmer diagram

Screw

Part #791-182200

The manufacturer no longer makes this part, and there's no substitute part

Boom and trimmer diagram

Grip

Part #791-182801

The manufacturer no longer makes this part, and there's no substitute part

#47

Boom and trimmer diagram

Gear assembly

Part #791-182194

The manufacturer no longer makes this part, and there's no substitute part

#33

Engine parts diagram

Screw

Part #791-181080

The manufacturer no longer makes this part, and there's no substitute part

Symptoms for gas line trimmers

Choose a symptom to see related grass line trimmer repairs.

View all

Why won't my gas line trimmer start?

Main causes: stale fuel, cracked fuel lines, dirty carburetor, bad spark plug, worn piston rings…

Why does my gas line trimmer run rough?

Main causes: stale fuel, clogged fuel filter, faulty spark plug, clogged air filter, cracked fuel lines, clogged carbure…

Why does my gas line trimmer leak gas?

Main causes: cracked fuel lines, bad carburetor seals, leaky fuel tank cap, damaged fuel tank…

Repair guides for gas line trimmers

These step-by-step repair guides will help you safely fix what’s broken on your grass line trimmer.

View all

How to rebuild a line trimmer carburetor

If the line trimmer engine won't start even though there's fuel in the tank, the carburetor could be the problem. Follow…

Repair difficulty

Time required

15 minutes or less

How to replace a line trimmer carburetor

If the line trimmer won't start even though there's fuel in the tank, the carburetor could be the problem. Follow these …

Repair difficulty

Time required

15 minutes or less

How to replace a line trimmer fuel line

The fuel line on a grass line trimmer deteriorates with time and eventually can split or crack. You can replace it yours…

Repair difficulty

Time required

15 minutes or less

Articles and videos for gas line trimmers

Use the advice and tips in these articles and videos to get the most out of your grass line trimmer.

View all
