Model # 14342701 Official Craftsman 4-cycle engine

Here are the diagrams and repair parts for Official Craftsman 14342701 4-cycle engine, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

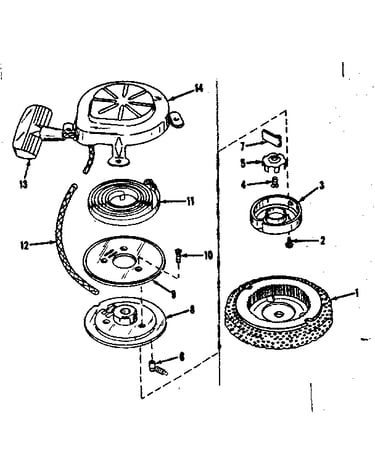

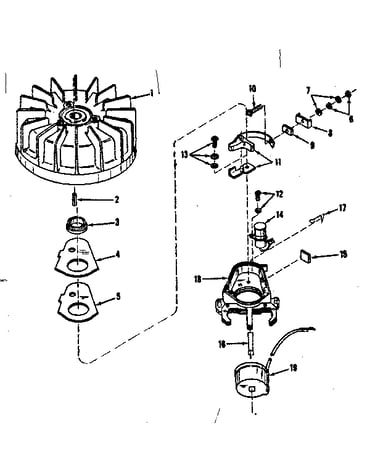

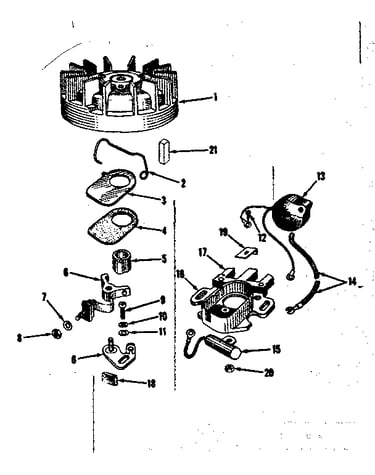

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 228 parts  |
Plug 27625
#31

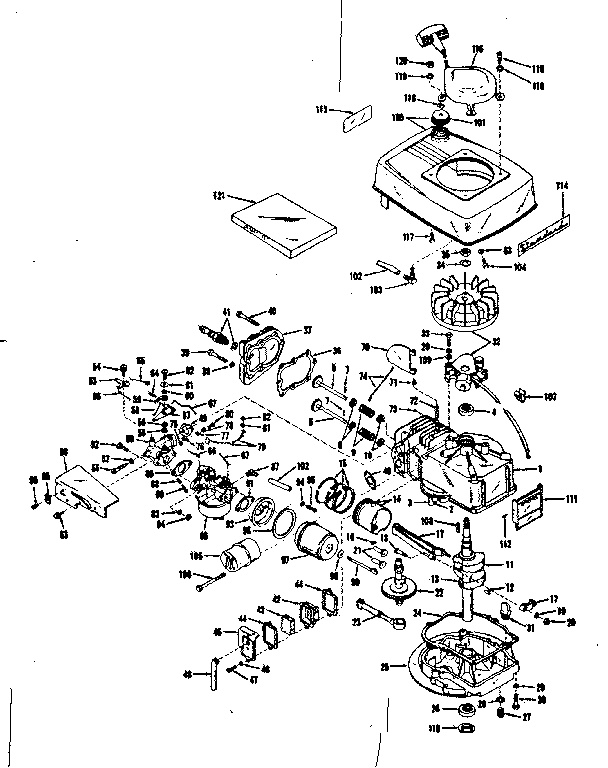

Basic engine diagram

Plug

Part #27625

The manufacturer no longer makes this part, and there's no substitute part

Ring 20381
#16

Basic engine diagram

Ring

Part #20381

The manufacturer no longer makes this part, and there's no substitute part

Screw 28553
#51

Basic engine diagram

Screw

Part #28553

The manufacturer no longer makes this part, and there's no substitute part

/carb Float 27105
#14

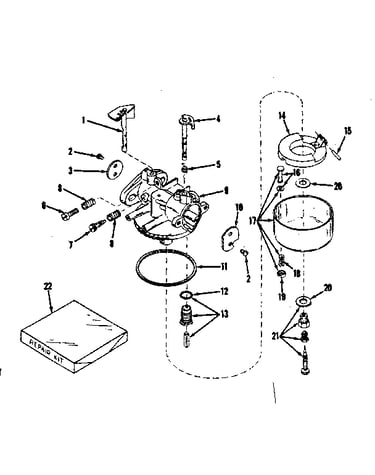

No. 28627 carburetor and no. 28626 carburetor diagram

/carb float

Part #27105

The manufacturer no longer makes this part, and there's no substitute part

Clip 27275
#107

Basic engine diagram

Clip

Part #27275

The manufacturer no longer makes this part, and there's no substitute part

Ring Set 27565
#15A

Basic engine diagram

Ring set

Part #27565

The manufacturer no longer makes this part, and there's no substitute part

Lifter 27241
#21

Basic engine diagram

Lifter

Part #27241

The manufacturer no longer makes this part, and there's no substitute part

Pistn/pin 27062
#14A

Basic engine diagram

Pistn/pin

Part #27062

The manufacturer no longer makes this part, and there's no substitute part

Hex Head Cap Screw, 1/4-28 X 7/8-in 6201
#92

Basic engine diagram

Hex head cap screw, 1/4-28 x 7/8-in

Part #6201

The manufacturer no longer makes this part, and there's no substitute part

Screw 27116
#2

No. 28627 carburetor and no. 28626 carburetor diagram

Screw

Part #27116

The manufacturer no longer makes this part, and there's no substitute part
