Model # 867761270 Official Kenmore gas-fired furnace
Here are the diagrams and repair parts for Official Kenmore 867761270 gas-fired furnace, as well as links to manuals and error code tables, if available.
By Schematic
SELECT DIAGRAM
Browse Parts for
867761270 Gas-Fired Furnace
Thermocouple
Part #600268
Replaced by #H06E-36
?
Manufacturer substitution
This part replaces 600268. Substitute parts can look different from the original.
$14.91 |
12% OFF Phone Price : $16.91
Back Order
#6A

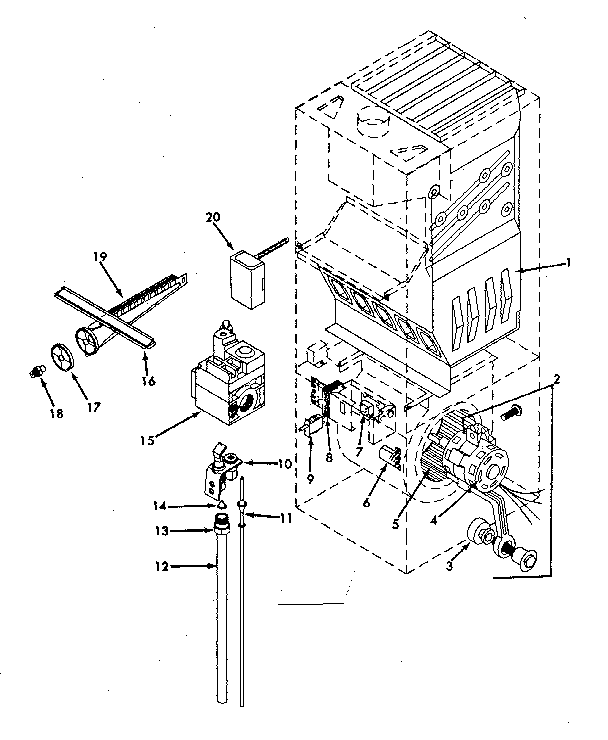

Heat exchanger/766020 diagram
Capacitor
Part #91593
Replaced by #12908
?
Manufacturer substitution
This part replaces 91593. Substitute parts can look different from the original.
$107.77 |
10% OFF Phone Price : $119.77
In Stock
#6
Heat exchanger/766020 diagram
Capacitor
Part #602974
Replaced by #12005
?
Manufacturer substitution
This part replaces 602974. Substitute parts can look different from the original.
$16.49 |
11% OFF Phone Price : $18.49
In Stock
#5C

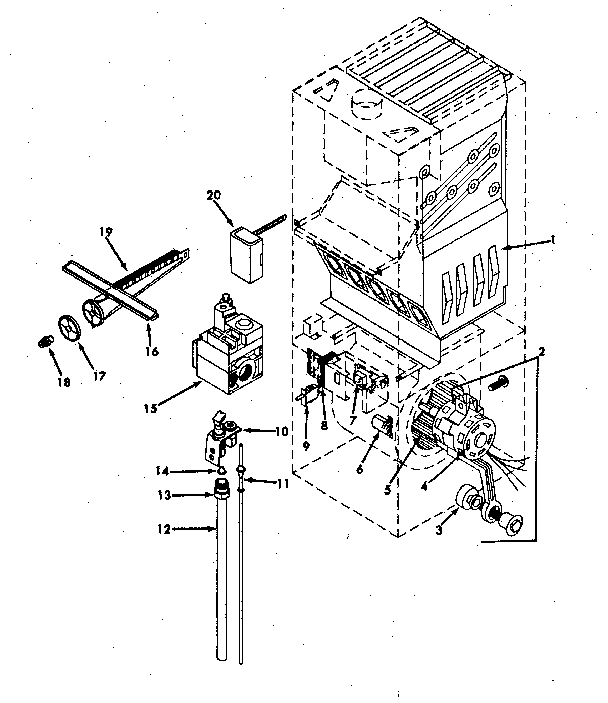

Heat exchanger diagram
Furnace blower fan wheel
Part #600586
$127.13 |
9% OFF Phone Price : $139.13
In Stock
#5B
Heat exchanger/766020 diagram
Furnace blower fan wheel (replaces 1149145, 1162422, 1645225, 1665008, 1680076, 1695012, 24020801, 600957, 601004, 72978, h600587)
Part #600587
$130.20 |
8% OFF Phone Price : $142.20
In Stock
Blower wheel
Part #600585
Replaced by #600586
?
Manufacturer substitution
This part replaces 600585. Substitute parts can look different from the original.
$127.13 |
9% OFF Phone Price : $139.13
In Stock
#4C
Heat exchanger/766020 diagram
Furnace blower fan motor
Part #613209
$499.86 |
$12.00 OFF Phone Price : $511.86
In Stock
#16A
Heat exchanger diagram
Cross lighte
Part #612443
$57.53 |
9% OFF Phone Price : $63.53
In Stock
#16
Furnace body diagram
Board termin
Part #612254
$20.06
In Stock
Furnace blower fan motor mounting kit
Part #609227
$113.60
In Stock
