Hardwick
Gas Range

Model # SH4-34A9 Official Hardwick gas range

Here are the diagrams and repair parts for Official Hardwick SH4-34A9 gas range, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 41 parts  |
Screw 7118P004-60
#4A

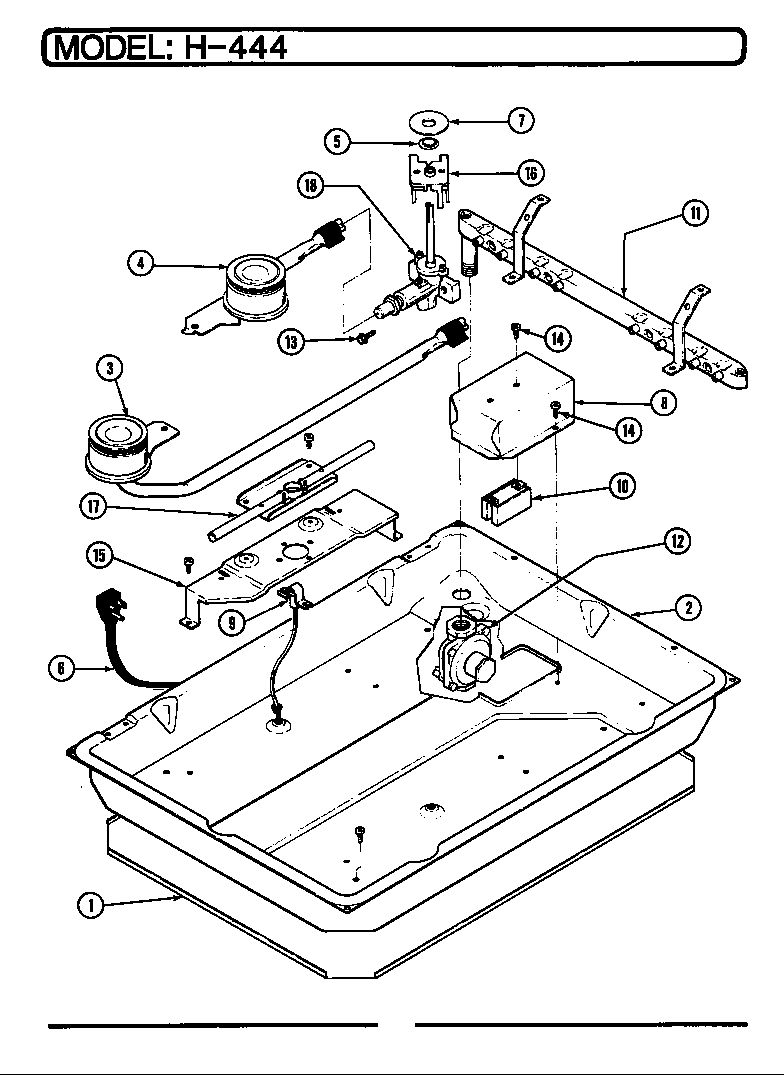

Burner assembly (ch4-44*9) (ch4-44a9) (ch4-44w9) diagram

Screw

Part #7118P004-60

Replaced by #WP4159193

?
Manufacturer substitution
This part replaces 7118P004-60. Substitute parts can look different from the original.
This item is not returnable
$5.06 |
17% OFF Phone Price : $6.06
In Stock
Screw 7101P061-60
#14

Burner assembly (ch4-44*9) (ch4-44a9) (ch4-44w9) diagram

Screw

Part #7101P061-60

Replaced by #WP7101P126-60

?
Manufacturer substitution
This part replaces 7101P061-60. Substitute parts can look different from the original.
This item is not returnable
$4.10 |
20% OFF Phone Price : $5.10
In Stock
Screw (wht) 7101P261-60
#4

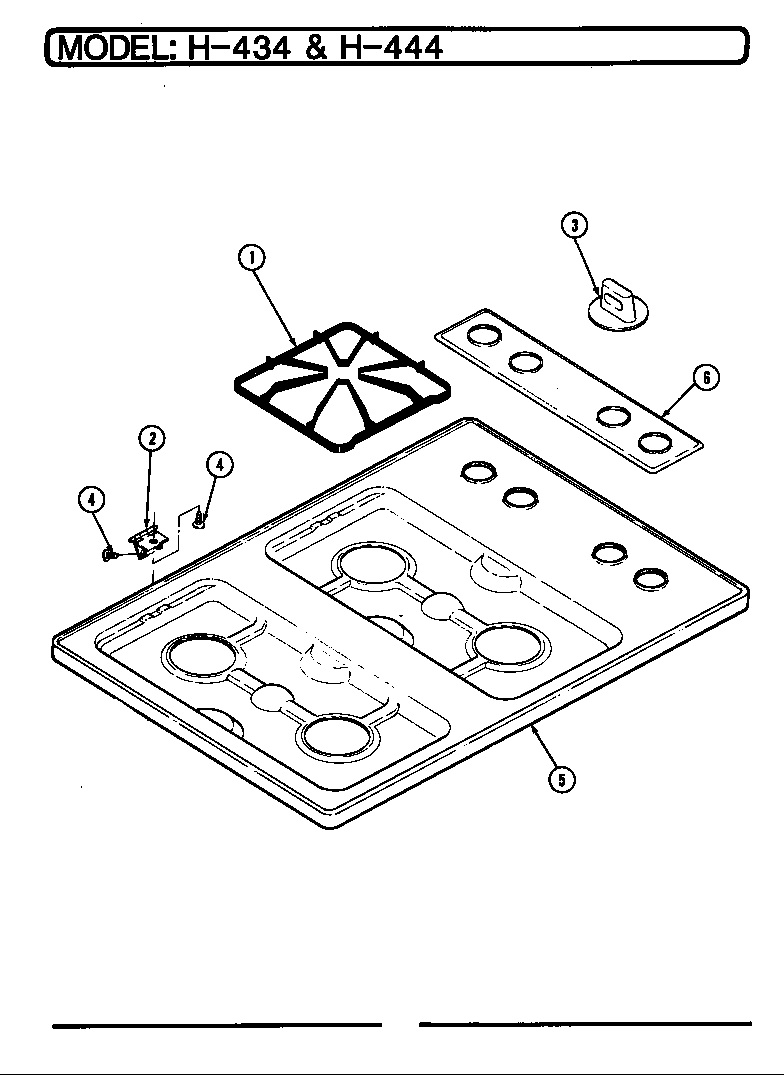

Top assembly (ch4-34a9) (ch4-34w9) (ch4-44a9) (ch4-44w9) diagram

Screw (wht)

Part #7101P261-60

Replaced by #WP7101P126-60

?
Manufacturer substitution
This part replaces 7101P261-60. Substitute parts can look different from the original.
This item is not returnable
$4.10 |
20% OFF Phone Price : $5.10
In Stock
Burner Switch 7403P190-60
#16

Burner assembly (ch4-44*9) (ch4-44a9) (ch4-44w9) diagram

Burner switch

Part #7403P190-60

Replaced by #WP7403P190-60

?
Manufacturer substitution
This part replaces 7403P190-60. Substitute parts can look different from the original.
$54.58 |
10% OFF Phone Price : $60.58
In Stock
Burner Cover 7724P004-60
Burner cover

Part #7724P004-60

The manufacturer no longer makes this part, and there's no substitute part

Burner Support 3807F101-34
#13

Burner assembly (ch4-34*9) (ch4-34a9) (ch4-34w9) (sh4-34a9) (sh4-34w9) diagram

Burner support

Part #3807F101-34

The manufacturer no longer makes this part, and there's no substitute part

Hinge 7106P017-60
#2

Top assembly (ch4-34a9) (ch4-34w9) (ch4-44a9) (ch4-44w9) diagram

Hinge

Part #7106P017-60

The manufacturer no longer makes this part, and there's no substitute part

Burner 7505P161-60
Burner

Part #7505P161-60

The manufacturer no longer makes this part, and there's no substitute part

Power Cord 7402P013-60
#6

Burner assembly (ch4-44*9) (ch4-44a9) (ch4-44w9) diagram

Power cord

Part #7402P013-60

The manufacturer no longer makes this part, and there's no substitute part

Hi Me Valve 7502P121-60
Hi me valve

Part #7502P121-60

The manufacturer no longer makes this part, and there's no substitute part
