Model # MH9115XEQ0 Official Whirlpool microwave

Here are the diagrams and repair parts for Official Whirlpool MH9115XEQ0 microwave, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

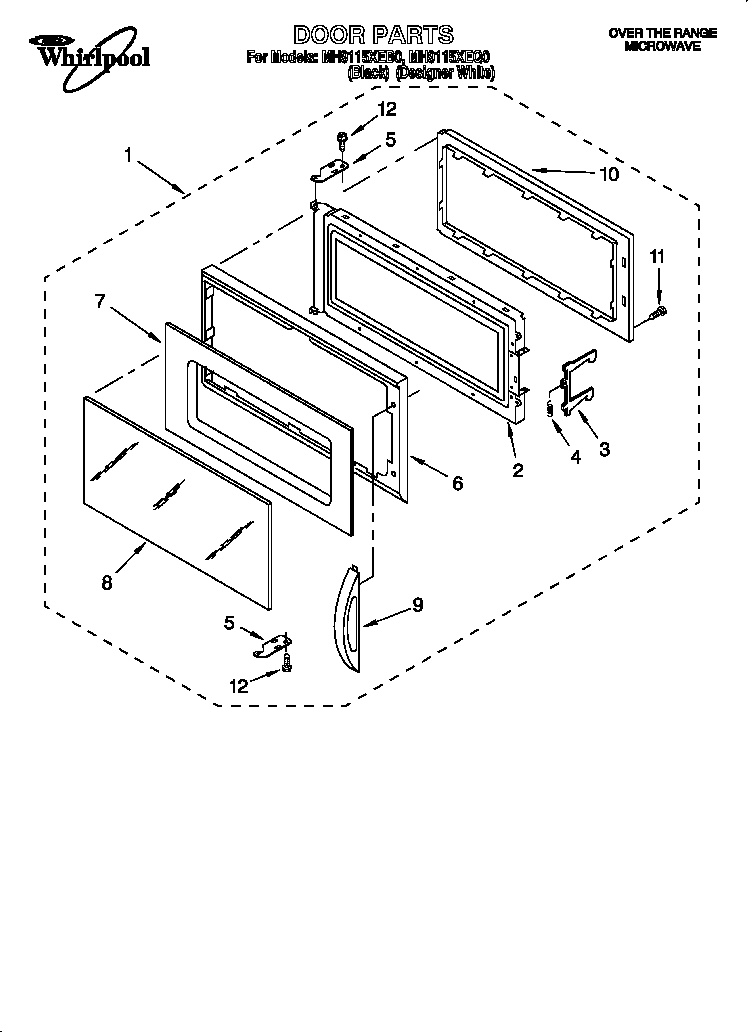

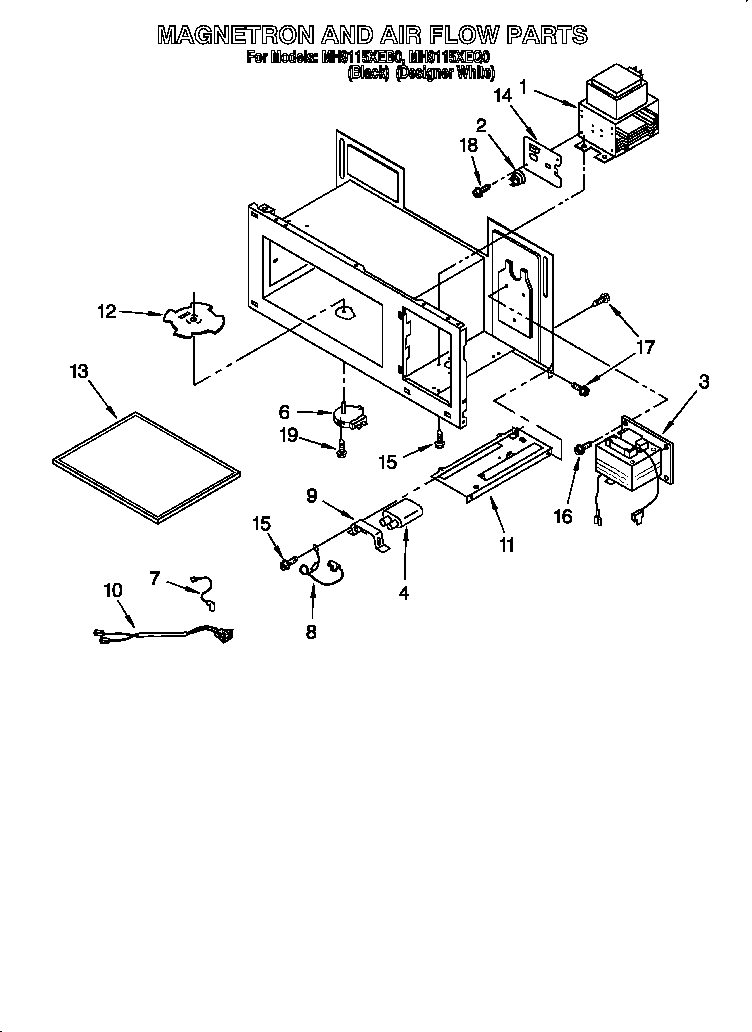

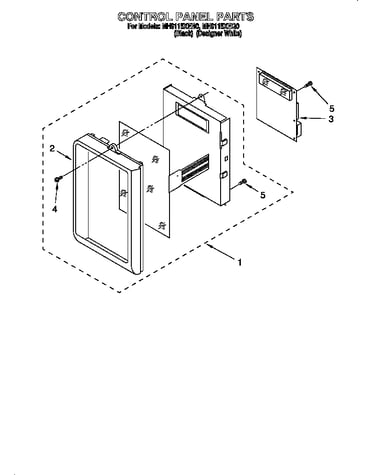

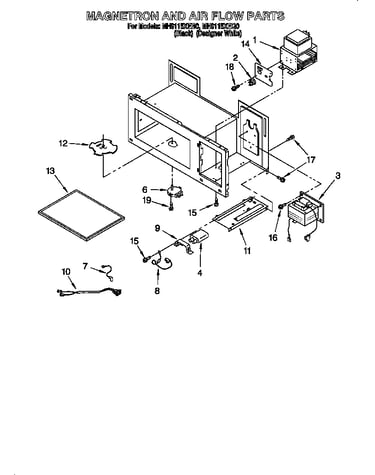

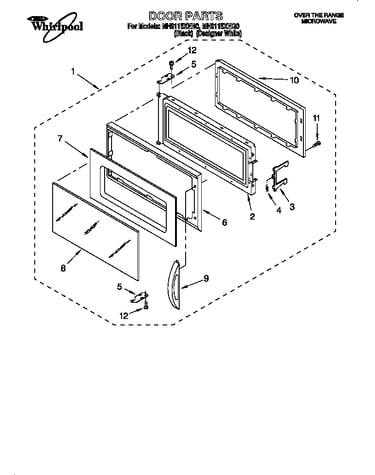

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 160 parts  |
Light Bulb 4158432
#13

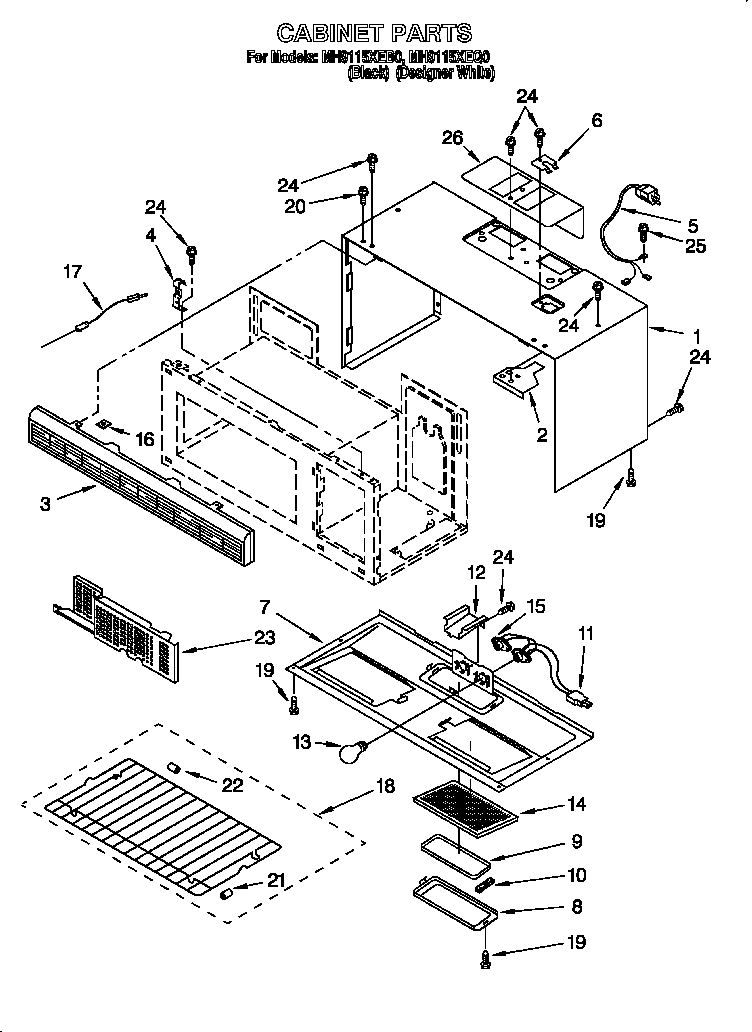

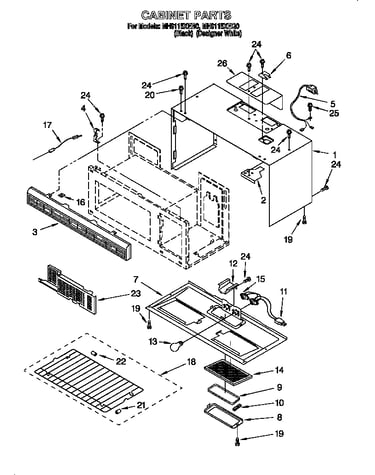

Cabinet diagram

Light bulb

Part #4158432

Replaced by #8206232A

?
Manufacturer substitution
This part replaces 4158432. Substitute parts can look different from the original.
BEST SELLER
$8.65 |
10% OFF Phone Price : $9.65
In Stock
Screw 4358010
#14

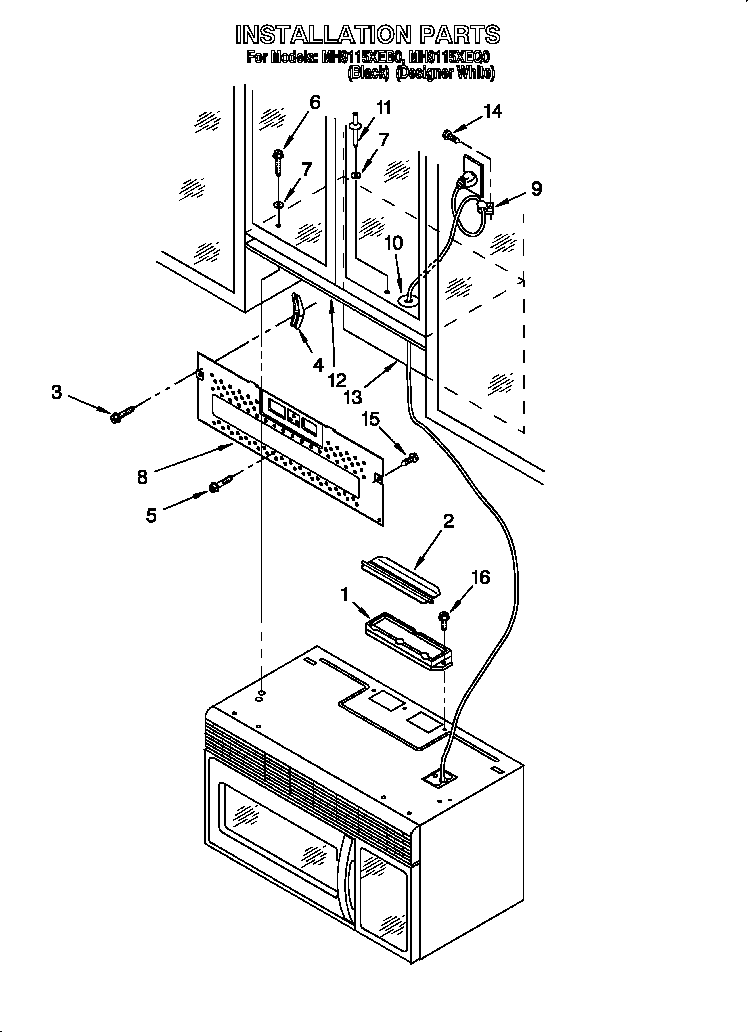

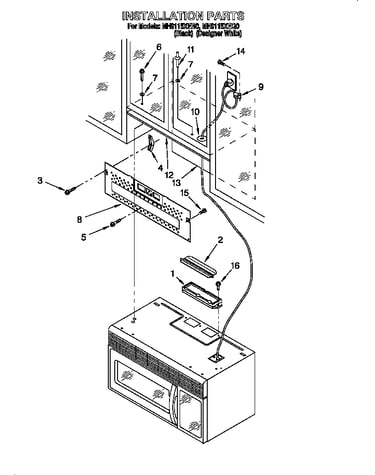

Installation diagram

Screw

Part #4358010

Replaced by #WP98008545

?
Manufacturer substitution
This part replaces 4358010. Substitute parts can look different from the original.
This item is not returnable
$4.67 |
18% OFF Phone Price : $5.67
In Stock
Microwave Air Filter 4358853
#14

Cabinet diagram

Microwave air filter

Part #4358853

This item is not returnable
$13.79 |
13% OFF Phone Price : $15.79
In Stock
Washer 4358477
#4

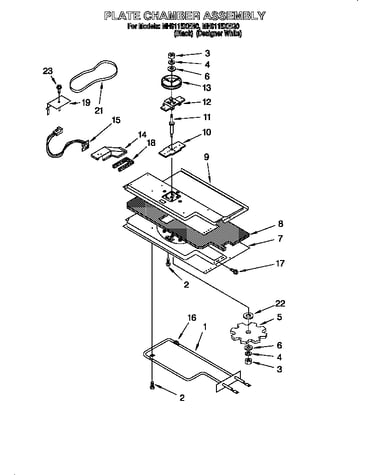

Plate chamber assembly diagram

Washer

Part #4358477

Replaced by #WP8533914

?
Manufacturer substitution
This part replaces 4358477. Substitute parts can look different from the original.
This item is not returnable
$5.09 |
16% OFF Phone Price : $6.09
In Stock
Sensor 4358993
#15

Plate chamber assembly diagram

Sensor

Part #4358993

$70.53
In Stock
Fan Motor 4358784
#1

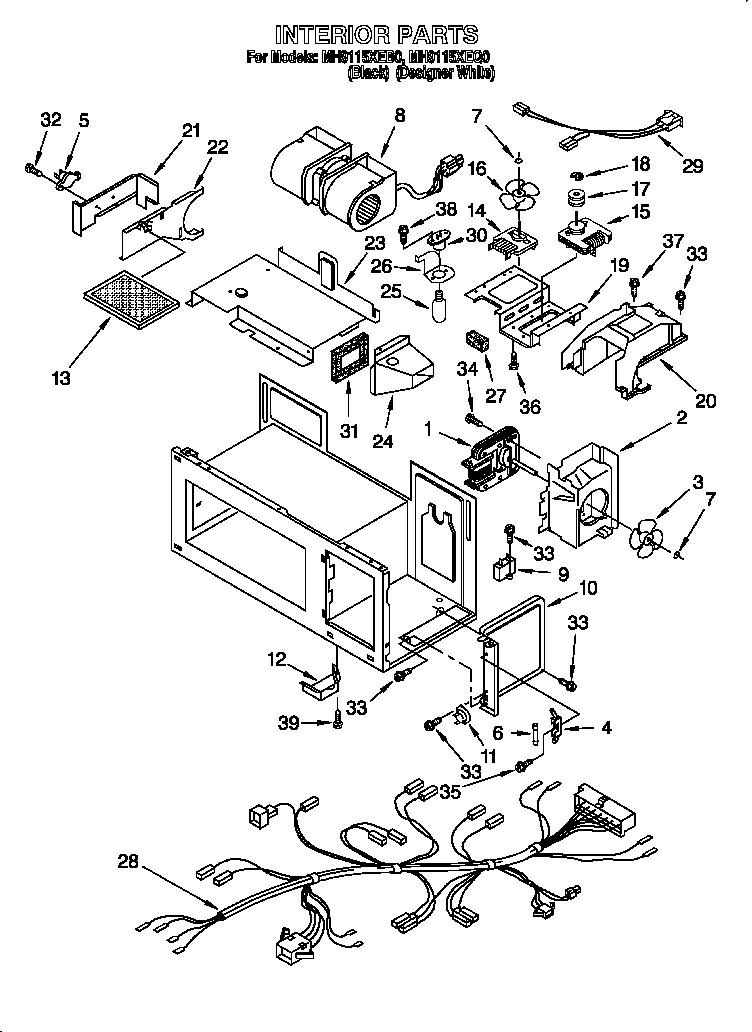

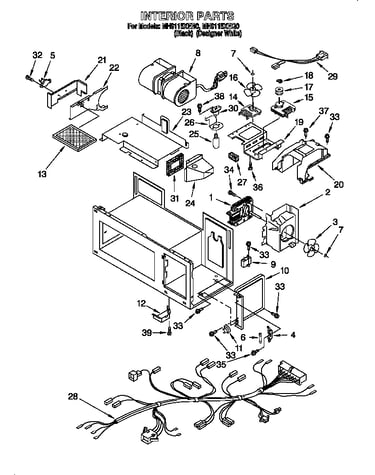

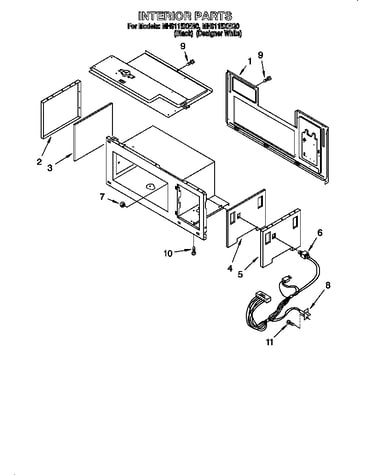

Interior diagram

Fan motor

Part #4358784

Replaced by #WP4358784

?
Manufacturer substitution
This part replaces 4358784. Substitute parts can look different from the original.
$83.79 |
7% OFF Phone Price : $89.79
In Stock
Microwave Screw 4358489
Microwave screw

Part #4358489

Replaced by #4344826

?
Manufacturer substitution
This part replaces 4358489. Substitute parts can look different from the original.
$12.49
In Stock
Switch 4158941
#4

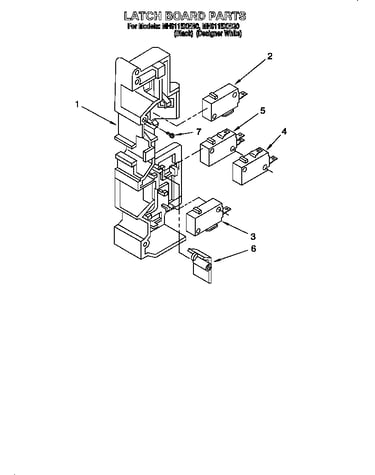

Latch board diagram

Switch

Part #4158941

Replaced by #4392027

?
Manufacturer substitution
This part replaces 4158941. Substitute parts can look different from the original.
$69.11 |
8% OFF Phone Price : $75.11
In Stock
Screw 4158321
#3

Installation diagram

Screw

Part #4158321

Replaced by #WP8169704

?
Manufacturer substitution
This part replaces 4158321. Substitute parts can look different from the original.
This item is not returnable
$5.07 |
16% OFF Phone Price : $6.07
In Stock
Switch 4358269
#3

Latch board diagram

Switch

Part #4358269

Replaced by #4392027

?
Manufacturer substitution
This part replaces 4358269. Substitute parts can look different from the original.
$69.11 |
8% OFF Phone Price : $75.11
In Stock
