Proform
Elliptical Machine

Model # PFEL71031 Official Proform proform 880s elliptical machine

Here are the diagrams and repair parts for Official Proform PFEL71031 proform 880s elliptical machine, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 119 parts  |
Black & Decker Exercise Equipment Lubricating Grease 104838

#NI02

All parts diagram

Black & decker exercise equipment lubricating grease

Part #104838

This item is not returnable
$3.89 |
20% OFF Phone Price : $4.89
In Stock
Elliptical Handlebar Bushing 138574
#24

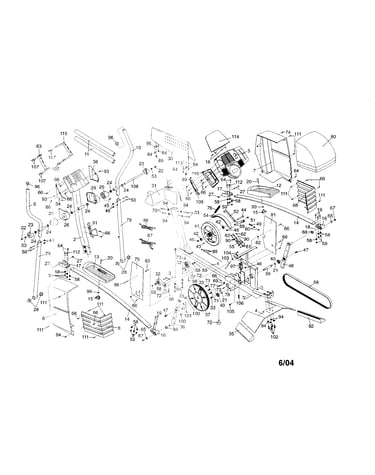

Elliptical diagram

Elliptical handlebar bushing

Part #138574

Replaced by #256295

?
Manufacturer substitution
This part replaces 138574. Substitute parts can look different from the original.
This item is not returnable
$2.16
In Stock
Elliptical Nut 012042
#46

Elliptical diagram

Elliptical nut

Part #012042

This item is not returnable
$2.16
Back Order
Motor 211876
#55

Elliptical diagram

Motor

Part #211876

$78.99
In Stock
Black & Decker Exercise Equipment Screw 154848
#98

Elliptical diagram

Black & decker exercise equipment screw

Part #154848

This item is not returnable
$2.16
In Stock
Elliptical Drive Belt 201296
#56

Elliptical diagram

Elliptical drive belt

Part #201296

$36.99 |
14% OFF Phone Price : $42.99
In Stock
Exercise Cycle Retainer Ring 163349
#21

Elliptical diagram

Exercise cycle retainer ring

Part #163349

Replaced by #143742

?
Manufacturer substitution
This part replaces 163349. Substitute parts can look different from the original.
This item is not returnable
$2.16
In Stock
Weider Exercise Equipment Carriage Bolt 183195
#20

Elliptical diagram

Weider exercise equipment carriage bolt

Part #183195

This item is not returnable
$2.99
In Stock
Stblzr,rear, 201167
#4

Elliptical diagram

Stblzr,rear,

Part #201167

$78.99
In Stock
Elliptical Screw, M6 X 25 208862
#19

Elliptical diagram

Elliptical screw, m6 x 25

Part #208862

This item is not returnable
$2.16
In Stock
