Kenmore
Gas Range

Model # 103256010 Official Kenmore gas range

Here are the diagrams and repair parts for Official Kenmore 103256010 gas range, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 151 parts  |
Lamp Bulb 65973

#NI

All parts diagram

Lamp bulb

Part #65973

Replaced by #40A15

?
Manufacturer substitution
This part replaces 65973. Substitute parts can look different from the original.
BEST SELLER
$15.16 |
12% OFF Phone Price : $17.16
In Stock
Support 86931
#48

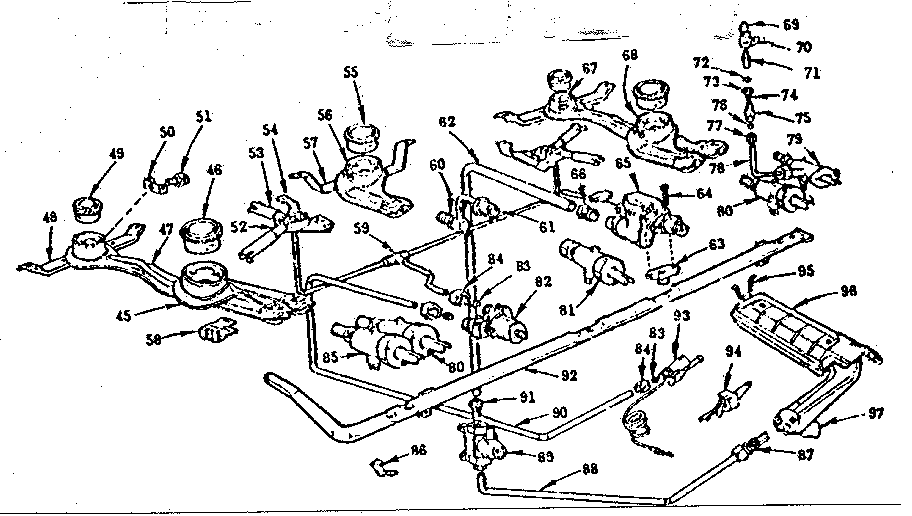

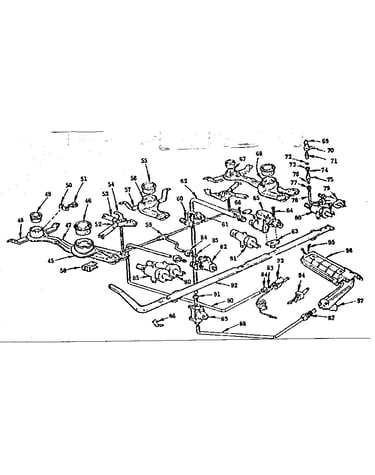

For burner section diagram

Support

Part #86931

This item is not returnable
$2.29
In Stock
Loxit Nut 79719
#61

For burner section diagram

Loxit nut

Part #79719

Replaced by #100108370

?
Manufacturer substitution
This part replaces 79719. Substitute parts can look different from the original.
$36.67
In Stock
Door Glass 87002
#142

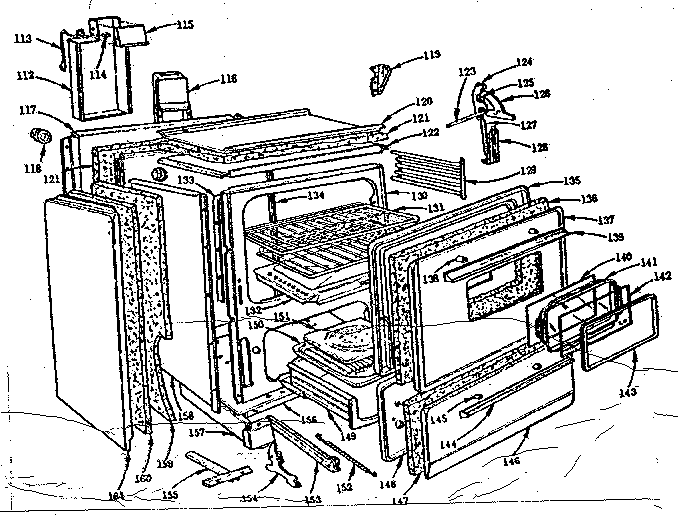

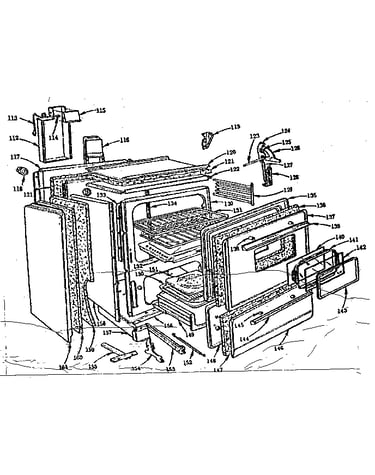

Body section diagram

Door glass

Part #87002

The manufacturer no longer makes this part, and there's no substitute part

Door Panel 89962
#146

Body section diagram

Door panel

Part #89962

The manufacturer no longer makes this part, and there's no substitute part

Backguard 89631
#14

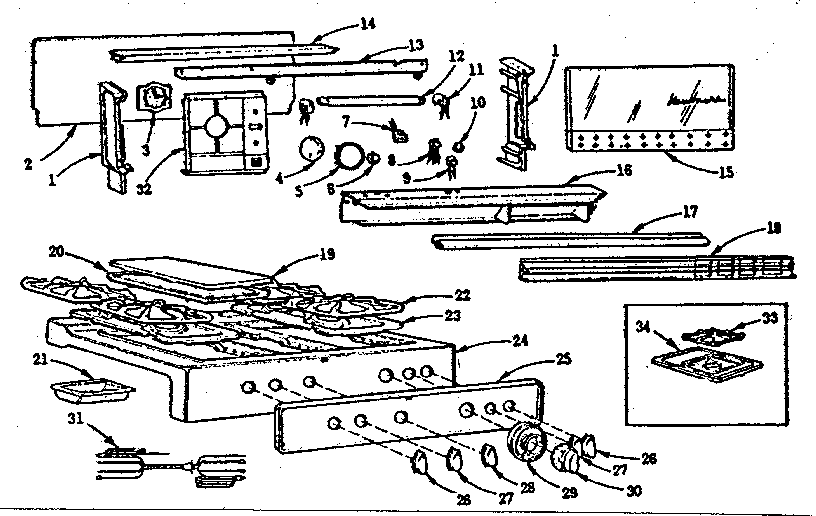

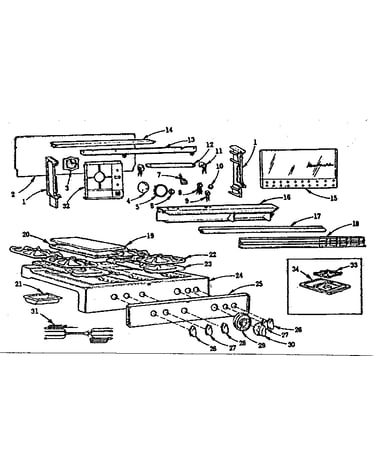

Backguard and main top backguard end cap diagram

Backguard

Part #89631

The manufacturer no longer makes this part, and there's no substitute part

Spud 87795
#74A

For burner section diagram

Spud

Part #87795

The manufacturer no longer makes this part, and there's no substitute part

Door Spring 69219
#152

Body section diagram

Door spring

Part #69219

The manufacturer no longer makes this part, and there's no substitute part

Filter 72062
#82

For burner section diagram

Filter

Part #72062

The manufacturer no longer makes this part, and there's no substitute part

Retainer 77880
#119A

Body section diagram

Retainer

Part #77880

The manufacturer no longer makes this part, and there's no substitute part
