Model # HDM1853BJ03 Official GE microwave

Here are the diagrams and repair parts for Official GE HDM1853BJ03 microwave, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Installation guide
Owner’s manual

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 103 parts  |
Switch-micro WB24X10038
#67

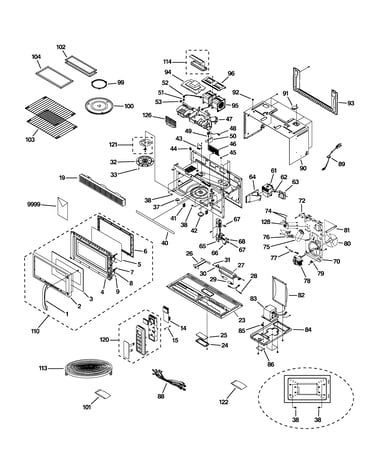

Microwave diagram

Switch-micro

Part #WB24X10038

Replaced by #WB24X829

?
Manufacturer substitution
This part replaces WB24X10038. Substitute parts can look different from the original.
BEST SELLER
$33.20 |
15% OFF Phone Price : $39.20
In Stock
Fuse Cartridge WB27X10474
#74

Microwave diagram

Fuse cartridge

Part #WB27X10474

Replaced by #WB27X10928

?
Manufacturer substitution
This part replaces WB27X10474. Substitute parts can look different from the original.
BEST SELLER
$9.73 |
9% OFF Phone Price : $10.73
In Stock
Micro-switch WB24X10075
#68

Microwave diagram

Micro-switch

Part #WB24X10075

Replaced by #WB24X830

?
Manufacturer substitution
This part replaces WB24X10075. Substitute parts can look different from the original.
BEST SELLER
$26.26 |
19% OFF Phone Price : $32.26
In Stock
Microwave High-voltage Diode (replaces Wb27x608) WB27X1160
#77

Microwave diagram

Microwave high-voltage diode (replaces wb27x608)

Part #WB27X1160

BEST SELLER
$79.22 |
7% OFF Phone Price : $85.22
In Stock
Microwave Door Interlock Switch Lever (replaces Wb6x10128) WB06X10128
#66

Microwave diagram

Microwave door interlock switch lever (replaces wb6x10128)

Part #WB06X10128

BEST SELLER
$9.13 |
10% OFF Phone Price : $10.13
In Stock
Magnet Assembly WB27X10370
#61

Microwave diagram

Magnet assembly

Part #WB27X10370

The manufacturer no longer makes this part, and there's no substitute part

Therm-hood WB21X0535
#85

Microwave diagram

Therm-hood

Part #WB21X0535

Replaced by #WB27X10195

?
Manufacturer substitution
This part replaces WB21X0535. Substitute parts can look different from the original.
$24.89 |
19% OFF Phone Price : $30.89
In Stock
Microwave Light Bulb (replaces Wb2x4235, Wb36x0898, Wb36x0936, Wb36x10306, Wb36x898, Wb36x936, Wb6x15) WB36X10003
#29

Microwave diagram

Microwave light bulb (replaces wb2x4235, wb36x0898, wb36x0936, wb36x10306, wb36x898, wb36x936, wb6x15)

Part #WB36X10003

This item is not returnable
$13.60 |
13% OFF Phone Price : $15.60
In Stock
Microwave Light Socket WB08X10016
#30

Microwave diagram

Microwave light socket

Part #WB08X10016

This item is not returnable
$21.30 |
22% OFF Phone Price : $27.30
In Stock
Microwave Thermal Cut-off WB27X10194
#79

Microwave diagram

Microwave thermal cut-off

Part #WB27X10194

$14.89 |
12% OFF Phone Price : $16.89
In Stock
