KitchenAid
Electric Wall Oven

Model # KEBN100YBL0 Official KitchenAid 30" electric wall oven

Here are the diagrams and repair parts for Official KitchenAid KEBN100YBL0 30" electric wall oven, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

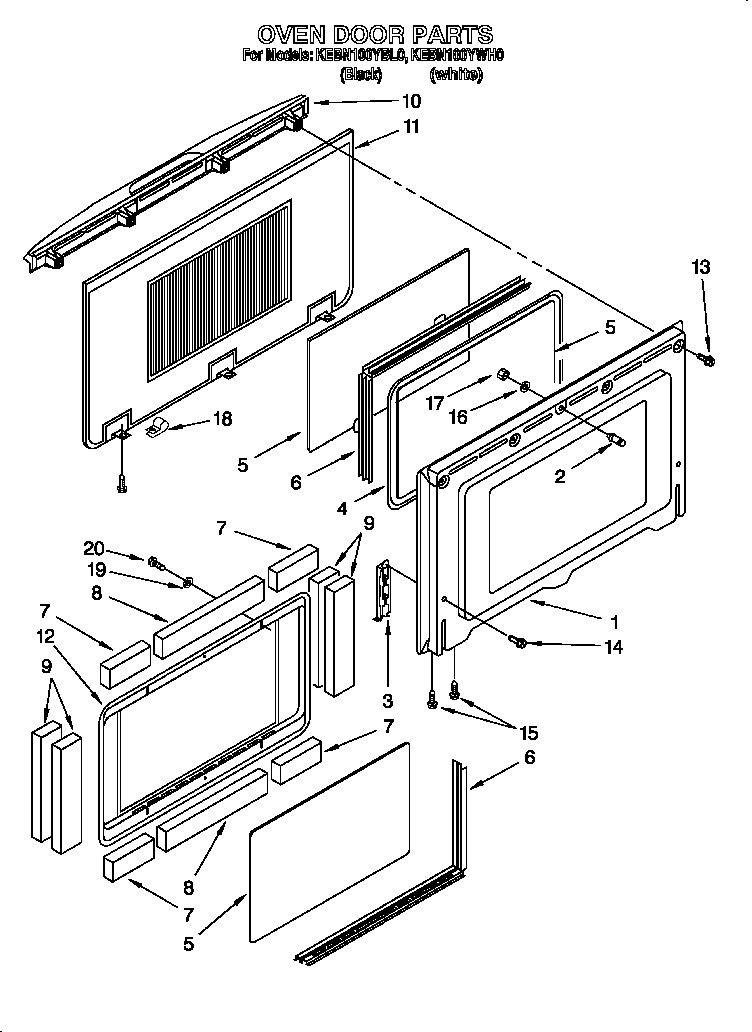

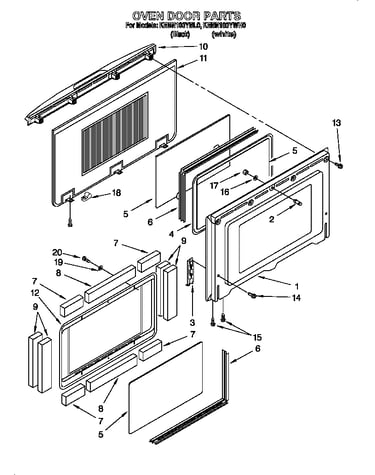

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 121 parts  |

Control Panel 4367580
#17B

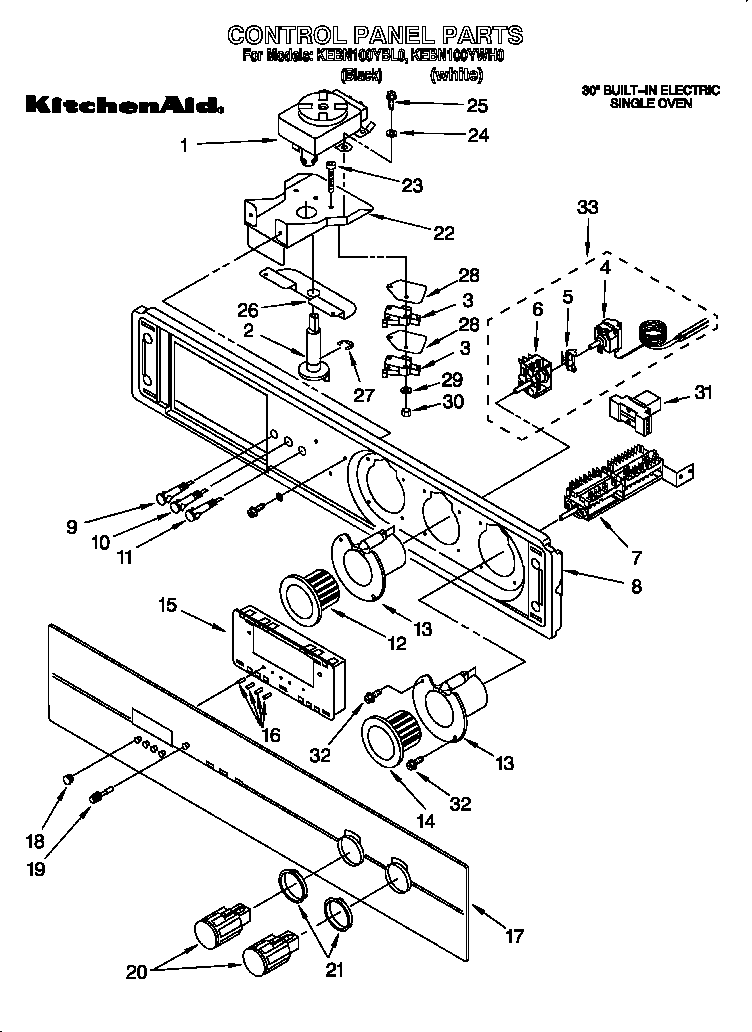

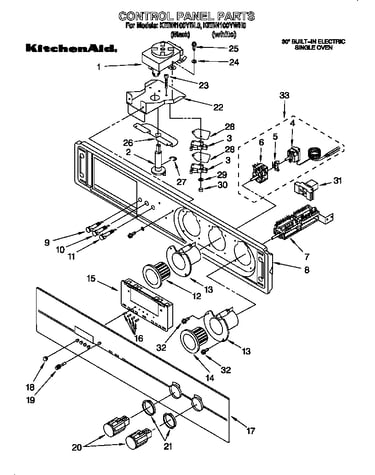

Control panel diagram

Control panel

Part #4367580

The manufacturer no longer makes this part, and there's no substitute part

Screw 4367631
#31

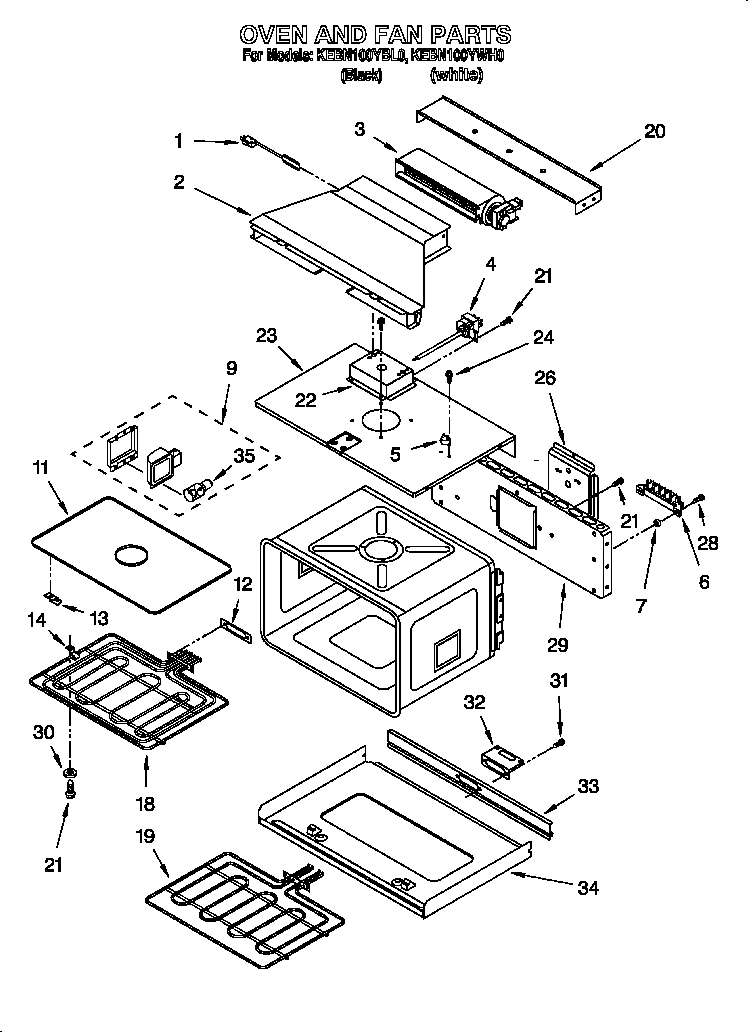

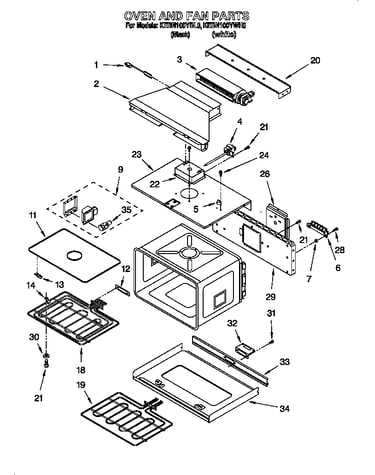

Oven and fan diagram

Screw

Part #4367631

The manufacturer no longer makes this part, and there's no substitute part

Oven Main 4367536
#17A

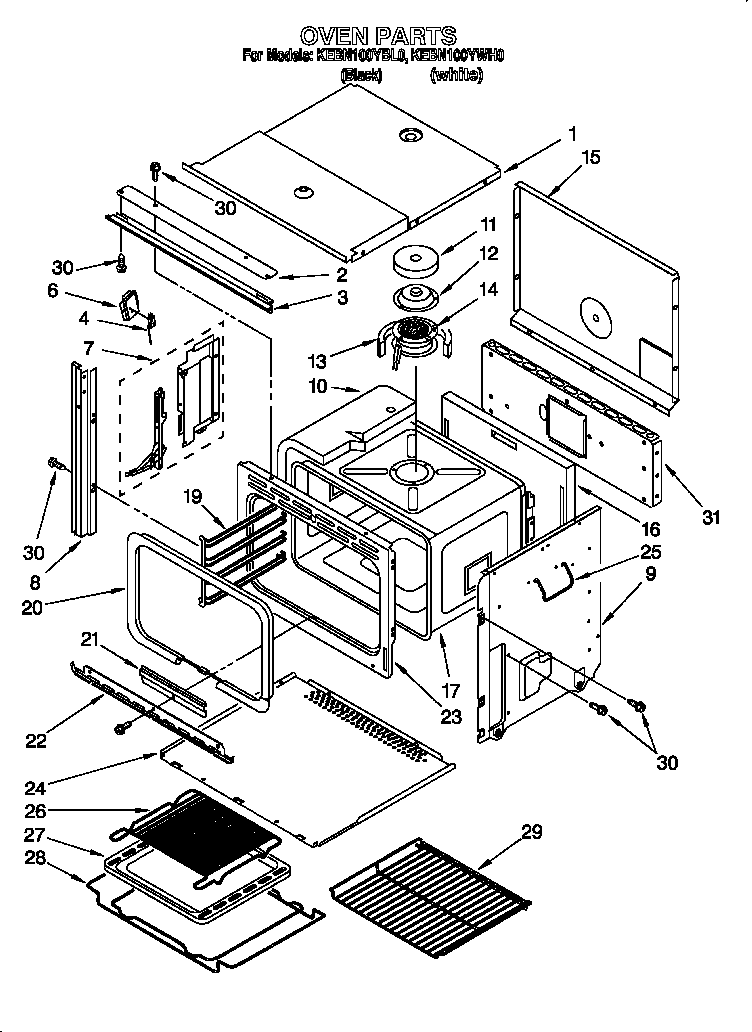

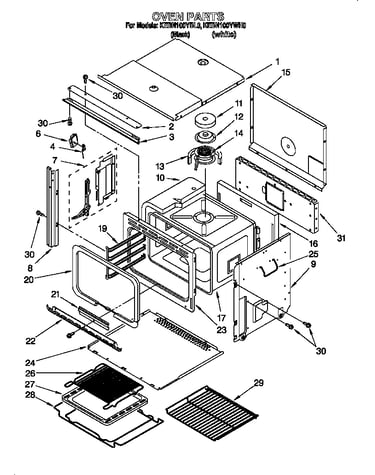

Oven diagram

Oven main

Part #4367536

The manufacturer no longer makes this part, and there's no substitute part

Door Hinge 4367542
#7B

Oven diagram

Door hinge

Part #4367542

The manufacturer no longer makes this part, and there's no substitute part

Oven 4367624
#23

Oven and fan diagram

Oven

Part #4367624

The manufacturer no longer makes this part, and there's no substitute part

Bracket 4367616
#26

Control panel diagram

Bracket

Part #4367616

The manufacturer no longer makes this part, and there's no substitute part

E-ring 4367617
#27

Control panel diagram

E-ring

Part #4367617

The manufacturer no longer makes this part, and there's no substitute part

Support 4367522
#8B

Oven diagram

Support

Part #4367522

The manufacturer no longer makes this part, and there's no substitute part

Control Knob 4367544
#20A

Control panel diagram

Control knob

Part #4367544

The manufacturer no longer makes this part, and there's no substitute part

Screw 4367629
#28

Oven and fan diagram

Screw

Part #4367629

The manufacturer no longer makes this part, and there's no substitute part

Most common symptoms to help you fix your wall oven

Choose a symptom to see related wall oven repairs.

Main causes: bad oven door lock assembly, faulty electronic control board, wiring failure…

Main causes: broken bake element, bad bake burner igniter, tripped thermal switch, control system failure…

Main causes: faulty oven temperature sensor, control system problem, weak burner igniter, damaged oven element…

Main causes: lack of gas supply, broken igniter, tripped circuit breaker, broken oven element, tripped thermal fuse, con…

Main causes: lack of electrical power, bad electronic control board, faulty oven control thermostat…

Main causes: broken broil element, faulty broil burner igniter, control system failure…
