Model # 24APA348A0030010 Official Carrier air conditioner

Here are the diagrams and repair parts for Official Carrier 24APA348A0030010 air conditioner, as well as links to manuals and error code tables, if available.

By Schematic
SELECT DIAGRAM
?

This is the number corresponding to the part on the diagram / schematic

Browse Parts for
24APA348A0030010 Air Conditioner
Strap Cap 317739-303
#28

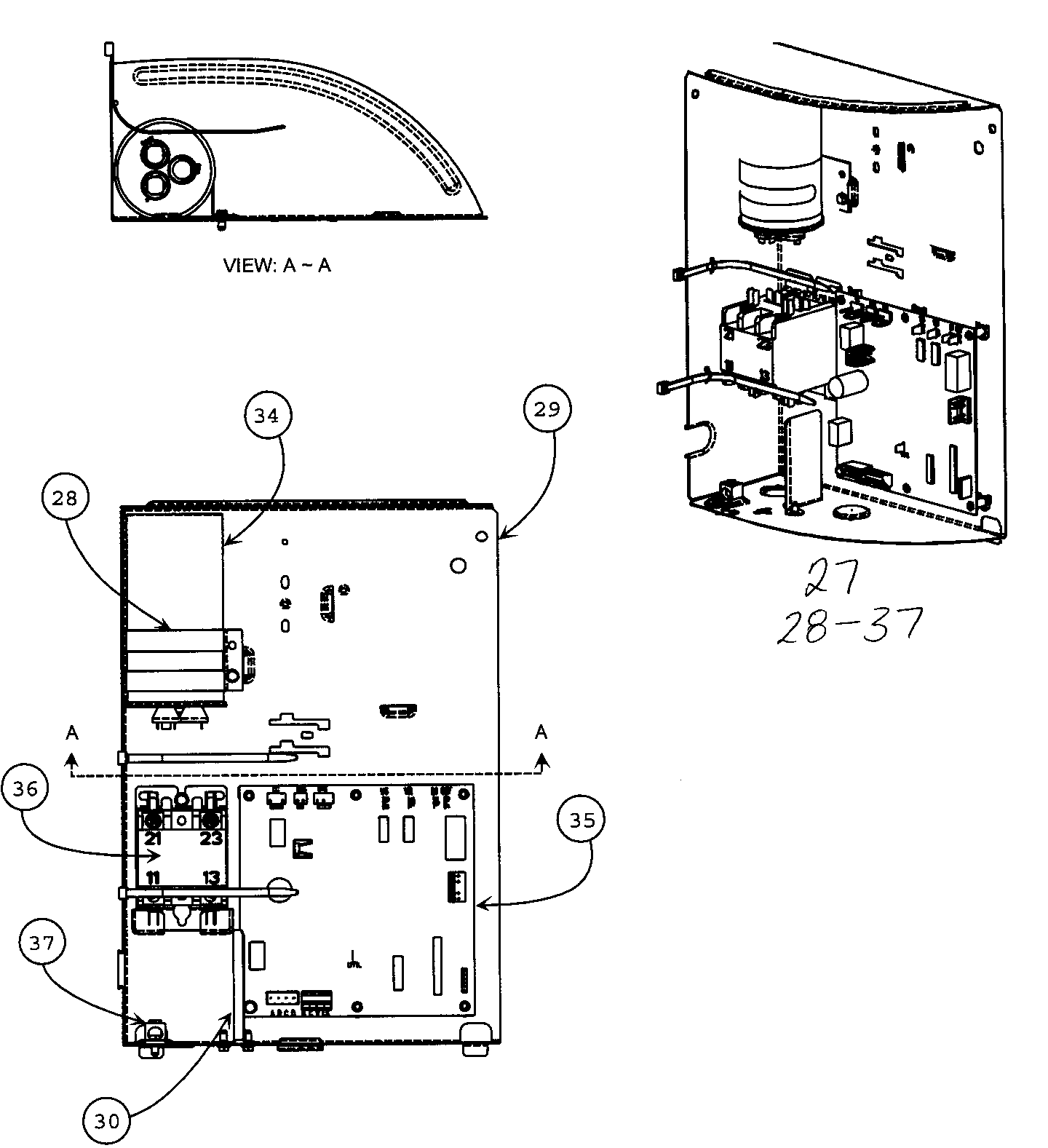

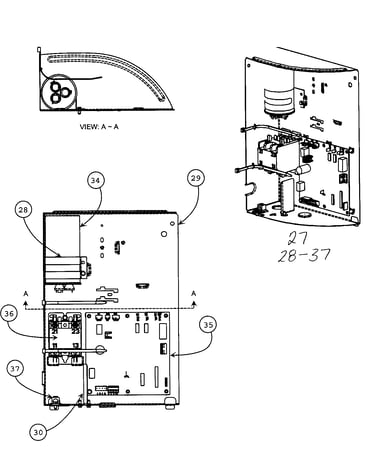

Control panel diagram

Strap cap

Part #317739-303

$9.20
In Stock
Plug Assembly P298-001
#NI

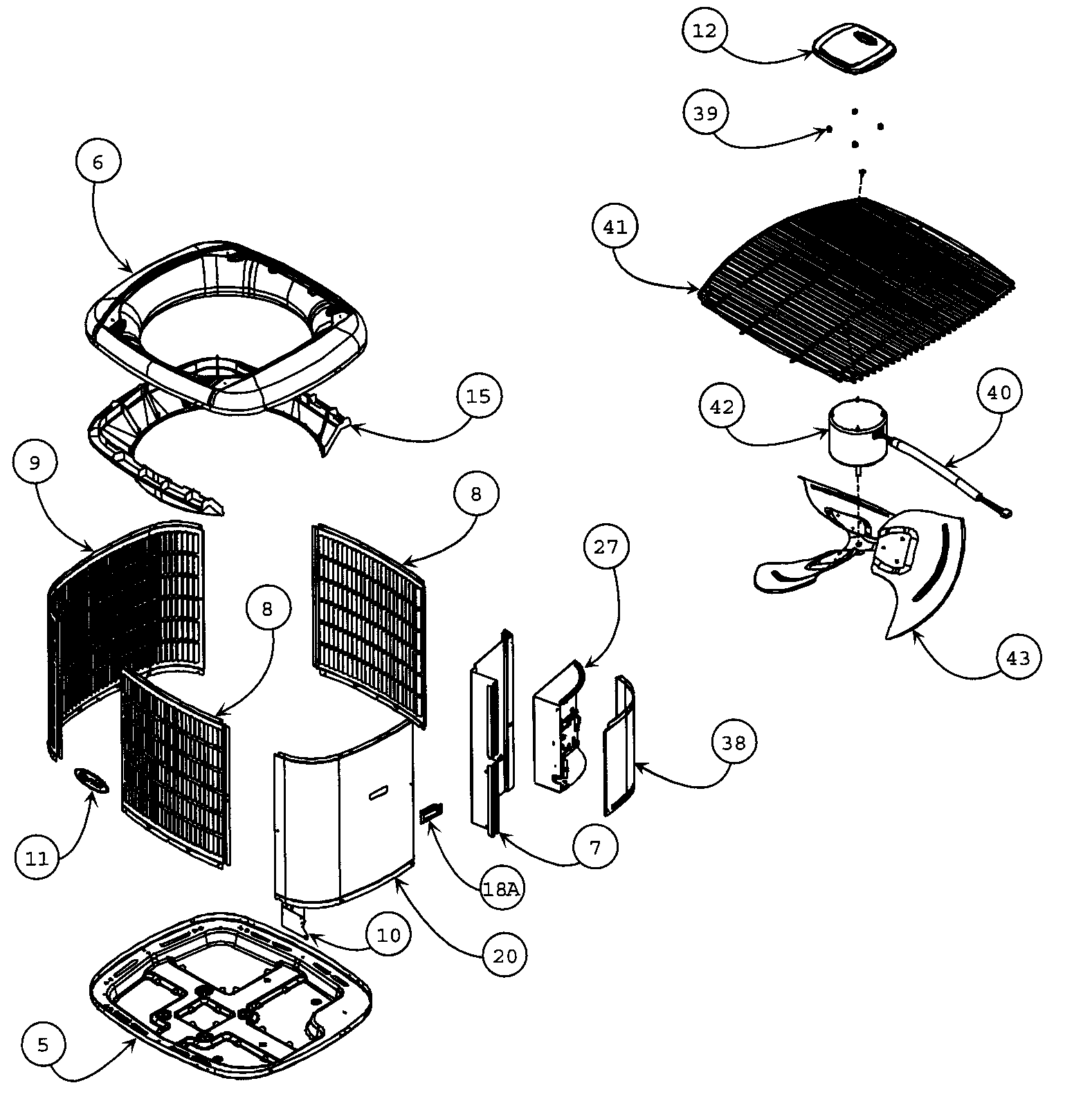

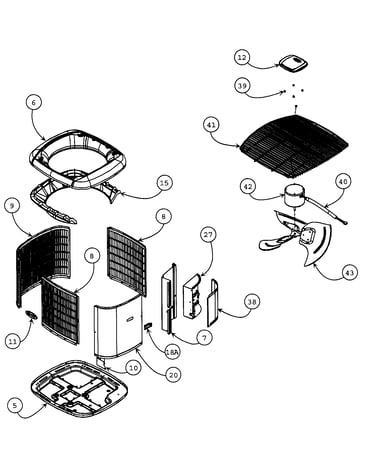

Inside view diagram

Plug assembly

Part #P298-001

$91.62
In Stock
Fan LA01RA006
#43

Inside view diagram

Fan

Part #LA01RA006

Replaced by #LA01RA036

?
Manufacturer substitution
This part replaces LA01RA006. Substitute parts can look different from the original.
$292.29
In Stock
Carrier Start Assist Ptc Kit KAACS0201PTC
#NI

Inside view diagram

Carrier start assist ptc kit

Part #KAACS0201PTC

$257.16
In Stock
Plug HY07MN119
#32

Control panel diagram

Plug

Part #HY07MN119

This item is not returnable
$2.16
In Stock
Switch HK02ZA365
#NI

Inside view diagram

Switch

Part #HK02ZA365

$412.74 |
$12.00 OFF Phone Price : $424.74
In Stock
Furnace Blower Fan Motor HC40GE237
#42

Inside view diagram

Furnace blower fan motor

Part #HC40GE237

$580.97
In Stock
Expansion Valve EA36YD141
#NI

Inside view diagram

Expansion valve

Part #EA36YD141

$321.22
In Stock
Label 324470-101
#2

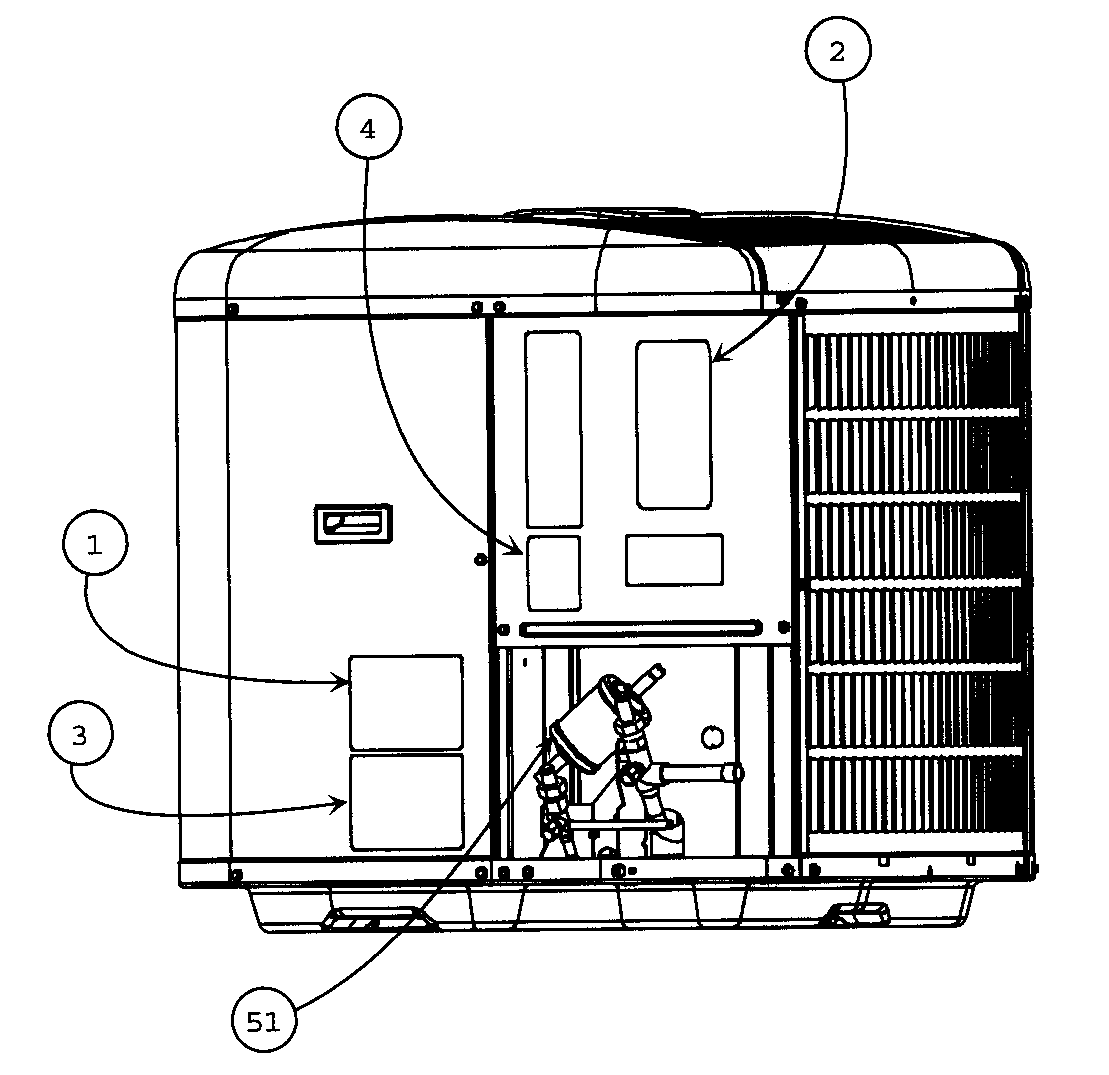

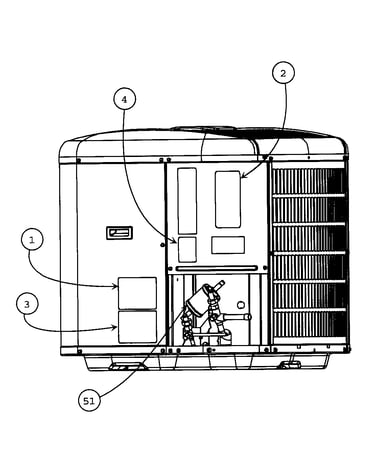

Outside view diagram

Label

Part #324470-101

$23.62
In Stock
Raceway 319421-312
#40

Inside view diagram

Raceway

Part #319421-312

$25.53
In Stock
