Model # JVB67A4BB Official GE range hood

Here are the diagrams and repair parts for Official GE JVB67A4BB range hood, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

Click a diagram to see the parts shown on that diagram.
In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

ALL PARTS

Showing 10 of 38 parts |

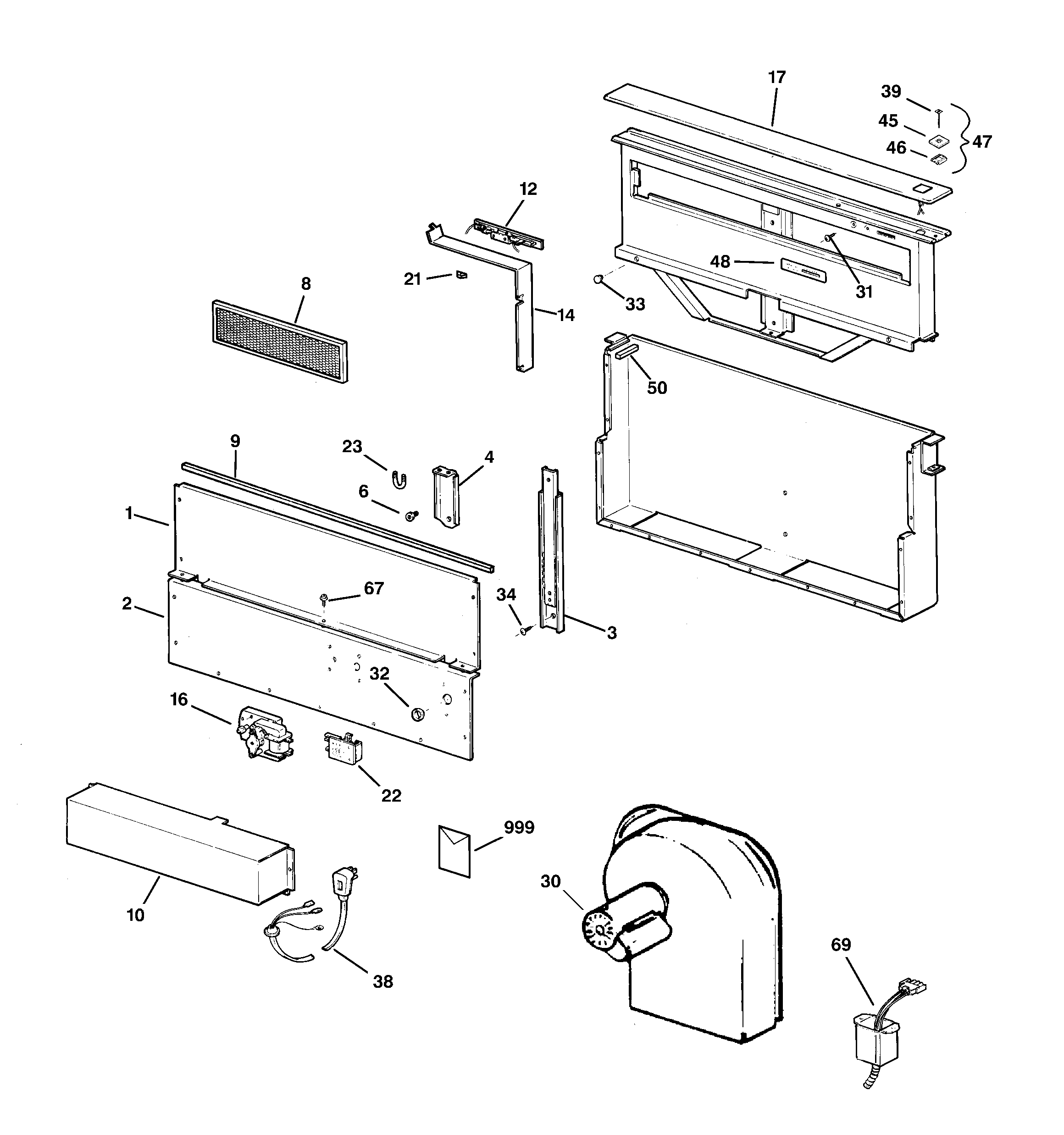

Range hood diagram

Range hood grease filter

Part #WB02X10310

$31.73 |

16% OFF Phone Price : $37.73

In Stock

Qty

#34

Range hood diagram

Screw pan he

Part #WB01X10008

Replaced by #WB01X10324

This item is not returnable

$5.00

In Stock

Qty

#999

Range hood diagram

Jvb37 67 ab

Part #49-8931

Replaced by #49-8931-4

$17.99

In Stock

Qty

Range hood diagram

Cover

Part #WB56X10010

The manufacturer no longer makes this part, and there's no substitute part

Downdraft Vent Up/down Switch Trim (black) WB24X10100

#47

Range hood diagram

Downdraft vent up/down switch trim (black)

Part #WB24X10100

The manufacturer no longer makes this part, and there's no substitute part

#47

Range hood diagram

Remote raise/lower sw

Part #WB24X10101

The manufacturer no longer makes this part, and there's no substitute part

#23

Range hood diagram

U-bolt

Part #WB01X10004

The manufacturer no longer makes this part, and there's no substitute part

#10

Range hood diagram

Remote wire box

Part #WB56X10110

The manufacturer no longer makes this part, and there's no substitute part

#14

Range hood diagram

Guard switch

Part #WB02X10302

The manufacturer no longer makes this part, and there's no substitute part

#69

Range hood diagram

Formed box

Part #WB02X10301

The manufacturer no longer makes this part, and there's no substitute part
