Model # EHK05A/P1187201C Official Amana electric heater kit - ehk a

Here are the diagrams and repair parts for Official Amana EHK05A-P1187201C electric heater kit - ehk a, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 42 parts  |
Tie M0321202
#0

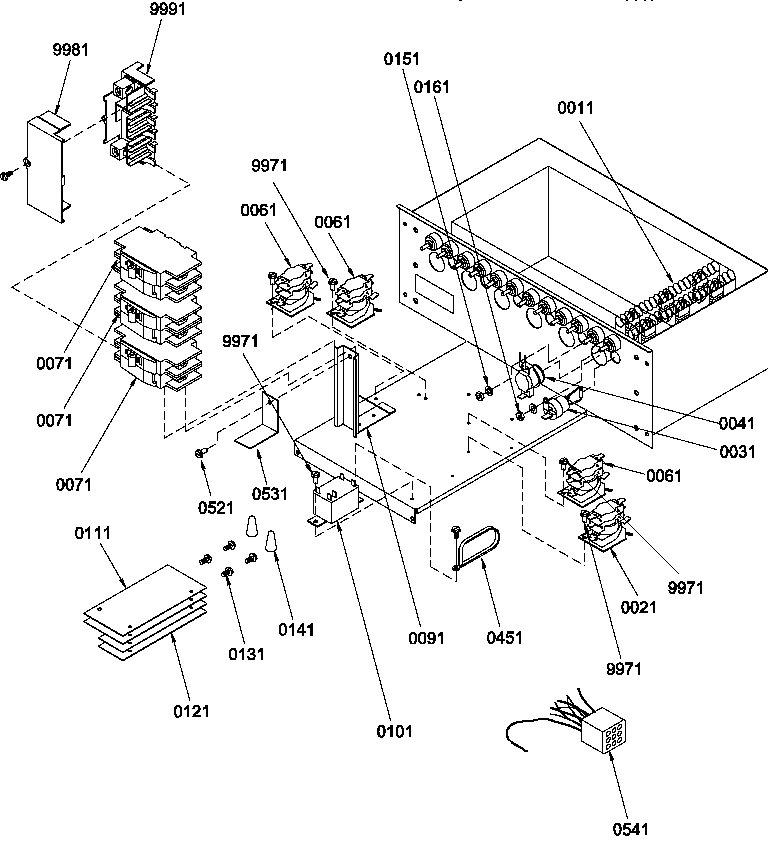

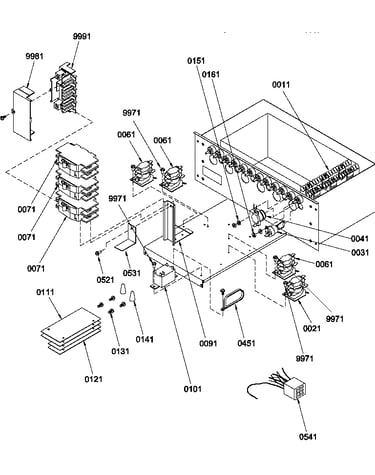

Electric heater kits (ehk__a ) diagram

Tie

Part #M0321202

Replaced by #WPW10339879

?
Manufacturer substitution
This part replaces M0321202. Substitute parts can look different from the original.
This item is not returnable
$4.37 |
19% OFF Phone Price : $5.37
In Stock
Screw M0211016
#131

Electric heater kits (ehk__a ) diagram

Screw

Part #M0211016

Replaced by #M0211016

?
Manufacturer substitution
This part replaces M0211016. Substitute parts can look different from the original.
This item is not returnable
$3.40
In Stock
Element-htr 28.8 Kw 10799502
#11

Electric heater kits (ehk__a ) diagram

Element-htr 28.8 kw

Part #10799502

The manufacturer no longer makes this part, and there's no substitute part

Mount-circuit Breaker 10799201
#91

Electric heater kits (ehk__a ) diagram

Mount-circuit breaker

Part #10799201

The manufacturer no longer makes this part, and there's no substitute part

Wahser, (motor Mounting Stud) M0270504
#151

Electric heater kits (ehk__a ) diagram

Wahser, (motor mounting stud)

Part #M0270504

The manufacturer no longer makes this part, and there's no substitute part

Heater Assembly 10799104
#0

Electric heater kits (ehk__a ) diagram

Heater assembly

Part #10799104

The manufacturer no longer makes this part, and there's no substitute part

Breaker-60 Amp Circuit 10846502
#71

Electric heater kits (ehk__a ) diagram

Breaker-60 amp circuit

Part #10846502

The manufacturer no longer makes this part, and there's no substitute part

Breaker-30 Amp Circuit 10846501
#71

Electric heater kits (ehk__a ) diagram

Breaker-30 amp circuit

Part #10846501

The manufacturer no longer makes this part, and there's no substitute part

Element-htr 19.2 Kw 10799401
#11

Electric heater kits (ehk__a ) diagram

Element-htr 19.2 kw

Part #10799401

The manufacturer no longer makes this part, and there's no substitute part

Instr-instal 10858301
#0

Electric heater kits (ehk__a ) diagram

Instr-instal

Part #10858301

The manufacturer no longer makes this part, and there's no substitute part
