Coleman
Gas Pressure Washer

Model # PW0832000.01 Official Coleman power washer

Here are the diagrams and repair parts for Official Coleman PW083200001 power washer, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 36 parts  |
Oil Cap 0000068
#17

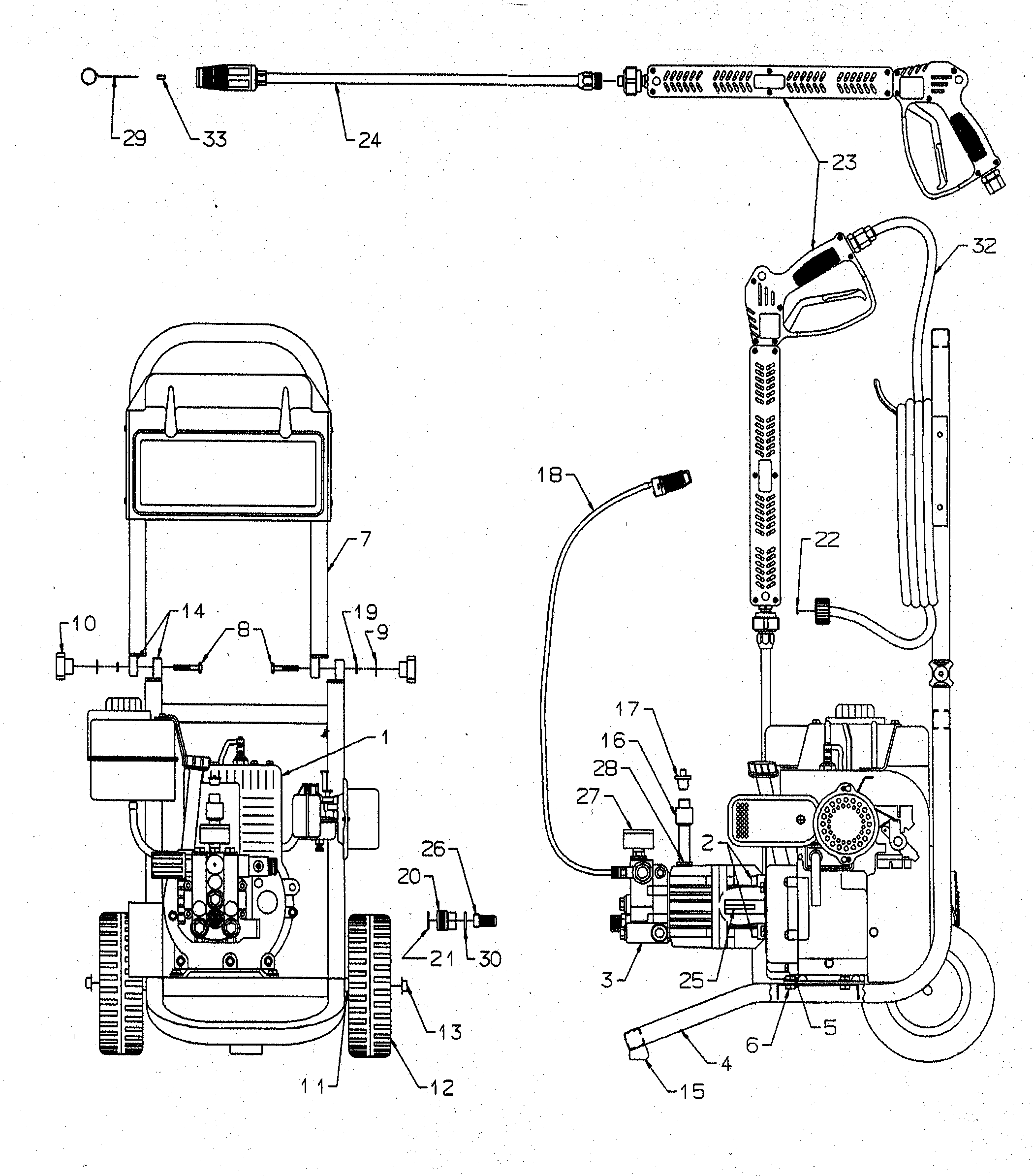

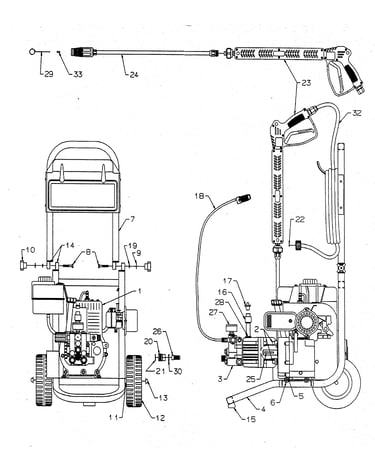

Power washer diagram

Oil cap

Part #0000068

The manufacturer no longer makes this part, and there's no substitute part

Connector 0000015
#21

Power washer diagram

Connector

Part #0000015

The manufacturer no longer makes this part, and there's no substitute part

O-ring 0000017
#22

Power washer diagram

O-ring

Part #0000017

The manufacturer no longer makes this part, and there's no substitute part

5/16-18 Nlyon Nut(4) 0048736
#6

Power washer diagram

5/16-18 nlyon nut(4)

Part #0048736

The manufacturer no longer makes this part, and there's no substitute part

Pressure Washer Cart Assembly 0051050
#4

Power washer diagram

Pressure washer cart assembly

Part #0051050

The manufacturer no longer makes this part, and there's no substitute part

Tube 0000067
#16

Power washer diagram

Tube

Part #0000067

The manufacturer no longer makes this part, and there's no substitute part

Wand And Nozzle Assy 0053029
#24

Power washer diagram

Wand and nozzle assy

Part #0053029

The manufacturer no longer makes this part, and there's no substitute part

Injection Tube Assembly 0051077
#18

Power washer diagram

Injection tube assembly

Part #0051077

The manufacturer no longer makes this part, and there's no substitute part

Rubber Foot 0000043.01
#15

Power washer diagram

Rubber foot

Part #0000043.01

The manufacturer no longer makes this part, and there's no substitute part

Engine Oil PA0650050
#NI

Power washer diagram

Engine oil

Part #PA0650050

The manufacturer no longer makes this part, and there's no substitute part
