Model # 587721200 Official Kenmore undercounter dishwasher

Here are the diagrams and repair parts for Official Kenmore 587721200 undercounter dishwasher, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

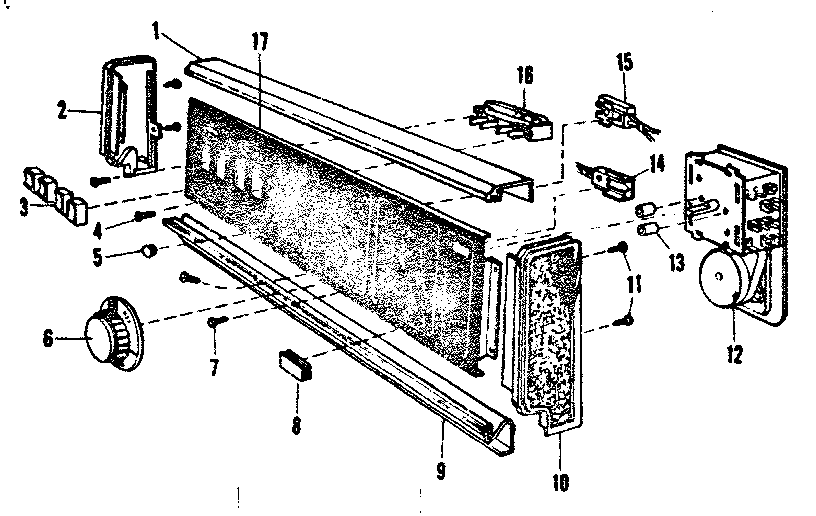

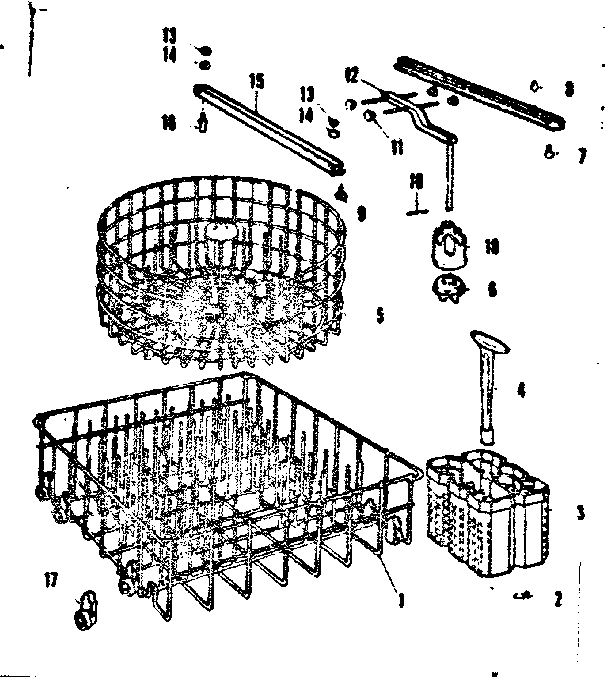

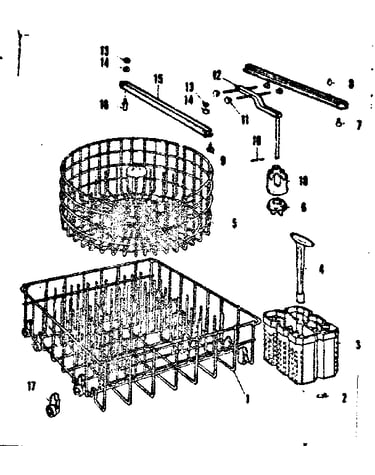

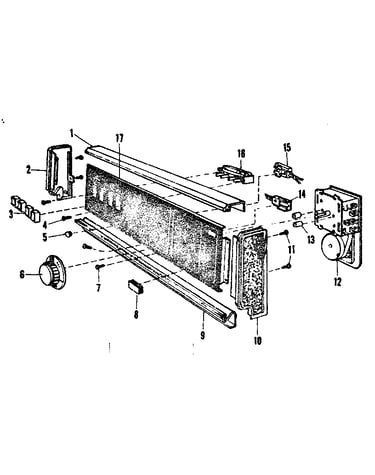

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 189 parts  |
Nut 806834
#22

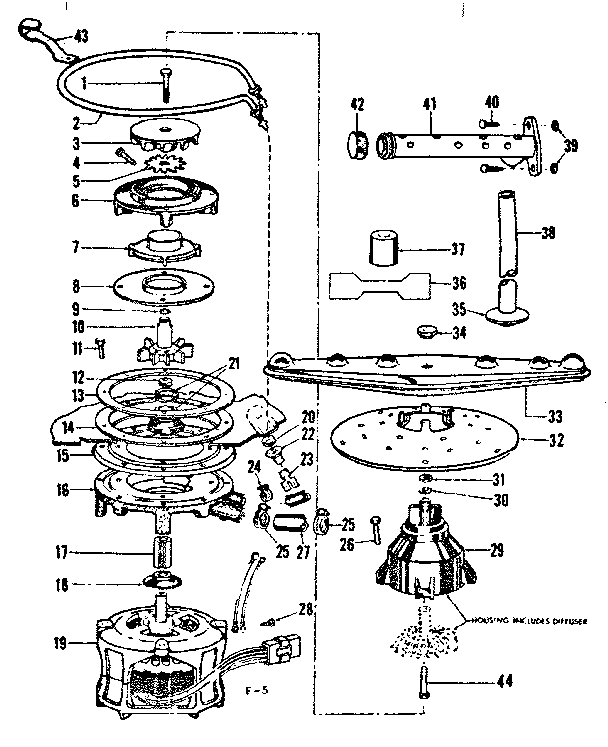

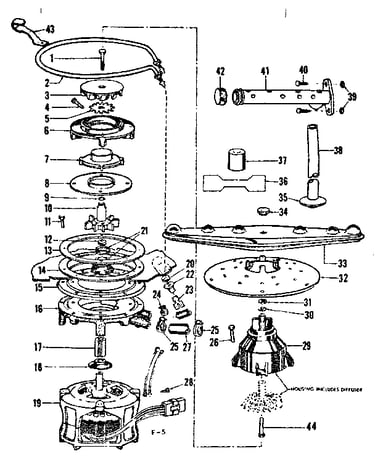

Motor, heater, and spray arm diagram

Nut

Part #806834

Replaced by #154106202

?
Manufacturer substitution
This part replaces 806834. Substitute parts can look different from the original.
BEST SELLER
$7.99 |
11% OFF Phone Price : $8.99
In Stock
Screw 806890
#7

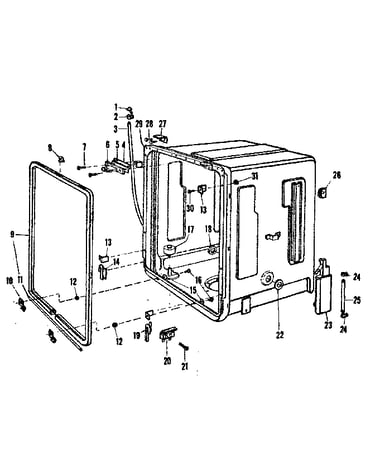

Tub diagram

Screw

Part #806890

Replaced by #131302901

?
Manufacturer substitution
This part replaces 806890. Substitute parts can look different from the original.
This item is not returnable
$5.40 |
16% OFF Phone Price : $6.40
In Stock
Nut 804527
#31

Motor, heater, and spray arm diagram

Nut

Part #804527

Replaced by #316205500

?
Manufacturer substitution
This part replaces 804527. Substitute parts can look different from the original.
This item is not returnable
$11.20
In Stock
Cam 806566
#4

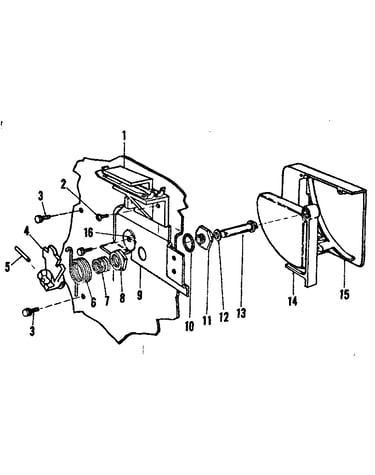

Detergent cup diagram

Cam

Part #806566

Replaced by #154180301

?
Manufacturer substitution
This part replaces 806566. Substitute parts can look different from the original.
$16.20
In Stock
Cam Spring 806567
#7

Detergent cup diagram

Cam spring

Part #806567

Replaced by #5300806567

?
Manufacturer substitution
This part replaces 806567. Substitute parts can look different from the original.
$29.93
In Stock
Clamp 805495
#25

Motor, heater, and spray arm diagram

Clamp

Part #805495

The manufacturer no longer makes this part, and there's no substitute part

Spray Arm 805577
#33

Motor, heater, and spray arm diagram

Spray arm

Part #805577

Replaced by #5300808961

?
Manufacturer substitution
This part replaces 805577. Substitute parts can look different from the original.
$142.10
In Stock
Screw 806812
#29

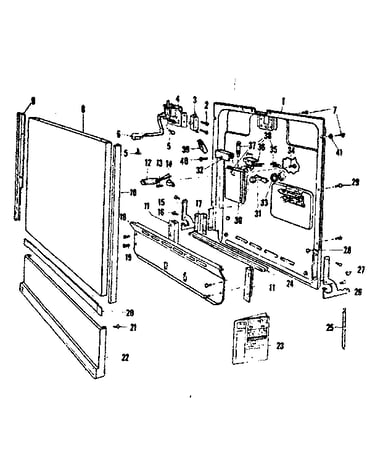

Door diagram

Screw

Part #806812

Replaced by #5300806967

?
Manufacturer substitution
This part replaces 806812. Substitute parts can look different from the original.
This item is not returnable
$2.72
In Stock
Nut GM271172
#18

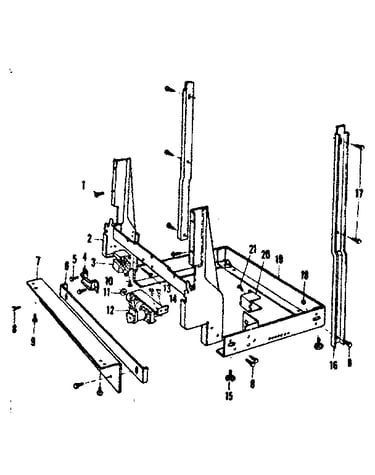

Frame diagram

Nut

Part #GM271172

The manufacturer no longer makes this part, and there's no substitute part

Clamp 806090
#24

Motor, heater, and spray arm diagram

Clamp

Part #806090

The manufacturer no longer makes this part, and there's no substitute part
