Jenn-Air
Electric Wall Oven

Model # JJW9627CAW Official Jenn-Air electric wall oven

Here are the diagrams and repair parts for Official Jenn-Air JJW9627CAW electric wall oven, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual
Error Codes

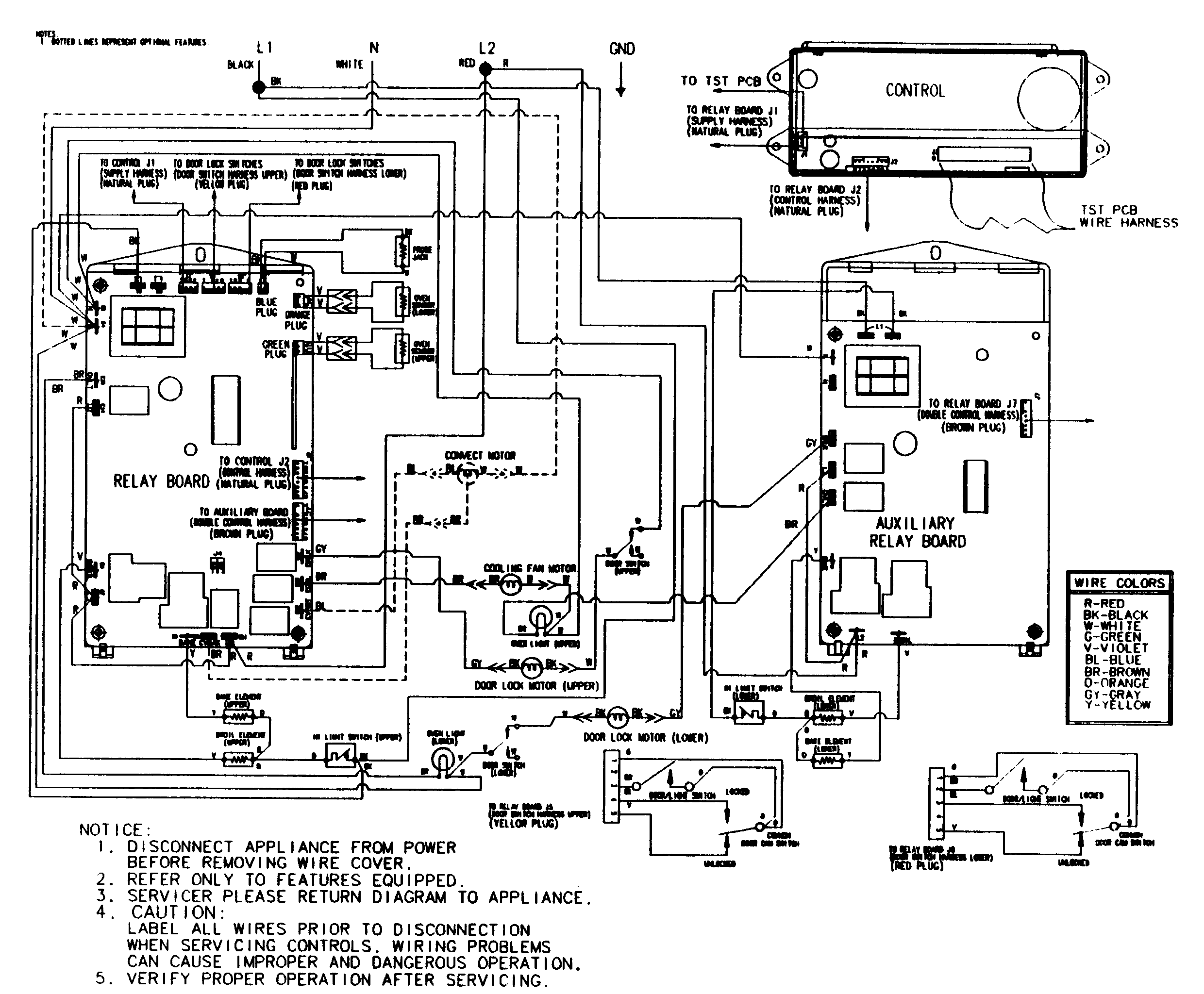

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 129 parts  |
Oven Sensor 71003083
#12

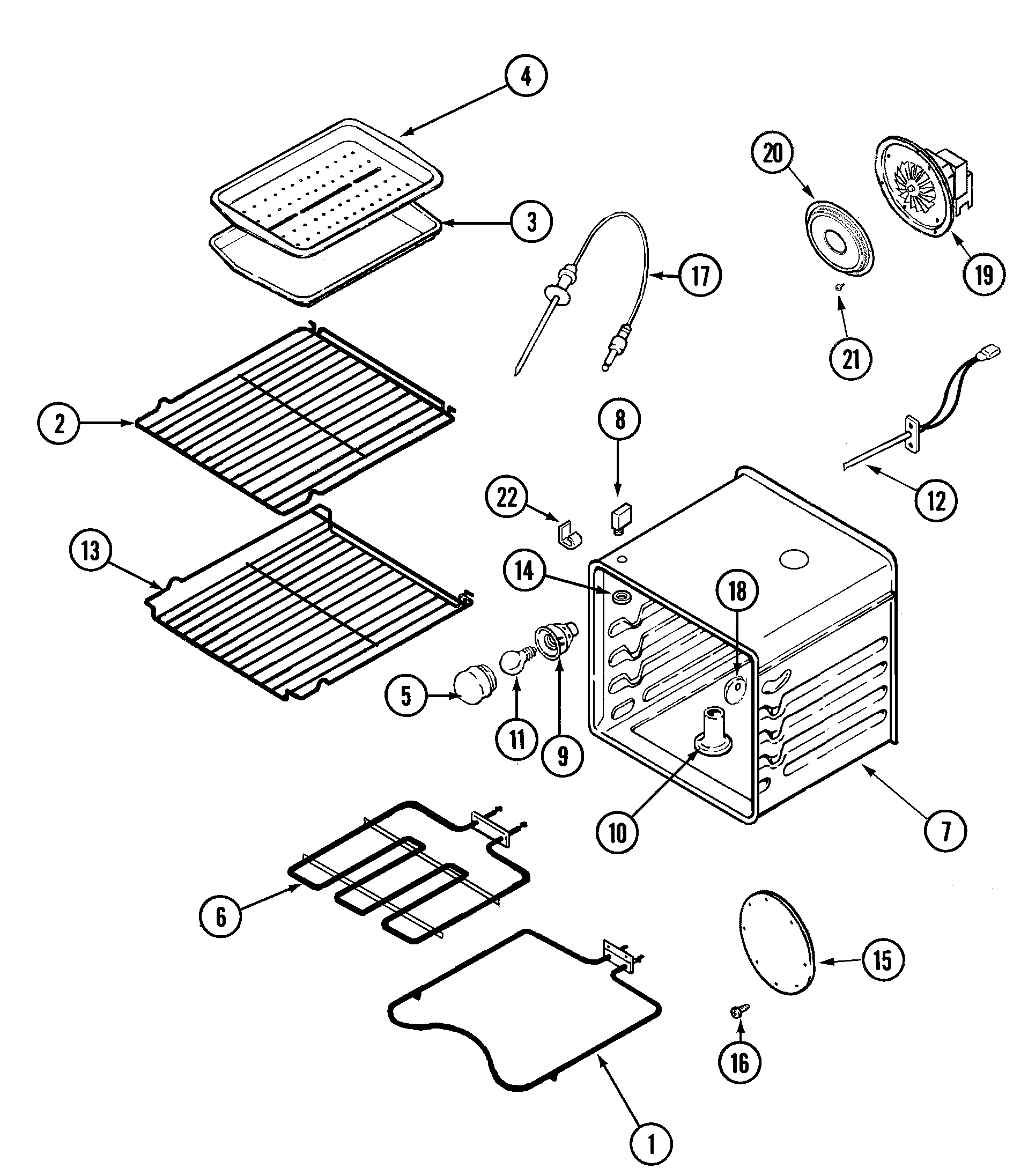

Oven diagram

Oven sensor

Part #71003083

Replaced by #12001656

?
Manufacturer substitution
This part replaces 71003083. Substitute parts can look different from the original.
BEST SELLER
$35.18 |
15% OFF Phone Price : $41.18
In Stock
Door Hinge 71003350
#16

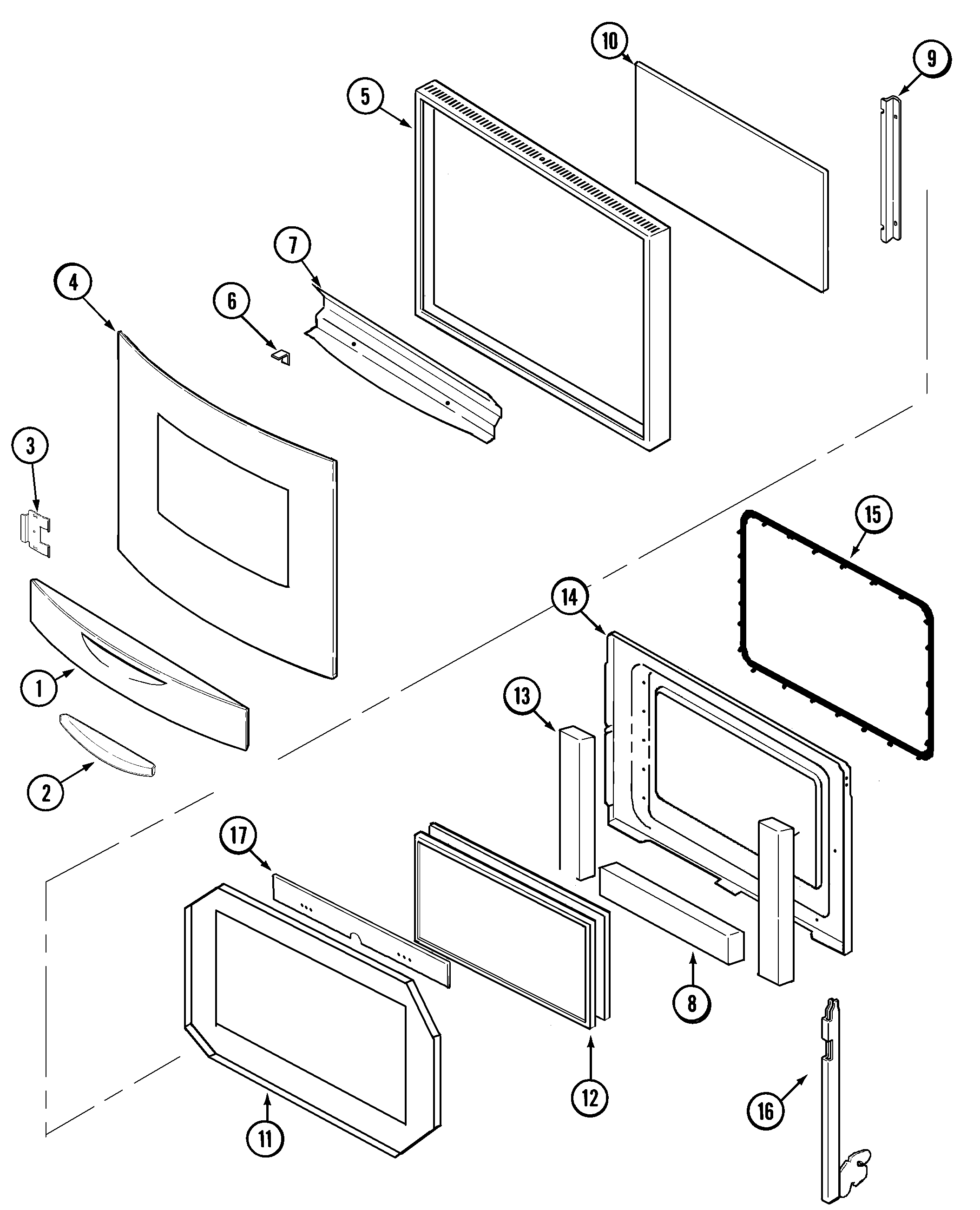

Door (upper & lower) diagram

Door hinge

Part #71003350

Replaced by #WP74008014

?
Manufacturer substitution
This part replaces 71003350. Substitute parts can look different from the original.
BEST SELLER
$71.11 |
8% OFF Phone Price : $77.11
In Stock
Door Switch 71001129
#3

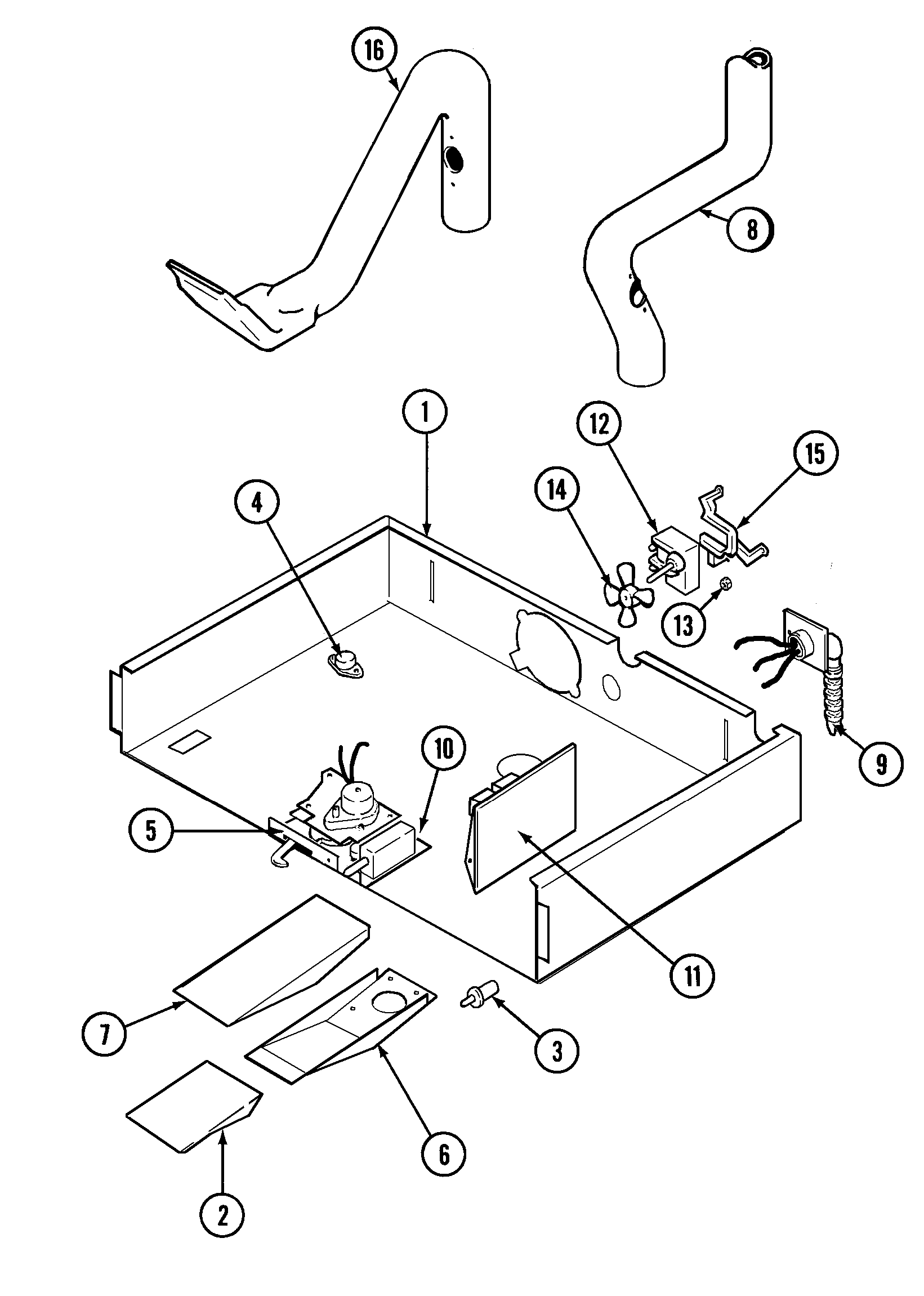

Internal controls diagram

Door switch

Part #71001129

Replaced by #WB24T10147

?
Manufacturer substitution
This part replaces 71001129. Substitute parts can look different from the original.
This item is not returnable
$16.39 |
11% OFF Phone Price : $18.39
In Stock
Screw (#8ab) 71001183
Screw (#8ab)

Part #71001183

Replaced by #W11233072

?
Manufacturer substitution
This part replaces 71001183. Substitute parts can look different from the original.
$16.79 |
11% OFF Phone Price : $18.79
In Stock
Screw 700725
#6A

Door (upper & lower) diagram

Screw

Part #700725

Replaced by #WP355214

?
Manufacturer substitution
This part replaces 700725. Substitute parts can look different from the original.
This item is not returnable
$4.39 |
19% OFF Phone Price : $5.39
In Stock
Screw 790448
#6B

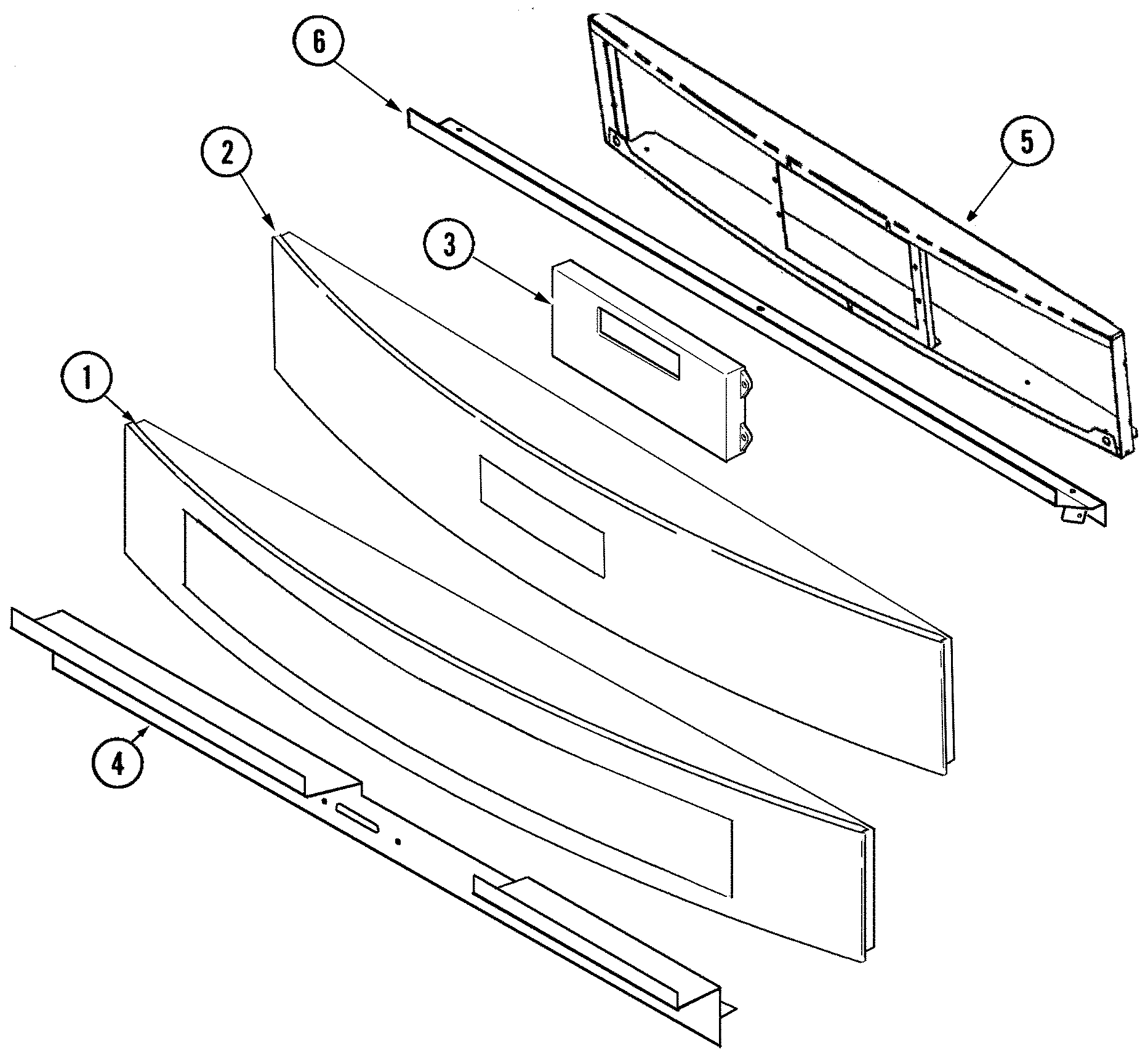

Control panel diagram

Screw

Part #790448

Replaced by #WP98008545

?
Manufacturer substitution
This part replaces 790448. Substitute parts can look different from the original.
This item is not returnable
$4.67 |
18% OFF Phone Price : $5.67
In Stock
Screw 706189
Screw

Part #706189

Replaced by #WPY706189

?
Manufacturer substitution
This part replaces 706189. Substitute parts can look different from the original.
This item is not returnable
$4.46 |
18% OFF Phone Price : $5.46
In Stock
Receptacle 71001828
#7

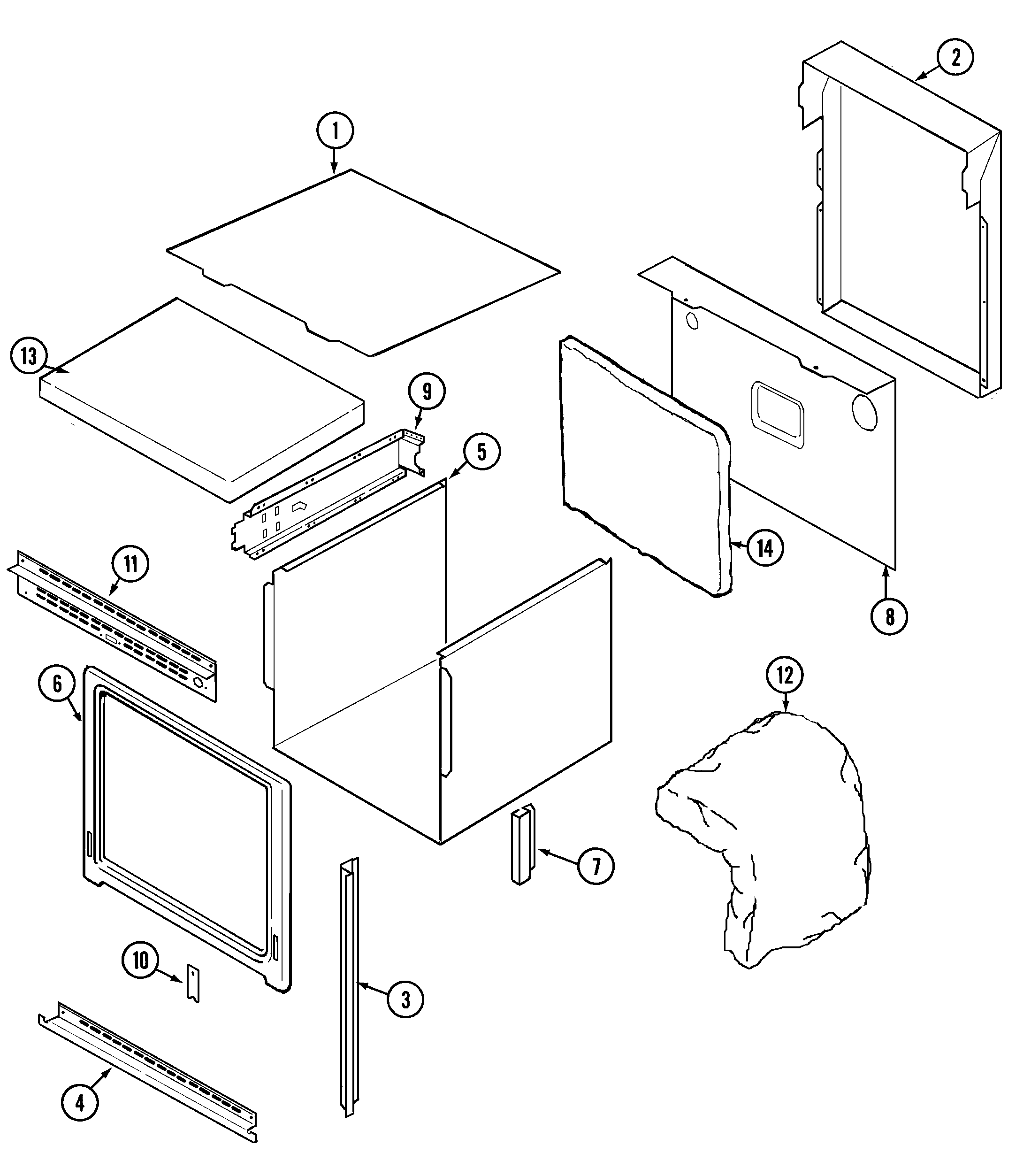

Body diagram

Receptacle

Part #71001828

Replaced by #WP74008015

?
Manufacturer substitution
This part replaces 71001828. Substitute parts can look different from the original.
$40.49 |
13% OFF Phone Price : $46.49
In Stock
Door Seal 71001970
#15

Door (upper & lower) diagram

Door seal

Part #71001970

Replaced by #WP71001970

?
Manufacturer substitution
This part replaces 71001970. Substitute parts can look different from the original.
$74.13 |
7% OFF Phone Price : $80.13
In Stock
Wall Oven Control Board 71003401
#3

Control panel diagram

Wall oven control board

Part #71003401

Replaced by #WP71003401

?
Manufacturer substitution
This part replaces 71003401. Substitute parts can look different from the original.
$448.58 |
$12.00 OFF Phone Price : $460.58
In Stock
