Model # ZGP364NDR1SS Official GE gas range

Here are the diagrams and repair parts for Official GE ZGP364NDR1SS gas range, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual
Error Codes

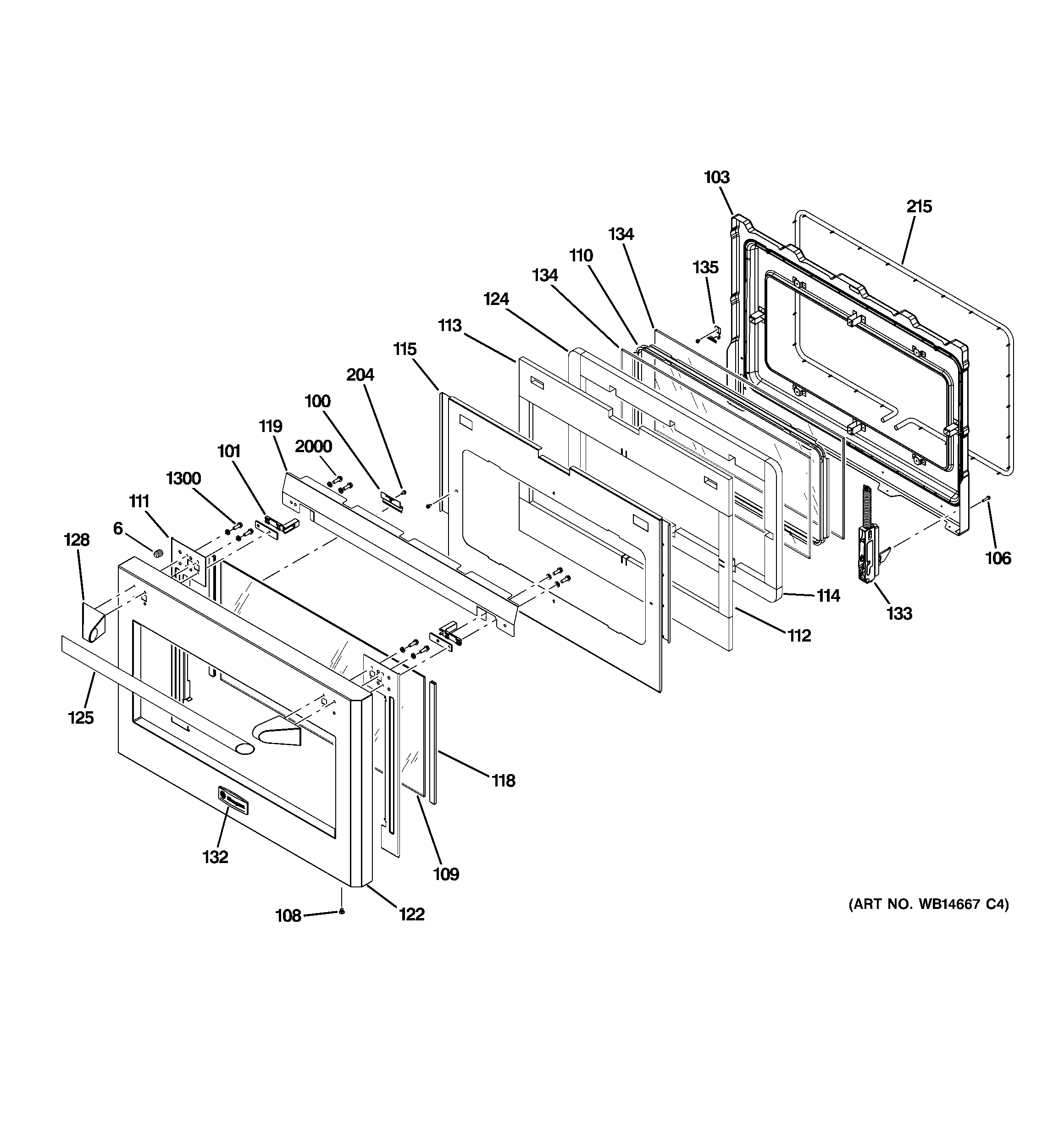

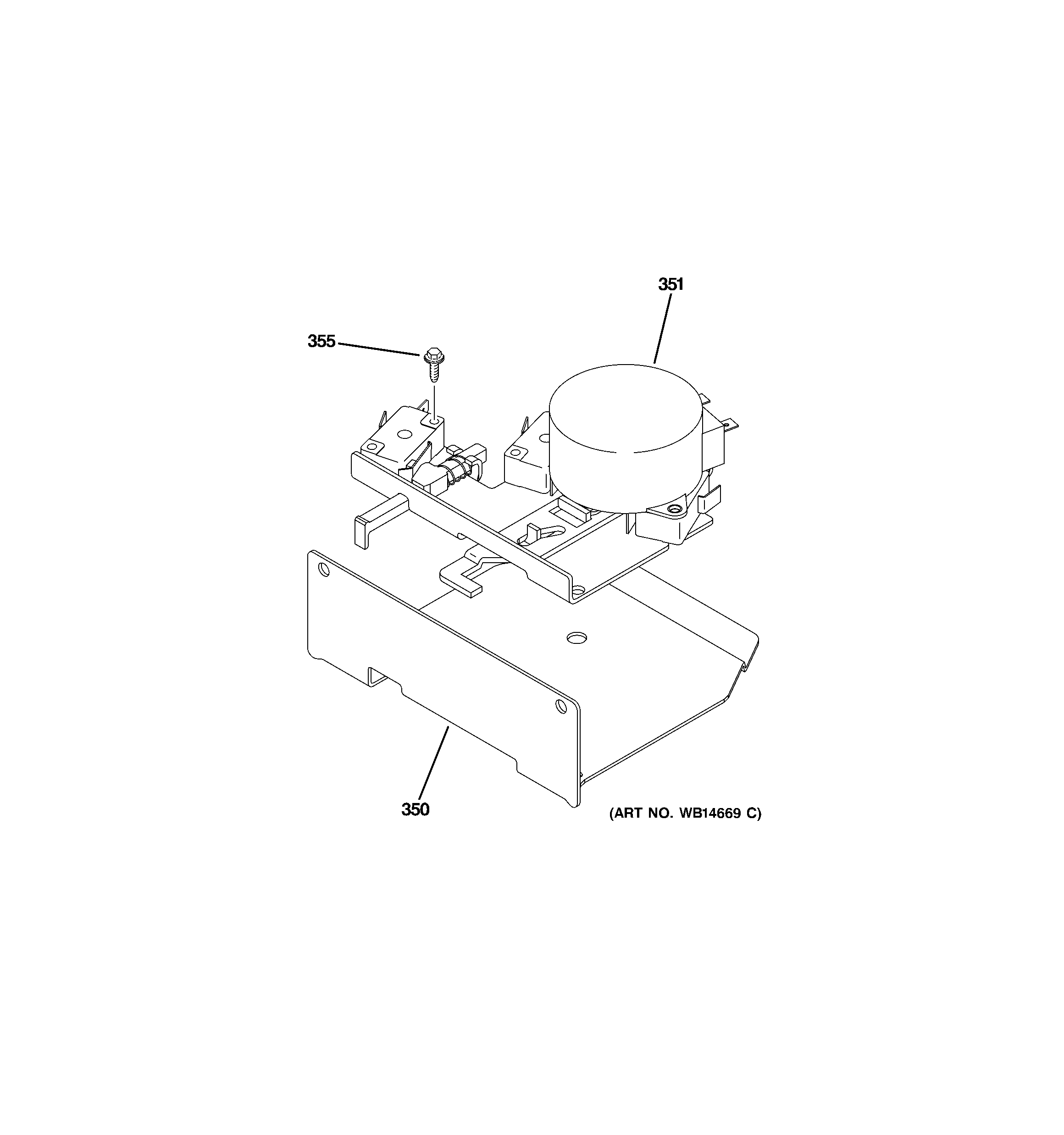

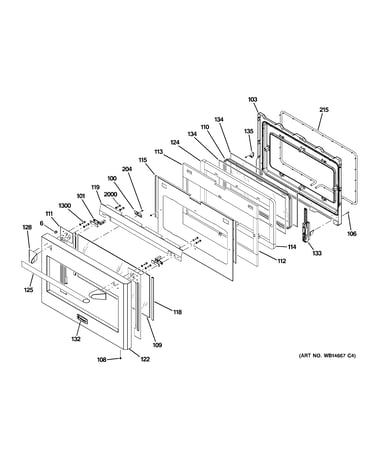

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 199 parts  |
Glow Bar Igniter WB13K10040
#241

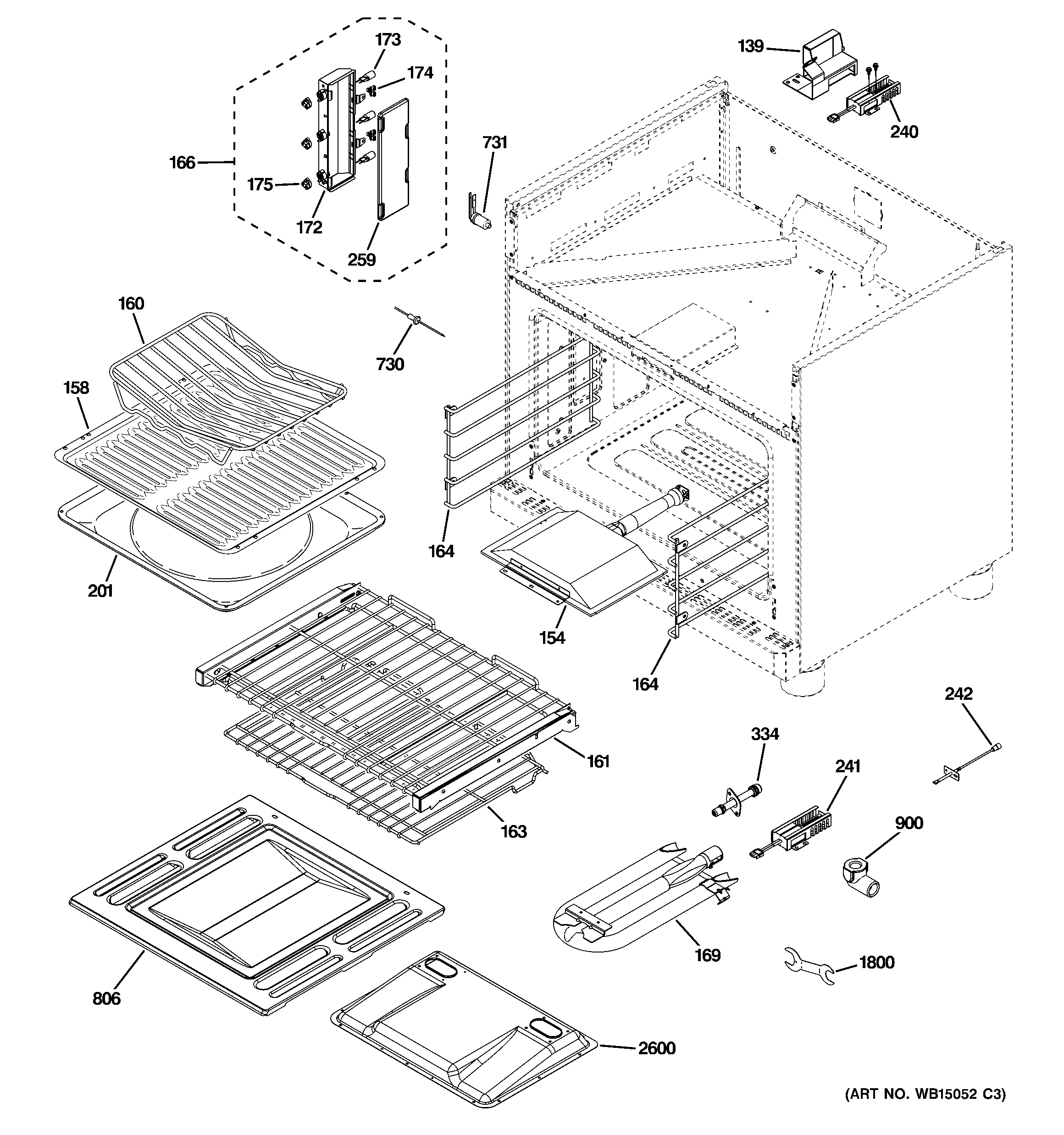

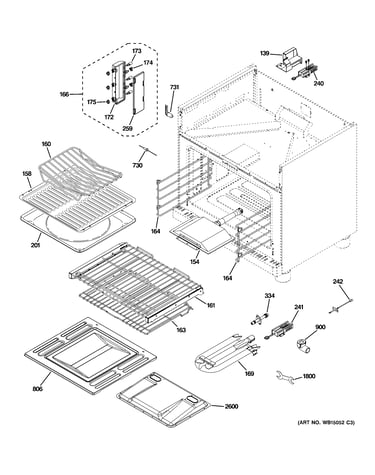

Oven cavity parts diagram

Glow bar igniter

Part #WB13K10040

Replaced by #WB13X25264

?
Manufacturer substitution
This part replaces WB13K10040. Substitute parts can look different from the original.
BEST SELLER
$76.66 |
7% OFF Phone Price : $82.66
In Stock
Nut WB02T10017
#404

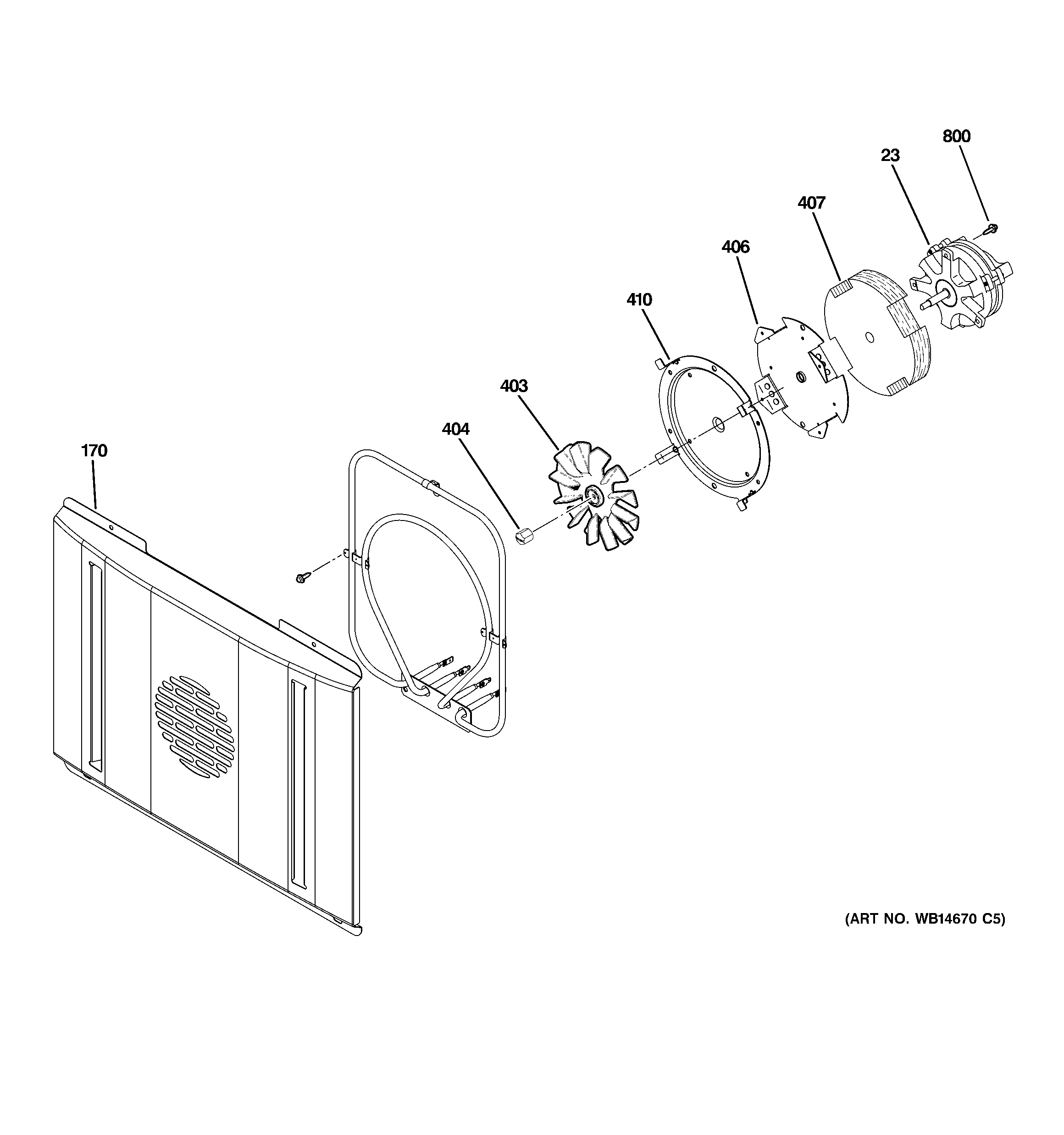

Convection fan diagram

Nut

Part #WB02T10017

This item is not returnable
$9.62 |
9% OFF Phone Price : $10.62
In Stock
Range Grill Surface Burner Igniter WB13K10030
#145

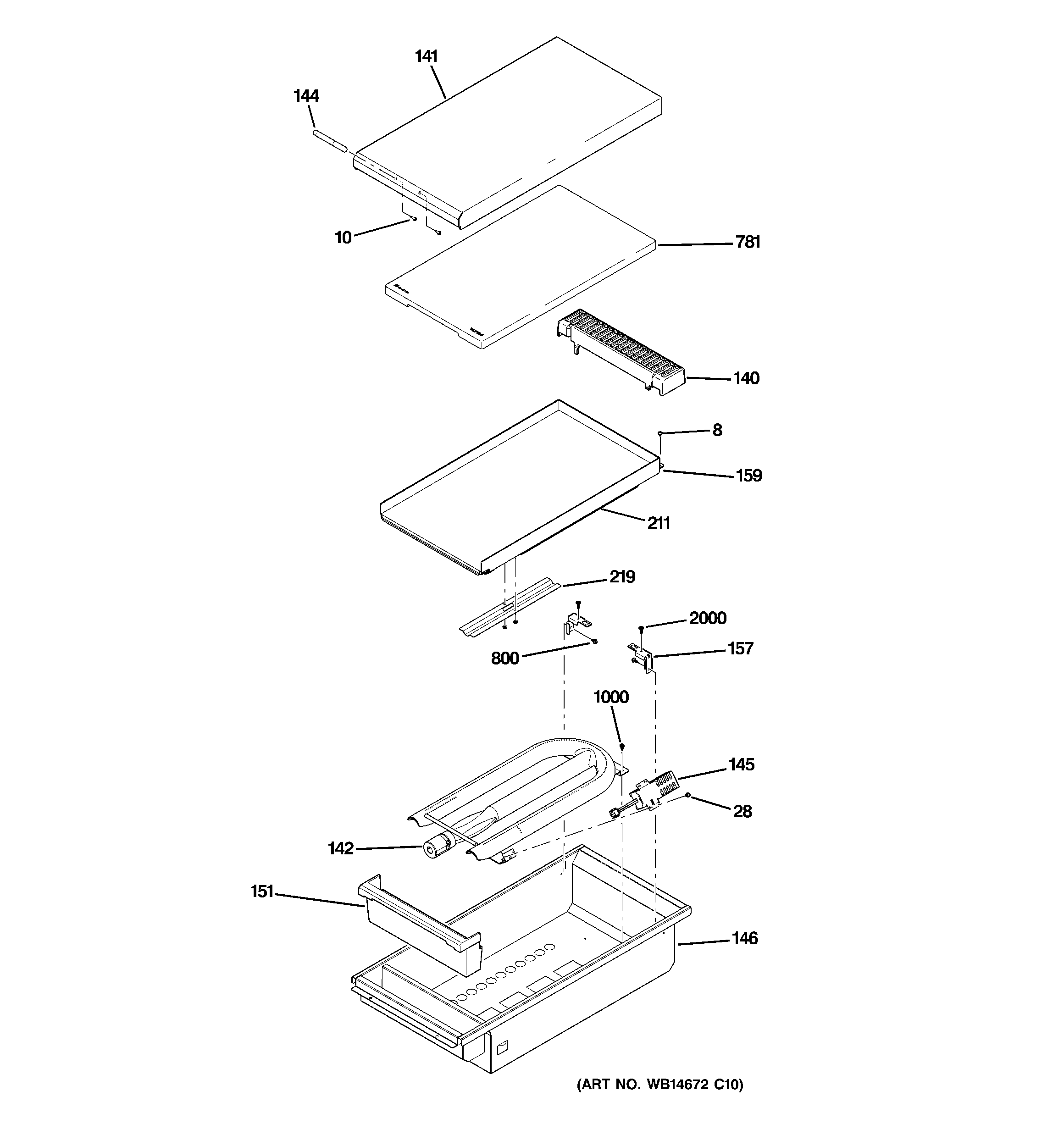

Griddle assembly diagram

Range grill surface burner igniter

Part #WB13K10030

$107.39 |
10% OFF Phone Price : $119.39
In Stock
Encoder Assembly WB24K10081
#70

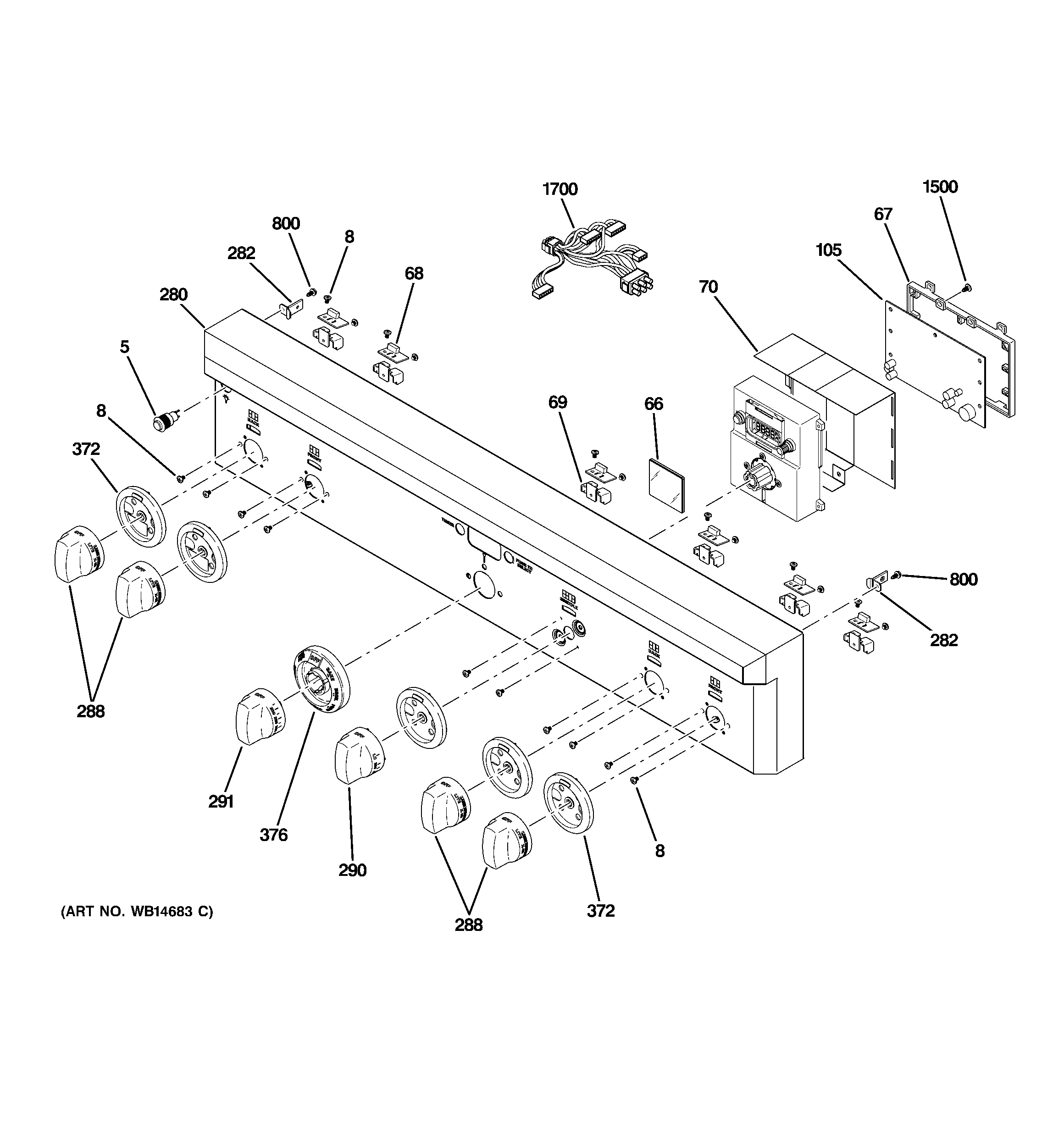

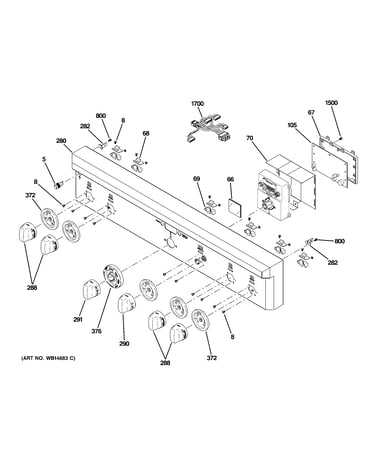

Control panel diagram

Encoder assembly

Part #WB24K10081

$225.65
In Stock
Scr 8 Hd 1/4 WB01K10067
#21

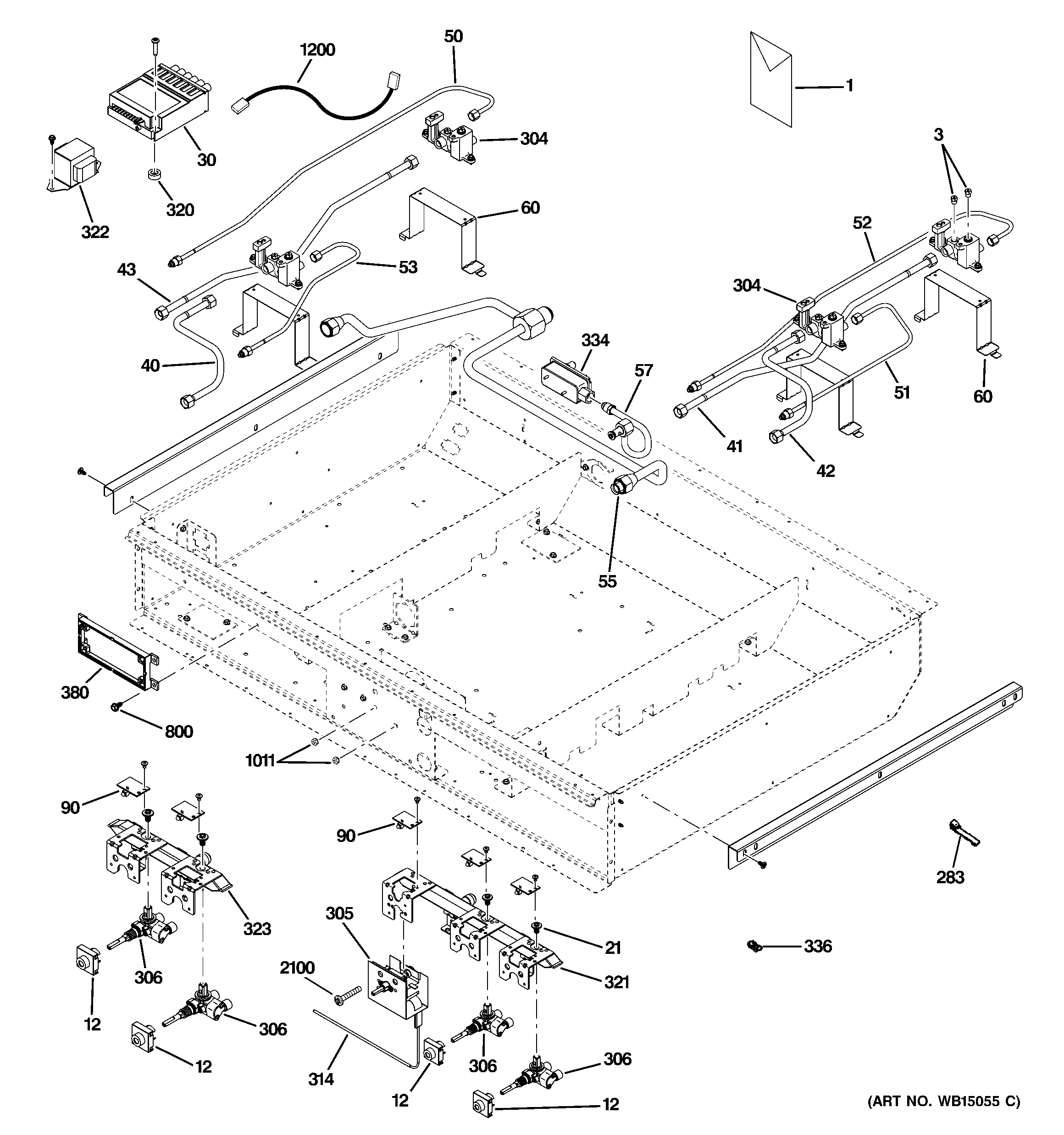

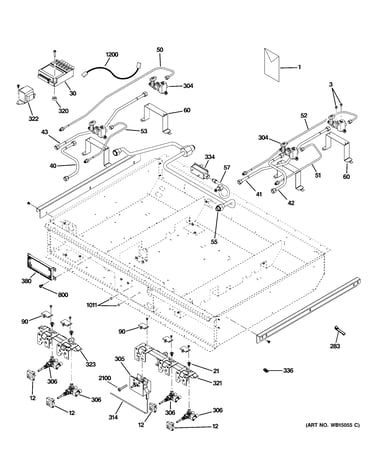

Gas & burner parts diagram

Scr 8 hd 1/4

Part #WB01K10067

This item is not returnable
$7.92 |
11% OFF Phone Price : $8.92
In Stock
Range Ignition Module Transformer WB27K10298
#322

Gas & burner parts diagram

Range ignition module transformer

Part #WB27K10298

$165.01 |
7% OFF Phone Price : $177.01
In Stock
Dispenser Control WB27K10305
#105

Control panel diagram

Dispenser control

Part #WB27K10305

This item is not returnable
$191.66 |
6% OFF Phone Price : $203.66
In Stock
Range Convection Fan Motor Start Capacitor WB27T10662
#578

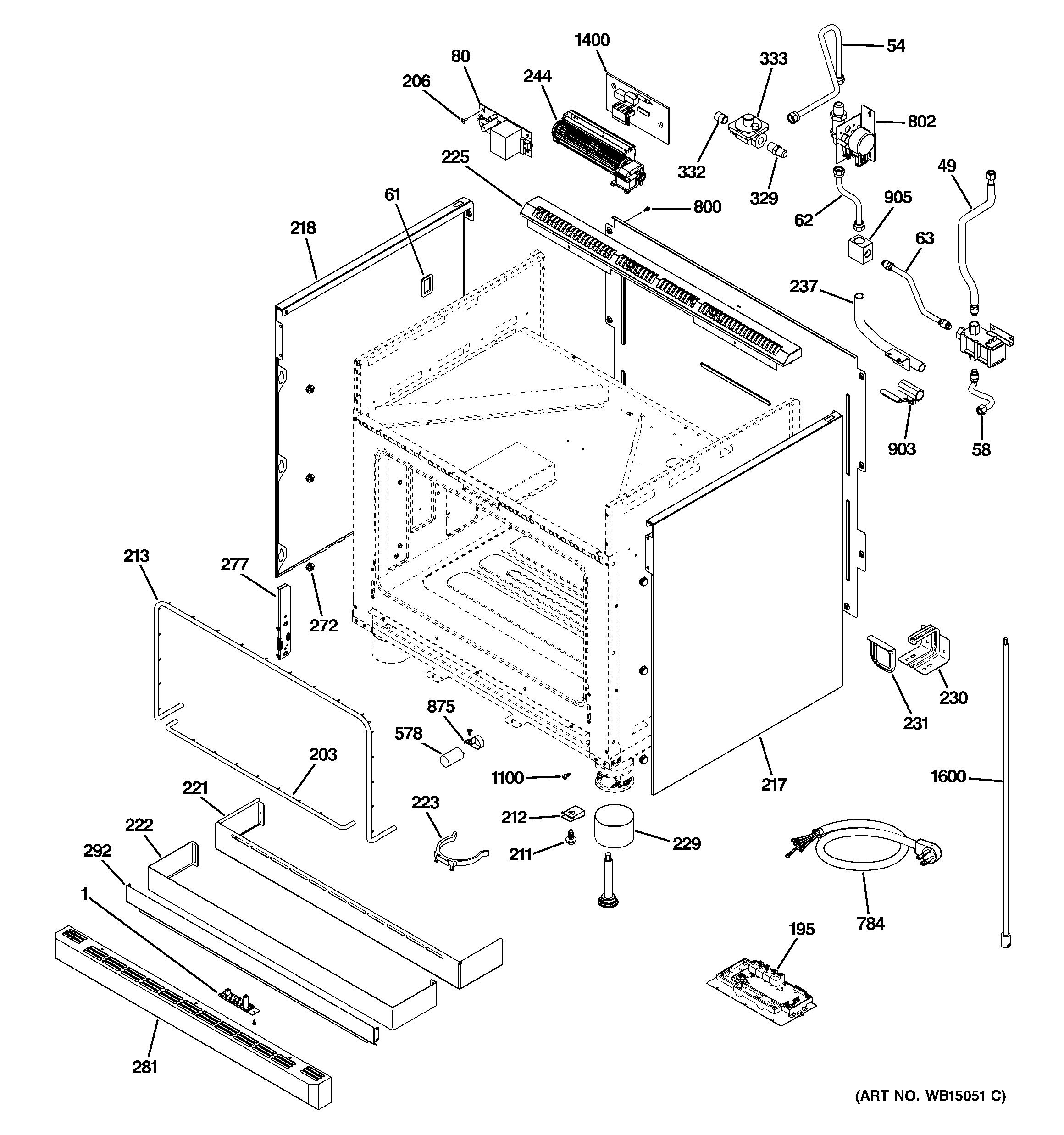

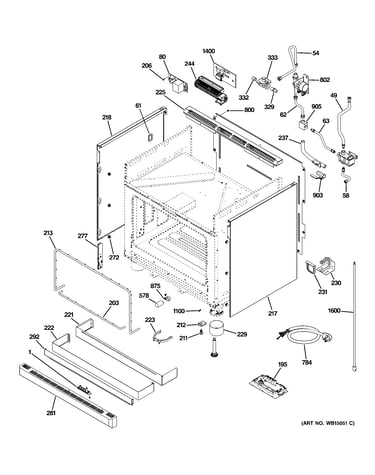

Body parts diagram

Range convection fan motor start capacitor

Part #WB27T10662

$6.51 |
13% OFF Phone Price : $7.51
In Stock
Range Surface Burner Base Screw WB01T10092
#20

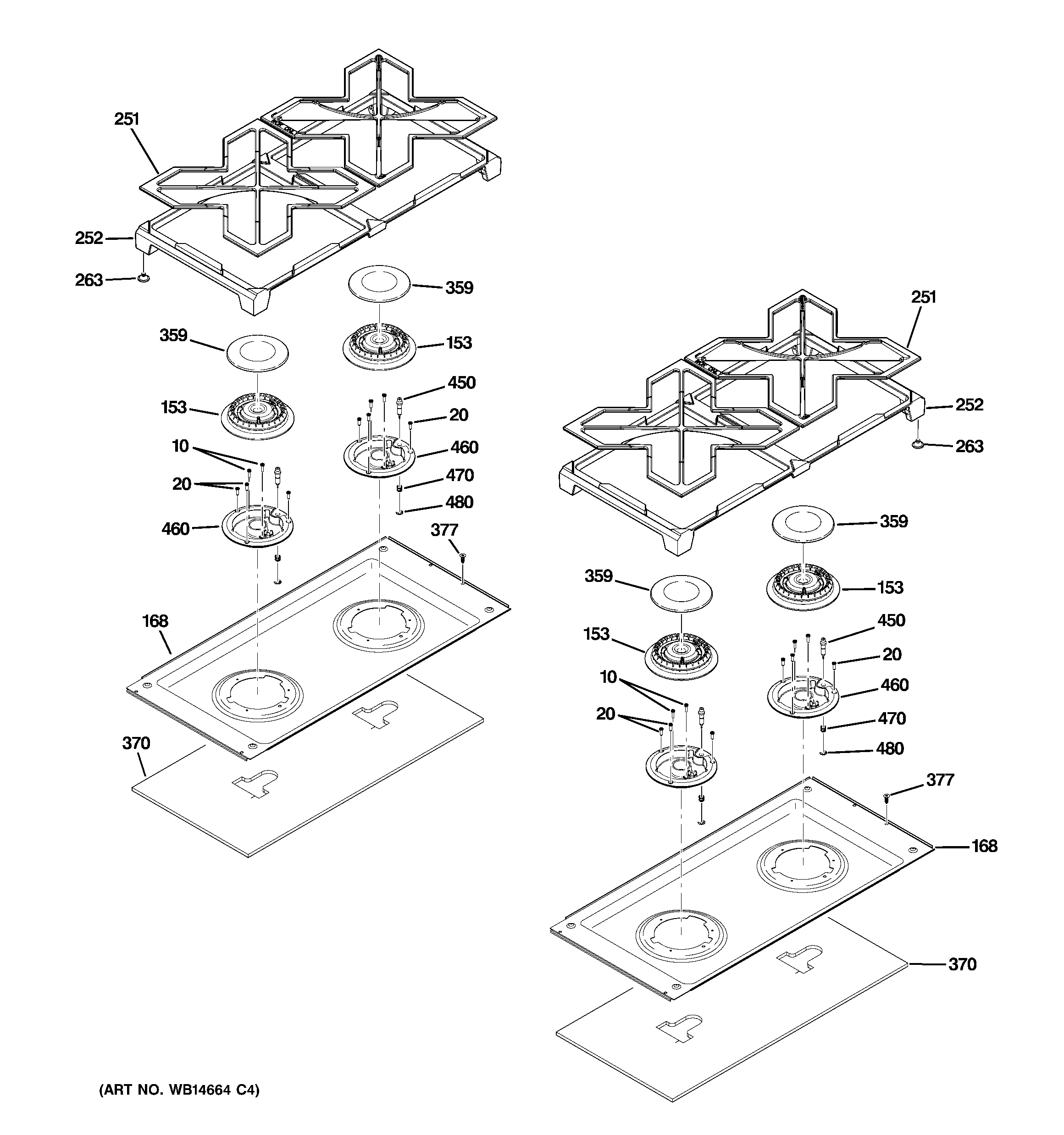

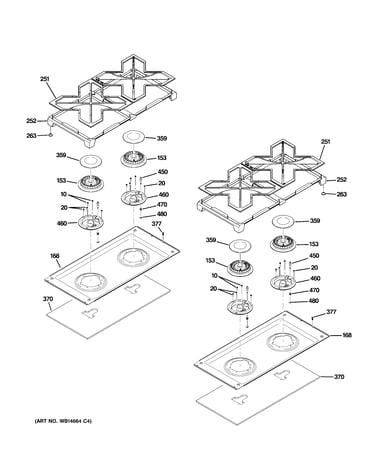

Cooktop diagram

Range surface burner base screw

Part #WB01T10092

$7.88 |
11% OFF Phone Price : $8.88
In Stock
Range Spark Module WB13T10078
#30

Gas & burner parts diagram

Range spark module

Part #WB13T10078

$158.60 |
7% OFF Phone Price : $170.60
In Stock
