Model # KHWC160PSS0 Official KitchenAid water dispenser
Here are the diagrams and repair parts for Official KitchenAid KHWC160PSS0 water dispenser, as well as links to manuals and error code tables, if available.
Error CodesBy Schematic
By Part
SELECT DIAGRAM
Browse Parts for
KHWC160PSS0 Water Dispenser
#11

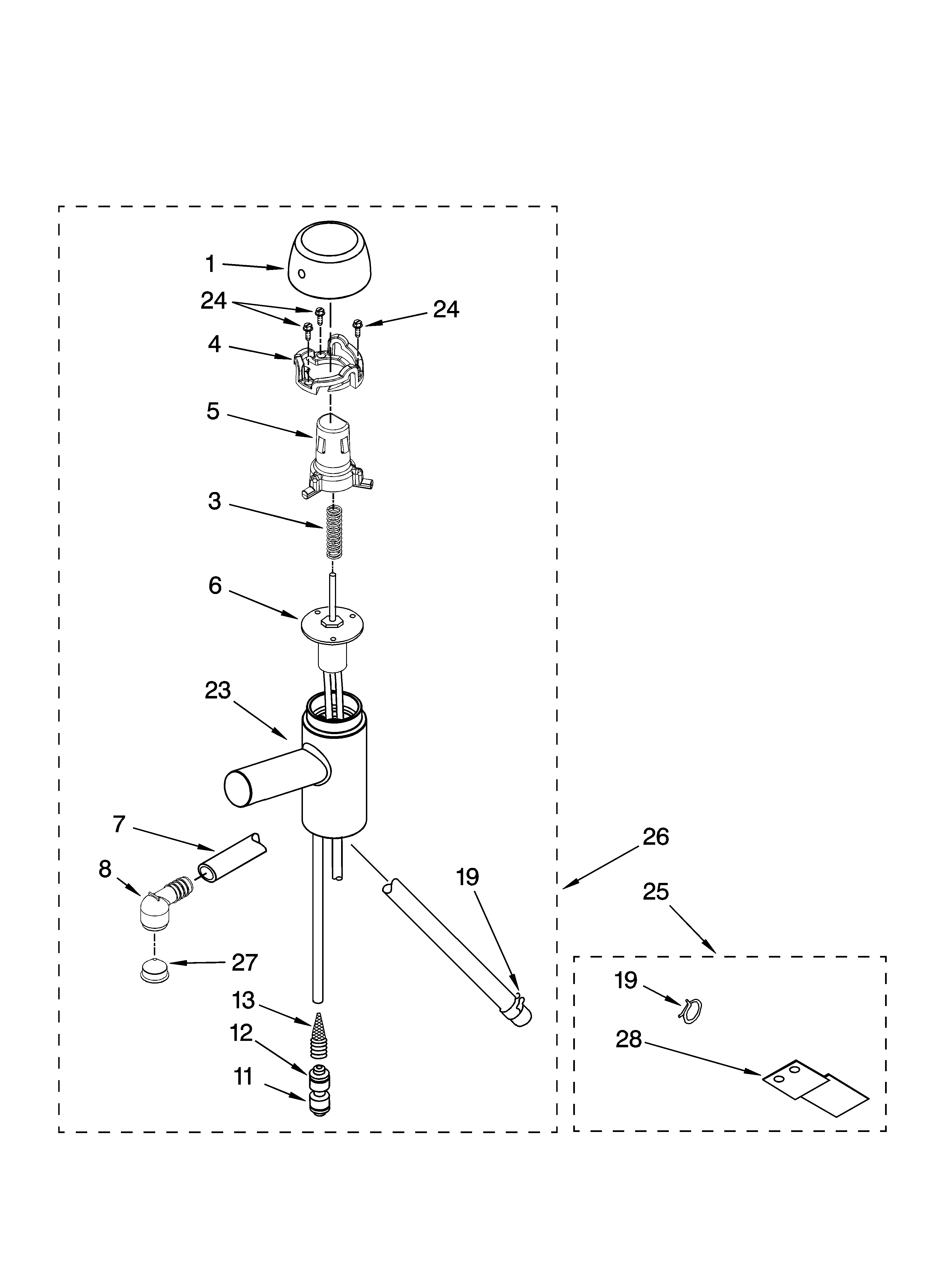

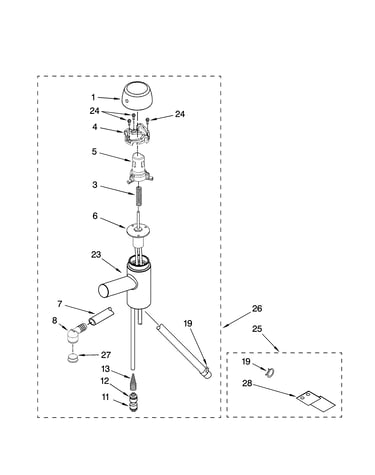

Spout unit parts diagram
Union-watr
Part #3191383
Replaced by #WP2198677
?
Manufacturer substitution
This part replaces 3191383. Substitute parts can look different from the original.
$19.29 |
9% OFF Phone Price : $21.29
In Stock
#11

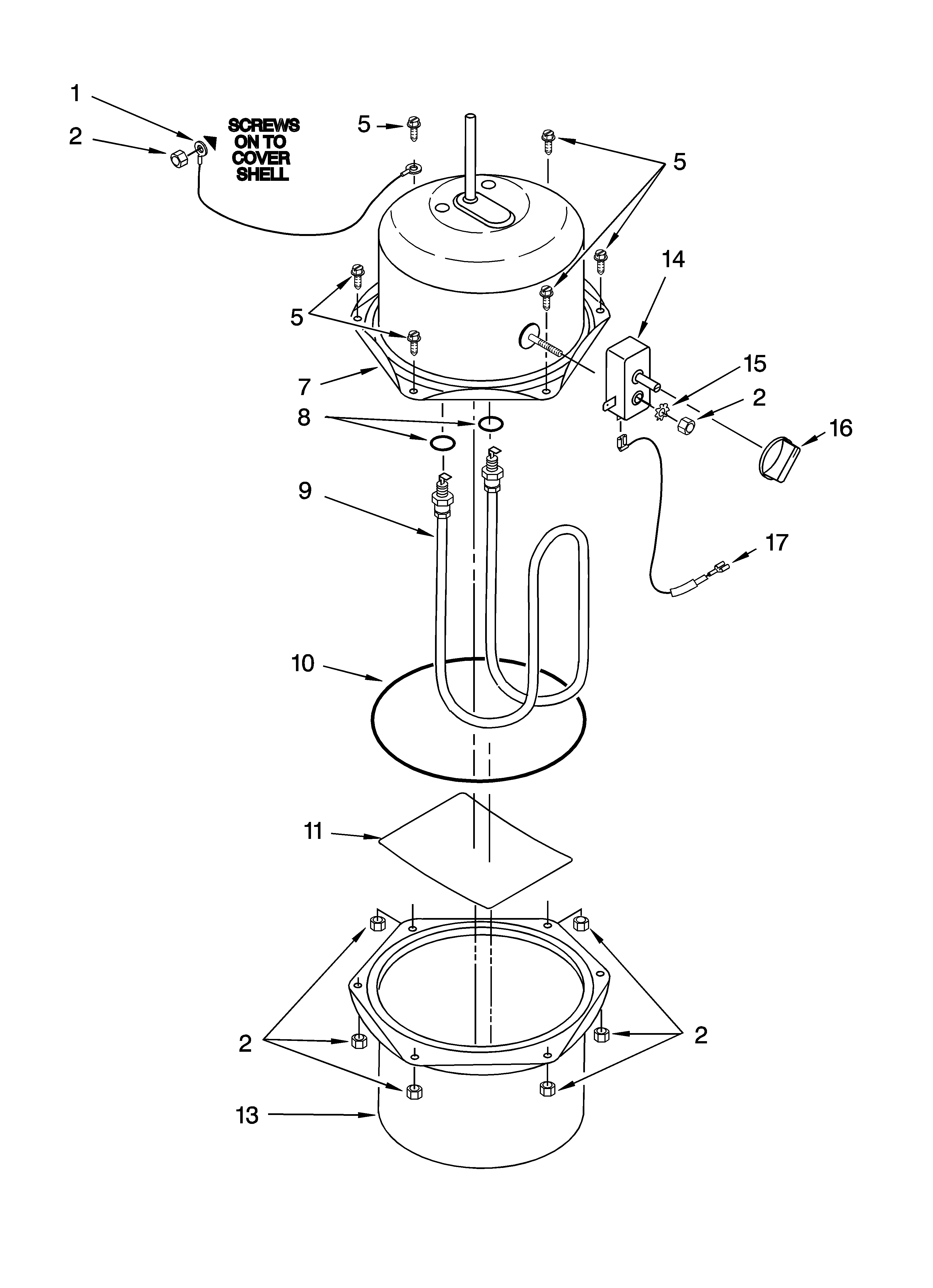

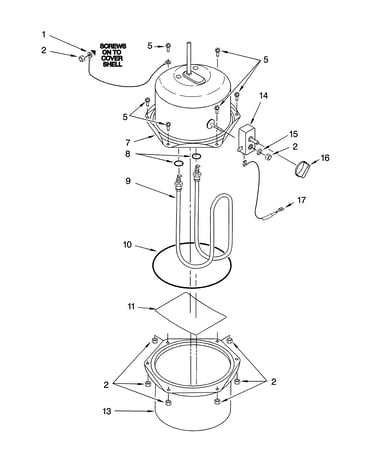

Upper & lower tank shell diagram
Deflector
Part #4176126
Replaced by #240802-2
?
Manufacturer substitution
This part replaces 4176126. Substitute parts can look different from the original.
This item is not returnable
$7.04
In Stock
Lock washer
Part #4159493
Replaced by #4159493
?
Manufacturer substitution
This part replaces 4159493. Substitute parts can look different from the original.
$14.76
In Stock
#18

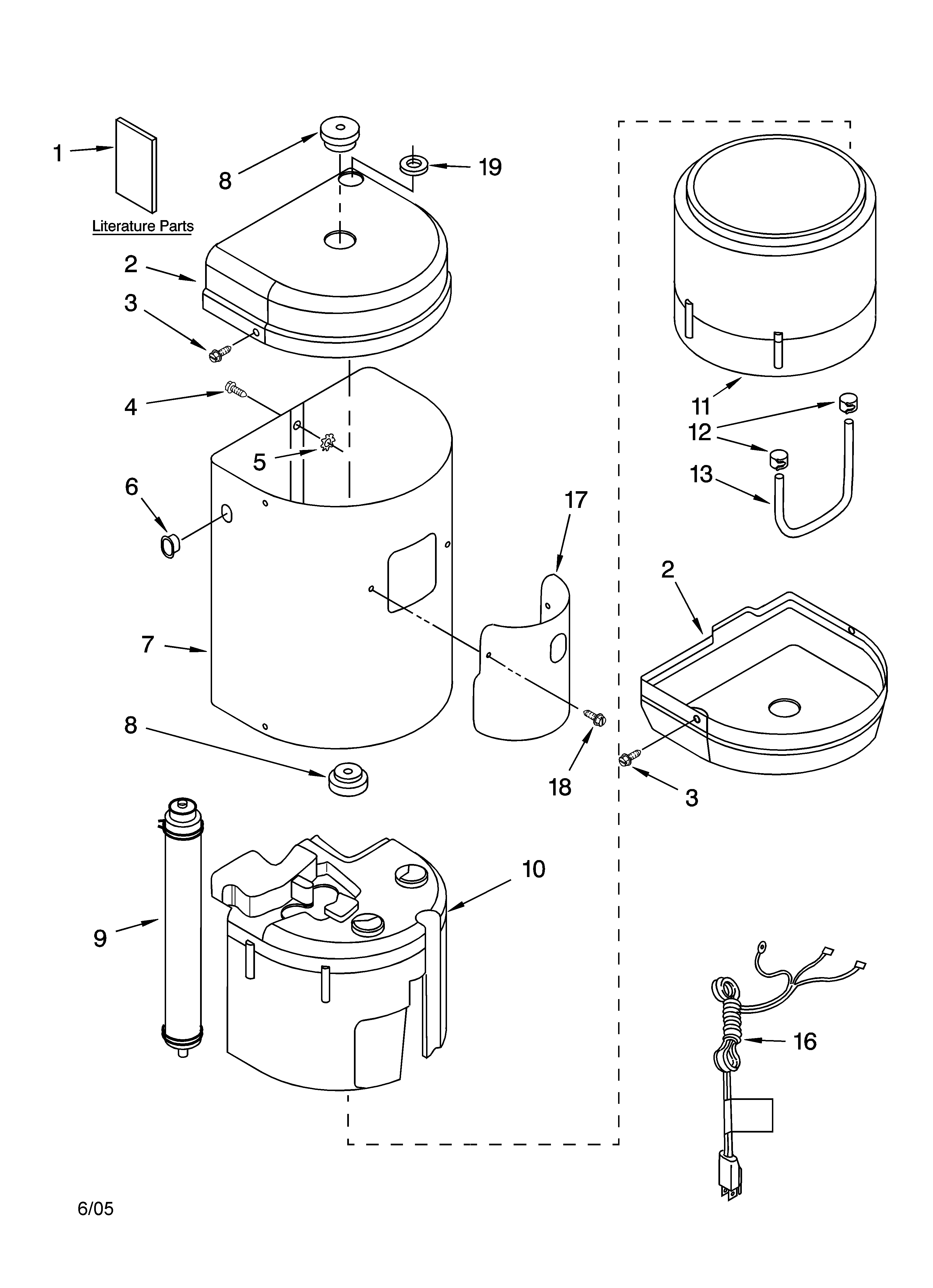

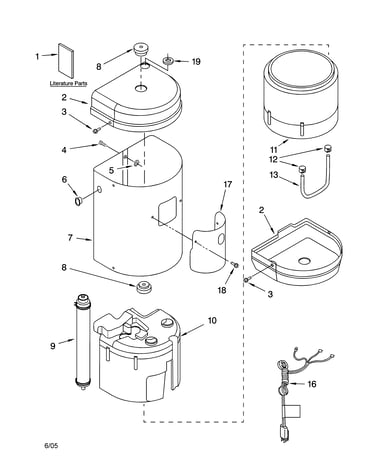

Outer cover & insulation parts diagram
Screw
Part #311932
Replaced by #WP313808
?
Manufacturer substitution
This part replaces 311932. Substitute parts can look different from the original.
This item is not returnable
$4.46 |
18% OFF Phone Price : $5.46
In Stock
#1
Upper & lower tank shell diagram
Wire bushing
Part #3192080
The manufacturer no longer makes this part, and there's no substitute part
#4
Outer cover & insulation parts diagram
Screw
Part #3192294
The manufacturer no longer makes this part, and there's no substitute part
#4
Spout unit parts diagram
Cam
Part #8557544
The manufacturer no longer makes this part, and there's no substitute part
#6
Outer cover & insulation parts diagram
Bushing
Part #3191431
The manufacturer no longer makes this part, and there's no substitute part
#17
Upper & lower tank shell diagram
Hot water dispenser thermal fuse
Part #3193190
The manufacturer no longer makes this part, and there's no substitute part
#26
Spout unit parts diagram
Spout assembly (chrome)
Part #8558157
The manufacturer no longer makes this part, and there's no substitute part
