Hotpoint
Side-By-Side Refrigerator

Model # CSX20KWXAAD Official Hotpoint dispensing refrigerator - 1995

Here are the diagrams and repair parts for Official Hotpoint CSX20KWXAAD dispensing refrigerator - 1995, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

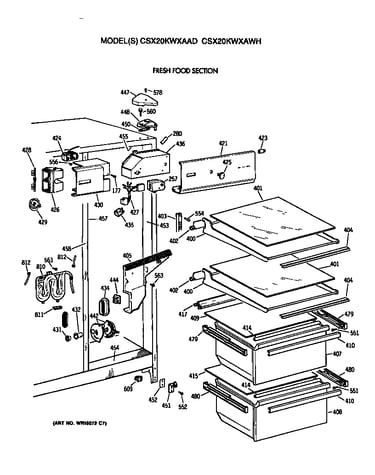

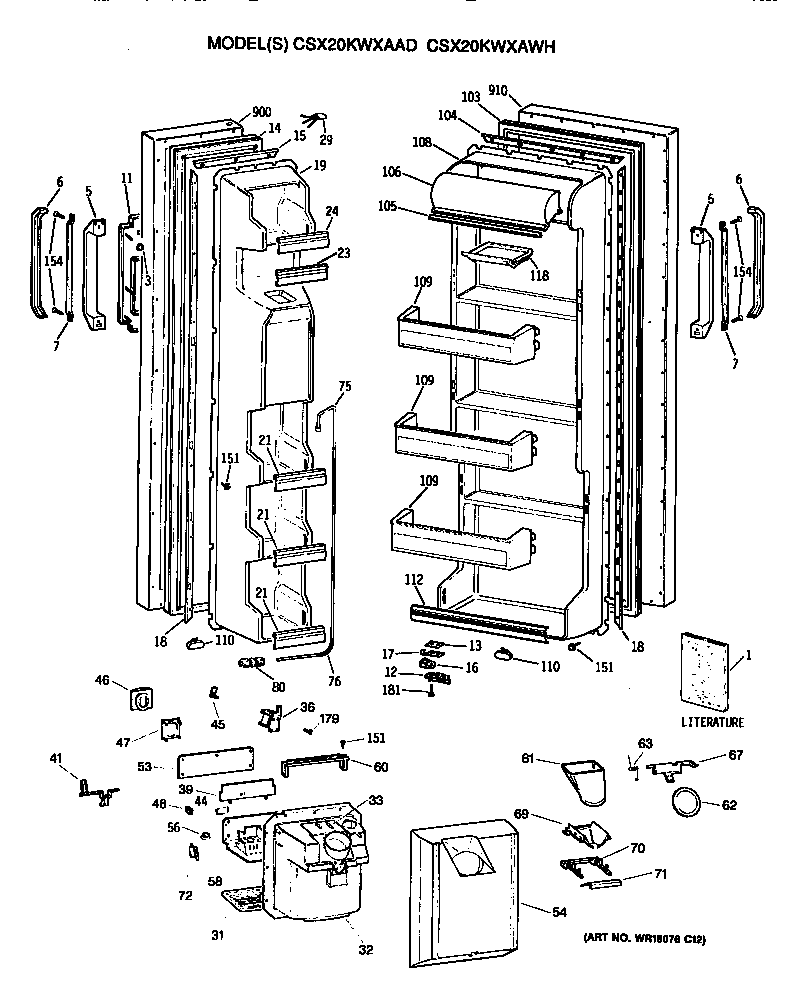

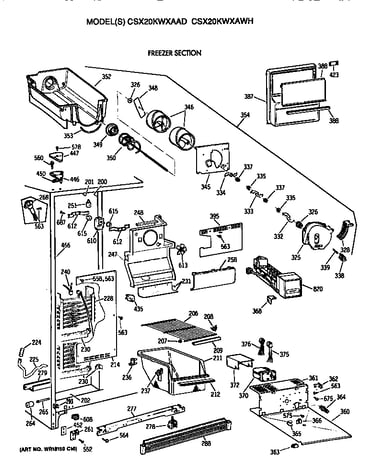

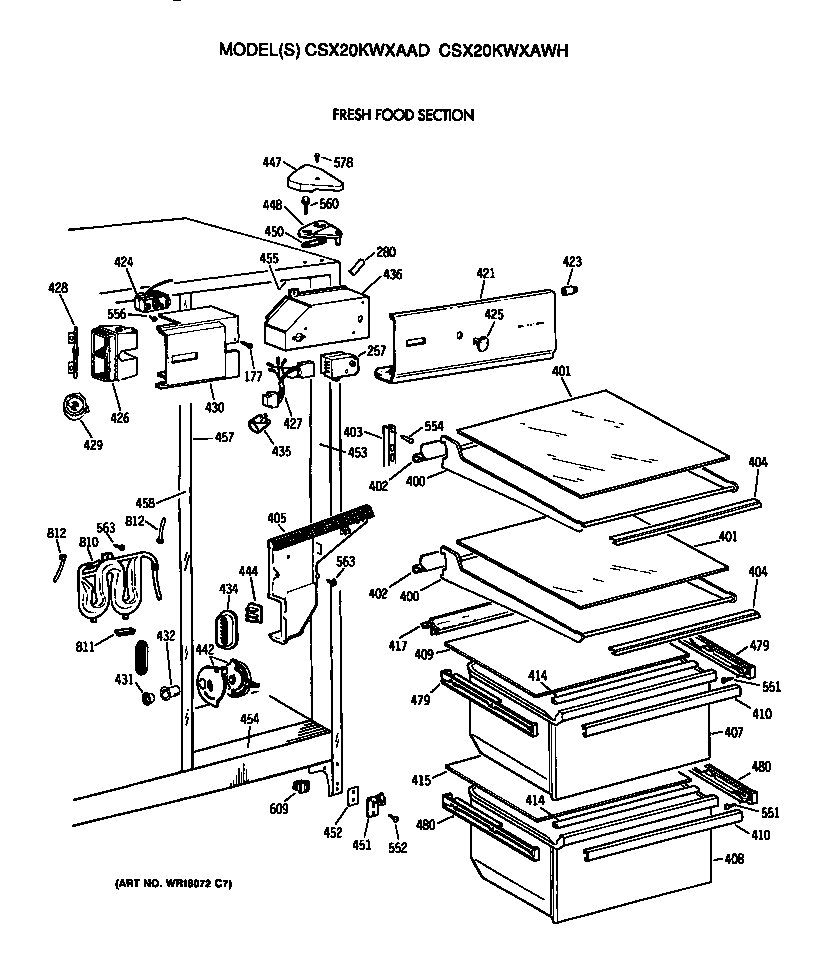

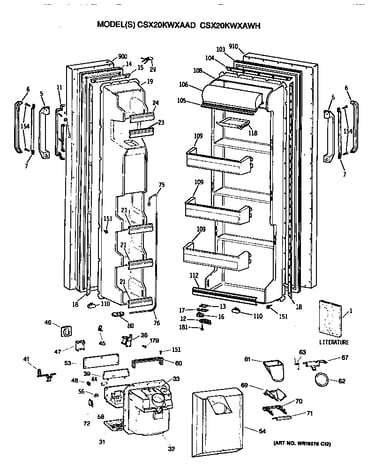

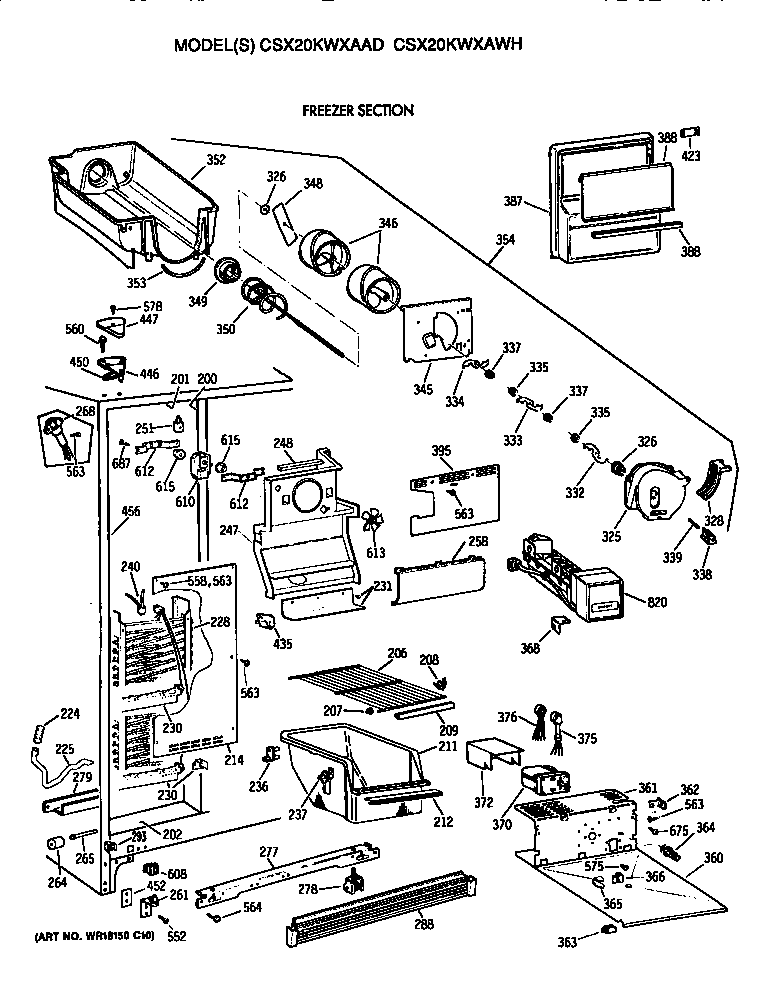

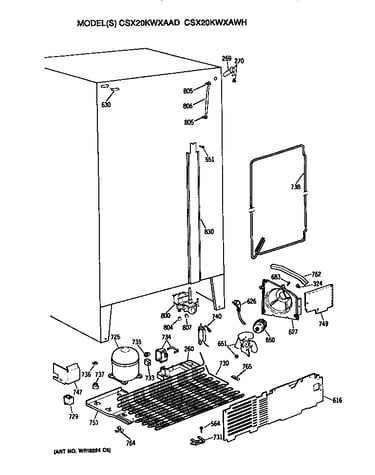

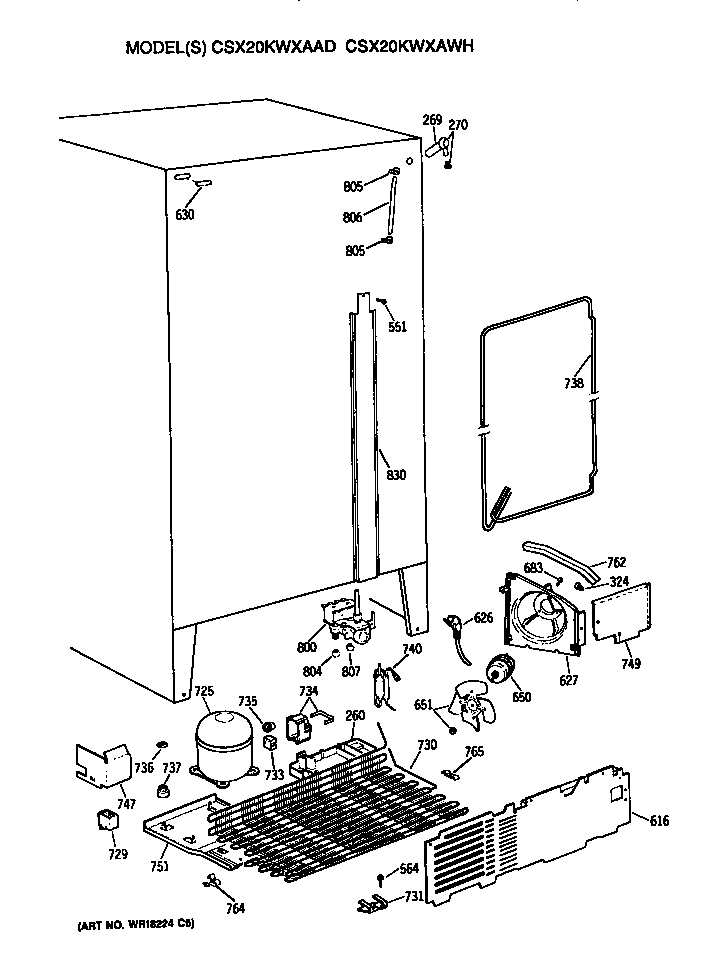

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 291 parts  |
Refrigerator Ice Maker WR30X318

#820

All parts diagram

Refrigerator ice maker

Part #WR30X318

Replaced by #WR30X10093

?
Manufacturer substitution
This part replaces WR30X318. Substitute parts can look different from the original.
