Model # WA50R5200AW/US-00 Official Samsung washer
Here are the diagrams and repair parts for Official Samsung WA50R5200AW/US-00 washer, as well as links to manuals and error code tables, if available.
By Schematic
By Part

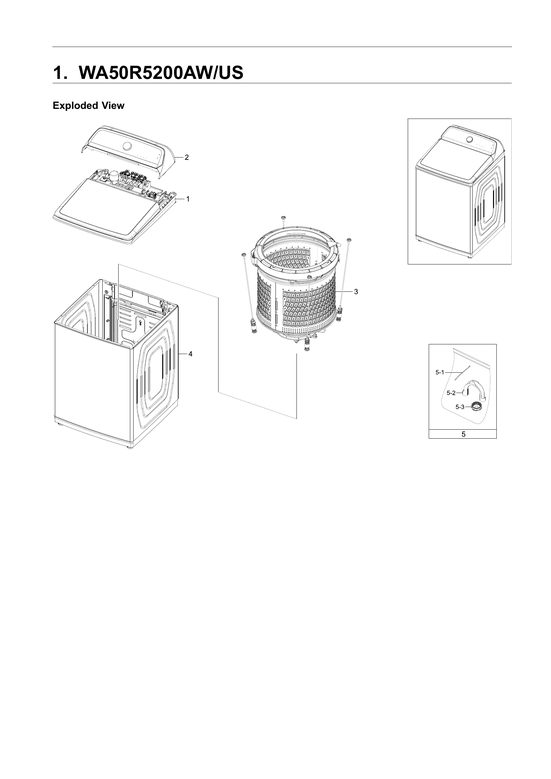

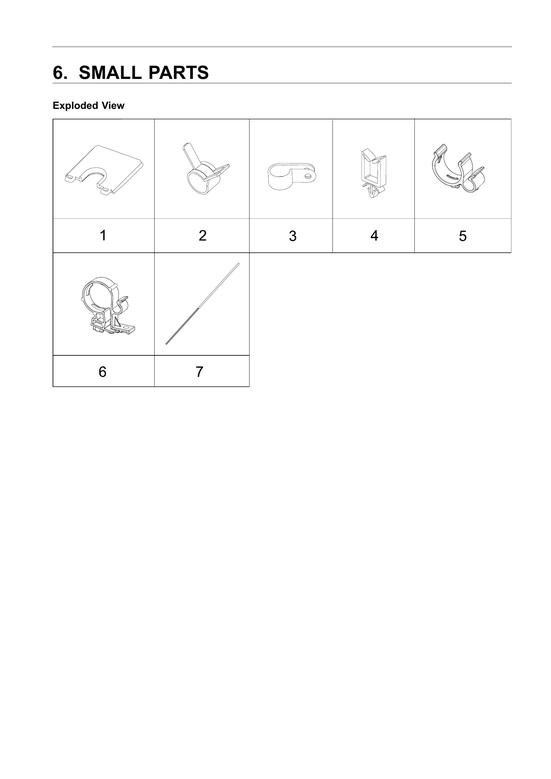

SELECT DIAGRAM
Browse Parts for
WA50R5200AW/US-00 WASHER
#14

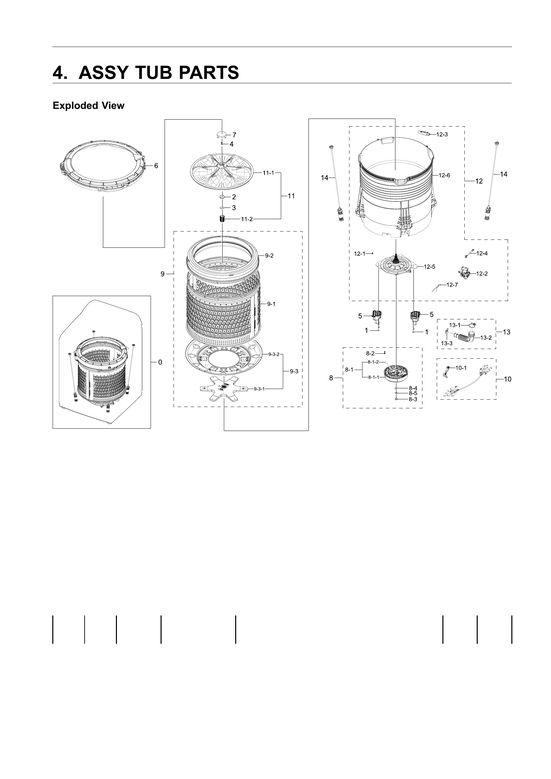

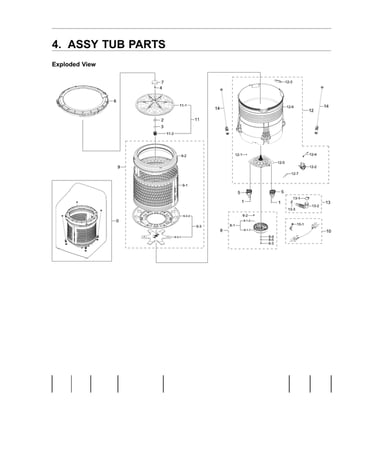

Tub parts assy diagram
Suspension rod and spring assembly (dc97-16350u) - washer support part by samsung
Part #DC97-16350U
$56.48 |
10% OFF Phone Price : $62.48
In Stock
#10-2

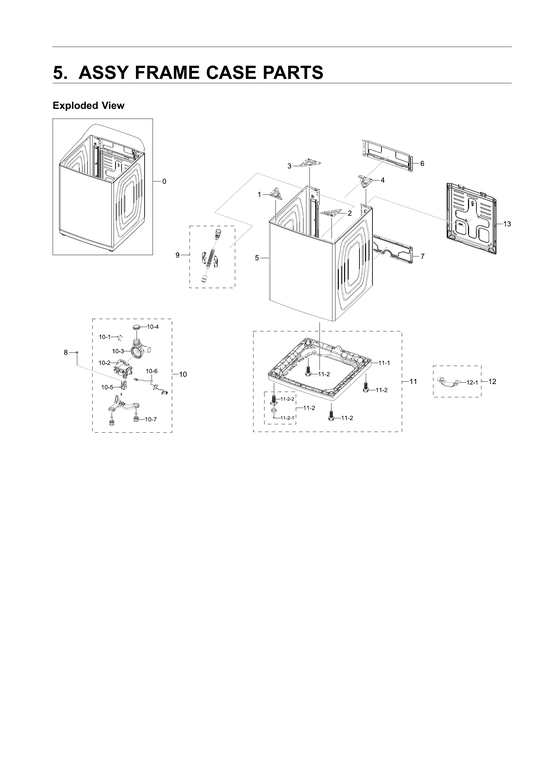

Frame case parts assy diagram
Samsung washer drain pump
Part #DC31-00187A
$141.57 |
8% OFF Phone Price : $153.57
In Stock
#5

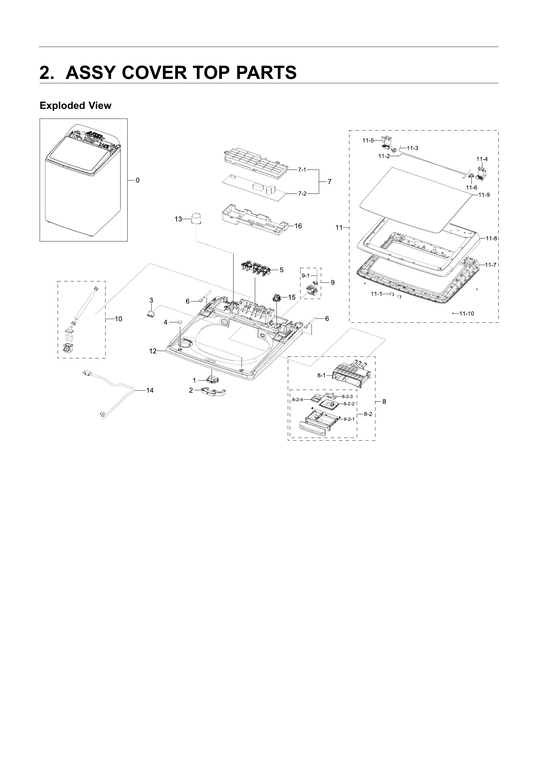

Top cover assy diagram
Samsung washer water inlet valve
Part #DC97-15459H
$139.09 |
8% OFF Phone Price : $151.09
In Stock
#10
Frame case parts assy diagram
Samsung washer drain pump assembly
Part #DC97-19289H
$92.76 |
6% OFF Phone Price : $98.76
In Stock
#12-5
Tub parts assy diagram
Samsung washer gear case
Part #DC97-18439B
$114.40 |
9% OFF Phone Price : $126.40
In Stock
#9
Frame case parts assy diagram
Washer drain hose
Part #DC97-18682B
Replaced by #DC97-18682D
?
Manufacturer substitution
This part replaces DC97-18682B. Substitute parts can look different from the original.
$103.57 |
10% OFF Phone Price : $115.57
In Stock
#12-2
Tub parts assy diagram
Washer clutch
Part #DC31-20014C
$116.07 |
9% OFF Phone Price : $128.07
In Stock
#1
Top cover assy diagram
Washer lid lock
Part #DC34-00025G
$144.33 |
8% OFF Phone Price : $156.33
In Stock
#2
Tub parts assy diagram
Washer hex nut, 26-mm
Part #6021-001573
$42.17 |
12% OFF Phone Price : $48.17
In Stock
#2

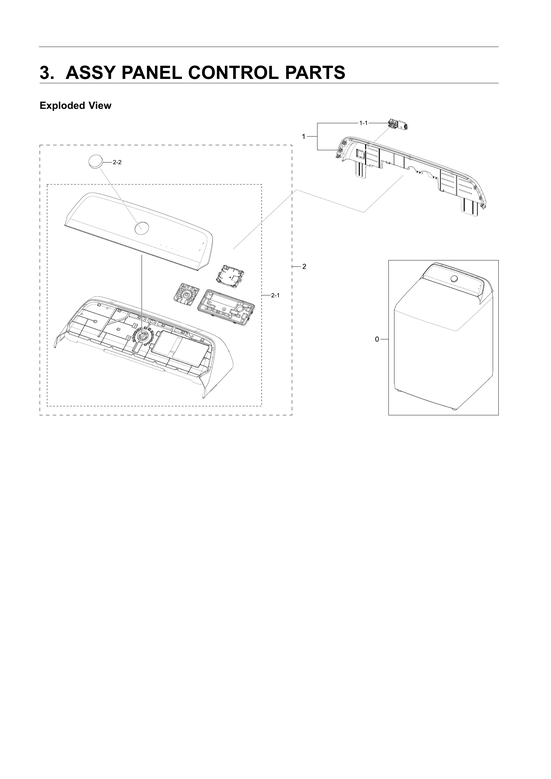

Control panel assy diagram
Washer control panel assembly
Part #DC97-21544G
Replaced by #DC97-22947A
?
Manufacturer substitution
This part replaces DC97-21544G. Substitute parts can look different from the original.
$273.32 |
$12.00 OFF Phone Price : $285.32
In Stock
