Model # CDE06RP3NAD1 Official GE refrigerator drawer

Here are the diagrams and repair parts for Official GE CDE06RP3NAD1 refrigerator drawer, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual
Error Codes

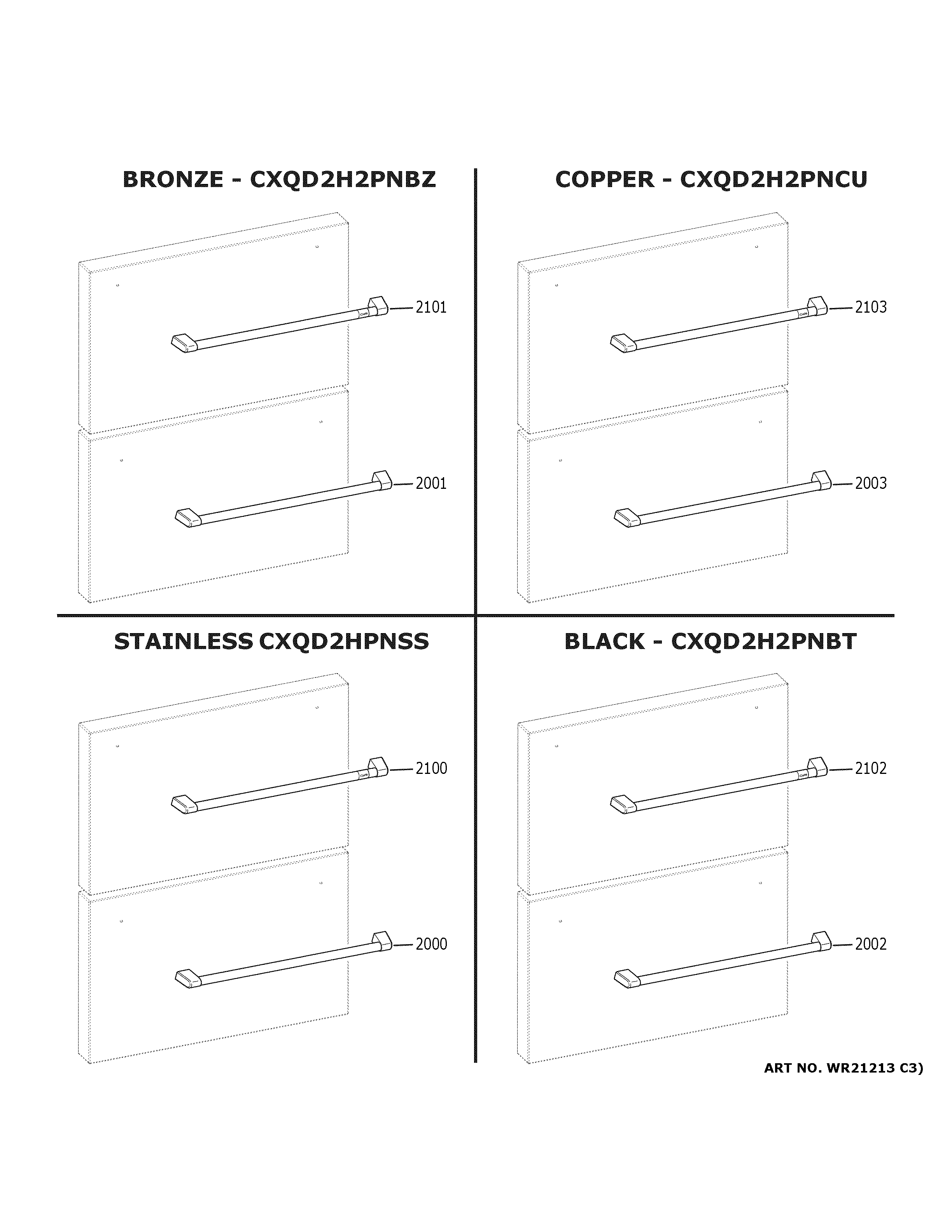

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 60 parts  |
Main Control Board WR55X30057
#21

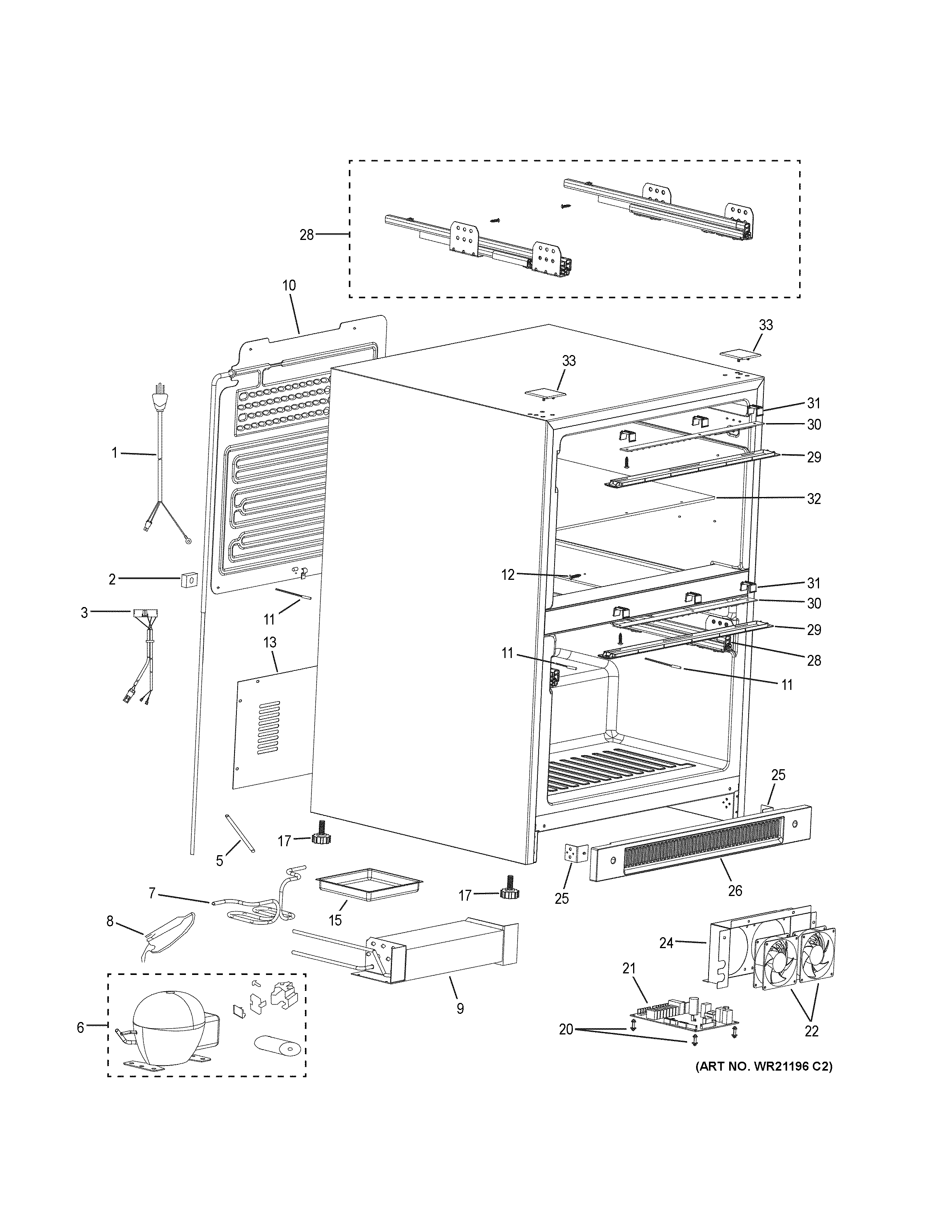

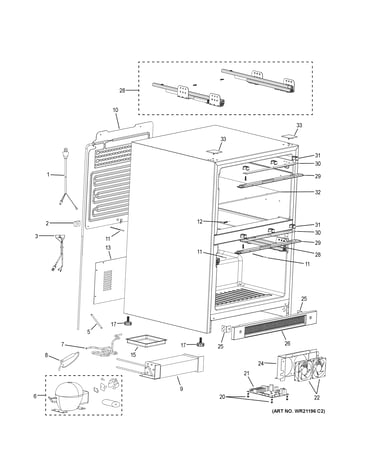

Cabinet diagram

Main control board

Part #WR55X30057

$154.95 |
7% OFF Phone Price : $166.95
In Stock
Lower Crispe WR71X28271
#36

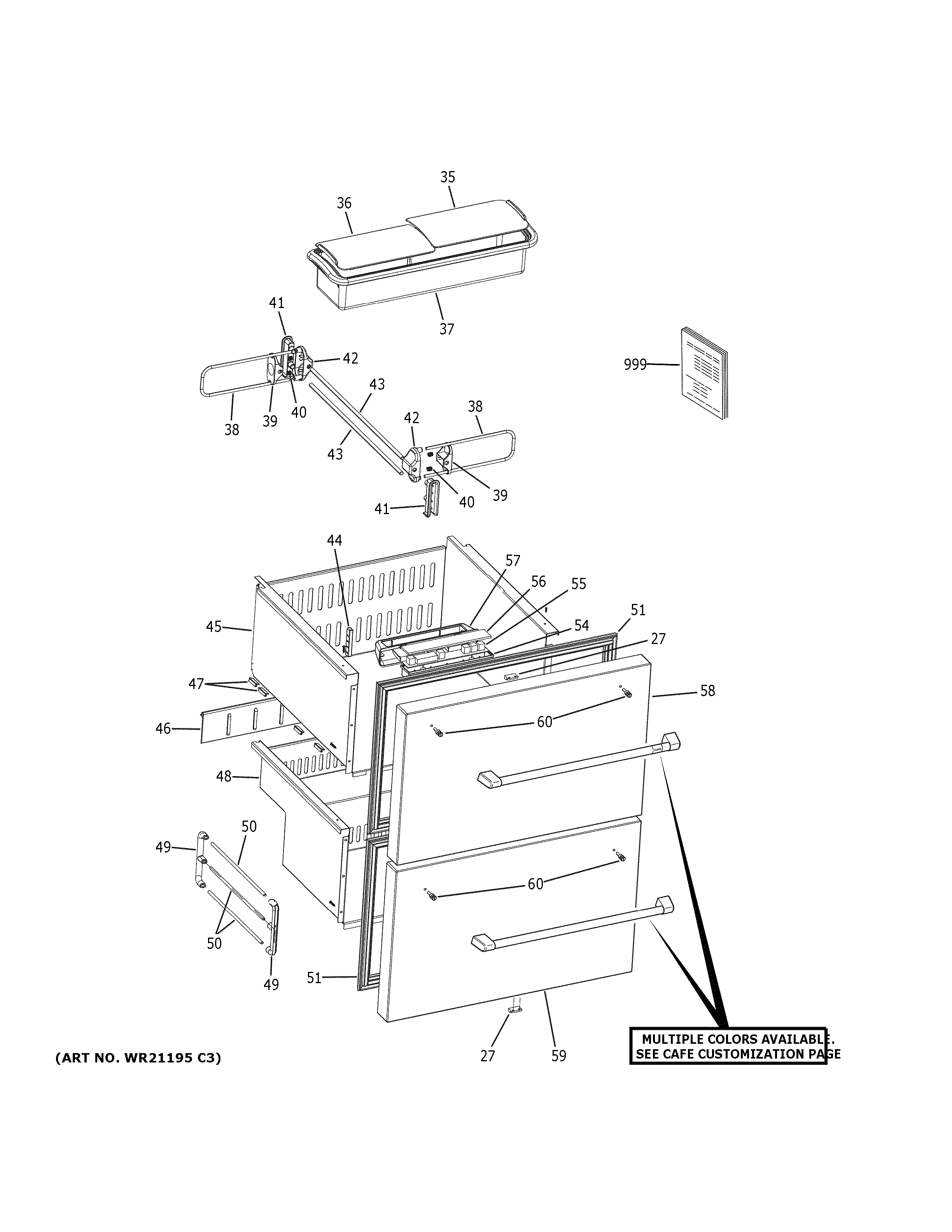

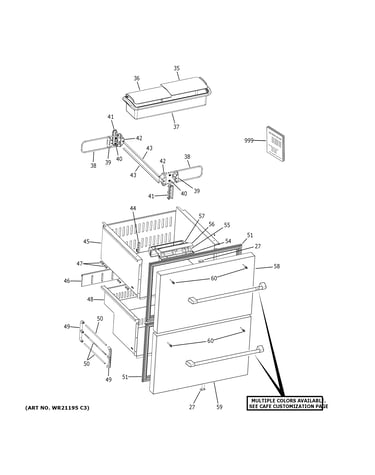

Doors & drawers diagram

Lower crispe

Part #WR71X28271

$23.40
In Stock
Haier Pcb Support WJ65X10130
#20

Cabinet diagram

Haier pcb support

Part #WJ65X10130

This item is not returnable
$7.14
In Stock
Refrigerator Door Reed Switch And Magnet WR01X30110
#27

Doors & drawers diagram

Refrigerator door reed switch and magnet

Part #WR01X30110

$35.93
In Stock
Lower Drawer WR71X28282
#48

Doors & drawers diagram

Lower drawer

Part #WR71X28282

$445.00
In Stock
Top Screw Ho WR01X28248
#33

Cabinet diagram

Top screw ho

Part #WR01X28248

$8.11
In Stock
Upper Drawer WR71X28249
#45

Doors & drawers diagram

Upper drawer

Part #WR71X28249

$523.51
In Stock
Upper Crispe WR71X28246
#35

Doors & drawers diagram

Upper crispe

Part #WR71X28246

$23.40
In Stock
Undercounter WR14X28276
#51

Doors & drawers diagram

Undercounter

Part #WR14X28276

$32.67 |
16% OFF Phone Price : $38.67
In Stock
Led Light WR13X28262
#29

Cabinet diagram

Led light

Part #WR13X28262

$20.11
In Stock
