Kenmore
Upright Vacuum

Model # 1163371190 Official Kenmore upright vacuum

Here are the diagrams and repair parts for Official Kenmore 1163371190 upright vacuum, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

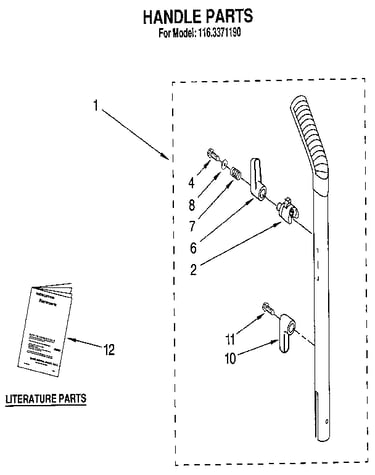

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 106 parts  |
Suppressor 4368663
#22

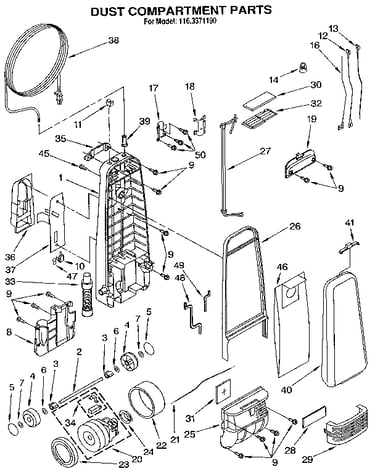

Dust compartment and motor diagram

Suppressor

Part #4368663

The manufacturer no longer makes this part, and there's no substitute part

Vacuum Handle Switch 4368653
#10

Dust compartment and motor diagram

Vacuum handle switch

Part #4368653

The manufacturer no longer makes this part, and there's no substitute part

Vacuum Screw 4368563
Vacuum screw

Part #4368563

The manufacturer no longer makes this part, and there's no substitute part

Vacuum Crevice Tool 4368684
#5

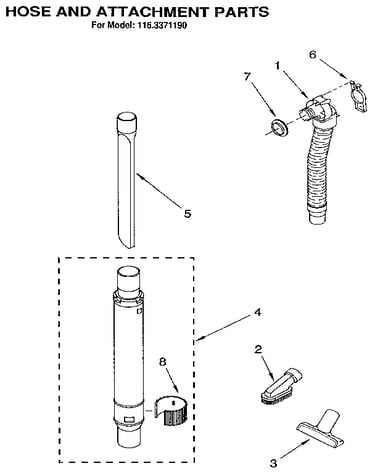

Hose assembly diagram

Vacuum crevice tool

Part #4368684

The manufacturer no longer makes this part, and there's no substitute part

Holder 4368721
#43

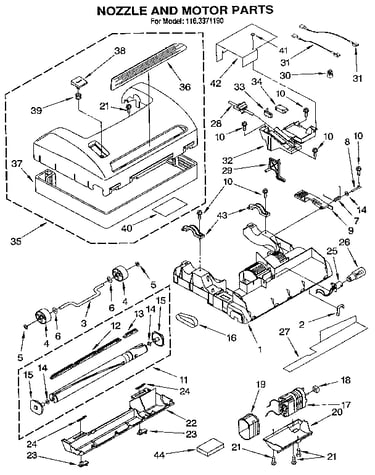

Nozzle and motor assembly diagram

Holder

Part #4368721

The manufacturer no longer makes this part, and there's no substitute part

(not Serviced, Use Old ) Screw, Motor Brush N/P
(not serviced, use old ) screw, motor brush

Part #N/P

The manufacturer no longer makes this part, and there's no substitute part

Vacuum Suction Control Button 4368996
#8

Hose assembly diagram

Vacuum suction control button

Part #4368996

The manufacturer no longer makes this part, and there's no substitute part

Clip 4155375
#41

Nozzle and motor assembly diagram

Clip

Part #4155375

The manufacturer no longer makes this part, and there's no substitute part

Attachment Tray 4369150
#36

Dust compartment and motor diagram

Attachment tray

Part #4369150

The manufacturer no longer makes this part, and there's no substitute part

Vacuum Dust Brush 4368681
#2

Hose assembly diagram

Vacuum dust brush

Part #4368681

The manufacturer no longer makes this part, and there's no substitute part
