Snapper
Gas Snowblower

Model # 13088768 Official Snapper gas snow blower

Here are the diagrams and repair parts for Official Snapper 13088768 gas snow blower, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual

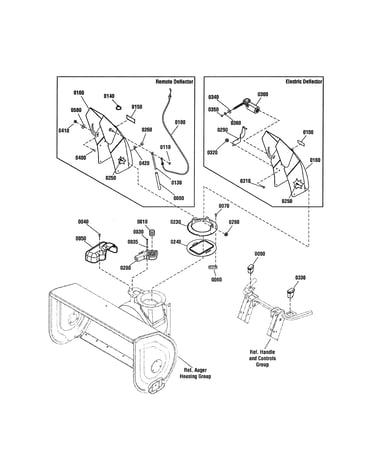

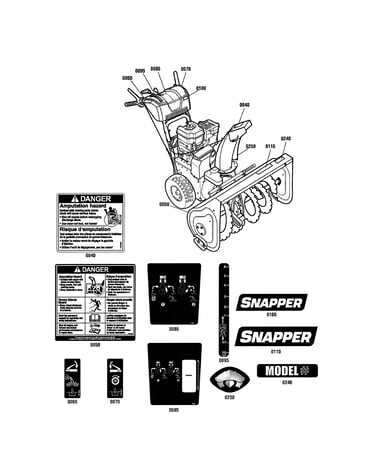

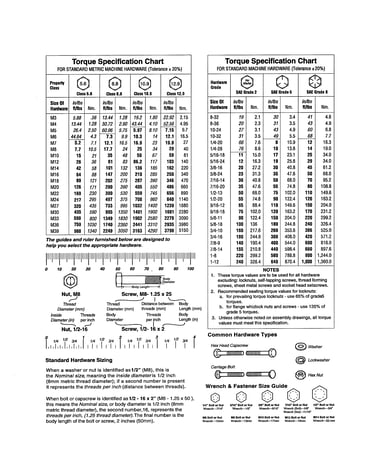

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 273 parts  |
Snowblower Ground Drive Belt 1733324
#120

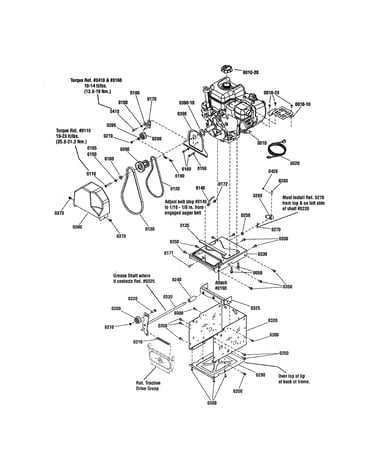

Engine & frame diagram

Snowblower ground drive belt

Part #1733324

Replaced by #1733324SM

?
Manufacturer substitution
This part replaces 1733324. Substitute parts can look different from the original.
BEST SELLER

Get free shipping with Automatic Reorder

$26.25 |
19% OFF Phone Price : $32.25
In Stock
Belt 724801
#130

Engine & frame diagram

Belt

Part #724801

Replaced by #585416MA

?
Manufacturer substitution
This part replaces 724801. Substitute parts can look different from the original.
BEST SELLER

Get free shipping with Automatic Reorder

$29.80 |
17% OFF Phone Price : $35.80
In Stock
Wheel 722185
#460

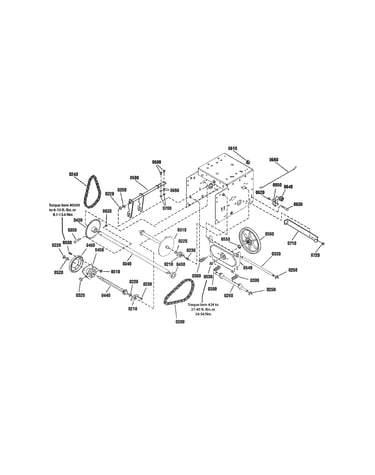

Traction drive - standard diagram

Wheel

Part #722185

Replaced by #1501435MA

?
Manufacturer substitution
This part replaces 722185. Substitute parts can look different from the original.
BEST SELLER
$27.05 |
18% OFF Phone Price : $33.05
In Stock
Screw 726061
#160

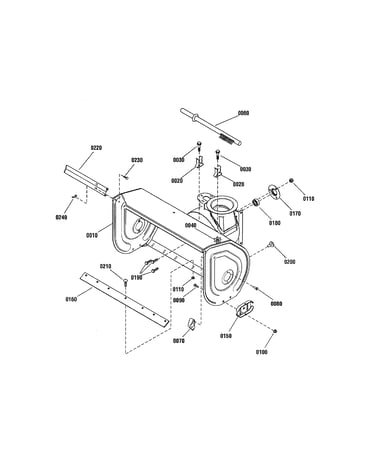

Auger drive diagram

Screw

Part #726061

Replaced by #703057

?
Manufacturer substitution
This part replaces 726061. Substitute parts can look different from the original.
BEST SELLER
$8.16 |
11% OFF Phone Price : $9.16
In Stock
Lawn & Garden Equipment Nut 1920397
Lawn & garden equipment nut

Part #1920397

Replaced by #703232

?
Manufacturer substitution
This part replaces 1920397. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$6.24 |
14% OFF Phone Price : $7.24
In Stock
Hex Nut 722400
#70

Wheels & tires diagram

Hex nut

Part #722400

Replaced by #703232

?
Manufacturer substitution
This part replaces 722400. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$6.24 |
14% OFF Phone Price : $7.24
In Stock
Extension Spring 1736469
#300

Traction drive - standard diagram

Extension spring

Part #1736469

Replaced by #1736469YP

?
Manufacturer substitution
This part replaces 1736469. Substitute parts can look different from the original.
$11.89 |
14% OFF Phone Price : $13.89
In Stock
Bolt 720220
#350

Traction drive - standard diagram

Bolt

Part #720220

Replaced by #704212

?
Manufacturer substitution
This part replaces 720220. Substitute parts can look different from the original.
$7.20 |
12% OFF Phone Price : $8.20
In Stock
Boot Spring 723154
#550

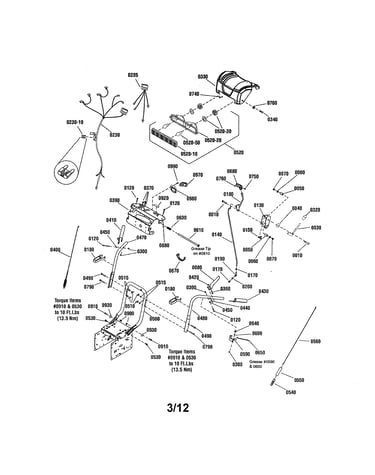

Handles & controls diagram

Boot spring

Part #723154

Replaced by #308146MA

?
Manufacturer substitution
This part replaces 723154. Substitute parts can look different from the original.
$10.97 |
15% OFF Phone Price : $12.97
In Stock
Spacer 723913
#190

Auger drive diagram

Spacer

Part #723913

Replaced by #703058

?
Manufacturer substitution
This part replaces 723913. Substitute parts can look different from the original.
$12.09 |
14% OFF Phone Price : $14.09
In Stock
