Top-Mount Refrigerator

Model # TBG16DACCRWW Official GE refrigerator - c series

Here are the diagrams and repair parts for Official GE TBG16DACCRWW refrigerator - c series, as well as links to manuals and error code tables, if available.

By Schematic
By Part
SELECT DIAGRAM
?

This is the number corresponding to the part on the diagram / schematic

Browse Parts for
TBG16DACCRWW Refrigerators
Refrigerator Filter Dryer WR86X96
#740

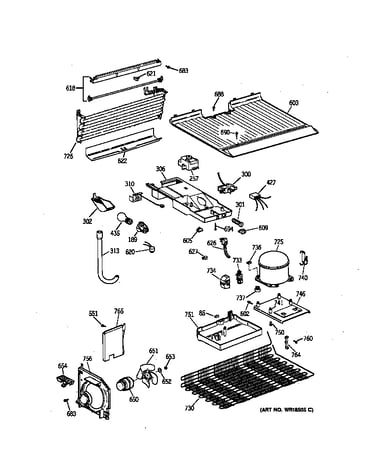

Unit parts diagram

Refrigerator filter dryer

Part #WR86X96

Replaced by #WR86X25269

?
Manufacturer substitution
This part replaces WR86X96. Substitute parts can look different from the original.
BEST SELLER
$74.11 |
7% OFF Phone Price : $80.11
In Stock
Refrigerator Freezer Door Gasket (white) WR24X524
#23

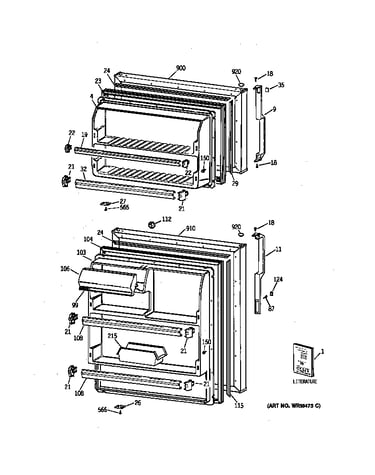

Doors diagram

Refrigerator freezer door gasket (white)

Part #WR24X524

Replaced by #WR24X10228

?
Manufacturer substitution
This part replaces WR24X524. Substitute parts can look different from the original.
$72.05 |
8% OFF Phone Price : $78.05
In Stock
Refrigerator Dairy Door WR22X503
#106

Doors diagram

Refrigerator dairy door

Part #WR22X503

Replaced by #WR22X10068

?
Manufacturer substitution
This part replaces WR22X503. Substitute parts can look different from the original.
This item is not returnable
$29.05 |
17% OFF Phone Price : $35.05
In Stock
Refrigerator Gasket WR24X486
#104

Doors diagram

Refrigerator gasket

Part #WR24X486

Replaced by #WR24X10229

?
Manufacturer substitution
This part replaces WR24X486. Substitute parts can look different from the original.
$71.11 |
8% OFF Phone Price : $77.11
In Stock
Refrigerator Low Side Assembly WR85X10009
#726

Unit parts diagram

Refrigerator low side assembly

Part #WR85X10009

Replaced by #WR87X28948

?
Manufacturer substitution
This part replaces WR85X10009. Substitute parts can look different from the original.
$294.97
In Stock
Refrigerator Deli Drawer WR32X1448
#236

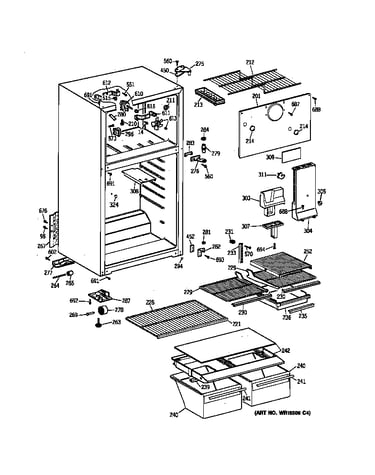

Cabinet diagram

Refrigerator deli drawer

Part #WR32X1448

$96.88 |
11% OFF Phone Price : $108.88
In Stock
Screw - 12pk WR1X1726
#18

Doors diagram

Screw - 12pk

Part #WR1X1726

Replaced by #WR1X1726D

?
Manufacturer substitution
This part replaces WR1X1726. Substitute parts can look different from the original.
This item is not returnable
$29.03 |
17% OFF Phone Price : $35.03
In Stock
Refrigerator Door Hole Plug (white) WR2X8693
#112

Doors diagram

Refrigerator door hole plug (white)

Part #WR2X8693

Replaced by #WR01X21159

?
Manufacturer substitution
This part replaces WR2X8693. Substitute parts can look different from the original.
This item is not returnable
$9.03 |
10% OFF Phone Price : $10.03
In Stock
Refrigerator Door Shelf WR17X3942
#19

Doors diagram

Refrigerator door shelf

Part #WR17X3942

Replaced by #WR17X3692

?
Manufacturer substitution
This part replaces WR17X3942. Substitute parts can look different from the original.
$32.09 |
16% OFF Phone Price : $38.09
In Stock
Rca Refrigerator Freezer Wire Shelf (replaces Wr71x2076) WR71X2086
#212

Cabinet diagram

Rca refrigerator freezer wire shelf (replaces wr71x2076)

Part #WR71X2086

$96.10 |
11% OFF Phone Price : $108.10
In Stock
