Model # KB6524PW Official Sharp microwave

Here are the diagrams and repair parts for Official Sharp KB6524PW microwave, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual

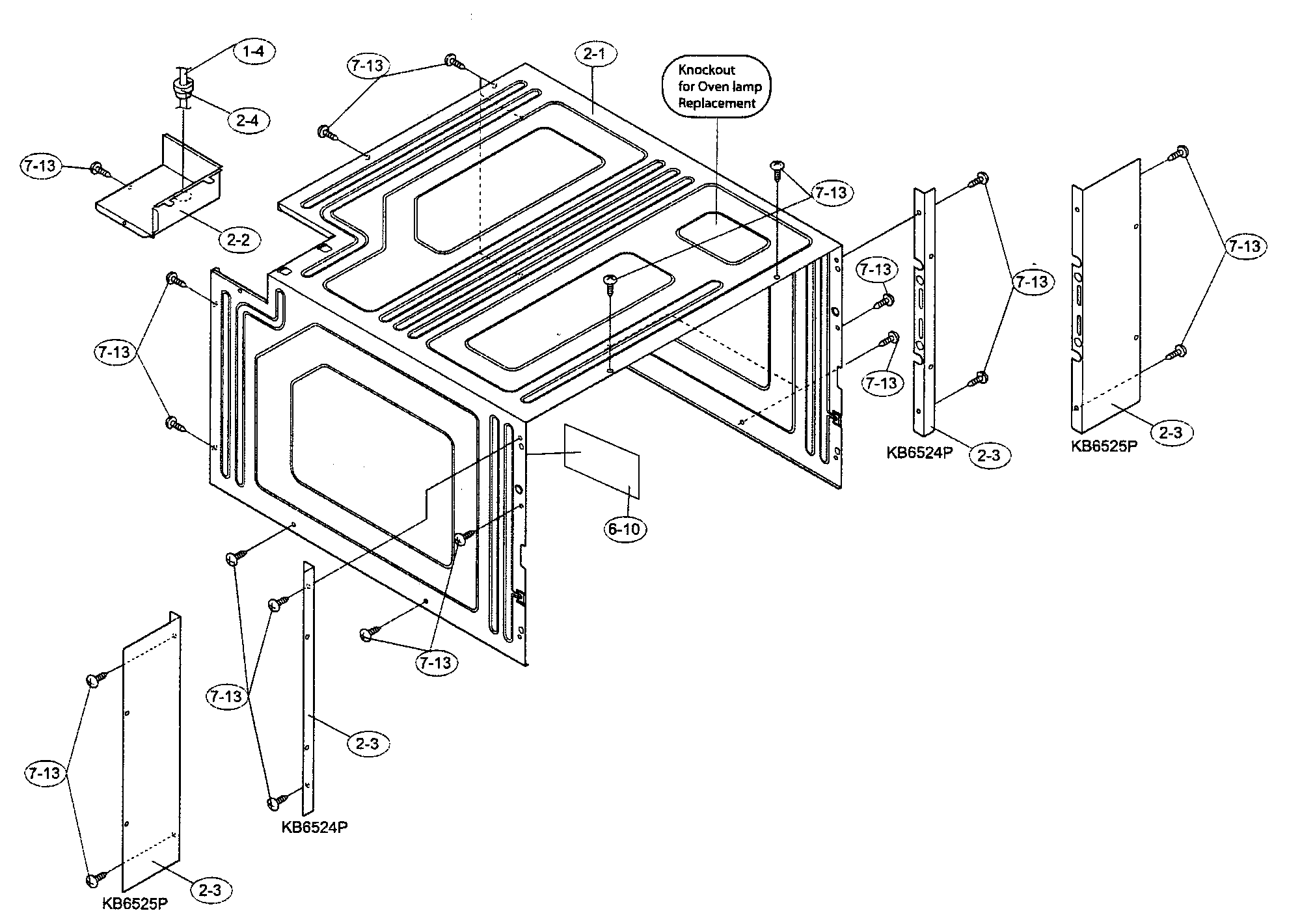

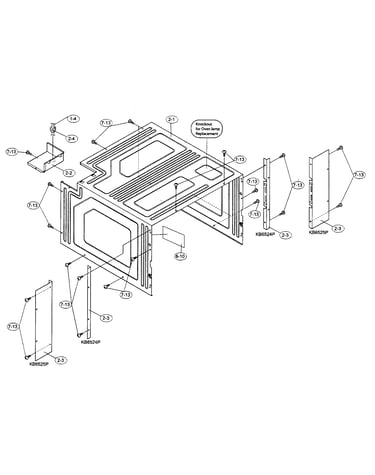

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 93 parts  |
Microwave Door Interlock Switch Assembly FFS-BA018/KIT
#1-8

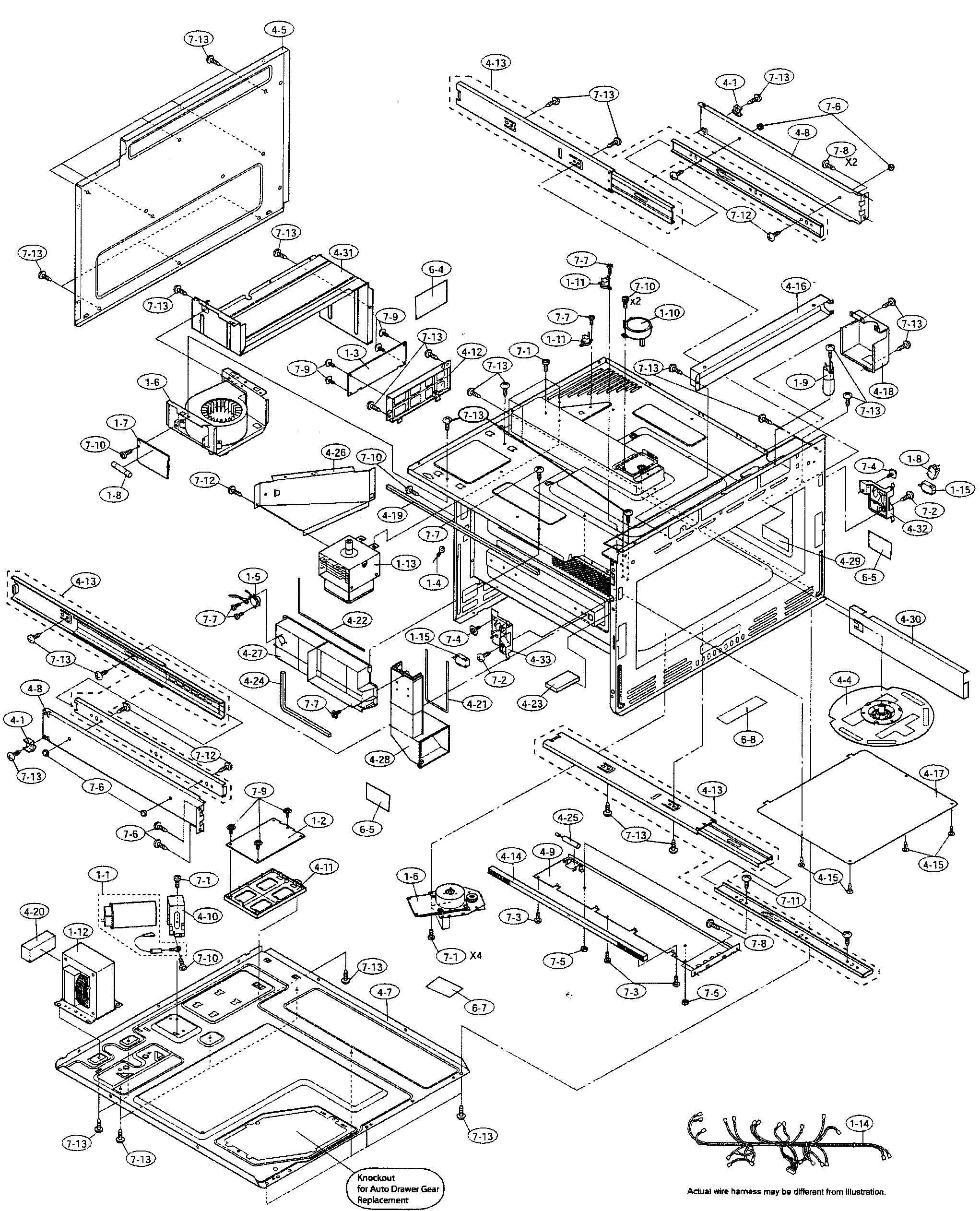

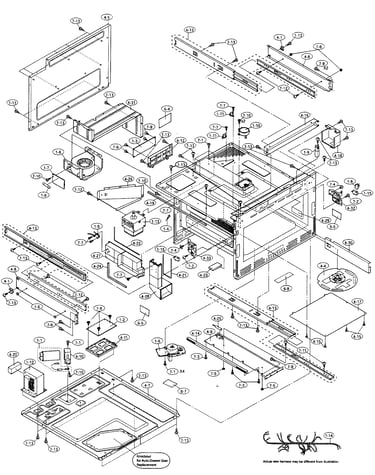

Cavity assy diagram

Microwave door interlock switch assembly

Part #FFS-BA018/KIT

The manufacturer no longer makes this part, and there's no substitute part

Microwave High-voltage Transformer RTRN-B101MRE0
#1-12

Cavity assy diagram

Microwave high-voltage transformer

Part #RTRN-B101MRE0

The manufacturer no longer makes this part, and there's no substitute part

Noise Filter FPWBFA437WRKZ
#1-7

Cavity assy diagram

Noise filter

Part #FPWBFA437WRKZ

The manufacturer no longer makes this part, and there's no substitute part

Latch Hook PHOK-B031MRF0
#4-33

Cavity assy diagram

Latch hook

Part #PHOK-B031MRF0

The manufacturer no longer makes this part, and there's no substitute part

Latch Hook PHOK-B030MRF0
#4-32

Cavity assy diagram

Latch hook

Part #PHOK-B030MRF0

The manufacturer no longer makes this part, and there's no substitute part

Microwave Electronic Control Board DPWBFB172MRU0
#3-1

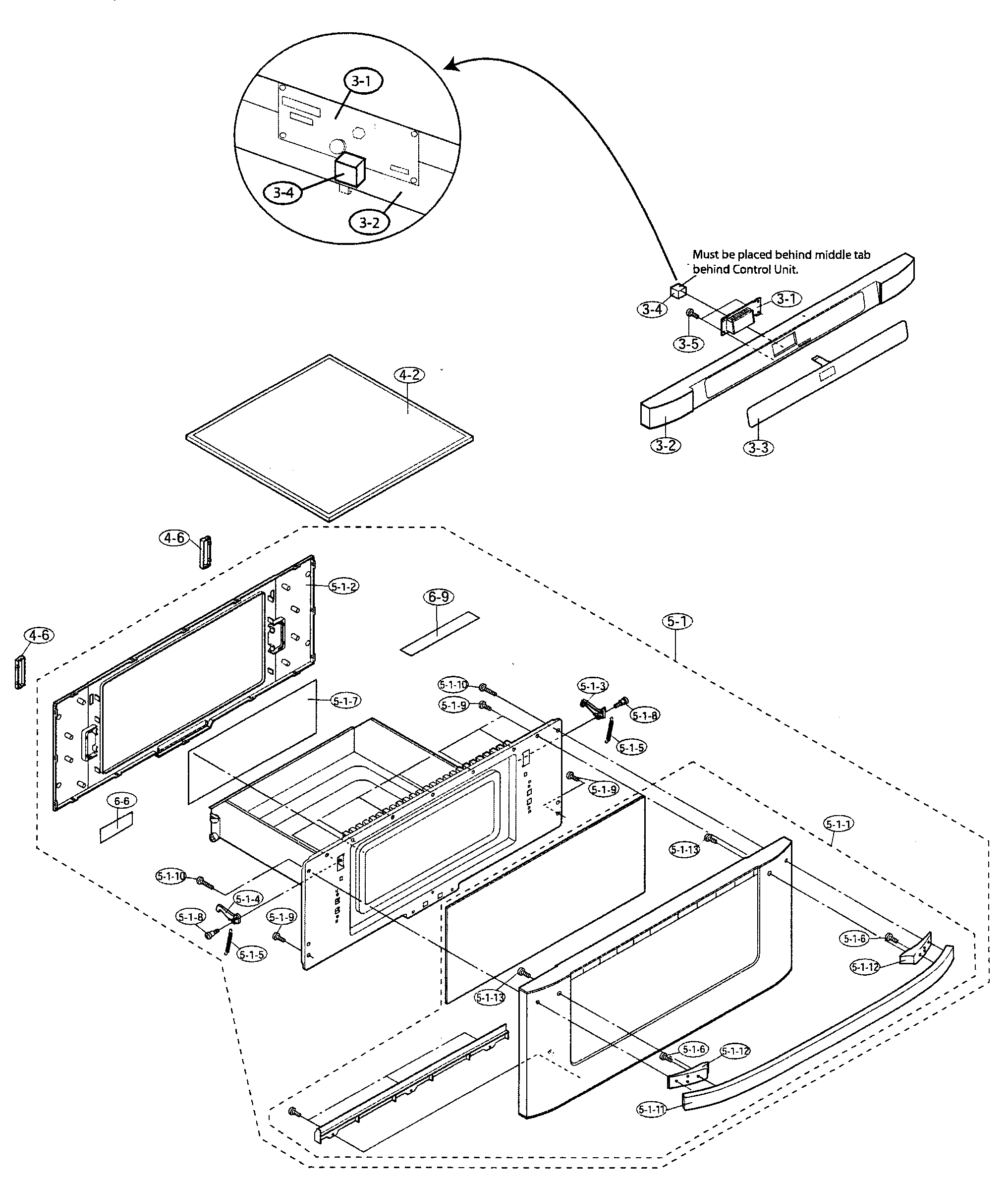

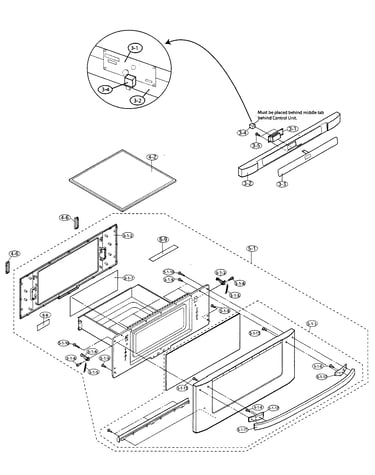

Drawer assy diagram

Microwave electronic control board

Part #DPWBFB172MRU0

The manufacturer no longer makes this part, and there's no substitute part

Microwave Magnetron RV-MZA365WRZZ
#1-13

Cavity assy diagram

Microwave magnetron

Part #RV-MZA365WRZZ

The manufacturer no longer makes this part, and there's no substitute part

Door Cover GCOVHB066MRF0
#4-6

Drawer assy diagram

Door cover

Part #GCOVHB066MRF0

The manufacturer no longer makes this part, and there's no substitute part

Cap Nut LX-NZB006MRE0
#7-5

Cavity assy diagram

Cap nut

Part #LX-NZB006MRE0

The manufacturer no longer makes this part, and there's no substitute part

Choke Cover GCOVHB067MRF0
#5-12

Drawer assy diagram

Choke cover

Part #GCOVHB067MRF0

The manufacturer no longer makes this part, and there's no substitute part
