Model # 6877B-1 Official Eureka canister vacuum

Here are the diagrams and repair parts for Official Eureka 6877B-1 canister vacuum, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

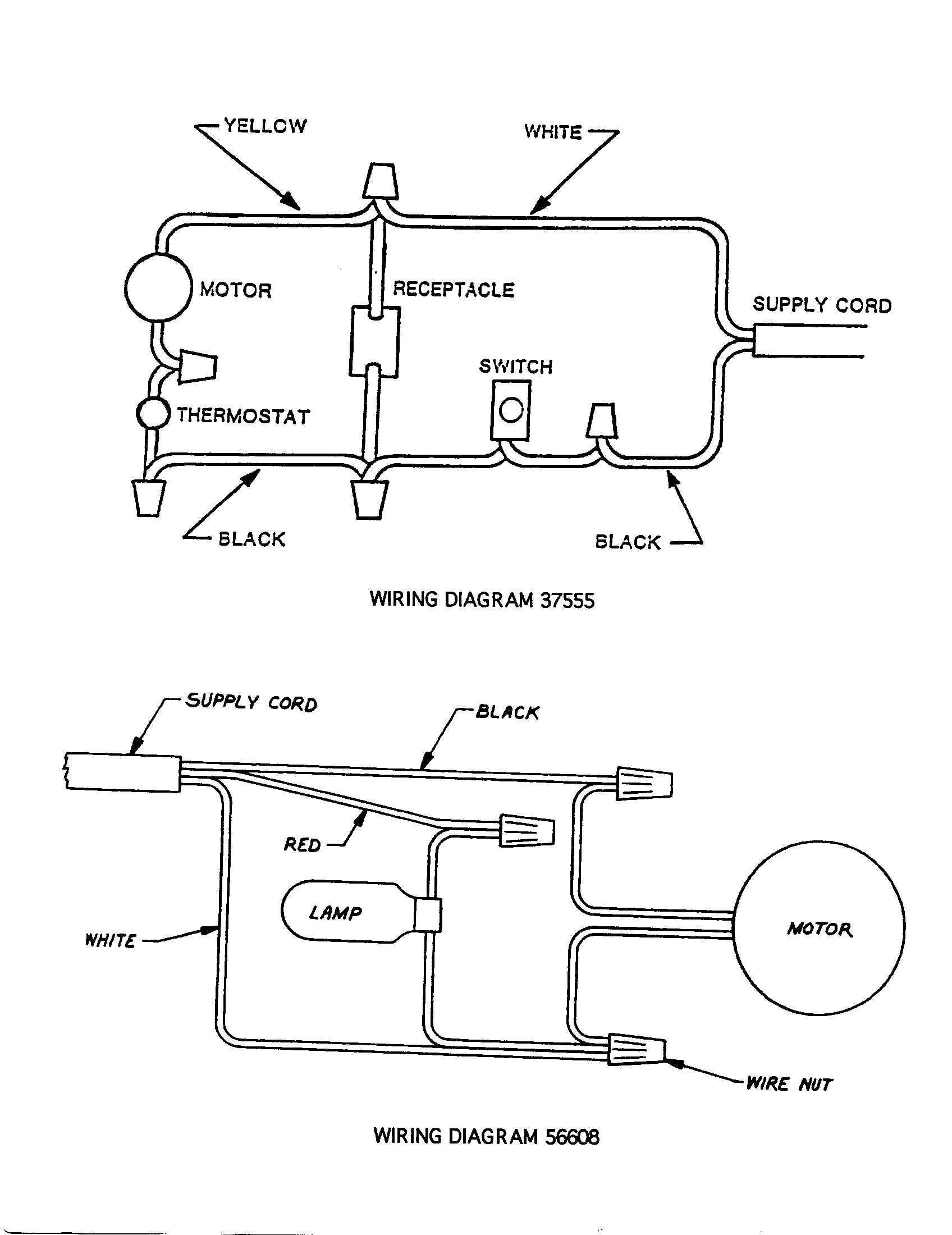

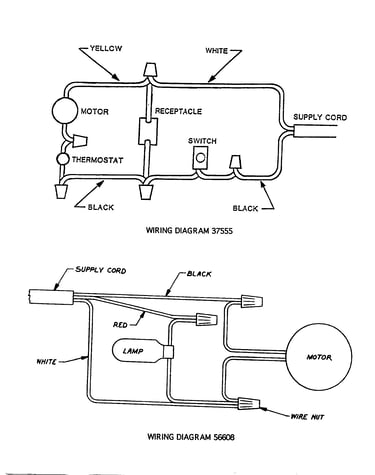

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 80 parts  |

Hood Lens 27397-1
#2

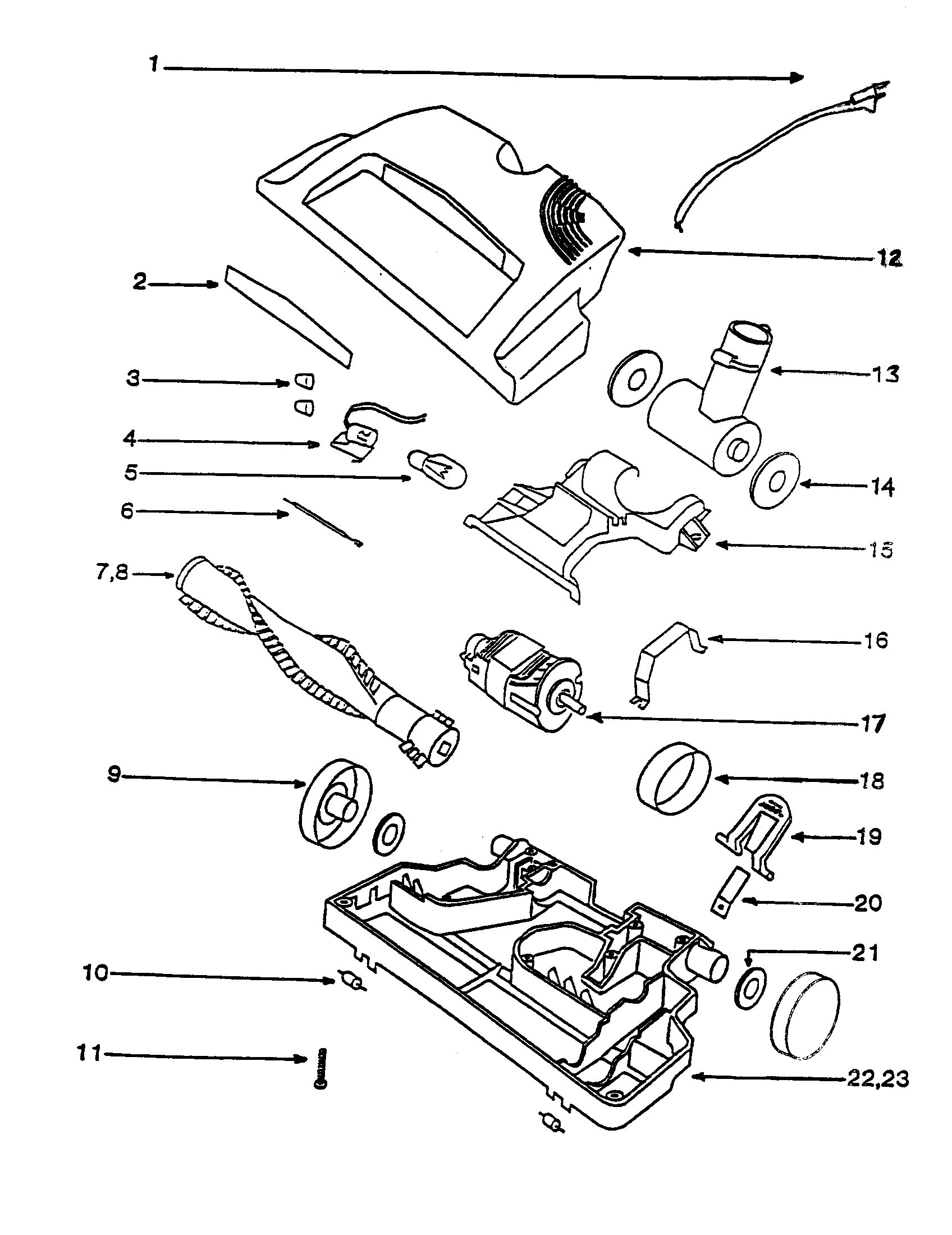

Powerhead assembly, complete diagram

Hood lens

Part #27397-1

The manufacturer no longer makes this part, and there's no substitute part

Vacuum Beater Bar 60279-1
#7

Powerhead assembly, complete diagram

Vacuum beater bar

Part #60279-1

The manufacturer no longer makes this part, and there's no substitute part

Felt Washer 56180
#21

Powerhead assembly, complete diagram

Felt washer

Part #56180

The manufacturer no longer makes this part, and there's no substitute part

Owner's Manual 59648

#NI

All parts diagram

Owner's manual

Part #59648

The manufacturer no longer makes this part, and there's no substitute part

Motor Stra 38377
#16

Powerhead assembly, complete diagram

Motor stra

Part #38377

The manufacturer no longer makes this part, and there's no substitute part

Wiring Connection 26730-8
#8

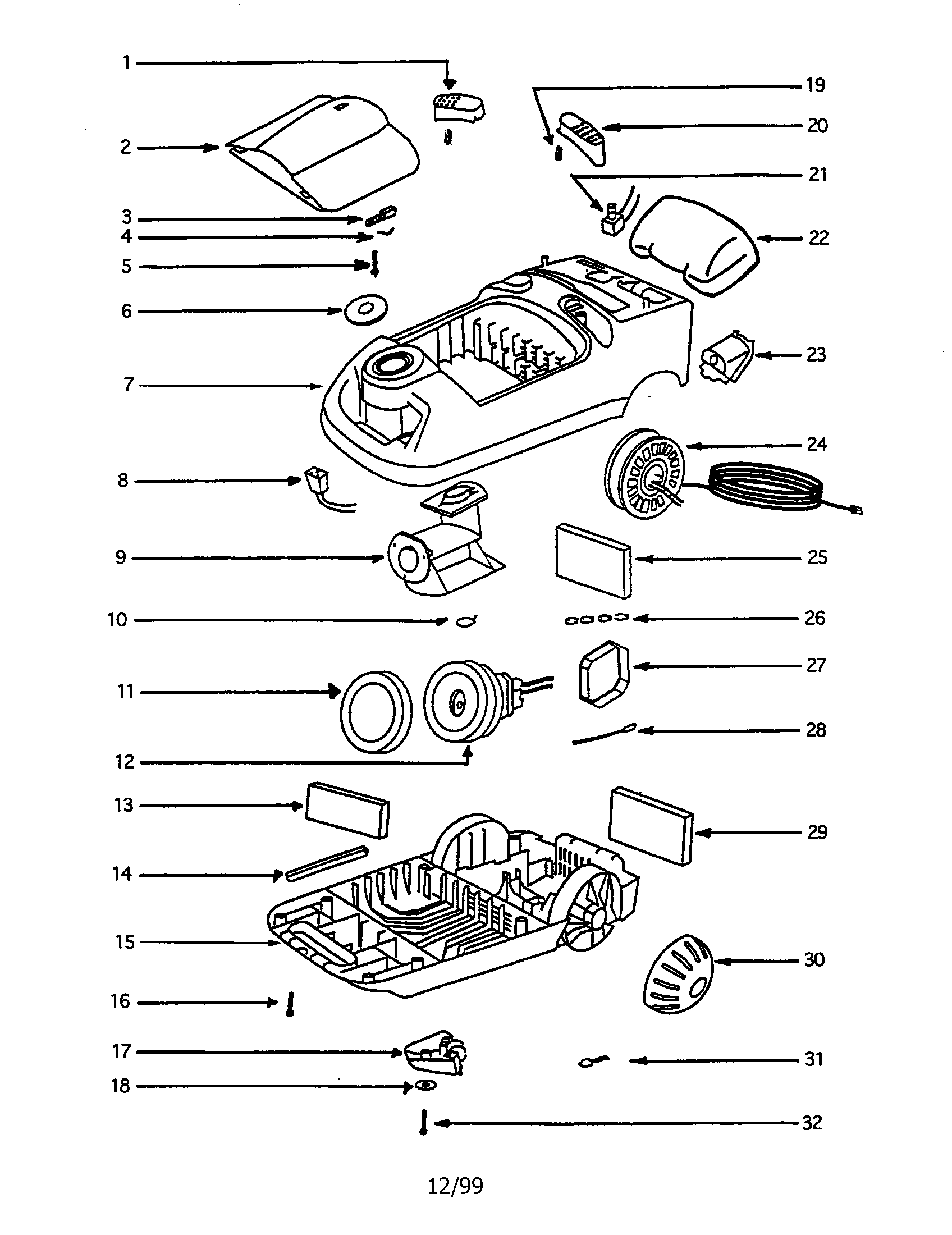

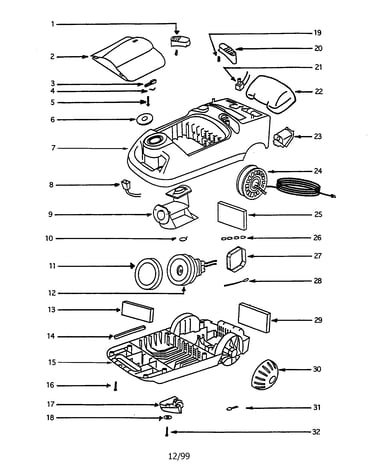

Upper and lower shell diagram

Wiring connection

Part #26730-8

The manufacturer no longer makes this part, and there's no substitute part

Wand Clip 59780A
#22

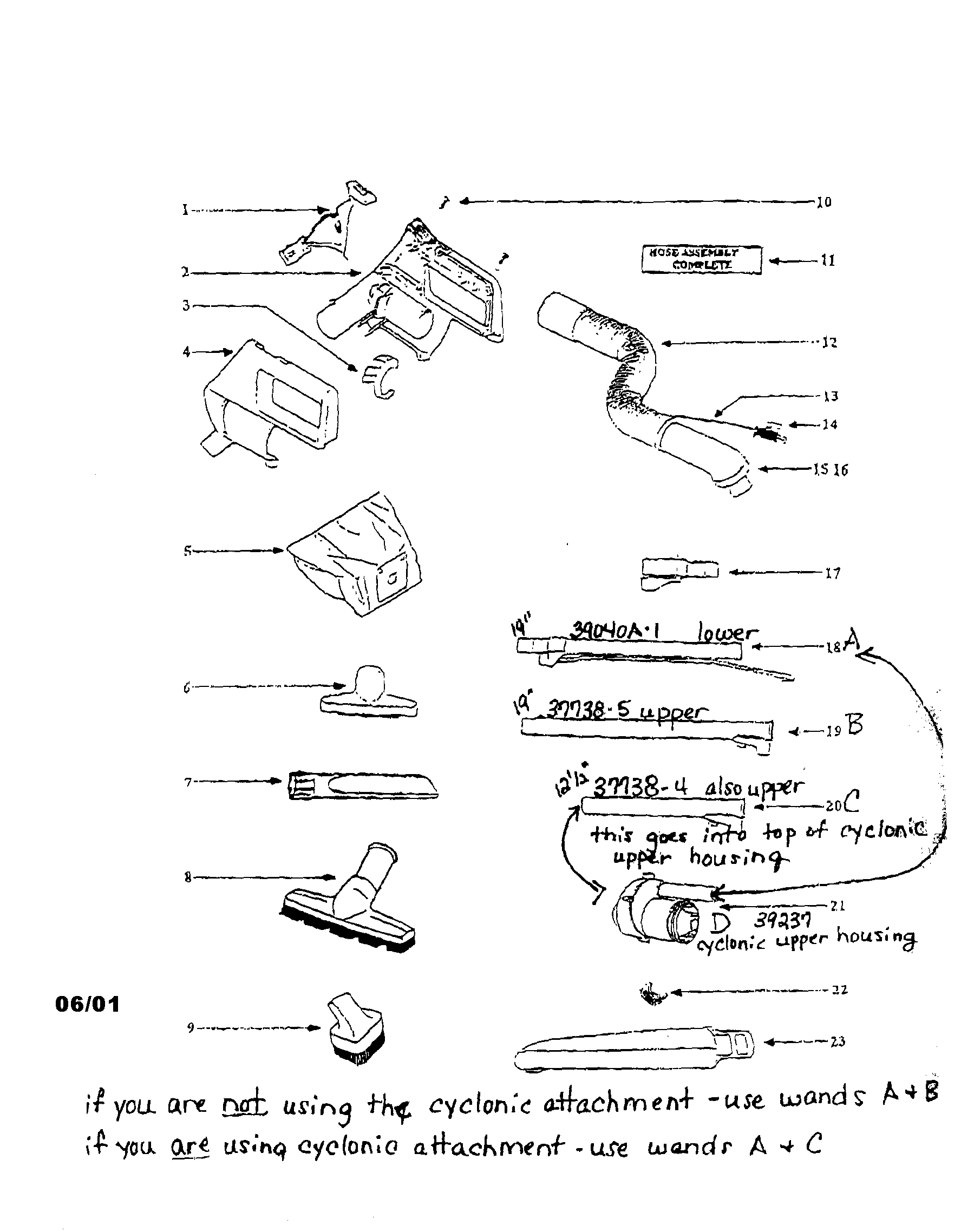

Hose handle set diagram

Wand clip

Part #59780A

The manufacturer no longer makes this part, and there's no substitute part

Screw 53238-1
#5

Upper and lower shell diagram

Screw

Part #53238-1

The manufacturer no longer makes this part, and there's no substitute part

Vacuum Screw, 10-pack 53238-8
Vacuum screw, 10-pack

Part #53238-8

The manufacturer no longer makes this part, and there's no substitute part

Kenmore Bleeder 38914-308N
#3

Hose handle set diagram

Kenmore bleeder

Part #38914-308N

The manufacturer no longer makes this part, and there's no substitute part
