Model # 315275121 Official Craftsman laminate trimmer

Here are the diagrams and repair parts for Official Craftsman 315275121 laminate trimmer, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

Click a diagram to see the parts shown on that diagram.
In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual

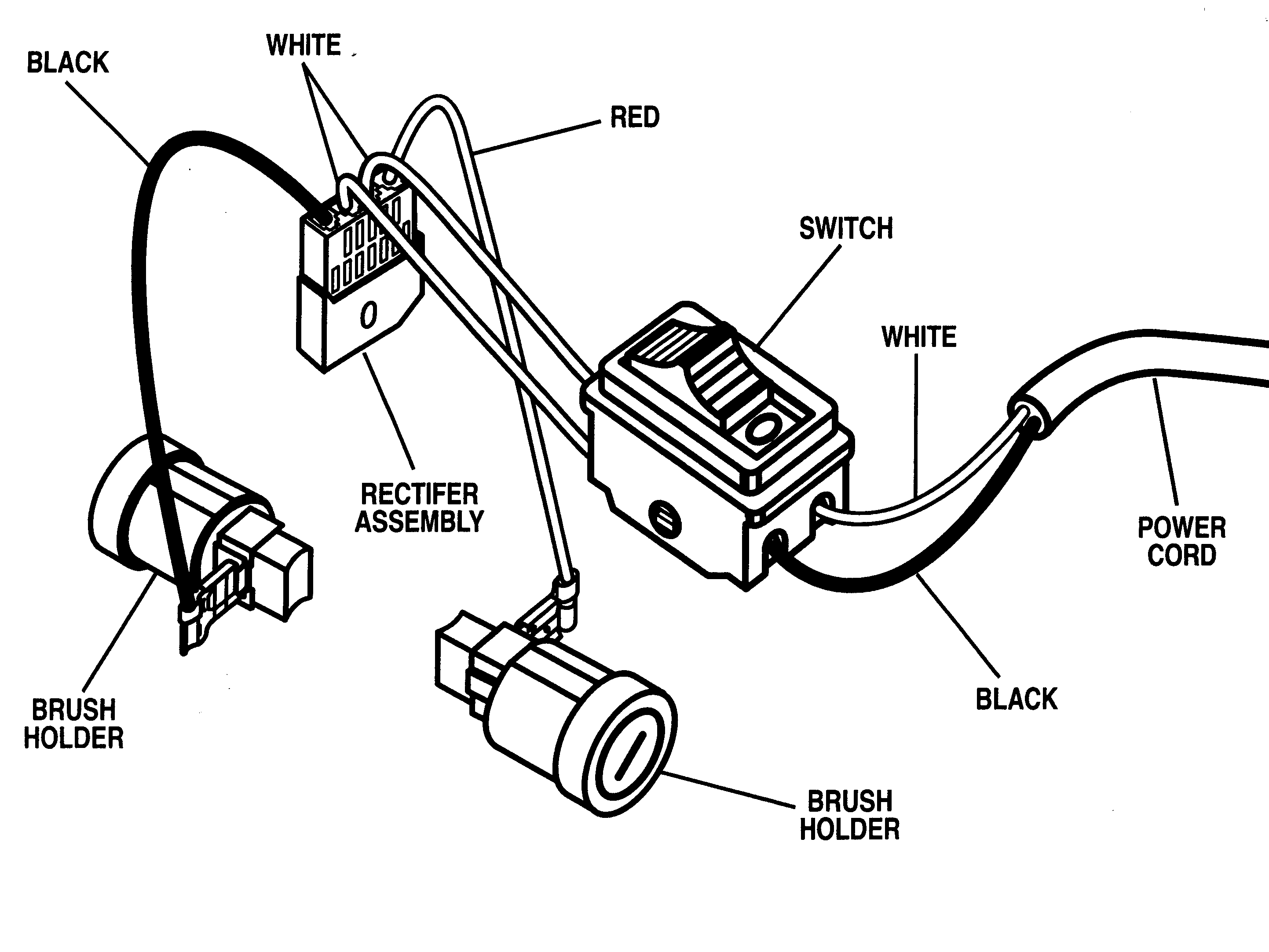

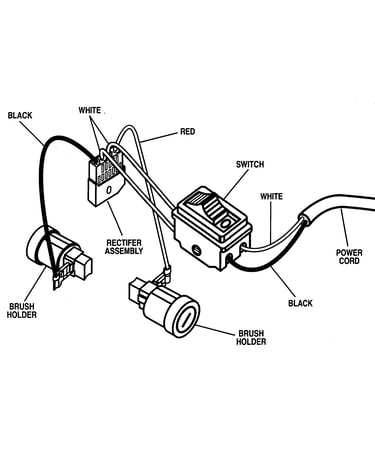

Model diagram and schematic

SEARCH WITHIN THIS MODEL

ALL PARTS

Showing 10 of 40 parts |

#10

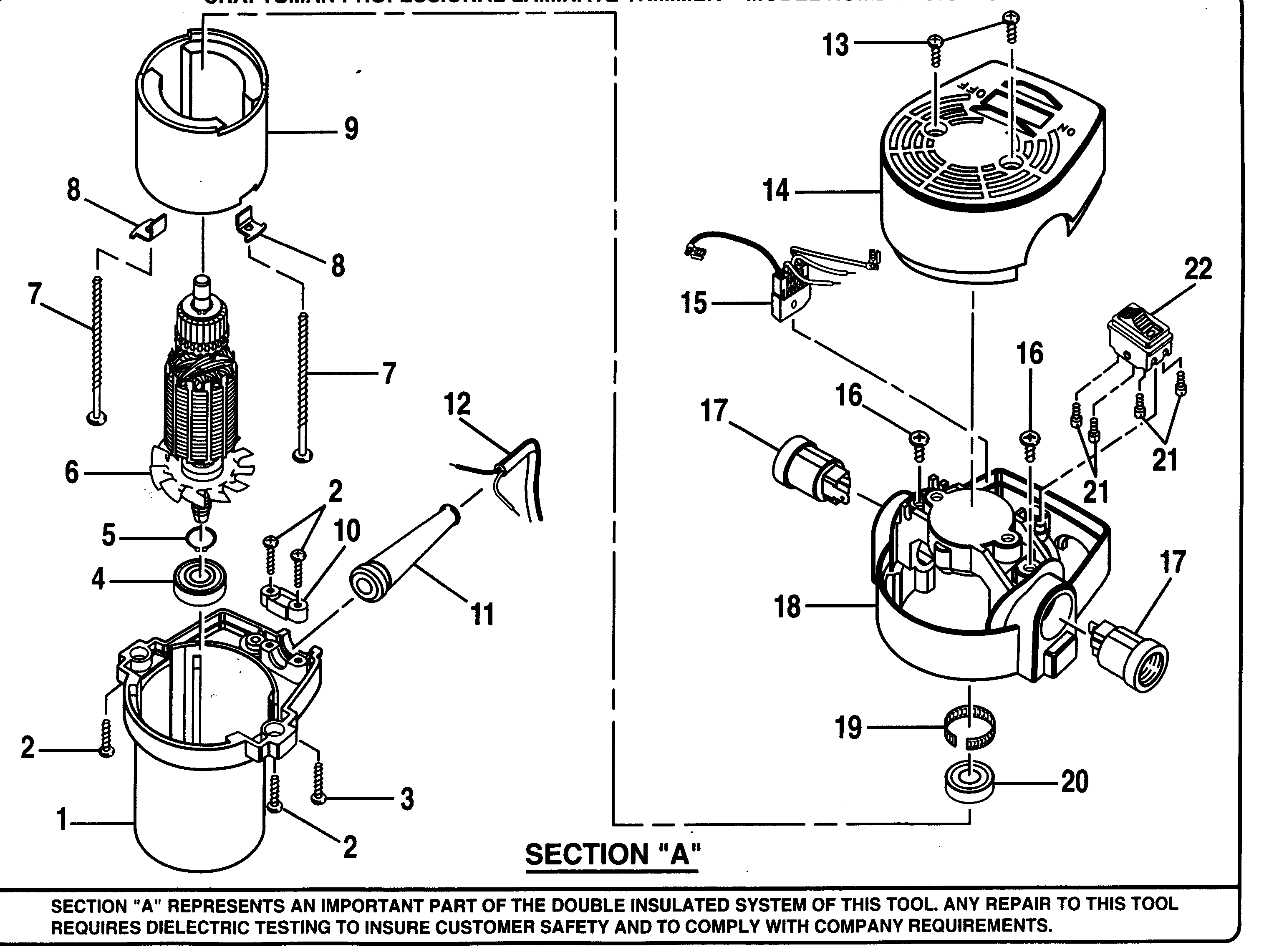

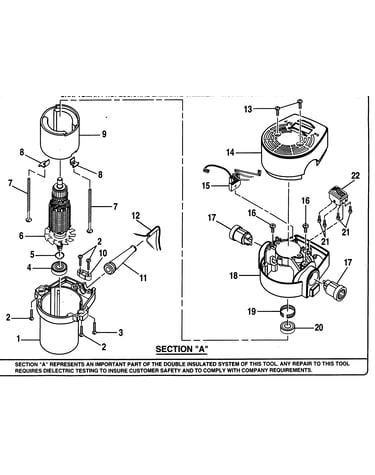

Trimmer assy diagram

Clamp

Part #967917-001

The manufacturer no longer makes this part, and there's no substitute part

Trimmer assy diagram

Ball bearing

Part #621368-001

The manufacturer no longer makes this part, and there's no substitute part

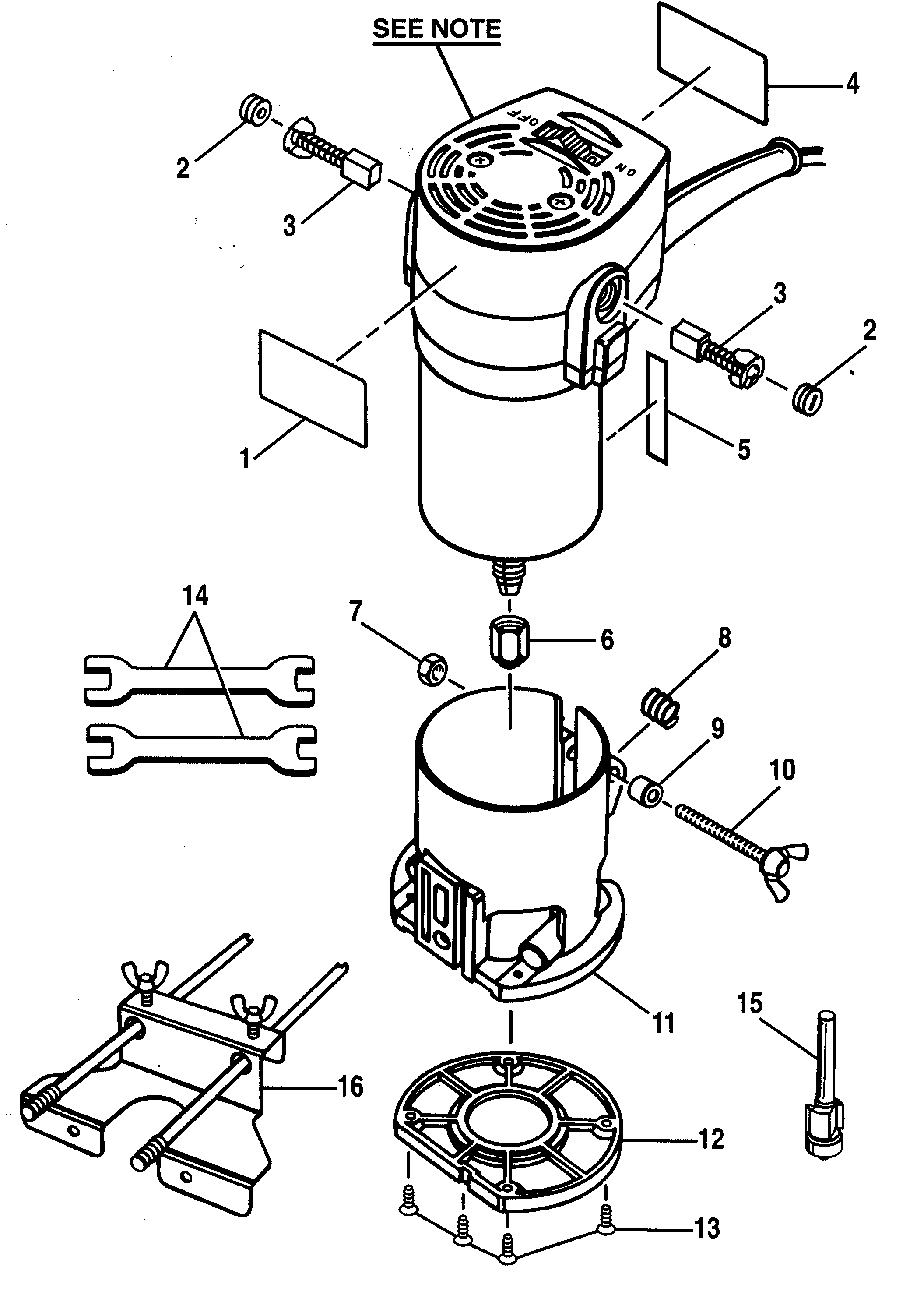

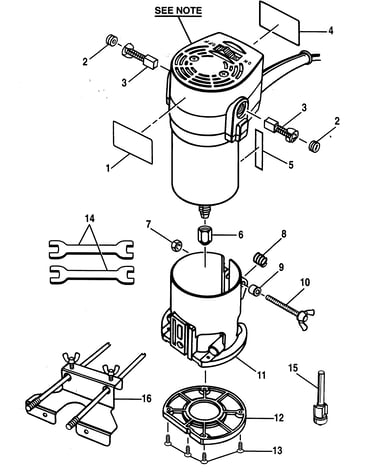

Motor assy diagram

Router collet nut

Part #989985-003

The manufacturer no longer makes this part, and there's no substitute part

#12

Motor assy diagram

Sub-base

Part #063600-722

The manufacturer no longer makes this part, and there's no substitute part

#14

Trimmer assy diagram

End cap

Part #068004-104

The manufacturer no longer makes this part, and there's no substitute part

#16

Trimmer assy diagram

Screw

Part #968702-005

The manufacturer no longer makes this part, and there's no substitute part

Trimmer assy diagram

Screw

Part #643526-005

The manufacturer no longer makes this part, and there's no substitute part

Trimmer assy diagram

Housing

Part #663051-003

The manufacturer no longer makes this part, and there's no substitute part

Motor assy diagram

Logo plate

Part #981251-001

The manufacturer no longer makes this part, and there's no substitute part

Motor assy diagram

Spacer

Part #662932-001

The manufacturer no longer makes this part, and there's no substitute part
