Model # NPGB060G1LA Official ICP heating & cooling unit

Here are the diagrams and repair parts for Official ICP NPGB060G1LA heating & cooling unit, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 105 parts  |
Capacitor 1053918
#31

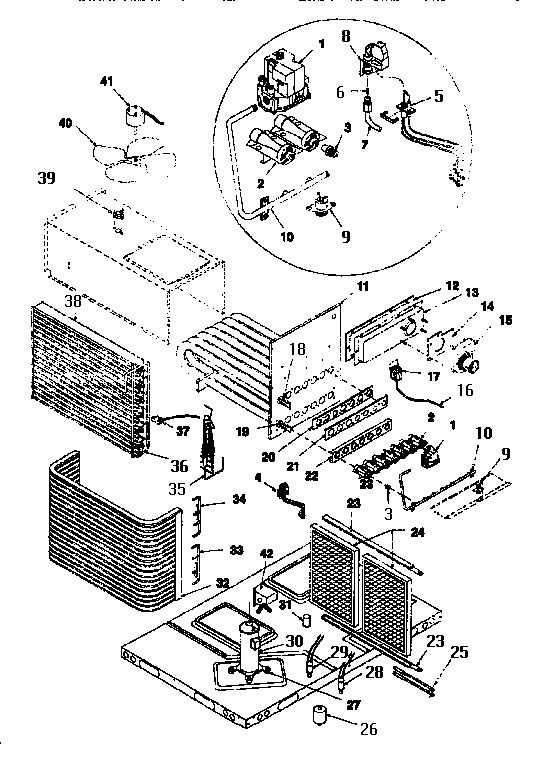

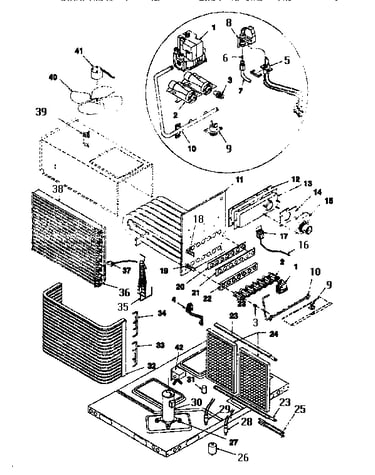

Functional, all models diagram

Capacitor

Part #1053918

Replaced by #PAKTRCF10

?
Manufacturer substitution
This part replaces 1053918. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$4.87 |
17% OFF Phone Price : $5.87
In Stock
Lp Valve 1009094
#1A

Functional, all models diagram

Lp valve

Part #1009094

Replaced by #1170430

?
Manufacturer substitution
This part replaces 1009094. Substitute parts can look different from the original.
$674.90 |
$12.00 OFF Phone Price : $686.90
In Stock
Valve 1009093
#1

Functional, all models diagram

Valve

Part #1009093

Replaced by #1170430

?
Manufacturer substitution
This part replaces 1009093. Substitute parts can look different from the original.
$674.90 |
$12.00 OFF Phone Price : $686.90
In Stock
Relay Spdt 1058148
#6

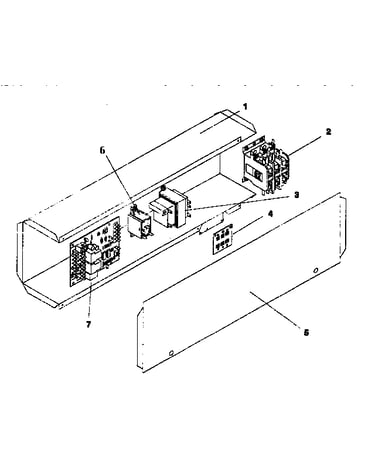

Functional replacement,control box diagram

Relay spdt

Part #1058148

The manufacturer no longer makes this part, and there's no substitute part

Furnace Inducer Vent Motor Assembly 1054268
#15

Functional, all models diagram

Furnace inducer vent motor assembly

Part #1054268

$297.67 |
$12.00 OFF Phone Price : $309.67
In Stock
Panel Filter 1068175
#23

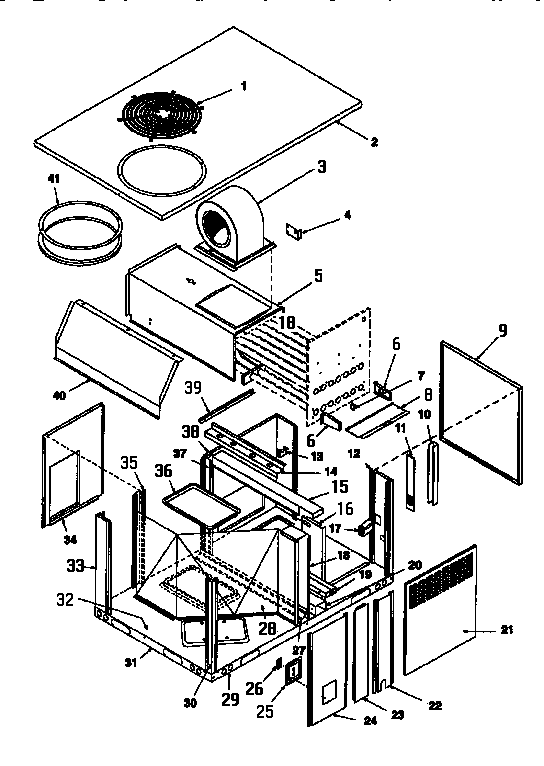

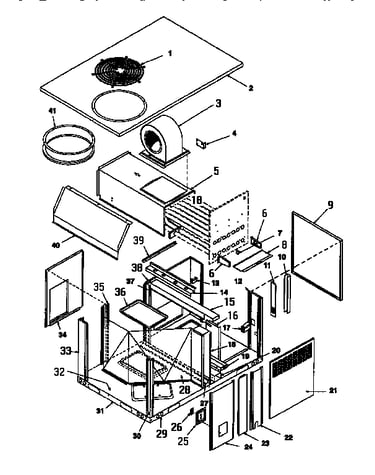

Non-functional, all models diagram

Panel filter

Part #1068175

$170.62
In Stock
Mtr Cnd / / 1054575
#41

Functional, all models diagram

Mtr cnd / /

Part #1054575

$662.82
In Stock
Extension Bl 1054461
#17

Non-functional, all models diagram

Extension bl

Part #1054461

$158.46
In Stock
Central Air Conditioner Air Handler Blower Motor 1054586
#2

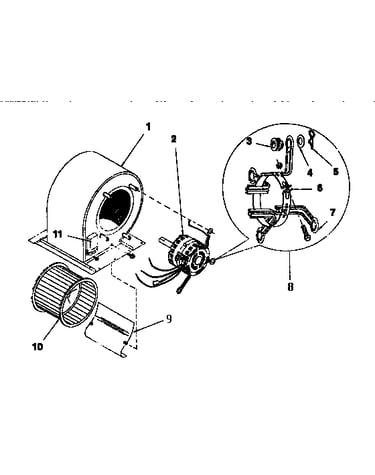

Functional replacement, blower diagram

Central air conditioner air handler blower motor

Part #1054586

$696.64 |
$12.00 OFF Phone Price : $708.64
In Stock
Gasket Restr 1065211
#20

Functional, all models diagram

Gasket restr

Part #1065211

$26.31
In Stock
