Compact Refrigerator

Model # TAX4DNXCWH Official GE refrigerator - x series

Here are the diagrams and repair parts for Official GE TAX4DNXCWH refrigerator - x series, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 53 parts  |
Power Cord WR23X108
#46

Unit parts diagram

Power cord

Part #WR23X108

Replaced by #WR23X10300

?
Manufacturer substitution
This part replaces WR23X108. Substitute parts can look different from the original.
$22.68 |
21% OFF Phone Price : $28.68
In Stock
Refrigerator Use And Care Guide 49-6865
#2B

Door diagram

Refrigerator use and care guide

Part #49-6865

Replaced by #49-6865-3

?
Manufacturer substitution
This part replaces 49-6865. Substitute parts can look different from the original.
$8.49
In Stock
Refrigerator Condenser WR84K01
#34

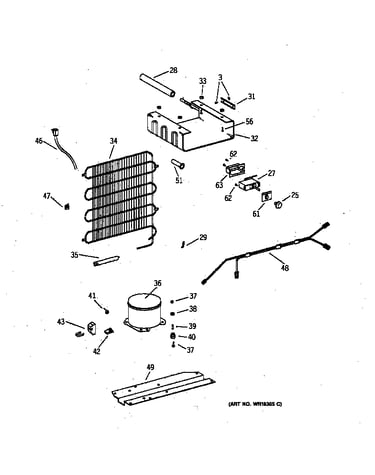

Unit parts diagram

Refrigerator condenser

Part #WR84K01

The manufacturer no longer makes this part, and there's no substitute part

Shelf WR71X6081
#14

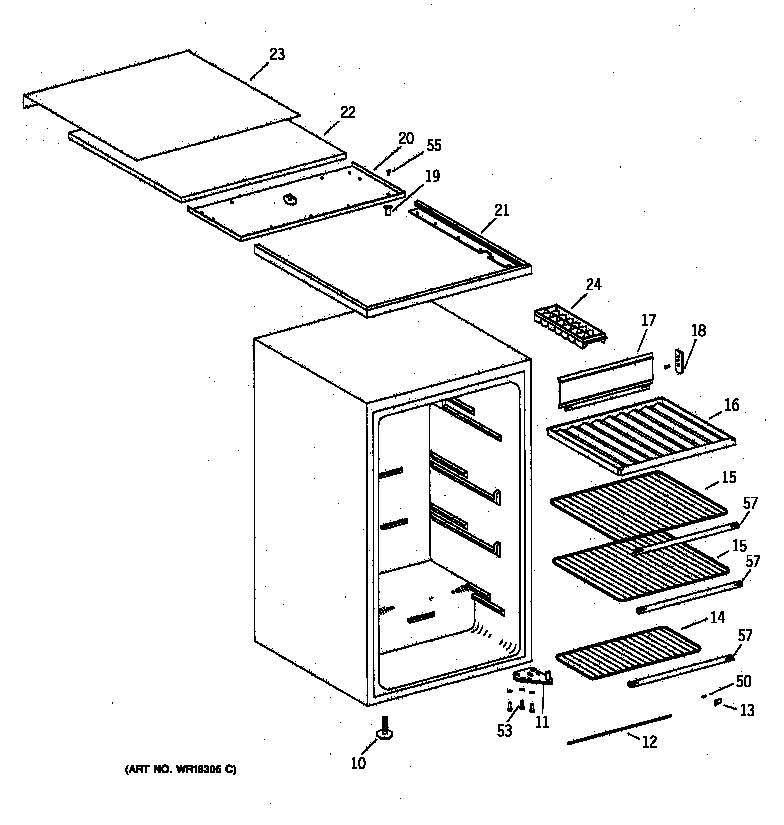

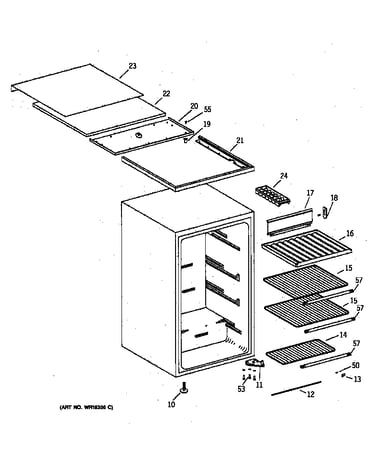

Cabinet diagram

Shelf

Part #WR71X6081

The manufacturer no longer makes this part, and there's no substitute part

Ice Tray WR30X5122
#24

Cabinet diagram

Ice tray

Part #WR30X5122

The manufacturer no longer makes this part, and there's no substitute part

Refrigerator Screw WR1K03
#56

Unit parts diagram

Refrigerator screw

Part #WR1K03

The manufacturer no longer makes this part, and there's no substitute part

Refrigerator Trim WR17X2906
#21

Cabinet diagram

Refrigerator trim

Part #WR17X2906

The manufacturer no longer makes this part, and there's no substitute part

Refrigerator Door Assembly WR78K06
#1

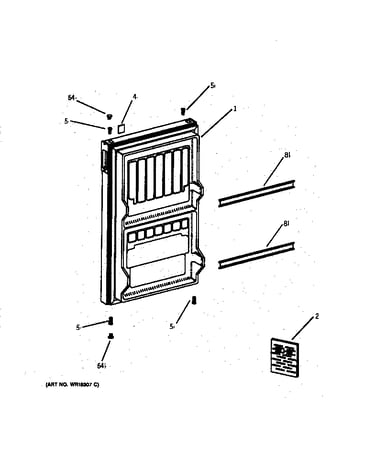

Door diagram

Refrigerator door assembly

Part #WR78K06

The manufacturer no longer makes this part, and there's no substitute part

Ptc Starter WR7K02
#42

Unit parts diagram

Ptc starter

Part #WR7K02

The manufacturer no longer makes this part, and there's no substitute part

Refrigerator Door Evaporator WR37K01
#17

Cabinet diagram

Refrigerator door evaporator

Part #WR37K01

The manufacturer no longer makes this part, and there's no substitute part
