Thermador
Electric Wall Oven

Model # ME271EB01 Official Thermador electric oven

Here are the diagrams and repair parts for Official Thermador ME271EB01 electric oven, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

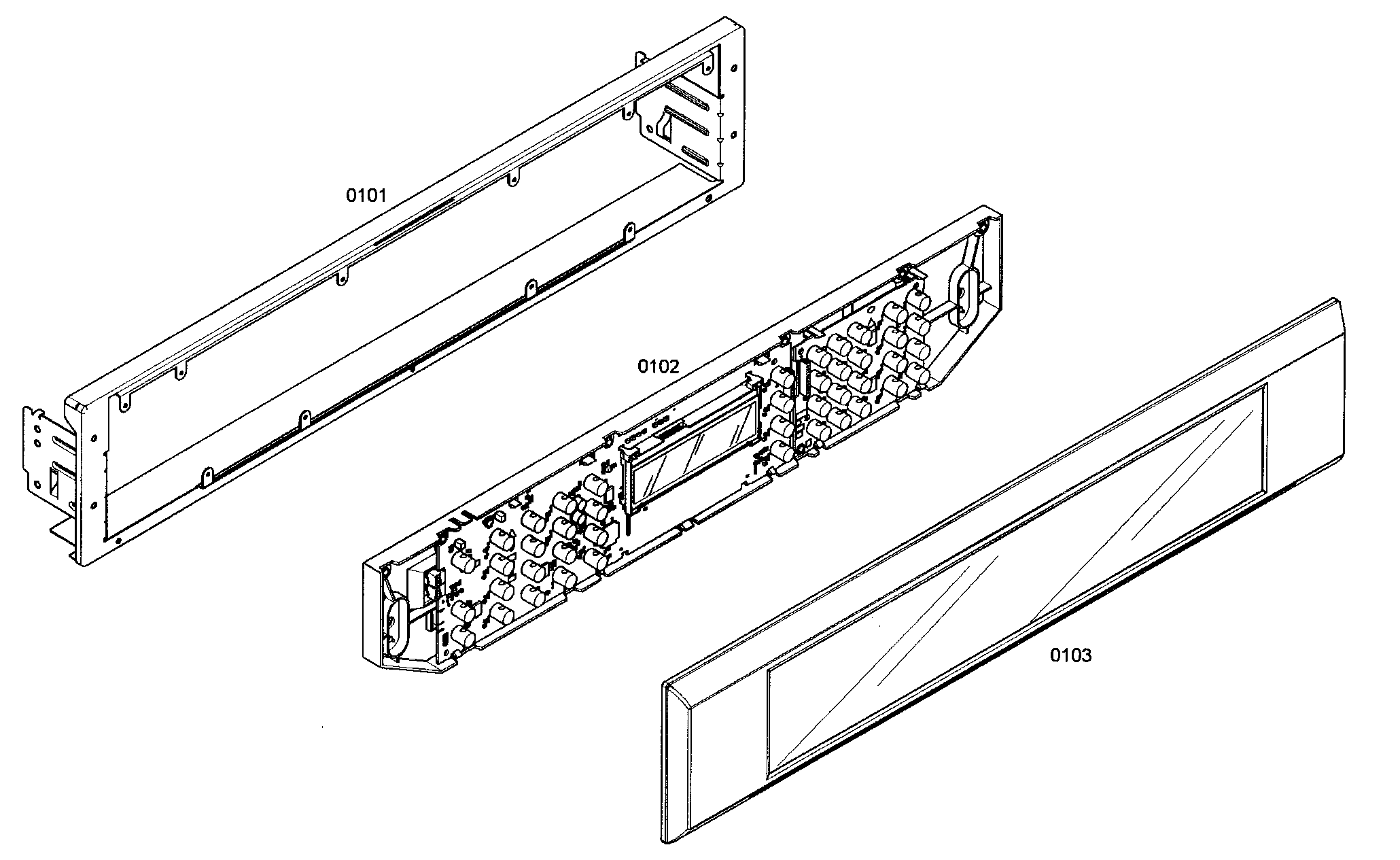

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 81 parts  |
Limiter 642844
#207

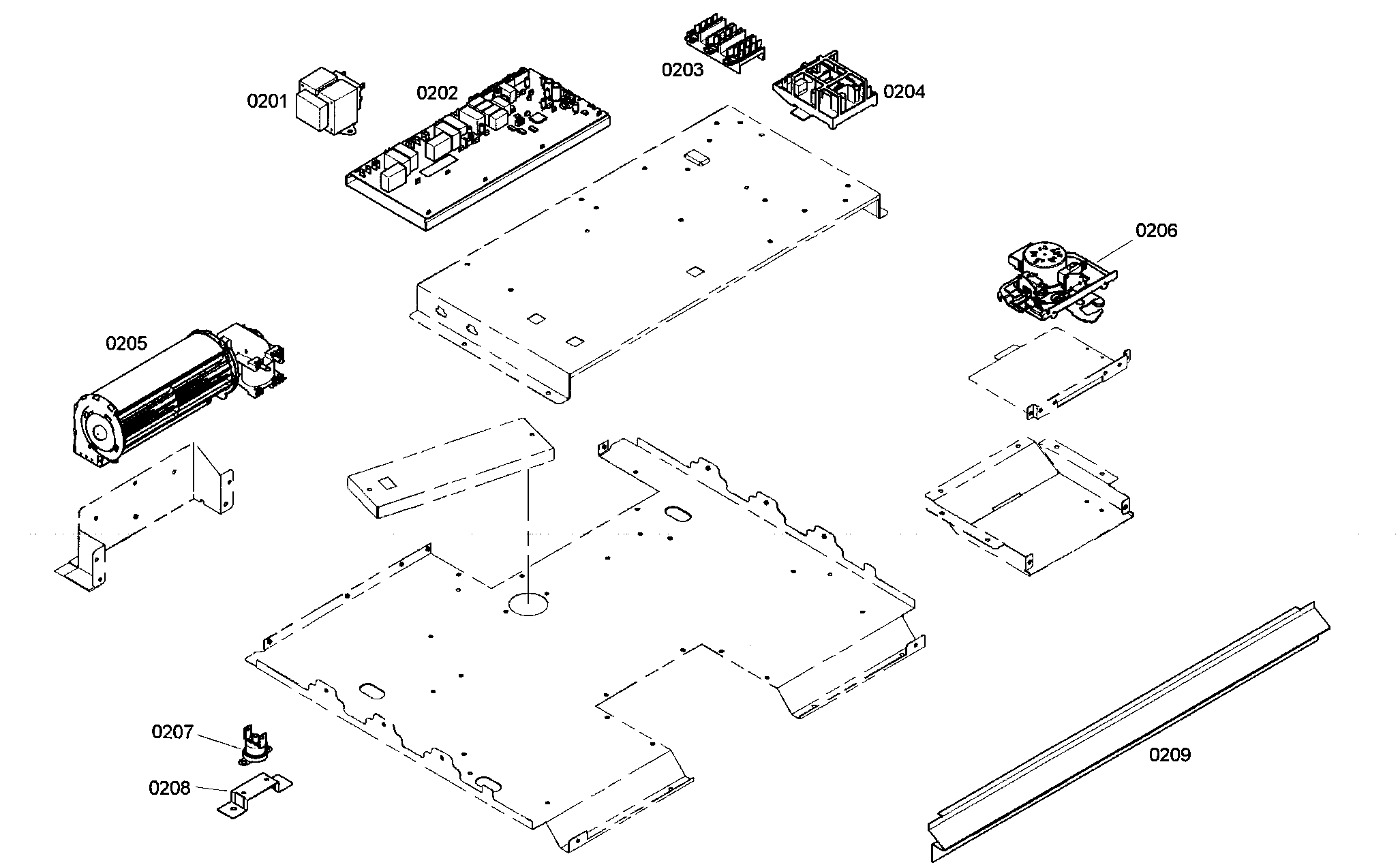

Pcb assy diagram

Limiter

Part #642844

Replaced by #00617877

?
Manufacturer substitution
This part replaces 642844. Substitute parts can look different from the original.
$29.36
In Stock
Fan 665045
#205

Pcb assy diagram

Fan

Part #665045

Replaced by #00665045

?
Manufacturer substitution
This part replaces 665045. Substitute parts can look different from the original.
$187.14
In Stock
Fan Wheel 491688
#310

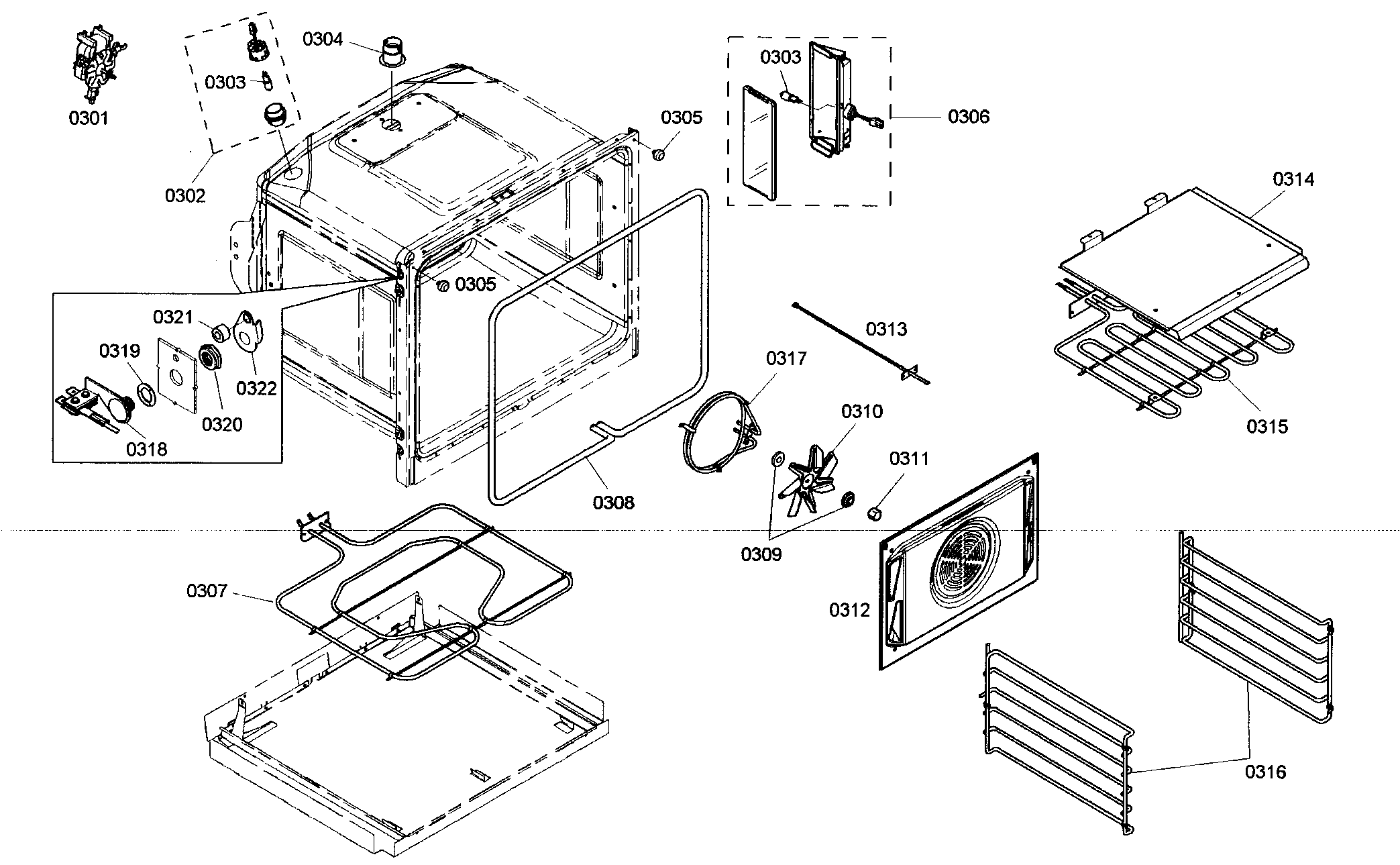

Cabinet parts diagram

Fan wheel

Part #491688

Replaced by #00646291

?
Manufacturer substitution
This part replaces 491688. Substitute parts can look different from the original.
$29.73
In Stock
Element 144723
#307

Cabinet parts diagram

Element

Part #144723

Replaced by #00144723

?
Manufacturer substitution
This part replaces 144723. Substitute parts can look different from the original.
$108.79 |
10% OFF Phone Price : $120.79
In Stock
Transformer 663801
#201

Pcb assy diagram

Transformer

Part #663801

Replaced by #00663801

?
Manufacturer substitution
This part replaces 663801. Substitute parts can look different from the original.
$159.12
In Stock
Plug 492332
#604

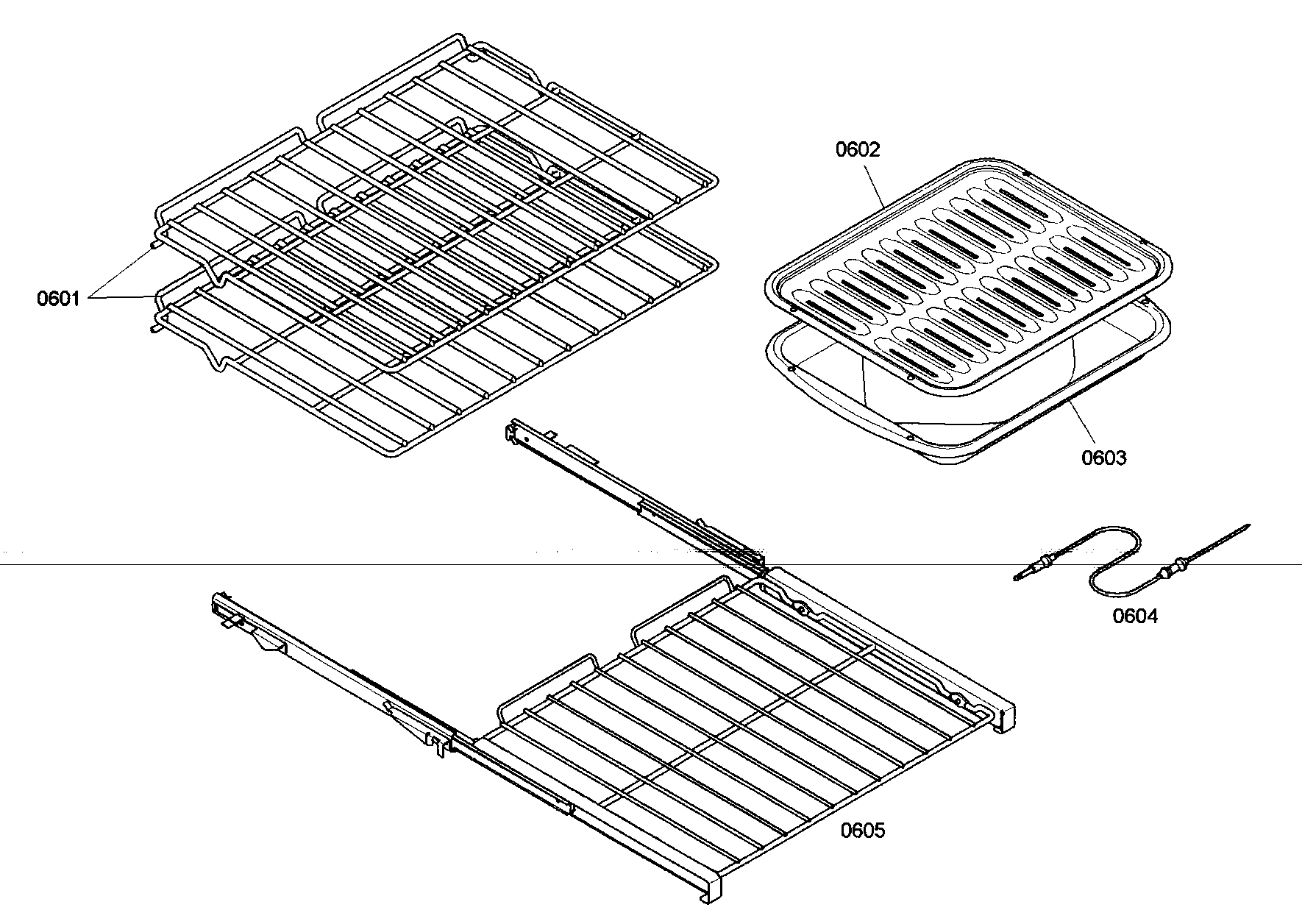

Shelf assy diagram

Plug

Part #492332

Replaced by #00755060

?
Manufacturer substitution
This part replaces 492332. Substitute parts can look different from the original.
$89.61 |
6% OFF Phone Price : $95.61
In Stock
Trim Plate 665059
#405

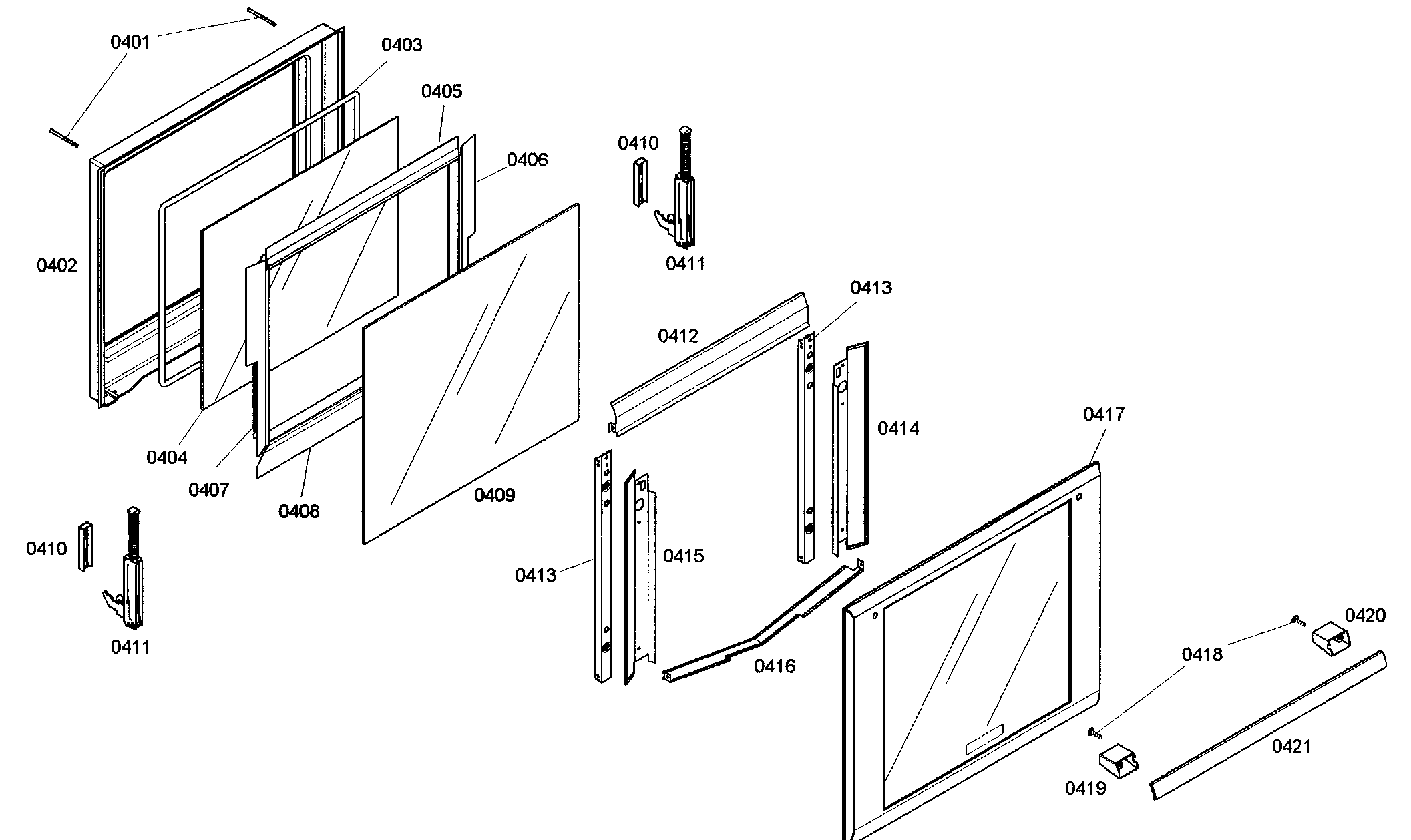

Door assy diagram

Trim plate

Part #665059

Replaced by #00680904

?
Manufacturer substitution
This part replaces 665059. Substitute parts can look different from the original.
$214.01 |
5% OFF Phone Price : $226.01
In Stock
Spacer 603860
#309

Cabinet parts diagram

Spacer

Part #603860

Replaced by #00603860

?
Manufacturer substitution
This part replaces 603860. Substitute parts can look different from the original.
$23.29
In Stock
Washer 415812
#502

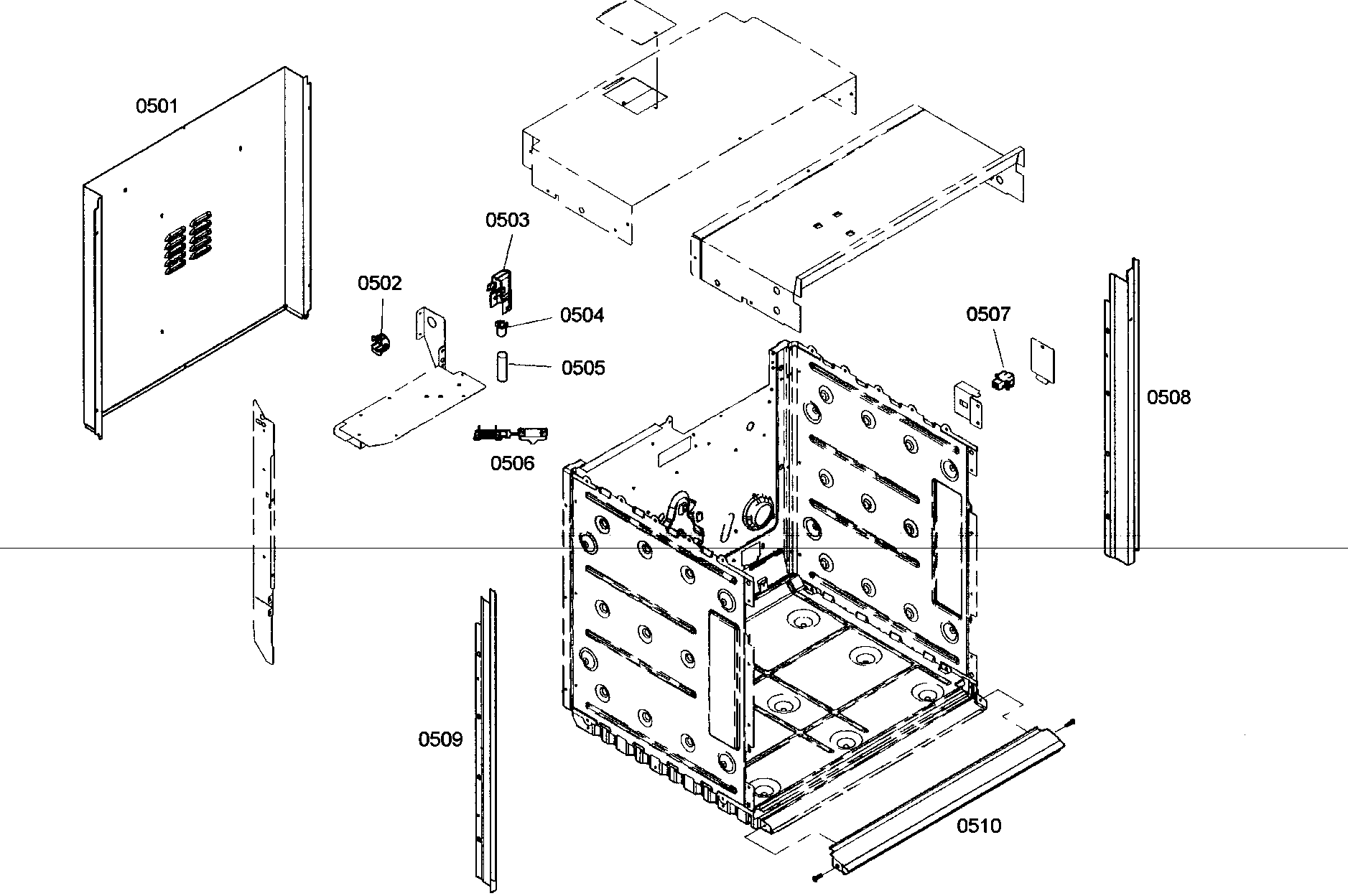

Outside parts diagram

Washer

Part #415812

Replaced by #00415812

?
Manufacturer substitution
This part replaces 415812. Substitute parts can look different from the original.
This item is not returnable
$7.49
In Stock
Lamp 187385
#303

Cabinet parts diagram

Lamp

Part #187385

Replaced by #00157311

?
Manufacturer substitution
This part replaces 187385. Substitute parts can look different from the original.
$44.59 |
12% OFF Phone Price : $50.59
In Stock
