Electrolux
Electric Cooktop

Model # E36IC80QSS2 Official Electrolux electric counter unit

Here are the diagrams and repair parts for Official Electrolux E36IC80QSS2 electric counter unit, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual
Error Codes

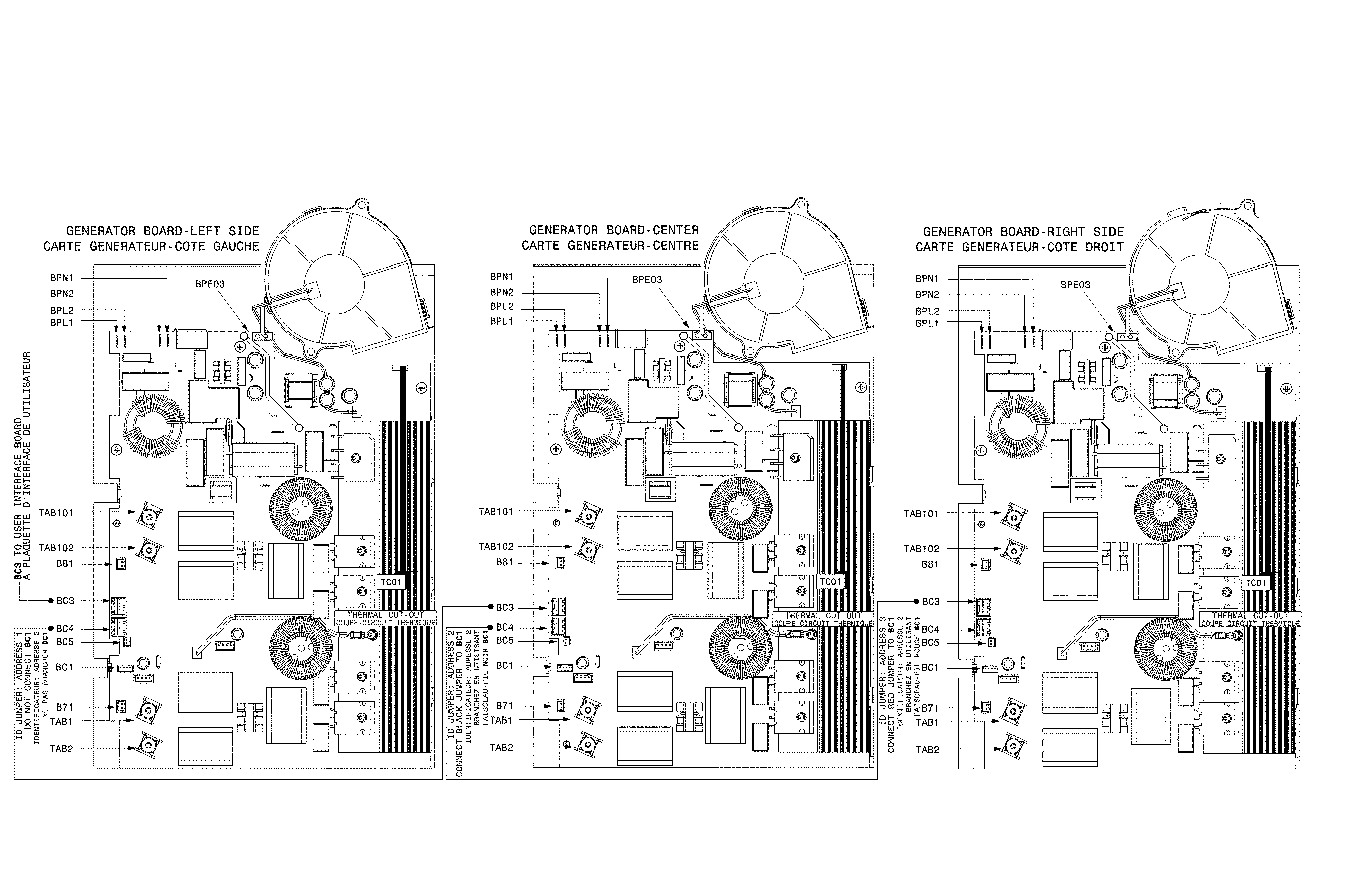

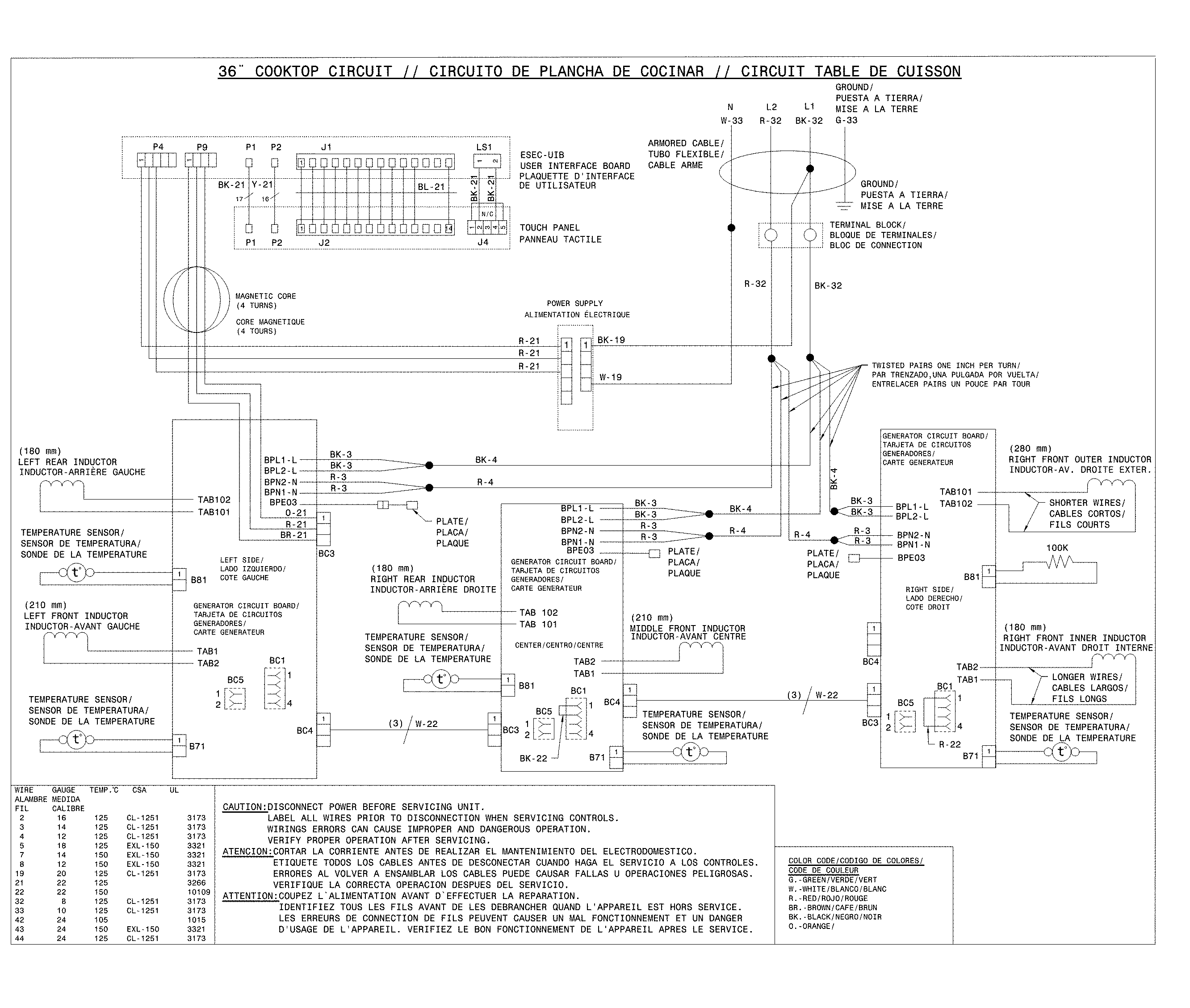

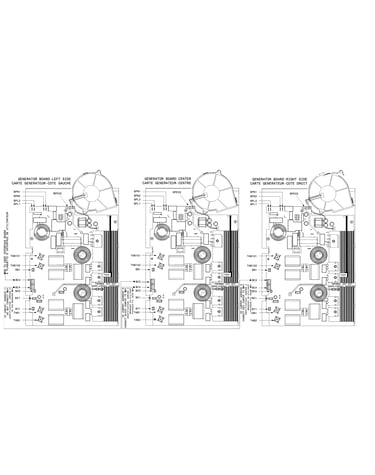

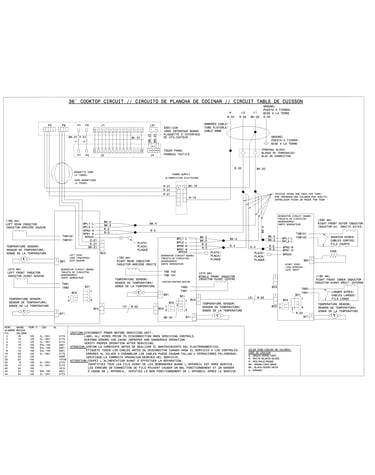

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 34 parts  |
Terminal Block 316056000
#62

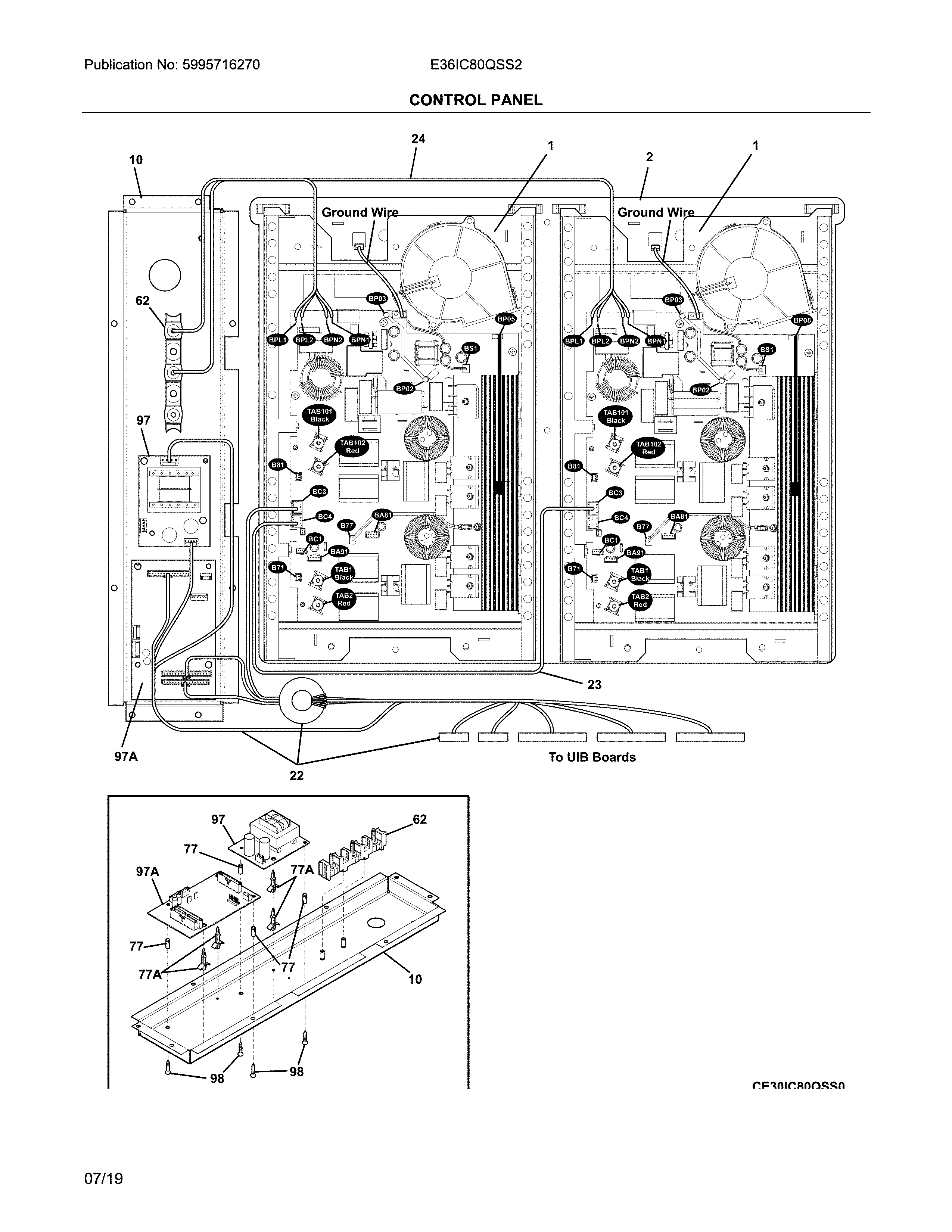

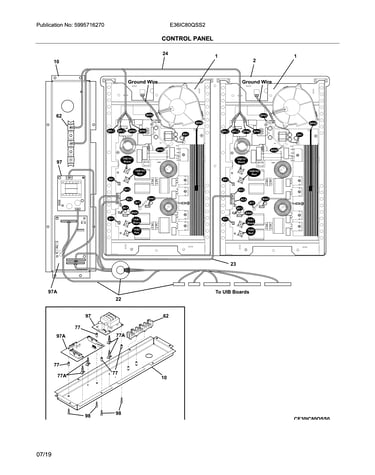

Control panel diagram

Terminal block

Part #316056000

Replaced by #5304409888

?
Manufacturer substitution
This part replaces 316056000. Substitute parts can look different from the original.
BEST SELLER
$9.64 |
9% OFF Phone Price : $10.64
In Stock
Housing Assembly 318416100
#1

Control panel diagram

Housing assembly

Part #318416100

Replaced by #903160-9010

?
Manufacturer substitution
This part replaces 318416100. Substitute parts can look different from the original.
$446.61 |
$12.00 OFF Phone Price : $458.61
In Stock
Range Surface Element Transformer 316435703
#97

Control panel diagram

Range surface element transformer

Part #316435703

$242.31 |
5% OFF Phone Price : $254.31
In Stock
Cooktop Centering Spring 387174602
#52

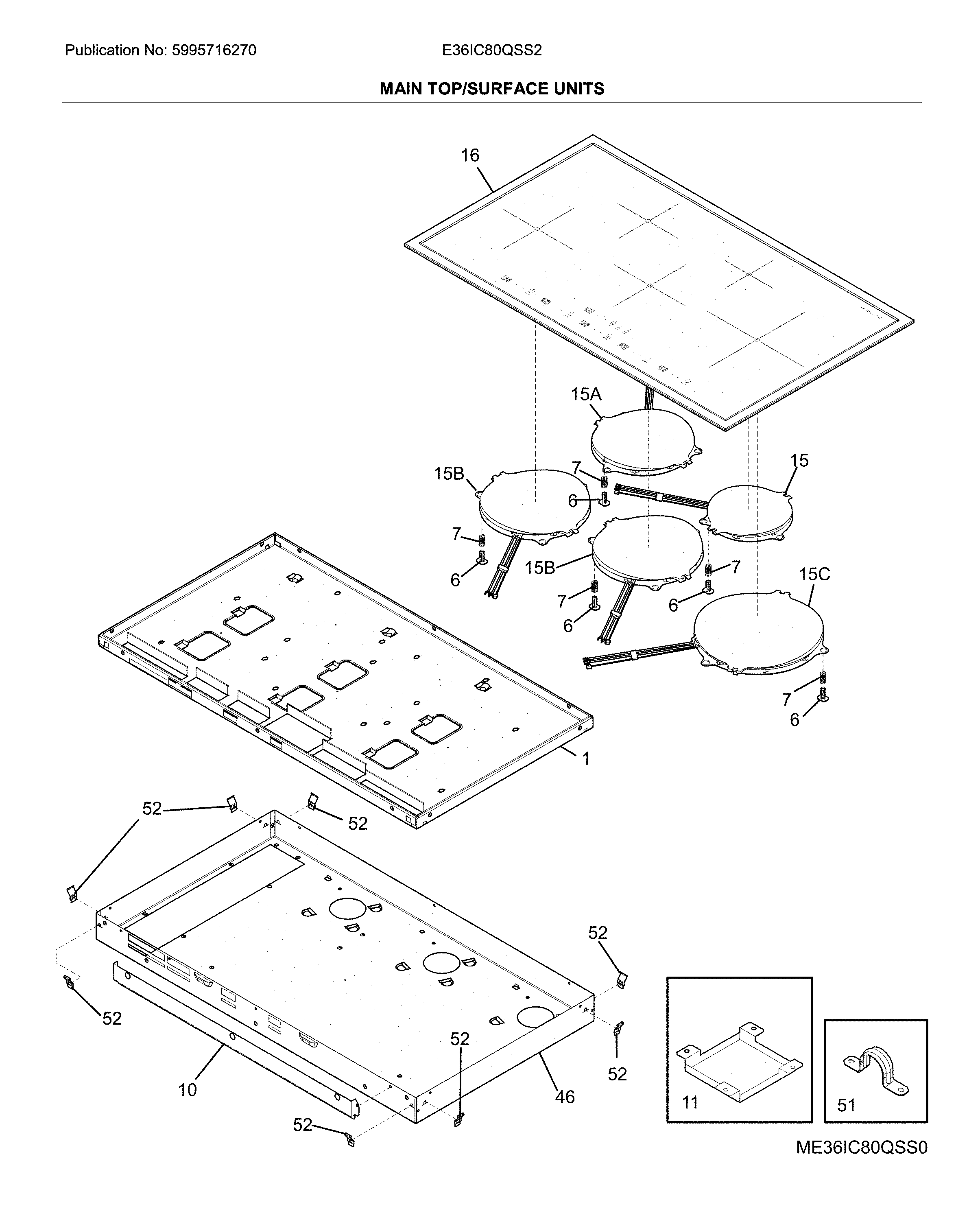

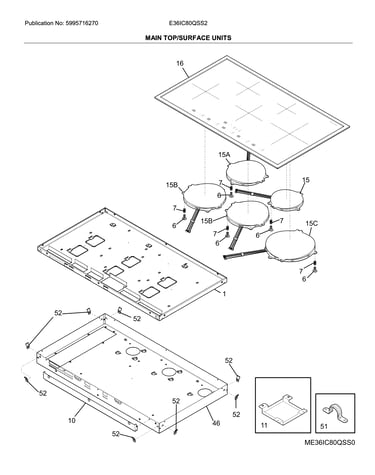

Main top/surface units diagram

Cooktop centering spring

Part #387174602

This item is not returnable
$6.63
In Stock
Range Power Control Board Support 316114100
#77A

Control panel diagram

Range power control board support

Part #316114100

$52.42 |
10% OFF Phone Price : $58.42
In Stock
Cooktop Wire Harness 318578332
#23

Control panel diagram

Cooktop wire harness

Part #318578332

$38.11
In Stock
Range Surface Induction Element 318329243
#15B

Main top/surface units diagram

Range surface induction element

Part #318329243

$183.53
In Stock
Top 305638949
#16

Main top/surface units diagram

Top

Part #305638949

$903.11
In Stock
Screw 305452800
#NI

Control panel diagram

Screw

Part #305452800

$9.09
In Stock
Nut 305376201
#NI

Control panel diagram

Nut

Part #305376201

This item is not returnable
$5.80
In Stock
