Model # 415152010 Official Kenmore gas grill
Here are the diagrams and repair parts for Official Kenmore 415152010 gas grill, as well as links to manuals and error code tables, if available.
Owner’s manualBy Schematic
SELECT DIAGRAM
Browse Parts for415152010 Outdoor Grills
- #9

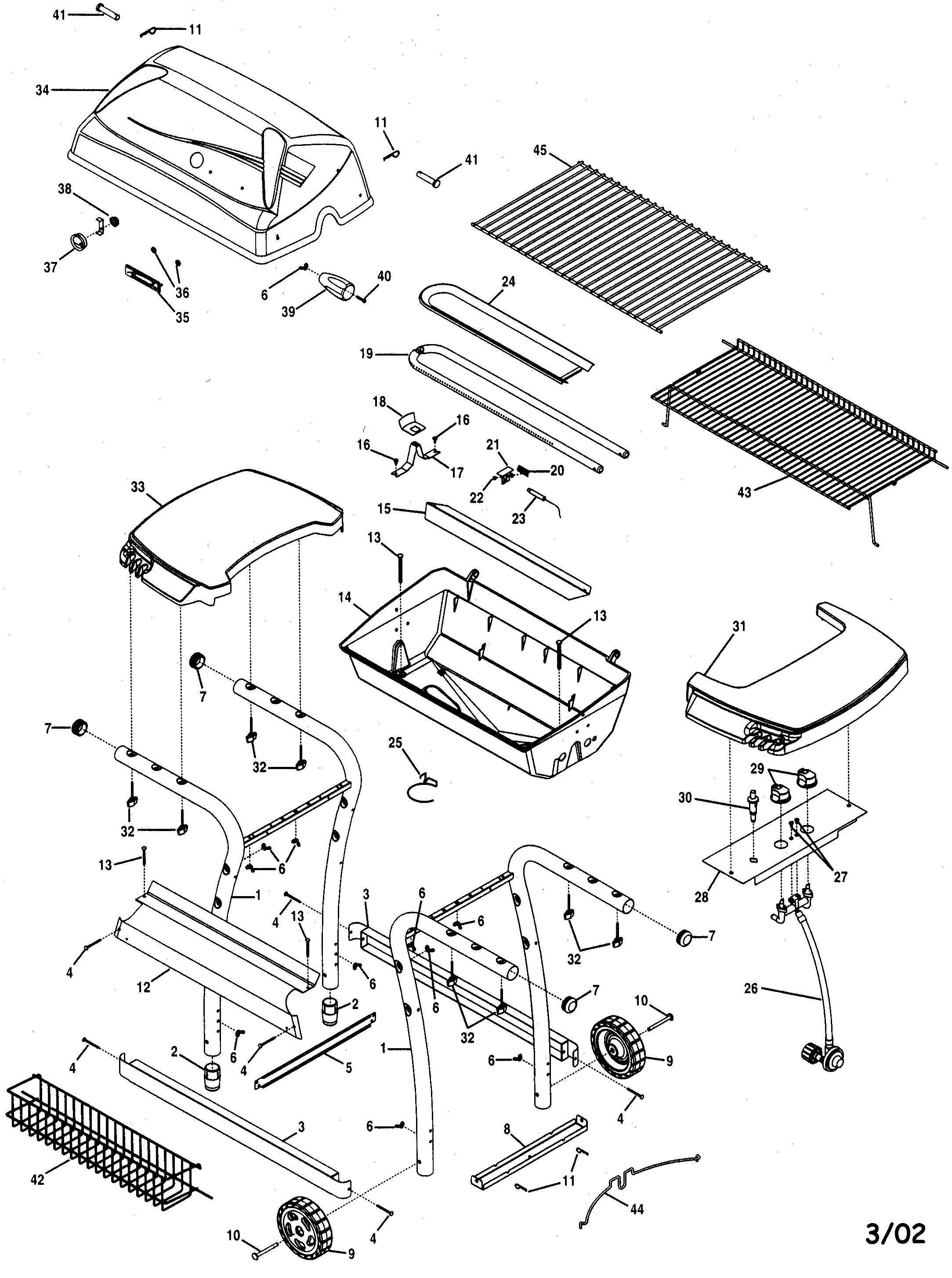

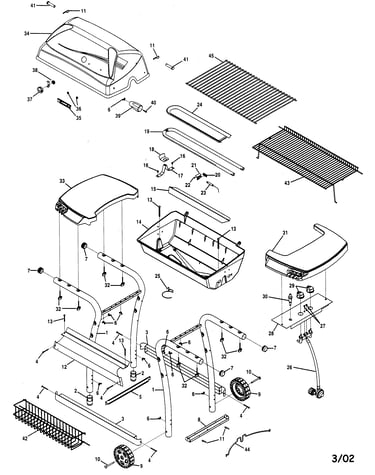

Grill diagram
WheelPart #4156956
Replaced by #G206-0025-W1
?Manufacturer substitutionThis part replaces 4156956. Substitute parts can look different from the original.$6.69 |13% OFF Phone Price : $7.69In Stock - #30
Grill diagram
Thermos gas grill igniterPart #4153713
This item is not returnable$11.09 |15% OFF Phone Price : $13.09In Stock - #17
Grill diagram
BracketPart #4500231
Replaced by #4500261
?Manufacturer substitutionThis part replaces 4500231. Substitute parts can look different from the original.This item is not returnable$2.16In Stock - #25
Grill diagram
ClipPart #5156607
Replaced by #80011874
?Manufacturer substitutionThis part replaces 5156607. Substitute parts can look different from the original.This item is not returnable$8.54In Stock - #16
Grill diagram
Thermos gas grill screwPart #4080043
This item is not returnable$2.89 |26% OFF Phone Price : $3.89In Stock - #10
Grill diagram
Ken-ran gas grill axle boltPart #4080155
This item is not returnable$2.16In Stock - #18
Grill diagram
Gas grill burner support bracketPart #4500248
This item is not returnable$2.16In Stock - #27
Grill diagram
ScrewPart #4080379
The manufacturer no longer makes this part, and there's no substitute part
- #11
Grill diagram
Gas grill cotter pinPart #4080062
The manufacturer no longer makes this part, and there's no substitute part
- #13
Grill diagram
BoltPart #4080074
The manufacturer no longer makes this part, and there's no substitute part
Symptoms for gas grills
Choose a symptom to see related gas grill repairs.
Main causes: nearly empty fuel tank, faulty pressure regulator, burner tube clogs, bad burner tube alignment to gas valv…
Main causes: empty fuel tank, tripped flow-limiting device on the pressure regulator, faulty manifold valves, burner tub…
Main cause: worn wheel…
Main causes: damaged or dirty flame tamers, corroded firebox, accumulated grease and debris in the grease pan…
Main causes: clogged burner tubes, cracked insulators on igniter electrodes, wiring failures, bad ignition module, manif…
Repair guides for gas grills
These step-by-step repair guides will help you safely fix what’s broken on your gas grill.
How to replace a gas grill wheel
Replace a broken or damaged wheel in less than 15 minutes.…
Repair difficulty
Time required
15 minutes or less
How to replace a gas grill igniter electrode
Replace the igniter electrode on your gas grill if it won’t light the burner.…
Repair difficulty
Time required
15 minutes or less
How to replace a gas grill ignition module
Follow these steps to replace the ignition module if it doesn't produce a spark. …
Repair difficulty
Time required
15 minutes or less
Effective articles & videos to help repair your outdoor grills
Use the advice and tips in these articles and videos to get the most out of your gas grill.
Tired of low flames ruining your grill nights? Learn how your gas grill regulator works, how to spot failures, and why r…
From rotisserie kits to smoker boxes, we break down the best gas grill add-ons and how to use them. These tips and ideas…
Don’t let your grill go from hero to hazard. This checklist helps you clean it, check it, and fire it up with confidence…
