Model # S1133--- Official Hoover handheld vacuum

Here are the diagrams and repair parts for Official Hoover S1133- handheld vacuum, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 18 parts  |

Vacuum Beater Bar Belt 59139005
#16

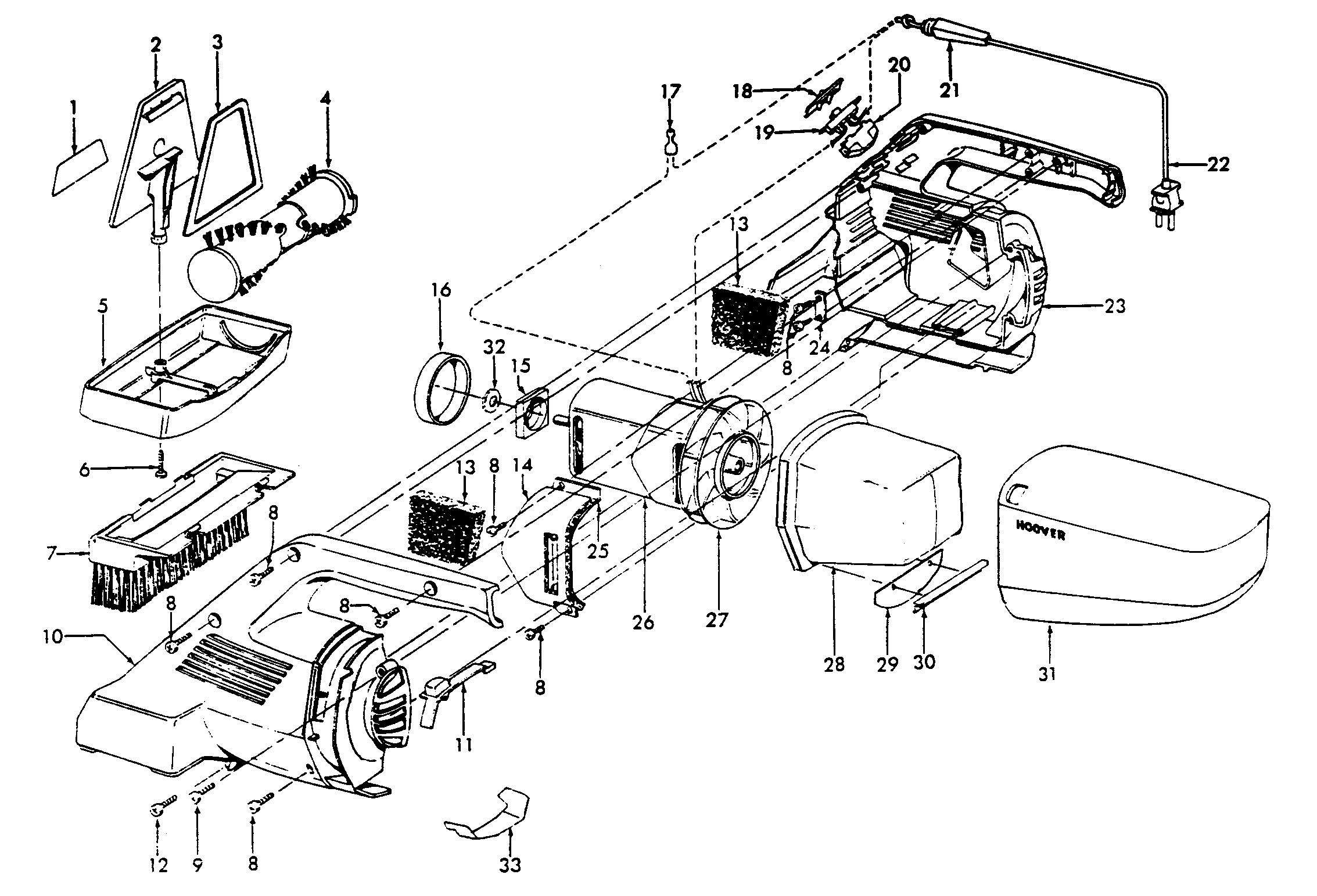

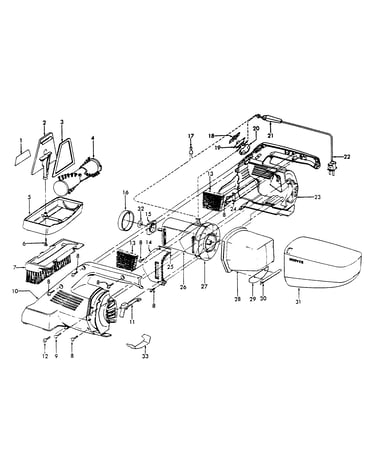

Motor assembly, motorhousing diagram

Vacuum beater bar belt

Part #59139005

The manufacturer no longer makes this part, and there's no substitute part

Nameplate 59139069
#1A

Motor assembly, motorhousing diagram

Nameplate

Part #59139069

The manufacturer no longer makes this part, and there's no substitute part

Kenmore Crevice Tool 38617024
Kenmore crevice tool

Part #38617024

The manufacturer no longer makes this part, and there's no substitute part

Dust Brush 43414145
Dust brush

Part #43414145

The manufacturer no longer makes this part, and there's no substitute part

Cleaner Support, Front 59139043
#996K

Motor assembly, motorhousing diagram

Cleaner support, front

Part #59139043

The manufacturer no longer makes this part, and there's no substitute part

Wall Rack 36433056
#5A

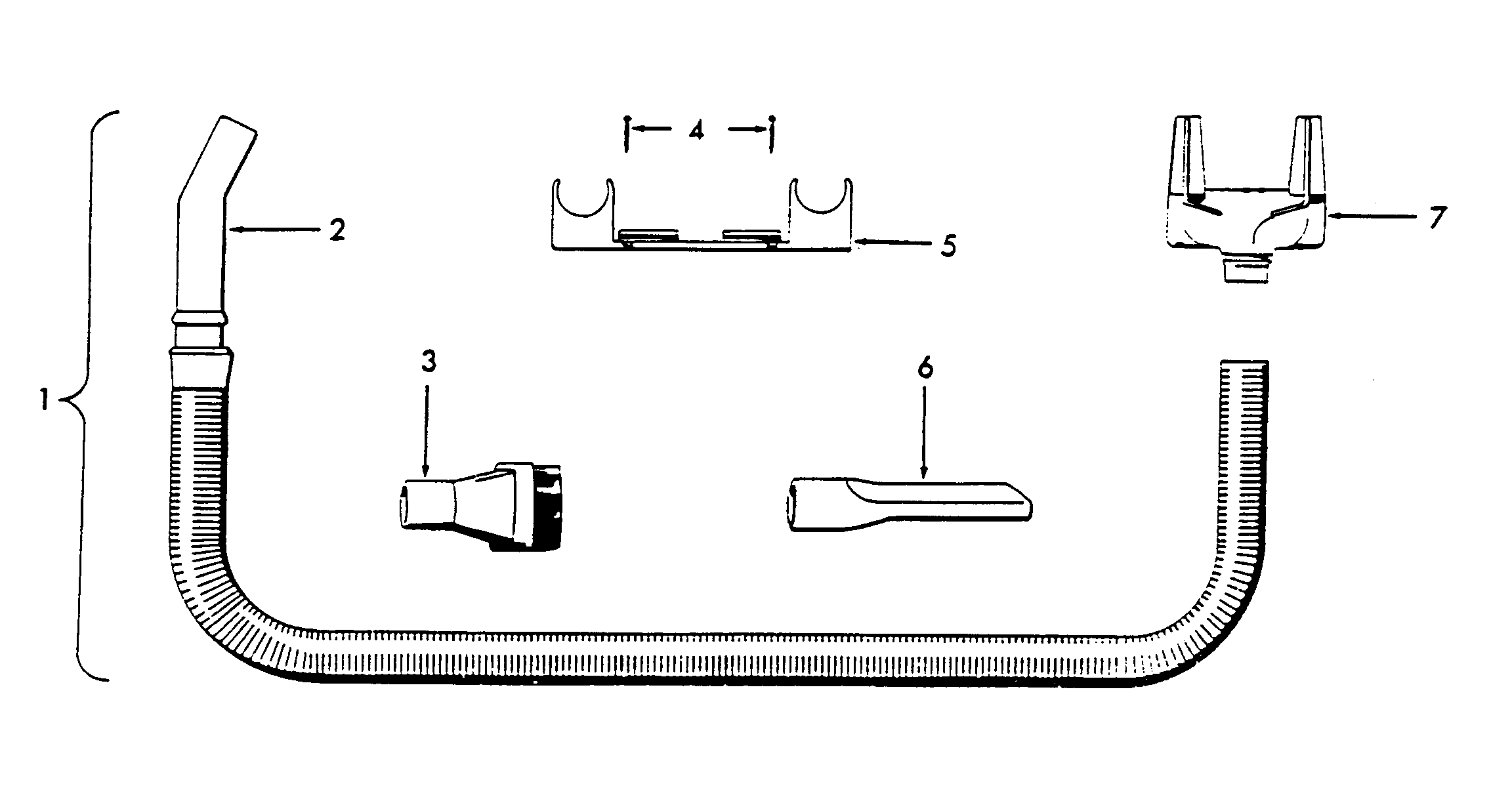

Cleaningtools diagram

Wall rack

Part #36433056

The manufacturer no longer makes this part, and there's no substitute part

Bottom 59139012
#5A

Motor assembly, motorhousing diagram

Bottom

Part #59139012

The manufacturer no longer makes this part, and there's no substitute part

Cover 59139009
#2B

Motor assembly, motorhousing diagram

Cover

Part #59139009

The manufacturer no longer makes this part, and there's no substitute part

Vacuum Filter, 1-pack 59139080
#28

Motor assembly, motorhousing diagram

Vacuum filter, 1-pack

Part #59139080

The manufacturer no longer makes this part, and there's no substitute part

Conversion Body 38656032
#7A

Cleaningtools diagram

Conversion body

Part #38656032

The manufacturer no longer makes this part, and there's no substitute part
