Model # 153338721 Official Kenmore gas water heater
Here are the diagrams and repair parts for Official Kenmore 153338721 gas water heater, as well as links to manuals and error code tables, if available.
Error CodesBy Schematic
SELECT DIAGRAM
Browse Parts for
153338721 Water Heaters
#16

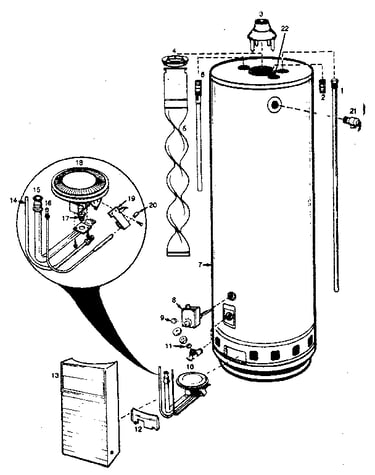

Replacement parts diagram
Thermocouple
Part #42-9231
Replaced by #H06E-36
?
Manufacturer substitution
This part replaces 42-9231. Substitute parts can look different from the original.
$14.91 |
12% OFF Phone Price : $16.91
Back Order
#4A
Replacement parts diagram
Flue baffle
Part #9001206
$33.49
In Stock
#5B
Replacement parts diagram
Baffle
Part #9000945
$65.99
In Stock
#5A
Replacement parts diagram
Baffle
Part #9000944
$60.49
In Stock
#12
Replacement parts diagram
Water heater manifold inner door
Part #9000281
$30.00 |
17% OFF Phone Price : $36.00
In Stock
#15C
Replacement parts diagram
Manifold
Part #0220107
Replaced by #100108818
?
Manufacturer substitution
This part replaces 0220107. Substitute parts can look different from the original.
$54.44
In Stock
#17A
Replacement parts diagram
Orifice
Part #0230120
Replaced by #100108635
?
Manufacturer substitution
This part replaces 0230120. Substitute parts can look different from the original.
$24.29
In Stock
#19
Replacement parts diagram
Pilot
Part #9000284
Replaced by #100109070
?
Manufacturer substitution
This part replaces 9000284. Substitute parts can look different from the original.
$47.78
In Stock
#13
Replacement parts diagram
Cover
Part #9001209
Replaced by #9002856
?
Manufacturer substitution
This part replaces 9001209. Substitute parts can look different from the original.
$54.44 |
10% OFF Phone Price : $60.44
In Stock
#2
Replacement parts diagram
Nipple
Part #9000948
Replaced by #9002564
?
Manufacturer substitution
This part replaces 9000948. Substitute parts can look different from the original.
$19.19 |
9% OFF Phone Price : $21.19
In Stock
