Model # TC-50CX600U Official Panasonic lcd television

Here are the diagrams and repair parts for Official Panasonic TC-50CX600U lcd television, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 48 parts  |

Led Panel TKK5ZC50581
#13

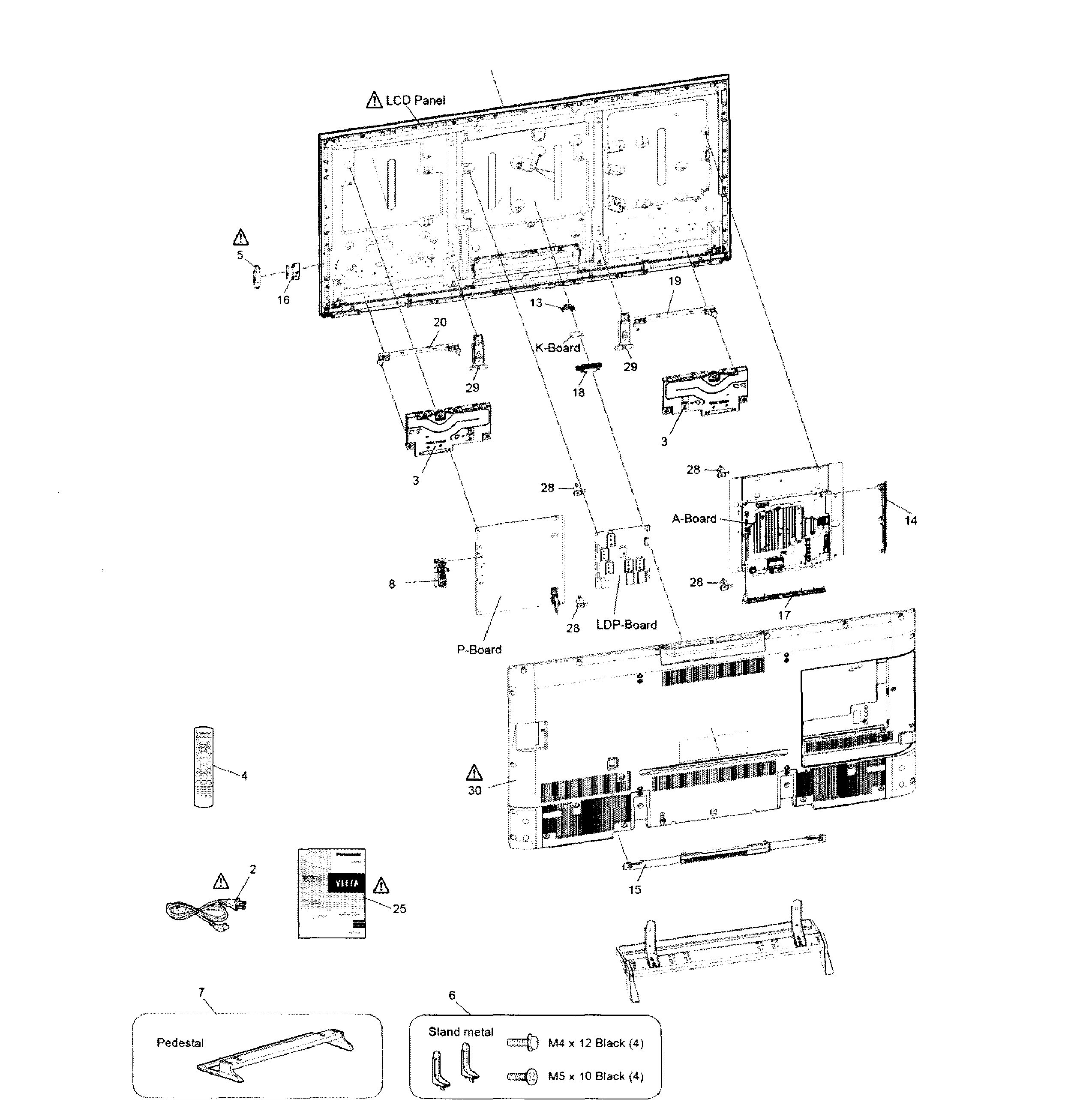

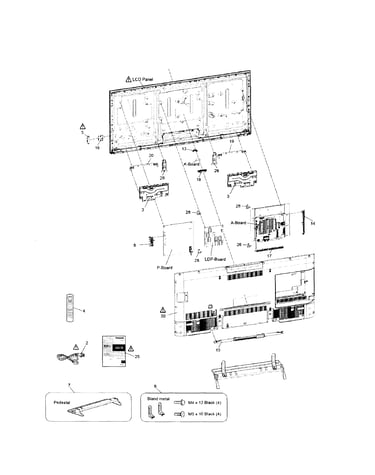

Cabinet parts diagram

Led panel

Part #TKK5ZC50581

The manufacturer no longer makes this part, and there's no substitute part

Panasonic Control Board TXN/A1BJVUS
#NI

Cabinet parts diagram

Panasonic control board

Part #TXN/A1BJVUS

The manufacturer no longer makes this part, and there's no substitute part

Panasonic Cover TXFKU0815SER
#30

Cabinet parts diagram

Panasonic cover

Part #TXFKU0815SER

The manufacturer no longer makes this part, and there's no substitute part

Panasonic Vesa Metal TUX5ZX0921
#28

Cabinet parts diagram

Panasonic vesa metal

Part #TUX5ZX0921

The manufacturer no longer makes this part, and there's no substitute part

Gasket TEWB633
#NI

Cabinet parts diagram

Gasket

Part #TEWB633

The manufacturer no longer makes this part, and there's no substitute part

Relay K6B1AYY00100
#NI

Cabinet parts diagram

Relay

Part #K6B1AYY00100

The manufacturer no longer makes this part, and there's no substitute part

Metal Stand TBL5ZX09041
#6

Cabinet parts diagram

Metal stand

Part #TBL5ZX09041

The manufacturer no longer makes this part, and there's no substitute part

Bot Metal TUX5ZX1001
#29

Cabinet parts diagram

Bot metal

Part #TUX5ZX1001

The manufacturer no longer makes this part, and there's no substitute part

Panasonic Pcb TXN/P1BJVUS
#NI

Cabinet parts diagram

Panasonic pcb

Part #TXN/P1BJVUS

The manufacturer no longer makes this part, and there's no substitute part

Screw 3x8 XYN3C8FJ
#NI

Cabinet parts diagram

Screw 3x8

Part #XYN3C8FJ

The manufacturer no longer makes this part, and there's no substitute part
