Model # 13-3008-00-01 Official Tappan electric range - lt32088520

Here are the diagrams and repair parts for Official Tappan 13-3008-00-01 electric range - lt32088520, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 24 parts  |
Surface Pan 3051479
#15

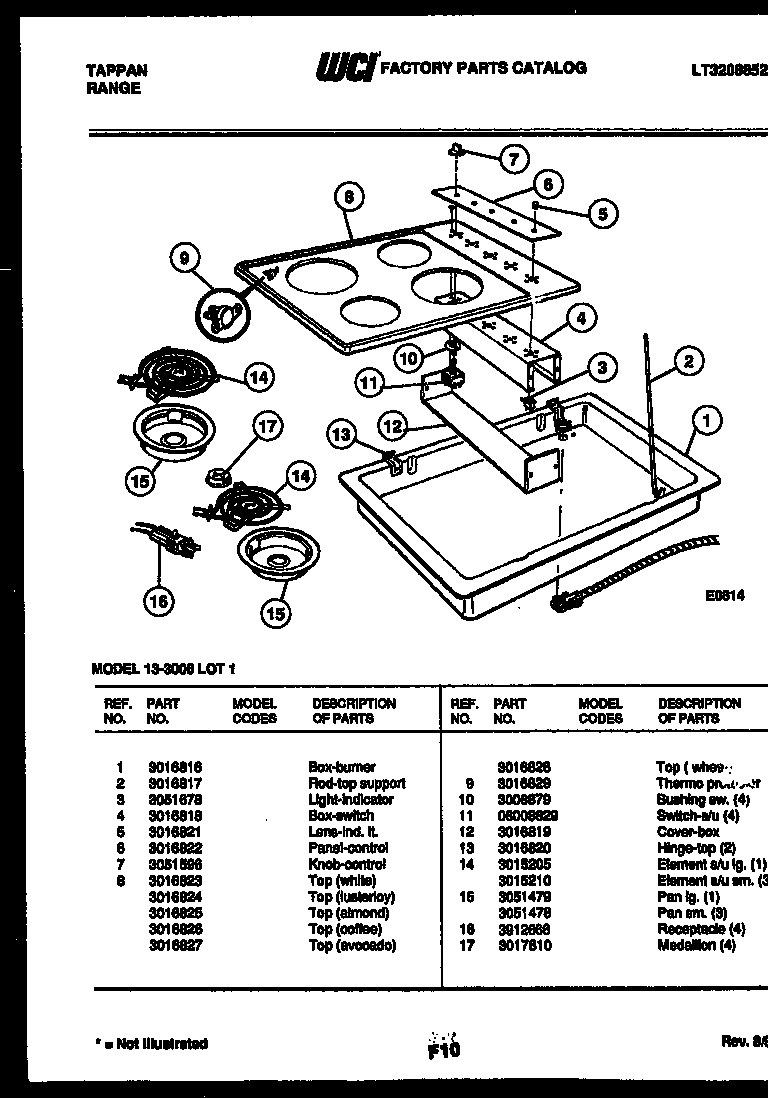

Cooktop parts diagram

Surface pan

Part #3051479

Replaced by #316048413

?
Manufacturer substitution
This part replaces 3051479. Substitute parts can look different from the original.
BEST SELLER
$7.30 |
12% OFF Phone Price : $8.30
In Stock
Surface Element 3015210
#14A

Cooktop parts diagram

Surface element

Part #3015210

Replaced by #318372211

?
Manufacturer substitution
This part replaces 3015210. Substitute parts can look different from the original.
BEST SELLER
$37.93 |
14% OFF Phone Price : $43.93
In Stock
Surface Element 3015205
#14

Cooktop parts diagram

Surface element

Part #3015205

Replaced by #5308011964

?
Manufacturer substitution
This part replaces 3015205. Substitute parts can look different from the original.
$153.29 |
7% OFF Phone Price : $165.29
In Stock
Surface Pan 3051478
#15A

Cooktop parts diagram

Surface pan

Part #3051478

Replaced by #316048414

?
Manufacturer substitution
This part replaces 3051478. Substitute parts can look different from the original.
This item is not returnable
$5.97 |
14% OFF Phone Price : $6.97
In Stock
Switch 08008829
#11

Cooktop parts diagram

Switch

Part #08008829

The manufacturer no longer makes this part, and there's no substitute part

Panel 3016823
#8

Cooktop parts diagram

Panel

Part #3016823

The manufacturer no longer makes this part, and there's no substitute part

Light 3051678
#3

Cooktop parts diagram

Light

Part #3051678

The manufacturer no longer makes this part, and there's no substitute part

Cover 3016819
#12

Cooktop parts diagram

Cover

Part #3016819

The manufacturer no longer makes this part, and there's no substitute part

Panel 3016828
#8

Cooktop parts diagram

Panel

Part #3016828

The manufacturer no longer makes this part, and there's no substitute part

Panel 3016824
#8

Cooktop parts diagram

Panel

Part #3016824

The manufacturer no longer makes this part, and there's no substitute part
