Model # 11319845 Official Craftsman split-phase oil burner motor

Here are the diagrams and repair parts for Official Craftsman 11319845 split-phase oil burner motor, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

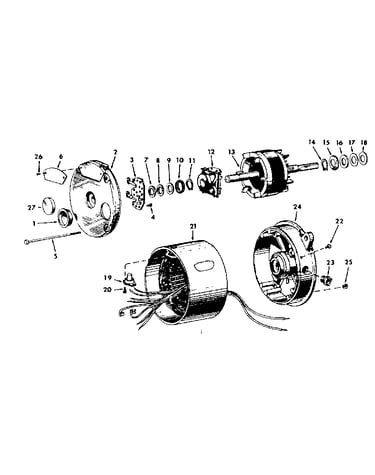

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 23 parts  |
Kenmore Power Tool Washer 30767
Kenmore power tool washer

Part #30767

The manufacturer no longer makes this part, and there's no substitute part

Retaining Ring 30783
Retaining ring

Part #30783

The manufacturer no longer makes this part, and there's no substitute part

Screw #6 X 3/16 Type U Rd. Hd. Cd. Pl. S-1445
#26

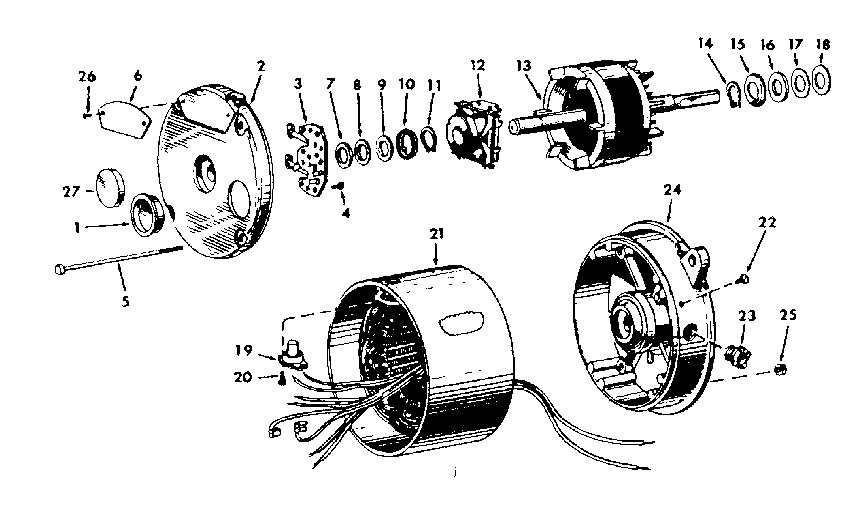

Unit diagram

Screw #6 x 3/16 type u rd. hd. cd. pl.

Part #S-1445

The manufacturer no longer makes this part, and there's no substitute part

Bushing 37145
#23

Unit diagram

Bushing

Part #37145

The manufacturer no longer makes this part, and there's no substitute part

Screw S-1330
#4

Unit diagram

Screw

Part #S-1330

The manufacturer no longer makes this part, and there's no substitute part

End Shield 37138
#2

Unit diagram

End shield

Part #37138

The manufacturer no longer makes this part, and there's no substitute part

Bearing Cap 30784
#27

Unit diagram

Bearing cap

Part #30784

The manufacturer no longer makes this part, and there's no substitute part

Protector 37143
#19

Unit diagram

Protector

Part #37143

The manufacturer no longer makes this part, and there's no substitute part

Hex Nut S-1444
#22

Unit diagram

Hex nut

Part #S-1444

The manufacturer no longer makes this part, and there's no substitute part

Actuatr Assm 30770
#12

Unit diagram

Actuatr assm

Part #30770

The manufacturer no longer makes this part, and there's no substitute part
